LOKITHOR J401X Bærbar Jumpstarter Brugermanual

1. Introduktion

The LOKITHOR J401X is a powerful and versatile portable jump starter designed to provide emergency power for vehicles and electronic devices. It features advanced auto-heating technology for extreme cold conditions, fast charging capabilities, and multiple safety protections.

This image displays the LOKITHOR J401X jump starter unit, showcasing its compact design, attached jump starter clamps, and various charging cables including USB-C to USB-C, USB-A to USB-C, and a 12V adapter.

2. Hvad er der i æsken

Bekræft at alle varer er til stede i pakken:

• LOKITHOR J401X Portable Lithium Car Battery Jump Starter
• LO-CLAMP-Pro (Jumpstart Clamps)
• 12V adapter
• Brugermanual
• USB-C til USB-C kabel
• USB-A til USB-C kabel

This image illustrates the complete contents of the LOKITHOR J401X package, including the main unit, jumpstart clamps, 12V adapter, USB-C to USB-C cable, USB-A to USB-C cable, and the user manual.

3. Produktfunktioner

• Kraftig ydeevne: 2500A peak starting current, capable of up to 60 jump-starts on a full charge. Suitable for gasoline engines under 8.5L and diesel engines under 6.5L.
• Auto-Heating Technology: Integrated automatic pre-heating for reliable starting in temperatures as low as -40°F (-40°C).
• Hurtig opladning: 100W two-way USB-C fast charging allows full recharge in approximately 45 minutes, or a 3-minute charge for a single jump start.
• Power Bank funktionalitet: Provides 100W USB-C output and 18W USB-A output for charging phones, tablets, laptops, and other electronic devices.
• Forlænget standbytid: Ultra-low self-discharge rate provides up to 42 months of standby time.
• Holdbart design: Rugged IP65 water-resistant and 94V0 flame-retardant polymer casing, designed to withstand drops and operate in extreme environments from -40°F to 140°F.
• Multi-purpose LED Flashlight: 300 lumen LED light with Lightning, SOS, and Strobe modes for various emergency and utility uses.
• Ergonomisk kontrolpanel: 3.95-inch digital display shows battery levels, operation status, and error codes.

3.1. Auto-Heating Technology

The J401X features an automatic pre-heating system that activates when the ambient temperature drops below -5°F (-20°C), ensuring optimal performance in cold weather.

This image shows the LOKITHOR J401X jump starter connected to a car battery in a snowy environment, highlighting its auto-heating technology for cold weather operation.

3.2. Kontrolpanel

The 3.95-inch ergonomic control panel provides clear visual feedback on the device's status.

This image provides a close-up of the J401X's control panel, detailing indicators for fast charge, charging status, USB-A/USB-C output, abnormal temperature, battery level, digital voltage display, abnormal alarm, and the power button.

3.3. Holdbarhed og design

The J401X is constructed with a robust polymer casing that has been tested to withstand over 3000 drops. Its IP65 rating ensures resistance to water and dust.

This image highlights the IP65 waterproof and dust-resistant design of the LOKITHOR J401X, showing water splashing on the unit.

3.4. LED lommelygte

The integrated 300 lumen LED flashlight offers multiple modes for various situations.

This image shows the LOKITHOR J401X jump starter being used as a light source during camping, demonstrating its utility as an emergency light.

4. Sikkerhedsoplysninger

The LOKITHOR J401X incorporates an intelligent battery management system with 10 safety protection technologies to ensure safe operation.

• Spark-Proof Protection
• Reverse-Charge Protection
• Beskyttelse mod overopladning
• Overstrømsbeskyttelse
• Kortslutningsbeskyttelse
• Beskyttelse mod omvendt polaritet
• Low-Temp Protection
• High-Temp Protection
• Over-bindtage Beskyttelse
• Overbelastningsbeskyttelse

This diagram visually represents the 10 safety protection technologies integrated into the LOKITHOR J401X, including spark-proof, reverse-charge, over-charge, over-current, short-circuit, reverse-polarity, low-temp, high-temp, over-voltage, og overbelastningsbeskyttelse.

The integrated spark-proof design prevents short circuits during storage and use, enhancing overall safety.

This image highlights the integrated spark-proof design of the jump starter clamps, emphasizing safety features that prevent short circuits.

5. Opsætning

5.1. Første opladning

Before first use, fully charge the LOKITHOR J401X. Connect the USB-C to USB-C cable to a compatible 100W USB-C power adapter (not included) and the device. The digital display will indicate charging progress.

5.2. Kontrol af batteriniveau

Press the power button once to check the current battery level on the digital display. Ensure sufficient charge before attempting to jump start a vehicle.

6. Betjeningsvejledning

6.1. Start af et køretøj med startkabler

Ensure the vehicle's ignition is off and all accessories are unplugged. Connect the jump starter clamps to the vehicle battery terminals correctly: red clamp til positiv (+), sort clamp til negativ (-).

This image shows the LOKITHOR J401X jump starter connected to a car battery, illustrating the process of jump starting a vehicle.

Normal Start (Battery Voltage > 8V)

1. Sæt den røde clamp til den positive (+) terminal og den sorte clamp til den negative (-) pol på køretøjets batteri.
2. The green indicator on the jump starter will flash.
3. Start din bil.

Force Start (Battery Voltage < 8V)

1. Sæt den røde clamp til den positive (+) terminal og den sorte clamp til den negative (-) pol på køretøjets batteri.
2. Long press the power button and the LED button simultaneously until the green indicator is solid.
3. Start din bil.

This image provides a step-by-step visual guide for both normal voltage jump starting and force starting a vehicle with the LOKITHOR J401X.

6.2. Charging the J401X

The J401X supports 100W two-way fast charging via its USB-C port. It can also be charged using the included 12V adapter in a vehicle.

This image demonstrates the fast charging capability of the LOKITHOR J401X via its USB-C port, showing a full charge in 45 minutes.

This image illustrates how to charge the LOKITHOR J401X using the 12V adapter in a car, allowing for convenient charging on the go.

6.3. Brug som powerbank

The J401X can charge external devices via its USB-C (100W max) and USB-A (18W max) output ports.

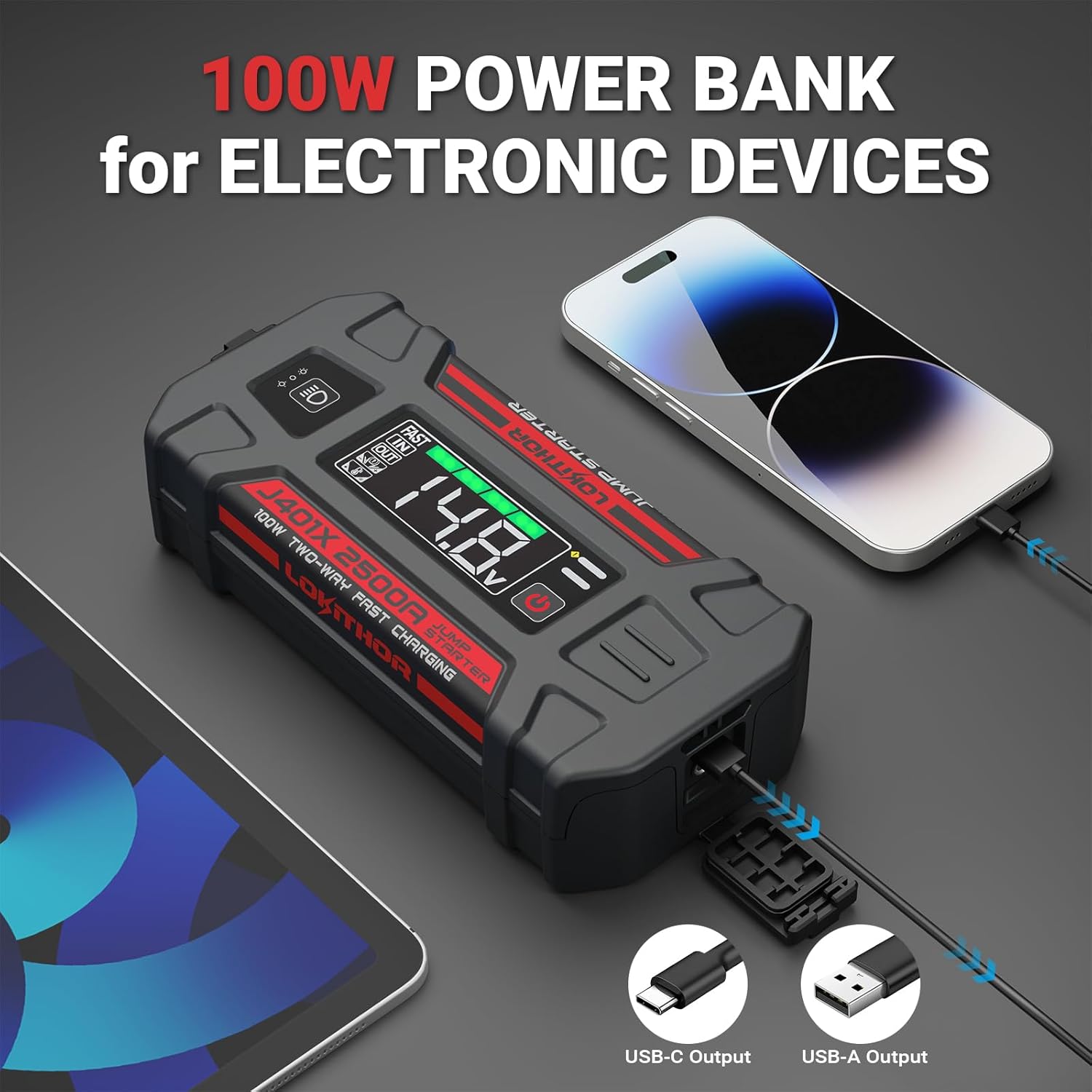

This image shows the LOKITHOR J401X functioning as a power bank, simultaneously charging a smartphone via USB-C and a tablet via USB-A.

This image highlights the dual output capabilities of the LOKITHOR J401X, featuring both USB-C (100W max) and USB-A (18W max) ports for charging two devices simultaneously.

6.4. Brug af LED-lommelygten

Press the LED button to cycle through the flashlight modes: Lightning, SOS, and Strobe. This feature is useful for emergencies, camping, or general illumination.

This image illustrates the 300 lumen multi-purpose LED flashlight of the LOKITHOR J401X, showcasing its lightning, SOS, and strobe modes for various uses including camping, outdoors, indoors, emergencies, and travel.

7. Vedligeholdelse

7.1. Genopladning

To maintain optimal battery health and readiness, it is recommended to recharge the J401X every 3-6 months, even if not in use. This ensures the device is ready for emergencies.

7.2. Opbevaring

Store the device in a cool, dry place away from direct sunlight and extreme temperatures. The J401X boasts an impressive 42-month standby time due to its low self-discharge rate.

This image highlights the LOKITHOR J401X's ultra-long 42-month standby time, indicating its ability to retain charge for extended periods.

8. Fejlfinding

The LOKITHOR J401X is designed with self-inspection capabilities and can display up to 16 error codes to assist in diagnosing issues. Refer to the specific error code definitions in the full user manual for detailed troubleshooting steps.

This image shows the LOKITHOR J401X's digital display indicating an error code, illustrating its self-inspection feature for troubleshooting.

Almindelige problemer:

• Enheden tænder ikke: Ensure the battery is charged. If completely depleted, connect to a power source for a few minutes before attempting to power on.
• Oplader ikke: Verify that the charging cable and adapter are properly connected and functional. Try a different power source.
• Køretøjet starter ikke: Tjek klamp connections for proper polarity and secure contact. Ensure the jump starter has sufficient charge. If the vehicle battery is severely discharged, use the Force Start function.

9. Specifikationer

10. Garanti og support

The LOKITHOR J401X Portable Lithium Car Battery Jump Starter comes with a 12-month warranty. LOKITHOR also provides life-time service support for this product.

For warranty claims, technical assistance, or any inquiries, please refer to the contact information provided in the official LOKITHOR documentation or visit the LOKITHOR webwebsted.
