Vigtige sikkerhedsoplysninger
Læs og forstå altid alle sikkerhedsadvarsler, instruktioner, illustrationer og specifikationer, der følger med dette elværktøj. Manglende overholdelse af alle nedenstående instruktioner kan resultere i elektrisk stød, brand og/eller alvorlig personskade. Gem alle advarsler og instruktioner til senere brug.
- Bær passende personlige værnemidler (PPE) såsom sikkerhedsbriller, høreværn og handsker.
- Sørg for, at arbejdsområdet er godt oplyst og fri for forhindringer.
- Hold børn og omkringstående væk, mens du betjener værktøjet.
- Tag altid stikket ud af stikkontakten, før du foretager justeringer, skifter tilbehør eller opbevarer værktøjet.
- Brug ikke elværktøj i eksplosive atmosfærer, såsom i nærheden af brændbare væsker, gasser eller støv.
Produkt overview
The ROCKWELL Sonicrafter is a versatile oscillating multi-tool designed for various applications including cutting, scraping, and sanding. It features a 4.5A motor, variable speed control, and a 4-degree oscillation angle for efficient material removal.
Figure 1: ROCKWELL Sonicrafter 4.5A Variable Speed Oscillating Multi-Tool. This image shows the main body of the tool with its ergonomic grip, power cord, and the head where accessories are attached.
Nøglefunktioner omfatter:
- 4° Oscillation Angle: Provides faster and more efficient cutting.
- Universal Fit Interface: Compatible with most major brands of accessories.
- Tool-Free Hyperlock: Ensures secure accessory attachment and prevents slippage.
- Ergonomic Slip Grip Body: Designed for comfortable handling and reduced user fatigue.
- LED lys: Oplyser arbejdsområdet for forbedret udsyn under dårlige lysforhold.
- 10-fods ledning: Provides extended reach for various tasks.
- Variabel hastighedskontrol: Allows adjustment of oscillation speed to match the application and material.
Opsætning
Udpakning og inspektion:
Carefully remove the multi-tool and all accessories from the packaging. Inspect the tool for any signs of damage during shipping. If any damage is found, do not operate the tool and contact customer support.
Inkluderede komponenter:
- 1 x ROCKWELL Sonicrafter RK683 Multi-Tool
- 1 x Wood Cutting Blade
- 1 x stift skrabeblad
- 1 x slibepude
- 26 x Assorted Sanding Sheets
- 1 x bæretaske
Montering af tilbehør:
The Sonicrafter features a tool-free Hyperlock system for quick and secure accessory changes. Ensure the tool is unplugged before attaching or removing accessories.
- Open the Hyperlock lever located on the tool head.
- Align the accessory (blade or sanding pad) with the universal fit interface on the tool head. The universal fit design allows for compatibility with various accessory types.
- Push the accessory firmly onto the interface until it seats properly.
- Close the Hyperlock lever to secure the accessory. Ensure it is fully locked to prevent slippage during operation.

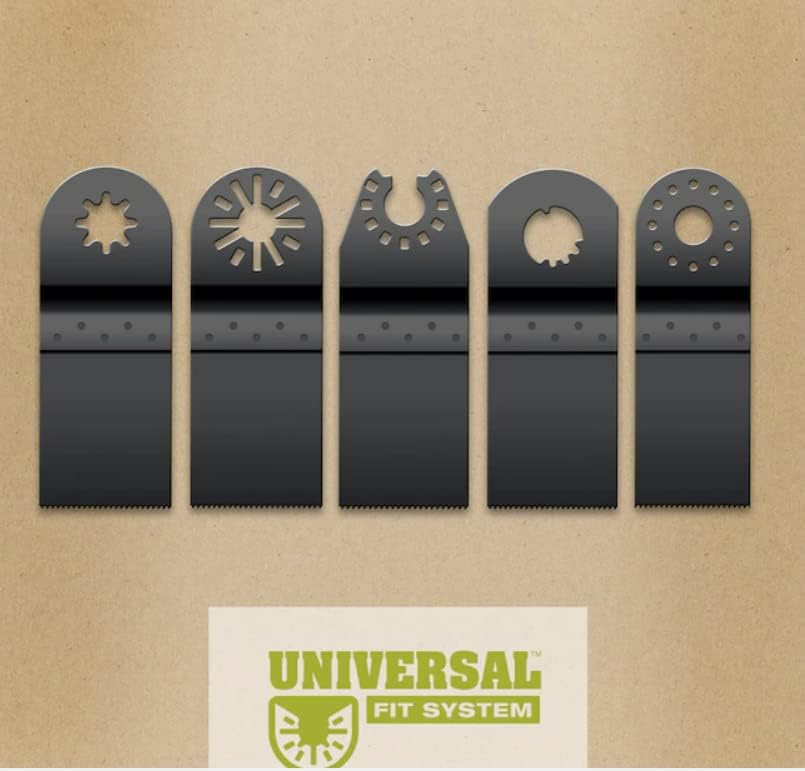

Figure 2: Universal Fit System. This image illustrates various types of oscillating tool blades and pads, highlighting the universal fit interface that allows compatibility with the Sonicrafter.
Strømtilslutning:
Connect the tool's power cord to a standard AC power outlet. Ensure the outlet voltage matches the tool's requirements (typically 120V AC for North America).
Betjeningsvejledning
Tænd/sluk:
To turn the tool ON, slide the power switch to the 'I' (ON) position. To turn the tool OFF, slide the power switch to the 'O' (OFF) position.
Variabel hastighedskontrol:
The Sonicrafter features variable speed control, allowing you to adjust the oscillation rate for different materials and applications. Rotate the speed dial to increase or decrease the speed. Lower speeds are suitable for delicate work or softer materials, while higher speeds are for aggressive cutting or harder materials.
Brug af LED-lyset:
The integrated LED light automatically illuminates when the tool is powered on, providing improved visibility in dimly lit work areas.
Application Specific Usage:
- Skæring: Use appropriate cutting blades for wood, metal, plastic, or drywall. Apply steady, even pressure. The 4° oscillation angle allows for efficient plunge cuts and flush cuts.
- Skrabning: Attach the rigid scraper blade for removing old caulk, paint, or adhesive. Hold the tool at a shallow angle to the surface.
- slibning: Attach the sanding pad and appropriate grit sanding sheets. Use for surface preparation, smoothing, or material removal. Move the tool in a consistent pattern to avoid uneven sanding.
Ergonomics and Control:
Hold the tool firmly with both hands, utilizing the ergonomic slip grip body for maximum control and to minimize fatigue during extended use.
Opretholdelse
Regular maintenance ensures the longevity and optimal performance of your multi-tool. Always unplug the tool before performing any maintenance.
- Rensning: Efter hver brug skal værktøjet tørres af med en ren,amp cloth. Remove any dust, debris, or residue from the ventilation openings to prevent overheating. Do not use harsh chemicals or abrasive cleaners.
- Vedligeholdelse af tilbehør: Clean accessories after use. Replace worn or damaged blades and sanding sheets promptly to maintain cutting efficiency and prevent damage to the tool or workpiece.
- Ledningsinspektion: Regularly inspect the power cord for cuts, fraying, or damage. If the cord is damaged, have it repaired by a qualified service technician.
- Opbevaring: Store the multi-tool and its accessories in the provided carry bag in a clean, dry place, out of reach of children.
Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Værktøjet tænder ikke. | Ingen strømforsyning; defekt netledning; intern fejl. | Check power outlet and circuit breaker. Inspect power cord for damage. If issues persist, contact customer support. |
| Accessory slips during operation. | Hyperlock lever not fully engaged; accessory not properly seated. | Unplug tool. Ensure accessory is fully seated and Hyperlock lever is securely closed. |
| Sanding pads do not stay on. | Worn hook-and-loop on sanding pad or base; excessive pressure. | Replace sanding pad. Apply less pressure during sanding. Ensure sanding sheets are clean and free of debris. |
| Værktøjet overopheder. | Blokerede ventilationsåbninger; kontinuerlig kraftig brug. | Clear all ventilation openings. Allow tool to cool down. Avoid prolonged heavy use without breaks. |
Specifikationer
| Feature | Detalje |
|---|---|
| Modelnummer | RK683 |
| Fabrikant | Rockwell |
| Strømkilde | AC/DC |
| Varens vægt | 4.97 pund |
| Produktdimensioner | 4 x 14.7 x 7.1 tommer |
| Materiale | Plast |
| Svingningsvinkel | 4 grader |
| Ledningslængde | 10 fod |
Garanti og support
This product comes with a manufacturer's warranty. For detailed warranty information, please refer to the warranty description included with your product packaging or visit the official Rockwell webwebsted.
For technical assistance, replacement parts, or any questions regarding the operation or maintenance of your ROCKWELL Sonicrafter, please contact Rockwell customer support. Contact information can typically be found on the manufacturer's webwebsted eller i produktdokumentationen.
Fabrikant: Rockwell
Webwebsted: www.rockwelltools.com (Eksamplinket, det faktiske link kan variere)
