JOYHILL Electric Kettle Temperature Control

Indledning

Thank you for choosing the JOYHILL Electric Kettle with Temperature Control. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new appliance. Please read it thoroughly before first use and keep it for future reference.

Sikkerhedsoplysninger

To prevent personal injury or property damage, always follow basic safety precautions when using electrical appliances. This kettle is equipped with a STRIX thermostat, meeting stringent safety standards, and includes boil-dry protection.

• Nedsænk ikke kedlen, strømbasen, ledningen eller stikket i vand eller andre væsker.
• Sørg for, at voltage angivet på apparatet svarer til din lokale netspændingtage før tilslutning.
• Betjen ikke apparatet med en beskadiget ledning eller stik, eller efter at apparatet ikke fungerer korrekt eller er blevet beskadiget på nogen måde.
• Opbevar apparatet utilgængeligt for børn. Nøje opsyn er nødvendigt, når et apparat bruges af eller i nærheden af ​​børn.
• Rør ikke ved varme overflader. Brug håndtag eller knopper.
• Sørg altid for, at låget er forsvarligt lukket under drift.
• Fyld ikke over den maksimale påfyldningslinje eller under den minimale påfyldningslinje.
• Træk stikket ud af stikkontakten, når det ikke er i brug, og før rengøring. Lad det køle af, før du sætter dele på eller af, og før du rengør apparatet.

Produkt overview

Komponenter

• Electric Kettle Body (1.7 Liters capacity)
• Power Base med ledning
• Låg med udløserknap
• Ergonomic Handle with Control Panel
• Stainless Steel Interior and Filter

Funktioner

• Variabel temperaturkontrol: Preset temperatures for various beverages, including milk powder (104°F), lemonade (122°F), honey (140°F), green tea (158°F), pour-over coffee (176°F), and oolong tea (194°F), ensuring optimal flavor.
• Hurtig opvarmning: 1500W power output for rapid boiling, faster than traditional stovetop kettles.
• STRIX Thermostat: Equipped with a world-leading STRIX thermostat for enhanced safety, offering protection against overheating and boil-dry.
• 12-times varmholdningsfunktion: Maintains your desired water temperature for up to 12 hours.
• Holdbar konstruktion: Double-layered design with a 100% 304 stainless steel interior to prevent scale and rust, and a non-toxic, BPA-Free premium plastic shell for insulation and burn prevention.
• Ergonomisk design: Features a sleek, integrated control panel and an ergonomic 7-shape handle for comfortable grip and ease of use.
• Separate Memory Function: Allows you to lift the kettle from the base and return it within 3 minutes without resetting the program.

Produktvisualisering

Figure 1: JOYHILL Electric Kettle in Green. This image shows the overall design of the kettle, highlighting its sleek, modern appearance.

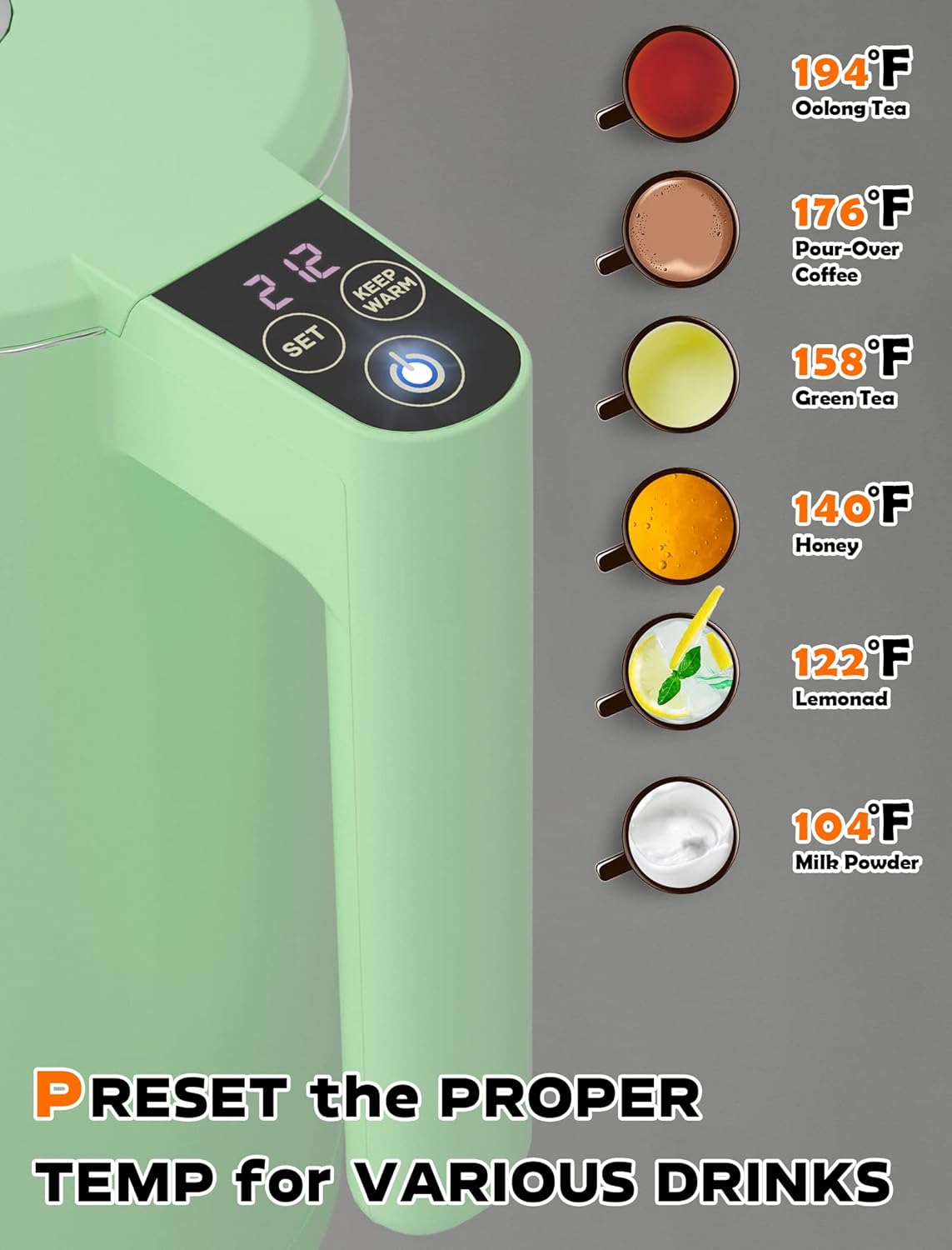

Figure 2: Temperature Presets for Various Beverages. This image illustrates the control panel on the handle, displaying various temperature options for different drinks like tea, coffee, and milk powder.

Figure 3: 1.7L Large Capacity for Family Use. This image demonstrates the kettle's generous 1.7-liter capacity suitable for multiple servings.

Figure 4: Fast Heating with STRIX Thermostat. A cutaway diagram illustrating the 1500W heating element and the STRIX thermostat, emphasizing rapid and safe water heating.

Figure 5: 12-Hour Keep Warm Function. This image depicts a woman enjoying a drink, highlighting the kettle's ability to maintain water temperature for up to 12 hours.

Figure 6: Double-Layer Design for Safety and Durability. This image showcases the kettle's double-layer construction, emphasizing the BPA-free exterior and food-grade stainless steel interior for safety and durability.

Figure 7: Enjoying Hot Beverages. This image captures the kettle in use, with a person pouring a hot beverage, illustrating the ease of use and the enjoyment it brings.

Opsætning

1. Udpakning: Carefully remove all packaging materials and inspect the kettle for any damage.
2. Indledende rengøring: Before first use, fill the kettle with water to the maximum level, boil it, and then discard the water. Repeat this process 2-3 times to remove any manufacturing residues.
3. Placering: Place the power base on a stable, flat, heat-resistant surface, away from the edge of the countertop. Ensure the power cord is not dangling where it can be pulled or tripped over.
4. Strømtilslutning: Sæt netledningen i en jordet stikkontakt.

Operation

1. Fyld kedlen: Press the silver button on the lid to open it. Fill the kettle with fresh water between the MIN and MAX fill lines indicated inside the kettle. Close the lid securely.
2. Placering på basen: Place the kettle firmly onto the power base.
3. Select Temperature (Optional):
   • Tryk på "SÆT" button repeatedly to cycle through the preset temperature options (104°F, 122°F, 140°F, 158°F, 176°F, 194°F). The selected temperature will be displayed on the handle's screen.
   • If no temperature is selected, the kettle will default to boiling water to 212°F (Boil).
4. Start opvarmning: Tryk på Power knap (cirkulært ikon) to begin the heating process. The indicator light will illuminate, and the current water temperature will be displayed.
5. Hold varm funktion: After selecting a temperature and starting the heating process, you can press the "HOLD VARM" button. The kettle will maintain the selected temperature for up to 12 hours.
6. Separate Memory Function: If you lift the kettle from its base during operation, the program will pause. You can return the kettle to the base within 3 minutes to resume the previous heating or keep warm cycle without needing to reset.
7. Færdiggørelse: Once the desired temperature is reached, the kettle will automatically shut off and may beep to indicate completion. The indicator light will turn off.
8. Hældning: Carefully lift the kettle from the base and pour the hot water. The handle remains cool to the touch.

Vedligeholdelse og rengøring

Regular cleaning helps maintain the kettle's performance and extends its lifespan.

1. Daglig rengøring: Tag stikket ud af kedlen, og lad den køle helt af, inden du rengør den. Tør ydersiden af ​​med en blød klud.amp klæde. Brug ikke slibende rengøringsmidler eller skuresvampe.
2. Indvendig rengøring: The interior is 304 stainless steel and can be hand washed. Rinse thoroughly after each use.
3. Afkalkning (Månedligt eller efter behov): Mineral deposits (limescale) can build up over time, especially in hard water areas.
   • Fill the kettle with 50ml of lemon juice or white vinegar and 500ml of water.
   • Boil the mixture and let it stand for 1 hour.
   • Discard the mixture and rinse the interior repeatedly with fresh water.
   • Wipe the interior with a soft cloth to remove any remaining deposits.
4. Opbevaring: Ensure the kettle is clean and dry before storing. Wrap the cord around the base for neat storage.

Fejlfinding

If the problem persists after attempting these solutions, please contact JOYHILL customer support for assistance.

Specifikationer

Garanti og support

JOYHILL is committed to your satisfaction and the quality of its products. This electric kettle has passed multiple quality tests (FDA, ETL) to ensure its reliability and safety.

If you encounter any issues with your JOYHILL Electric Kettle during use, please do not hesitate to contact our customer support team. We are dedicated to providing assistance and resolving any problems you may experience.

For support, please visit the official JOYHILL store on Amazon or refer to the contact information provided with your product packaging.
