1.Overview
The Vetus Slimline Ventilation Hatch, model WHS52W, is designed for marine applications, providing ventilation and light for boat interiors. Constructed from powder-coated aluminum, this hatch features an opaque tint and is built for durability in a marine environment. It is designed for flush mounting and includes a trim ring for a finished appearance.
This manual provides general guidance for the installation, operation, and maintenance of your Vetus Slimline Ventilation Hatch. Please note that a detailed installation manual is not included with the product, and professional installation is highly recommended to ensure proper sealing and functionality.
2. Sikkerhedsoplysninger
Always prioritize safety when handling and installing marine equipment. Improper installation or use can lead to property damage or personal injury.
- Ensure the hatch is securely closed and latched before operating the vessel, especially in rough waters, to prevent water ingress.
- Do not stand or walk on the hatch. It is not designed to bear significant weight.
- Keep hands and fingers clear of moving parts when opening or closing the hatch.
- Regularly inspect the hatch for any signs of wear, damage, or loose components. Address any issues promptly.
- Use appropriate personal protective equipment (PPE) such as gloves and eye protection during installation.
3. Opsætning og installation
While a specific installation manual is not provided, the following dimensions are critical for proper setup. Professional installation by a qualified marine technician is strongly advised to ensure correct fitment and watertight sealing.
- Udskæringsdimensioner: The opening in the deck or cabin where the hatch will be installed should measure approximately 20 inches (W) x 10 inches (H).
- Montering: The hatch is designed to be mounted using 10 holes, each approximately 3/16 inch in diameter. Ensure appropriate marine-grade fasteners and sealants are used.
- Overordnede dimensioner: The total external dimensions of the hatch, including the trim ring, are approximately 22 3/4 inches (W) x 13 inches (H) x 4 inches (D).
Figur 3.1: Dimensionel overview of the Vetus Slimline Ventilation Hatch, indicating cutout and overall sizes.
Figur 3.2: Udvendigt view of the Vetus Slimline Ventilation Hatch in the closed position.
4. Betjeningsvejledning
The Vetus Slimline Ventilation Hatch is designed for simple and secure operation.
- Åbning af lugen: To open, disengage the two internal latches by rotating their handles. Once unlatched, gently push the hatch lid upwards. The integrated stay arm will support the lid in an open position, allowing for ventilation.
- Lukning af lugen: To close, gently pull the hatch lid downwards until it rests flush with the frame. Engage the two internal latches by rotating their handles until they are securely fastened. Ensure both latches are fully engaged to maintain a watertight seal.

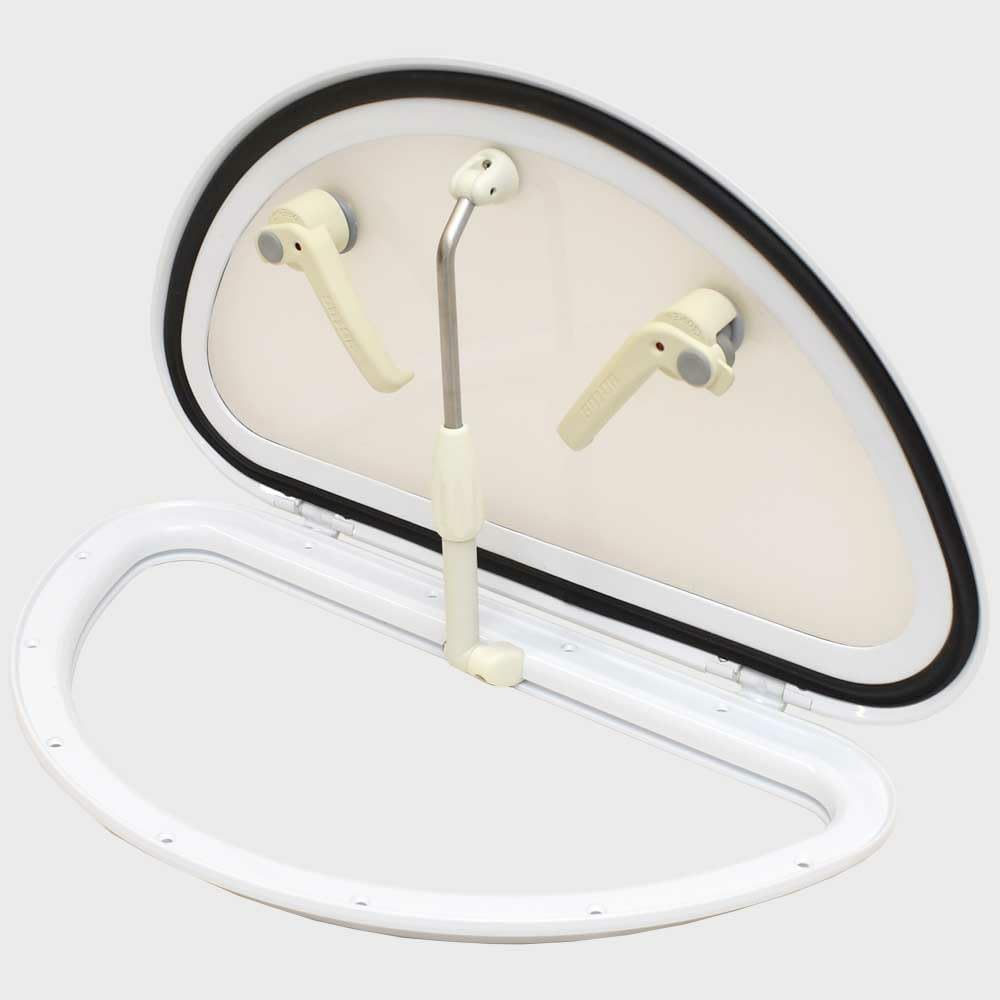

Figur 4.1: Interiør view of the Vetus Slimline Ventilation Hatch in the open position.
Figur 4.2: Detaljeret interiør view of the hatch mechanism.
5. Vedligeholdelse
Regular maintenance will extend the life and ensure the proper function of your Vetus Slimline Ventilation Hatch.
- Rensning: Clean the hatch frame and acrylic lens regularly with mild soap and fresh water. Avoid abrasive cleaners or solvents that can damage the finish or the acrylic. Rinse thoroughly with fresh water.
- Forseglinger: Periodically inspect the rubber seals around the hatch for cracks, hardening, or signs of deterioration. Damaged seals can lead to leaks. Replace seals if necessary.
- Hinges and Latches: Lubricate hinges and latch mechanisms with a marine-grade lubricant (e.g., silicone spray) annually or as needed to ensure smooth operation and prevent corrosion.
- Fastgørelsesmidler: Check all mounting fasteners periodically to ensure they are tight. Do not overtighten.
6. Fejlfinding
This section addresses common issues you might encounter with your ventilation hatch.
- Hatch Leaks:
- Årsag: Damaged or dirty seal, loose mounting fasteners, improper installation.
- Løsning: Clean the seal, inspect for damage and replace if necessary. Check and tighten mounting fasteners. If leaks persist, professional re-installation may be required.
- Stiff Operation (Hard to Open/Close):
- Årsag: Lack of lubrication on hinges or latches, corrosion, debris.
- Løsning: Clean and lubricate hinges and latch mechanisms with marine-grade lubricant. Remove any debris obstructing movement.
- Latches Not Engaging Securely:
- Årsag: Misalignment, worn latch components.
- Løsning: Check for any obstructions preventing full closure. Inspect latch components for wear and consider replacement if severely worn.
7. Specifikationer
Detailed specifications for the Vetus Slimline Ventilation Hatch WHS52W.
| Feature | Specifikation |
|---|---|
| Mærke | Vetus |
| Varenummer | WHS52W |
| Materiale | Pulverlakeret aluminium |
| Farve | Hvid |
| Farve | Uigennemsigtig |
| Opening Dimensions (W x H) | 18 7/8" x 9" |
| Udskæringsmål (B x H) | 20 x 10 cm |
| Overordnede mål (B x H x D) | 22 3/4" x 13" x 4" (including trim ring) |
| Monteringshuller | (10) 3/16" diameter holes |
8. Garanti og support
Specific warranty information for the Vetus Slimline Ventilation Hatch WHS52W is not provided in the product details. For warranty claims, technical support, or replacement parts, please contact the original seller or the manufacturer, Vetus, directly. Retain your proof of purchase for any warranty inquiries.
