Minoston WiFi Timer Switch Smart Nedtællingstimer Switch Brugermanual

Indledning

Thank you for choosing the Minoston MT10W WiFi Timer Switch. This smart countdown timer switch allows you to control lights, fans, and heaters with preset countdown times and remote access via a smartphone application. It integrates seamlessly with Amazon Alexa and Google Assistant for voice control. This manual provides detailed instructions for installation, operation, and maintenance to ensure optimal performance and safety.

Billede: Forside view of the Minoston MT10W WiFi Timer Switch and its retail packaging, highlighting key features and certifications.

Vigtige sikkerhedsoplysninger

• RISIKO FOR BRAND, ELEKTRISK STØD ELLER SKADE.
• Denne enhed er beregnet til installation i overensstemmelse med National Electric Code og lokale bestemmelser.
• Consult a qualified electrician if you are unsure about any part of these instructions.
• Always turn off power at the circuit breaker or fuse box before installation or servicing.
• NEUTRAL WIRE REQUIRED. Ensure your electrical box has a neutral wire.
• Do not use with dimmable fixtures or 3-way switches.
• Driftstemperatur: 32°F til 104°F (0°C til 40°C).
• Kun til indendørs brug.

Pakkens indhold

• Minoston MT10W WiFi Timer Switch
• Instruktionsmanual
• Monteringsskruer
• Trådmøtrikker

Specifikationer

Image: Diagram showing the physical dimensions of the Minoston MT10W WiFi Timer Switch, including depth reduction for easier installation.

Installationsvejledning

Ledningsdiagram

The Minoston MT10W requires a neutral wire for proper operation. Please follow the diagram below carefully.

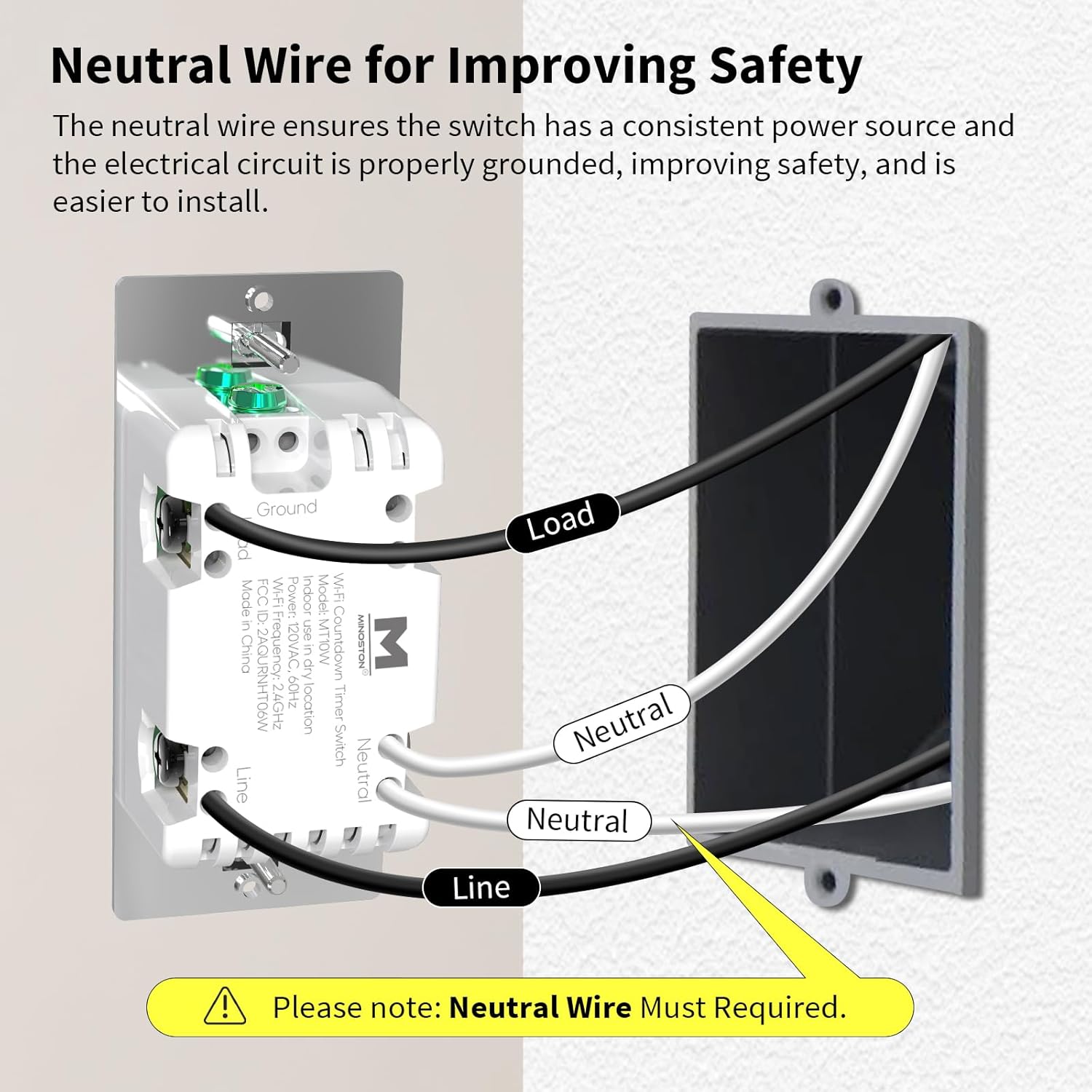

Image: Detailed wiring diagram for the Minoston MT10W WiFi Timer Switch, showing connections for Line, Load, Neutral, and Ground wires. A note emphasizes the requirement for a neutral wire.

Installationstrin

1. Sluk for strømmen: Before beginning, turn off the power to the switch location at the circuit breaker or fuse box.
2. Remove old switch: Carefully remove the existing wall plate and switch from the electrical box.
3. Identificér ledninger: Identify the Line (hot), Load, Neutral, and Ground wires. A neutral wire is typically white. If you do not have a neutral wire, this switch is not compatible.
4. Tilslut ledninger:
   • Connect the Line wire from the wall box to the Line terminal on the MT10W switch.
   • Connect the Load wire from the wall box to the Load terminal on the MT10W switch.
   • Connect the Neutral wire from the wall box to the Neutral terminal on the MT10W switch.
   • Connect the Ground wire from the wall box to the Ground terminal on the MT10W switch.
5. Mount switch: Skub forsigtigt den kabelforbundne afbryder ind i el-boksen. Fastgør den med de medfølgende skruer.
6. Installer vægplade: Fastgør den nye eller eksisterende vægplade.
7. Genopret strøm: Tænd for strømmen igen ved afbryderen.

Wi-Fi and App Setup

The Minoston MT10W can be controlled via the Smart Life or Minoston APP. Ensure your Wi-Fi network is 2.4GHz.

1. Download app: Download the "Smart Life" or "Minoston" app from the App Store (iOS) or Google Play Store (Android).
2. Registrer/Log ind: Åbn appen, og opret en ny konto, eller log ind, hvis du allerede har en.
3. Tilføj enhed:
   • Tap "+" or "Add Device" in the app.
   • Select "Electrical" > "Switch (Wi-Fi)" or search for "MT10W".
   • Follow the in-app instructions to put the switch into pairing mode. This usually involves holding the "30 Min" button for 5 seconds until the blue LED indicator flashes quickly.
   • Indtast dit 2.4 GHz Wi-Fi-netværksnavn og din adgangskode.
   • Wait for the device to connect. Once connected, you can rename the switch.

Image: Screenshot of the mobile application interface demonstrating remote control of the Minoston MT10W WiFi Timer Switch.

Voice Control Setup (Alexa/Google Assistant)

1. Ensure your Minoston MT10W switch is successfully added to the Smart Life/Minoston app.
2. Åbn Amazon Alexa- eller Google Home-appen.
3. Gå til "Færdigheder og spil" (Alexa) eller "Fungerer med Google" (Google Home).
4. Søg efter "Smart Life" (or "Minoston" if available) and enable the skill.
5. Link your Smart Life/Minoston account with your Alexa/Google account.
6. Discover devices. You can now control your switch using voice commands like "Alexa, turn on the timer for 30 minutes" or "Hey Google, turn off the fan."

Image: Illustration of a user interacting with an Amazon Echo device to control the Minoston MT10W WiFi Timer Switch via voice commands.

Betjeningsvejledning

Knap funktioner

The Minoston MT10W features an ON/OFF override button and six preset countdown buttons.

Image: Diagram illustrating the various buttons on the Minoston MT10W WiFi Timer Switch and their corresponding functions, including ON/OFF override, preset countdowns, and LED brightness adjustments.

• ON/OFF Override Button:
  • Press to manually turn the connected device ON or OFF.
  • Hold for 3 seconds to exit countdown mode. Press again to resume countdown mode.
• Preset Countdown Buttons (5 Min, 10 Min, 30 Min, 60 Min, 2 Hour, 4 Hour):
  • Press any button to activate the corresponding countdown timer. The connected device will turn ON and automatically turn OFF after the selected duration.
• 5 Min Button (Hold for 3s): Turn off or resume the 6 LED indicators of the countdown.
• 10 Min Button (Hold for 3s): Dim the LED indicator (backlight) of the ON/OFF button.
• 2 Hour Button (Hold for 3s): Dim LED indicators of all 7 buttons to minimum brightness. All LED indicators flash on minimum brightness.
• 4 Hour Button (Hold for 3s): Brighten LED indicators of all 7 buttons to maximum brightness. All LED indicators flash on maximum brightness.
• 30 Min Button (Hold for 5s): Until blue LED indicator flashes quickly, Wi-Fi network configuration is displayed (for pairing mode).

LED-indikatorlys

The amber LED indicator light provides soft illumination, making it easy to locate the switch in the dark.

Image: Close-up of the Minoston MT10W WiFi Timer Switch showing the amber LED indicator light, designed for visibility in low-light conditions.

Energibesparende funktioner

Utilizing the countdown timer helps save electricity by ensuring devices like fans, ceiling lights, and other appliances automatically turn off after a set period, preventing unnecessary energy consumption.

Image: A Minoston MT10W WiFi Timer Switch installed in a bathroom setting, illustrating its use for energy saving by automatically turning off lights or exhaust fans.

Opretholdelse

• Rengør kontaktens overflade med en blød, tør kludamp klæde. Brug ikke skrappe kemikalier eller slibende rengøringsmidler.
• Ensure the switch is not exposed to excessive moisture or direct water spray.
• Regularly check for any loose wiring connections during routine electrical inspections (by a qualified electrician).

Fejlfinding

Garanti og support

Minoston products come with a standard manufacturer's warranty. For specific warranty details, please refer to the warranty card included with your product or visit the official Minoston webwebsted.

For technical support, troubleshooting assistance, or to inquire about replacement parts, please contact Minoston Customer Service:

• Webwebsted: www.minoston.com
• E-mail: support@minoston.com

Please have your model number (MT10W) and purchase date ready when contacting support.
