OWC Thunderbolt Dock User Manual

Indledning

The OWC Thunderbolt Dock is designed to expand the connectivity of your computer, providing a comprehensive solution for connecting multiple peripherals through a single Thunderbolt cable. This dock adds three Thunderbolt 4 ports, four USB ports, Gigabit Ethernet, audio, and an SD card reader, enhancing your workflow and device management.

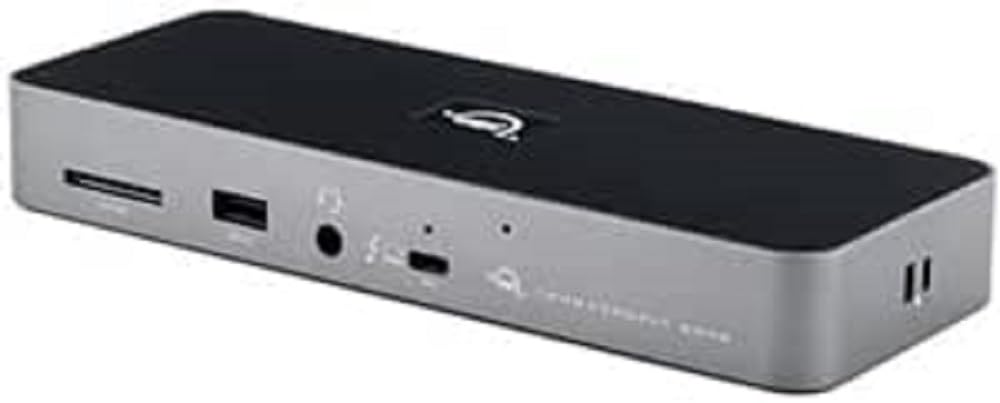

Figure 1: OWC Thunderbolt Dock, showing its compact design and front-facing ports.

Hvad er der i æsken

Bekræft at alle varer er til stede i pakken:

• OWC Thunderbolt Dock
• Thunderbolt-kabel
• Strømforsyning og kabel
• Hurtig startvejledning

Nøglefunktioner

The OWC Thunderbolt Dock offers the following capabilities:

• Adds three full-speed and functional Thunderbolt 4 ports to your computer.
• Enables creation of multiple independent "tree branches" for device connectivity.
• Provides up to 96W of power delivery for laptop charging.
• Includes four USB ports for connecting and charging USB devices.
• Supports connection of various storage devices, up to two 4K displays, or one 5K/6K/8K display.
• Ensures device compatibility as if directly connected to your computer.
• Features Gigabit Ethernet for reliable network streaming and sharing.
• Integrated SD card reader for data transfer speeds up to 312MB/s.
• Audio combo jack for headphones and microphones.
• Adjustable LED for customizable illumination.

Opsætning

Follow these steps to set up your OWC Thunderbolt Dock:

1. Tilslut strøm: Connect the included power supply to the DC In port on the rear of the OWC Thunderbolt Dock and then plug the power cable into a wall outlet.


   Figure 2: Rear ports of the OWC Thunderbolt Dock, including the DC In port on the left.

2. Tilslut til computer: Use the provided Thunderbolt cable to connect one of the Thunderbolt 4 ports on the dock (labeled with a computer icon) to a Thunderbolt 3 or Thunderbolt 4 port on your computer.
3. Tilslut ydre enheder: Connect your external devices such as monitors, external drives, USB devices, Ethernet cable, and audio devices to the corresponding ports on the OWC Thunderbolt Dock.


   Figure 3: Front ports of the OWC Thunderbolt Dock, including the SD card slot, USB 2.0 port, and audio combo jack.
4. Tænd: The dock will power on automatically once connected to power and your computer. The LED indicator will illuminate.

Betjening af docken

Once set up, the OWC Thunderbolt Dock operates as an extension of your computer's ports. Devices connected to the dock will function as if they were directly connected to your computer.

• Skærmtilslutning: Connect up to two 4K displays at 60Hz, or a single 5K, 6K, or 8K display at 60Hz (or 4K at 120Hz) to the Thunderbolt 4 downstream ports using appropriate cables and adapters.
• USB-enheder: Utilize the USB-A ports for connecting keyboards, mice, external hard drives, and other USB peripherals. The USB 2.0 port is suitable for low-bandwidth devices like keyboards or mice.
• Netværks forbindelse: Plug an Ethernet cable into the Gigabit Ethernet port for a stable wired network connection.
• Lyd: Use the 3.5mm audio combo jack for headphones, speakers, or microphones.
• SD-kortlæser: Insert an SD card into the front-facing slot to access photos, videos, and other data.
• Strømforsyning: The dock provides up to 96W of power to charge your connected laptop via the Thunderbolt cable.

Opretholdelse

To ensure optimal performance and longevity of your OWC Thunderbolt Dock:

• Keep the dock in a well-ventilated area to prevent overheating.
• Clean the exterior with a soft, dry, lint-free cloth. Avoid using liquid cleaners or aerosols.
• Sørg for, at alle kabler er korrekt tilsluttet.
• Avoid placing heavy objects on top of the dock.

Fejlfinding

If you encounter issues with your OWC Thunderbolt Dock, try the following solutions:

• No Power/Dock Not Responding:
  • Verify that the power supply is securely connected to the dock and a working power outlet.
  • Ensure the Thunderbolt cable is firmly connected to both the dock and your computer.
  • Prøv en anden stikkontakt.
• Connected Devices Not Recognized:
  • Disconnect and reconnect the problematic device from the dock.
  • Try connecting the device to a different port on the dock, if available.
  • Ensure your computer's operating system and Thunderbolt drivers are up to date.
  • Genstart din computer.
• Problemer med skærmen (intet signal, flimren):
  • Check the display cable connection between the monitor and the dock.
  • Sørg for, at skærmen er indstillet til den korrekte inputkilde.
  • Try a different display cable or adapter.
  • Reducer skærmopløsningen eller opdateringshastigheden for at se, om problemet fortsætter.
• Problemer med netværksforbindelse:
  • Kontroller, at Ethernet-kablet er korrekt tilsluttet til docken og din router/modem.
  • Tjek din computers netværksindstillinger.
  • Genstart din router/modem.

Specifikationer

Garanti og support

OWC products are designed for reliability and performance. For information regarding warranty coverage, technical support, or service, please refer to the official OWC website or contact OWC customer support directly. Keep your proof of purchase for warranty claims.

For de mest opdaterede supportressourcer, besøg: www.owcdigital.com/support
