PHOENIX CONTACT PT 10 (3212120) Klemmeblok: Brugsanvisning

1. Introduktion

This instruction manual provides essential information for the safe and efficient installation, operation, and maintenance of the PHOENIX CONTACT PT 10 (3212120) feed-through terminal block. Please read this manual thoroughly before using the product to ensure proper handling and to prevent potential hazards.

2. Sikkerhedsoplysninger

Advarsel: Electrical work should only be performed by qualified and authorized personnel. Failure to follow these safety instructions can result in electric shock, fire, or serious injury.

• Always disconnect power before installing, wiring, or performing maintenance on the terminal block.
• Ensure all connections are secure and comply with local electrical codes and standards.
• Overskrid ikke den angivne voltage and current ratings of the terminal block.
• Brug passende personlige værnemidler (PPE) ved arbejde med elektriske systemer.
• Inspect the terminal block for any damage before installation. Do not use damaged components.

3. Produktet er slutview og funktioner

The PHOENIX CONTACT PT 10 (3212120) is a 1-level, 1-potential, 2-connection feed-through terminal block designed for DIN rail mounting. It utilizes push-in connection technology, offering fast and tool-free wiring for solid and stranded conductors with ferrules. This terminal block is suitable for various industrial electrical applications.

Nøglefunktioner:

• Push-in Connection: Enables quick and easy wiring without special tools.
• DIN-skinnemontering: Standard mounting for industrial control cabinets.
• Kompakt design: Efficient use of space.
• Wide Wire Range: Accommodates wire sizes from 20 AWG to 6 AWG.
• High Current and Voltage Bedømmelser: Rated for 57A and 1 kV.

Produktbilleder:

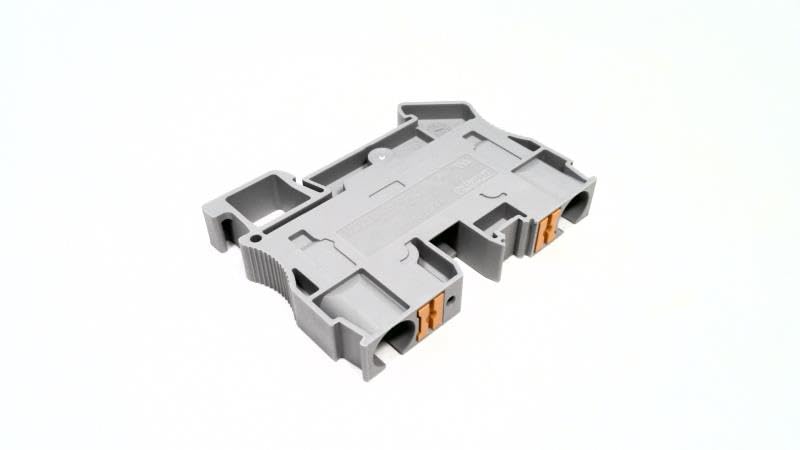

Figur 1: Samlet set view of the PHOENIX CONTACT PT 10 terminal block, showcasing its gray housing and compact design.

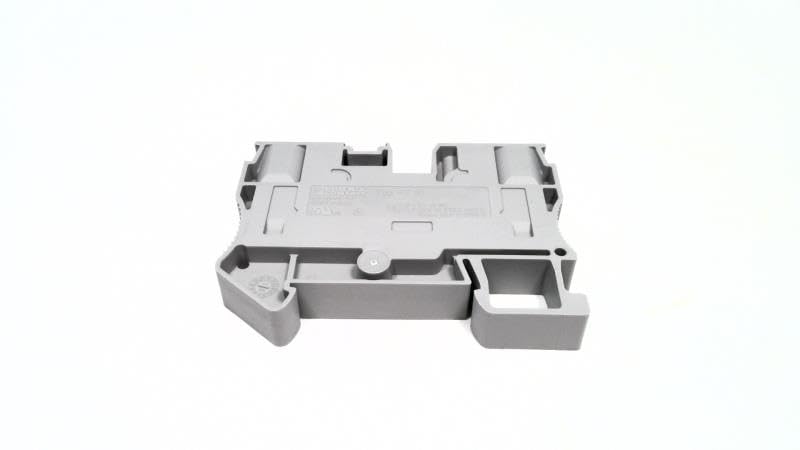

Figur 2: Top view of the terminal block, highlighting the labeling area and general form factor.

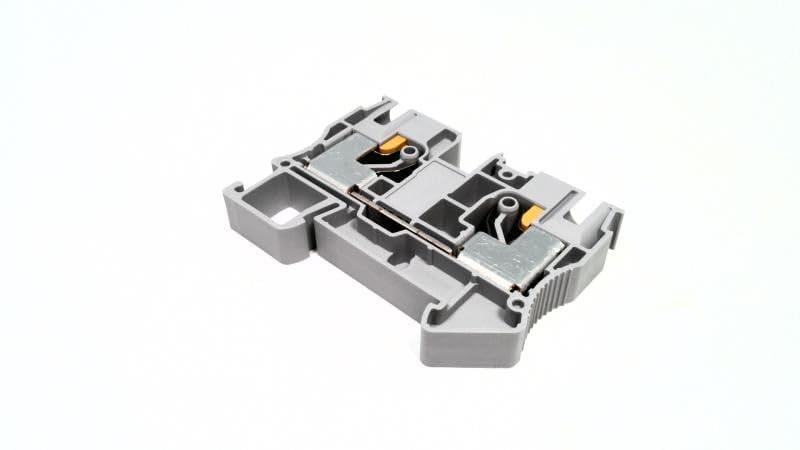

Figur 3: Indre view of the terminal block, illustrating the metal components of the push-in connection mechanism.

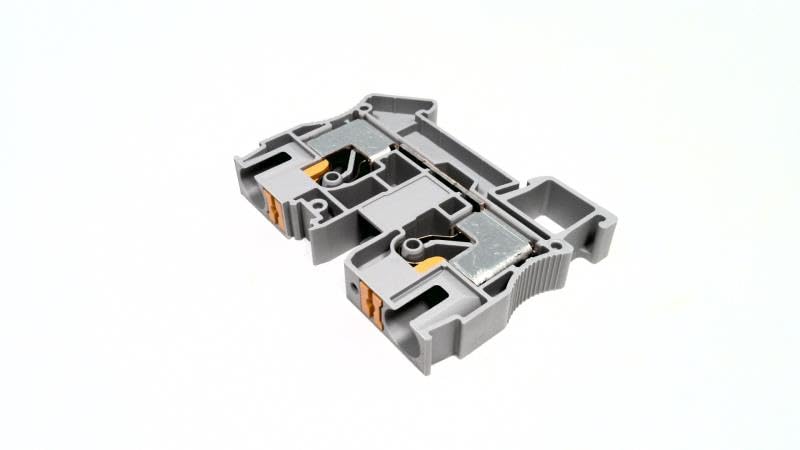

Figur 4: Angled internal view, providing a clearer perspective of the wire entry points and the internal conductor path.

4. Opsætning og installation

4.1. DIN-skinnemontering

1. Ensure the DIN rail is securely mounted within the enclosure.
2. Align the terminal block with the DIN rail.
3. Press the terminal block firmly onto the DIN rail until it clicks into place. Ensure it is seated correctly and cannot be easily dislodged.
4. Brug ende clamps to secure the assembly on the DIN rail, preventing lateral movement.

4.2. Wire Connection (Push-in Technology)

The PT 10 terminal block uses push-in connection technology for quick and reliable wiring.

1. Forbered ledningen: Strip the insulation from the conductor according to the recommended strip length (typically 10-12 mm, refer to product datasheet for exact value). For stranded wires, it is highly recommended to use ferrules.
2. Insert Conductor: For solid conductors or stranded conductors with ferrules, simply push the prepared conductor directly into the wire entry opening until it reaches the stop. A secure connection is made automatically.
3. Bekræft forbindelsen: Gently pull on the conductor to ensure it is firmly seated and cannot be easily removed.
4. Removing a Conductor: To remove a conductor, insert a screwdriver into the orange release button/opening and pull the conductor out.

The terminal block supports a minimum wire size of 20 AWG and a maximum wire size of 6 AWG. The conductor part CSA is 0.6 inch (16 mm).

5. Betjeningsvejledning

Once installed and wired correctly, the PHOENIX CONTACT PT 10 terminal block operates as a passive feed-through connection point. No specific operational steps are required beyond ensuring secure and correct wiring.

• Ensure all connected circuits are within the rated voltage and current limits of the terminal block.
• Regularly inspect connections for any signs of loosening or damage, especially in environments with vibration.

6. Vedligeholdelse

The PHOENIX CONTACT PT 10 terminal block is designed for minimal maintenance. However, periodic inspection is recommended to ensure continued reliable operation.

• Visuel inspektion: Periodically check the terminal block for any signs of physical damage, discoloration, or corrosion.
• Forbindelsesintegritet: Verify that all wire connections remain secure.
• Rensning: If necessary, clean the exterior of the terminal block with a dry, lint-free cloth. Do not use abrasive cleaners or solvents. Ensure power is disconnected before cleaning.

7. Fejlfinding

Most issues related to terminal blocks stem from incorrect installation or wiring.

• No Continuity:
  • Check if the wire is fully inserted into the push-in connection.
  • Ensure the wire insulation is stripped to the correct length and not interfering with the connection.
  • Verify the wire gauge is within the specified range (20 AWG to 6 AWG).
  • Inspect the wire for breaks or damage.
• Løs forbindelse:
  • Re-insert the wire, ensuring it is pushed in firmly until it stops.
  • If using stranded wire, ensure a ferrule is properly crimped and used.
• Overophedning:
  • Ensure the current flowing through the terminal block does not exceed its rated current of 57A.
  • Check for loose connections, which can cause resistance and heat.

8. Specifikationer

9. Garanti og support

For warranty information, technical support, or further assistance with your PHOENIX CONTACT PT 10 (3212120) terminal block, please contact PHOENIX CONTACT directly through their official website or customer service channels. Ensure you have your product model number (PT 10, 3212120) available when seeking support.

PHOENIX CONTACT Official Webwebsted: www.phoenixcontact.com
