Naxa NDS-6501 Bærbar Dobbelt 6.5-tommer Bluetooth Højttaler Brugermanual

1. Introduktion

This manual provides comprehensive instructions for the Naxa NDS-6501 Portable Dual 6.5-inch Bluetooth Speaker. Please read this manual thoroughly before operating the device to ensure proper use and to maximize your experience. Keep this manual for future reference.

2. Pakkens indhold

Bekræft, at alle nedenstående varer er inkluderet i din pakke:

• Naxa NDS-6501 Portable Bluetooth Speaker
• Kablet mikrofon
• USB opladningskabel
• Brugervejledning (dette dokument)

3. Produktfunktioner

The Naxa NDS-6501 speaker offers a range of functionalities designed for portable audio entertainment:

• Dual 6.5-inch full-frequency speakers for clear audio output.
• Bluetooth connectivity for wireless audio streaming from compatible devices.
• Integrated multi-color flame lights with various lighting effects.
• True Wireless Stereo (TWS) function for connecting two NDS-6501 speakers wirelessly.
• Wired microphone input for vocal use.
• Built-in FM radio tuner for local station access.
• USB port and MicroSD/TF card slot for playing audio files from external storage.
• Auxiliary (3.5mm) input for wired audio connections.
• Rechargeable battery providing up to 2 hours of playback time.

4. Betjeningselementer og porte

The speaker features various controls and input/output ports. A typical layout includes a power button, volume controls, mode selection, playback controls (play/pause, skip tracks), microphone input, USB port, MicroSD card slot, auxiliary input, and a charging port. Refer to the diagram below for specific locations.

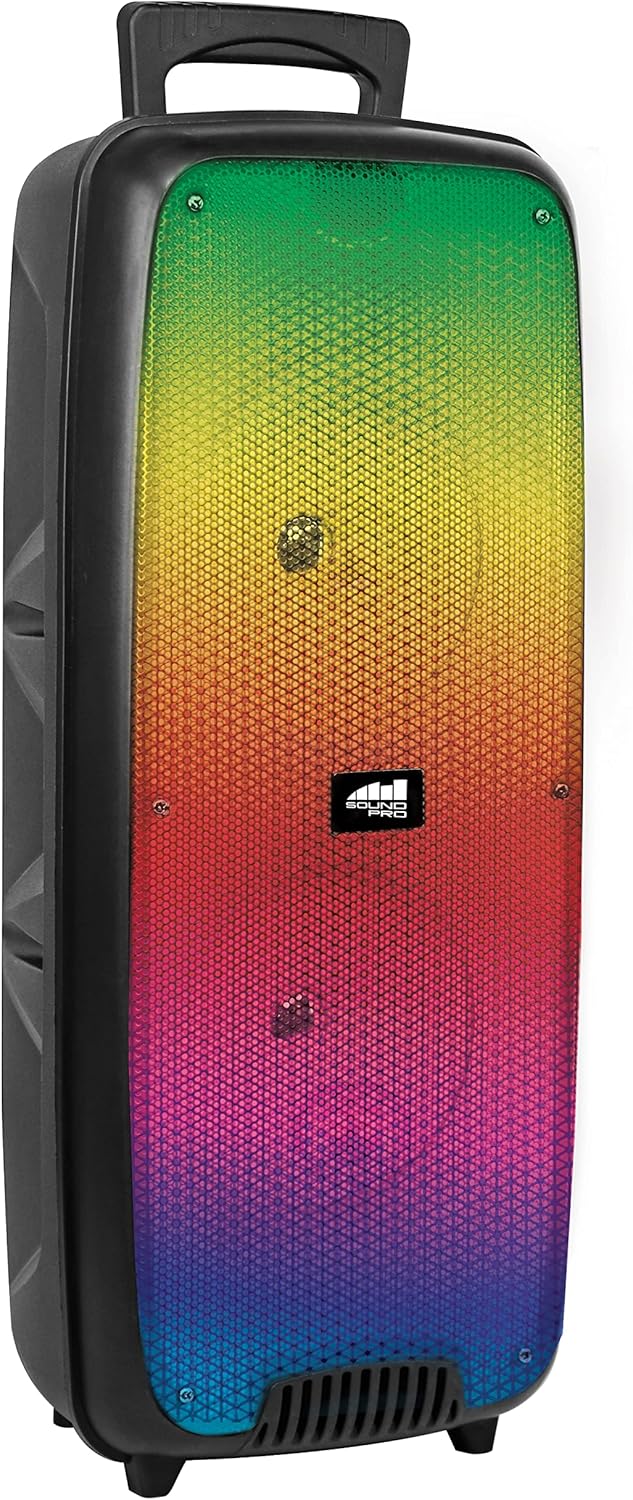

Figur 4.1: Front view of the Naxa NDS-6501 speaker, showcasing the dual 6.5-inch drivers and multi-color flame lights.

Figur 4.2: Side view of the Naxa NDS-6501 speaker, illustrating its portable design with an integrated handle.

5. Opsætning

5.1 Opladning af højttaleren

1. Tilslut det medfølgende USB-opladerkabel til højttalerens opladningsport.
2. Tilslut den anden ende af USB-kablet til en kompatibel USB-strømadapter (medfølger ikke) eller en computers USB-port.
3. Opladningsindikatorlampen lyser typisk rødt under opladning.
4. Once fully charged, the indicator light will change color or turn off (refer to specific LED behavior in your product). A full charge provides approximately 2 hours of playback.

5.2 Tænd/sluk

• To power on: Press and hold the Power button for a few seconds until the speaker activates.
• To power off: Press and hold the Power button again until the speaker shuts down.

6. Betjeningsvejledning

6.1 Bluetooth -parring

1. Ensure the speaker is powered on and in Bluetooth mode. If not, press the Mode button to switch to Bluetooth. The speaker will indicate it is ready for pairing (e.g., a flashing LED or an audible prompt).
2. Gå til Bluetooth-indstillingerne på din Bluetooth-aktiverede enhed (smartphone, tablet osv.).
3. Søg efter available devices. You should see "NDS-6501" or a similar name in the list.
4. Select "NDS-6501" to initiate pairing.
5. Once successfully paired, the speaker will provide an audible confirmation, and the Bluetooth indicator light will become solid.

6.2 Ægte trådløs stereo (TWS) parring

The TWS function allows you to connect two NDS-6501 speakers for a stereo sound experience.

Figur 6.1: Illustration of the True Wireless Stereo (TWS) function, enabling two speakers to connect wirelessly from a single Bluetooth source.

1. Ensure both NDS-6501 speakers are powered on and in Bluetooth mode, but not yet paired to any device.
2. On one of the speakers (this will be the primary speaker), press and hold the TWS button (or a designated pairing button) for a few seconds.
3. Den primære højttaler vil søge efter den sekundære højttaler. Når den er tilsluttet, vil begge højttalere afgive en hørbar bekræftelse.
4. Now, pair your Bluetooth device to the primary speaker as described in Section 6.1. Audio will play through both speakers in stereo.

6.3 FM-radiofunktion

1. Press the Mode button to switch to FM Radio mode.
2. Tryk på Afspil/Pause-knappen for automatisk at scanne og gemme tilgængelige FM-stationer.
3. Use the Previous/Next track buttons to navigate between saved stations.

6.4 USB/MicroSD-afspilning

1. Insert a USB flash drive or a MicroSD/TF card (with audio files) into the corresponding port.
2. The speaker should automatically switch to USB or MicroSD mode and begin playing audio. If not, press the Mode button to select the correct input.
3. Use the playback controls (Play/Pause, Previous/Next) to manage your music.

6.5 Brug af mikrofon

1. Connect the wired microphone to the microphone input jack on the speaker.
2. Adjust the microphone volume control (if available) on the speaker to your desired level.
3. The microphone audio will be mixed with any music playing through the speaker.

6.6 Lyseffekter

• The speaker features integrated multi-color flame lights.
• Press the Light button (if available) to cycle through different lighting modes or to turn the lights on/off.
• The lights may synchronize with the music playback.

7. Vedligeholdelse

• Rensning: Brug en blød, tør klud til at rengøre højttalerens yderside. Brug ikke slibende rengøringsmidler, voks eller opløsningsmidler.
• Opbevaring: Når højttaleren ikke er i brug i længere perioder, skal den opbevares køligt og tørt, væk fra direkte sollys og ekstreme temperaturer.
• Batteripleje: For at forlænge batteriets levetid bør du undgå at aflade batteriet helt ofte. Oplad højttaleren regelmæssigt, selvom den ikke er i brug.
• Vandeksponering: Denne højttaler er ikke vandtæt. Undgå at udsætte den for vand eller overdreven fugt.

8. Fejlfinding

9. Specifikationer

10. Garanti og support

For warranty information or technical support, please refer to the warranty card included with your product or visit the official Naxa Electronics webwebsted. Gem din købskvittering som købsbevis i tilfælde af garantikrav.
