Rockstar PAD20 PRO ADVANCED Elektronisk Trommepad Brugermanual

1. Introduktion

Thank you for choosing the Rockstar PAD20 PRO ADVANCED Electronic Drum Pad. This manual provides essential information for the safe and effective use of your new instrument. Please read it thoroughly before operation and retain it for future reference. The PAD20 PRO ADVANCED is designed to offer advanced percussion performance with versatile drum kits, enhanced connectivity, and durable construction.

2. Sikkerhedsoplysninger

• Strømforsyning: Brug kun den angivne strømadapter. Sørg for, at lydstyrkentage matcher kravene til enheden.
• Vand og fugt: Do not expose the unit to rain, moisture, or excessive humidity. Avoid placing liquid containers near the device.
• Ventilation: Sørg for tilstrækkelig ventilation omkring enheden. Bloker ikke ventilationsåbningerne.
• Varmekilder: Hold enheden væk fra varmekilder såsom radiatorer, varmeregistreringsapparater, komfurer eller andre apparater, der producerer varme.
• Rensning: Disconnect the power before cleaning. Use a soft, dry cloth. Do not use liquid cleaners or aerosol cleaners.
• Service: Forsøg ikke selv at servicere dette produkt. Overlad al service til kvalificeret servicepersonale.

3. Pakkens indhold

Bekræft at alle varer er til stede i pakken:

• Rockstar PAD20 PRO ADVANCED Electronic Drum Pad
• Strømadapter
• Brugervejledning (dette dokument)

4. Produktet er slutview

4.1 Frontpanel og betjeningselementer

The front panel features eight velocity-sensitive pads, a large LCD screen, and various control buttons and knobs for navigation and sound manipulation.

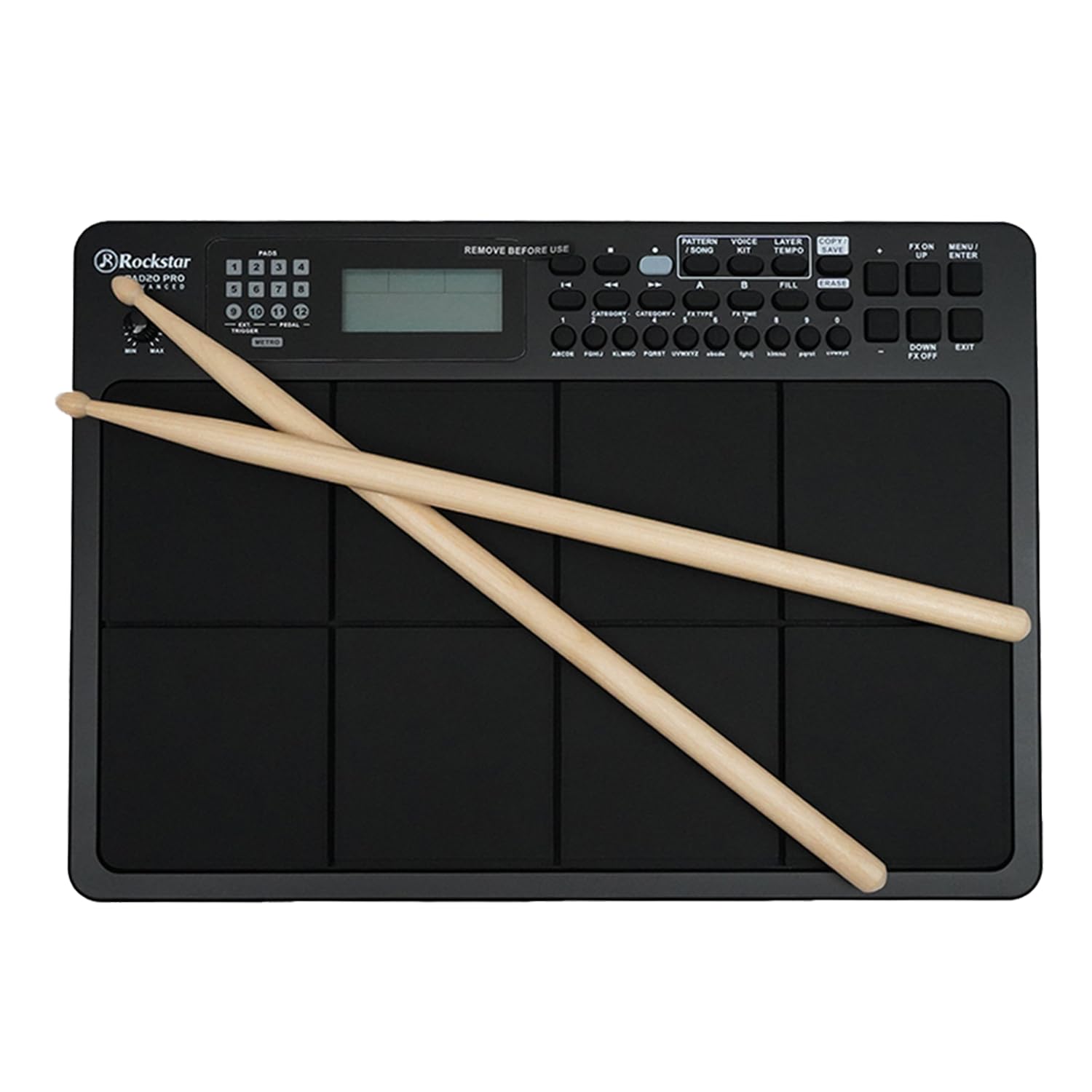

Figur 1: Front view of the Rockstar PAD20 PRO ADVANCED with drumsticks, showing the pads, display, and control buttons.

• Puder (1-8): Velocity-sensitive pads for triggering sounds.
• LCD-skærm: Large backlight display for navigating menus, selecting kits, and viewing parametre.
• Navigationsknapper: Buttons for moving through menus and adjusting settings.
• Lydstyrkeknap: Justerer den samlede udgangslydstyrke.
• Funktionsknapper: Dedicated buttons for Pattern, Voice, Layer, Kit, Song, Tempo, Copy, Save, FX On/Off, Menu, Up/Down, Enter, Exit.

4.2 Bagpaneltilslutninger

The rear panel provides various input and output ports for connecting to external devices.

Figur 2: Rear panel connections diagram, illustrating ports for USB, MIDI In/Out, audio outputs, and power input.

• USB 2.0 MIDI Port: Til tilslutning til en computer for MIDI-dataoverførsel.
• MIDI IN/OUT Ports: For connecting to other MIDI devices.
• Audio Outputs (L/MONO, R): For at oprette forbindelse til en amplifier, mixer eller lydgrænseflade.
• Hovedtelefonudgang: Til privat overvågning.
• Hjælpeindgang: For connecting external audio players.
• External Trigger/Pedal Inputs: For connecting additional pads or footswitches.
• Strømindgang: Til tilslutning af DC-strømadapteren.

5. Opsætning

1. Placering: Place the PAD20 PRO ADVANCED on a stable, flat surface.
2. Strømtilslutning: Connect the provided power adapter to the DC IN port on the rear panel, then plug the adapter into a power outlet.
3. Lydforbindelse:
   • Til ekstern amplification, connect the L/MONO and R audio outputs to your amplifier or mixer using appropriate cables.
   • For private practice, connect headphones to the Headphone Output.
4. MIDI/USB-forbindelse (valgfrit): To use the PAD20 PRO ADVANCED as a MIDI controller or to connect to a computer, use a USB cable to connect the USB 2.0 MIDI port to your computer.
5. Tænd: Tryk på tænd/sluk-knappen for at tænde enheden. LCD-displayet lyser.

6. Betjeningsvejledning

6.1 Grundlæggende betjening

Upon powering on, the unit will typically load the last used drum kit. Strike the pads with drumsticks or your hands to produce sounds.

6.2 Navigering på skærmen

Figur 3: Close-up of the LCD screen, showing kit selection and voice information. The display is bright and clear.

Use the navigation buttons (Up/Down, Left/Right, Enter, Exit) to move through menus and adjust parameters shown on the large backlight LCD display.

6.3 Drum Kit Selection

The PAD20 PRO ADVANCED features 100 professionally curated drum kits. To select a kit:

1. Tryk på SÆT knap.
2. Use the navigation buttons to scroll through the available kits.
3. Trykke ENTER for at bekræfte dit valg.

6.4 Optagelsesfunktioner

The unit supports real-time record and step record edit functions. Refer to the on-screen menu for detailed instructions on how to initiate, stop, and edit recordings.

6.5 Connectivity and MIDI

The USB 2.0 MIDI port allows seamless integration with your computer. You can use the PAD20 PRO ADVANCED as a MIDI controller for software instruments or to send MIDI data to a Digital Audio Workstation (DAW).

7. Vedligeholdelse

• Rensning: Wipe the unit with a soft, dry cloth. For stubborn dirt, a slightly damp cloth can be used, followed by a dry cloth. Avoid abrasive cleaners.
• Opbevaring: When not in use for extended periods, store the unit in a cool, dry place, away from direct sunlight and extreme temperatures.
• Pudepleje: Avoid striking the pads with excessive force or sharp objects, as this can damage the sensors.

8. Fejlfinding

9. Specifikationer

10. Garanti og support

The Rockstar PAD20 PRO ADVANCED comes with a 2 Years Hassle Free Warranty from the date of purchase. This warranty covers manufacturing defects under normal use. For warranty claims or technical support, please contact Rockstar customer service.

Fabrikantens kontaktoplysninger:
Telefonnummer: +91 8885241706
Email: care@justshop24x7.com
