Indledning
This manual provides essential instructions for the safe and efficient use of your ACEFAST A25 PD20W Dual Port Fast Charger. Please read this manual thoroughly before using the product and retain it for future reference.
Produkt overview
The ACEFAST A25 is a compact and powerful dual-port wall charger designed for fast charging a wide range of mobile devices. It features both a USB-C port (PD20W) and a USB-A port (18W), supporting multiple fast charging protocols.
Figure 1: ACEFAST A25 Dual Port Fast Charger, front view showing USB-C and USB-A ports.
Specifikationer
| Feature | Detalje |
|---|---|
| Model | A25 |
| Input | AC 100-240V, 0.6A, 50/60Hz |
| USB-C udgang | 20W Max (PD3.0, PPS, QC4.0, QC3.0, QC2.0, AFC, FCP, SCP, DCP1.5A, BC1.2) |
| USB-A-output | 18W Max (QC3.0, QC2.0, AFC, FCP, SCP, DCP1.5A, BC1.2) |
| Total Output (USB-C + USB-A) | 5V / 3A (15W Max) |
| Materiale | Flammehæmmende PC |
| Dimensioner | 12 x 4 x 13 cm |
| Vægt | 61 g |
| Særlige funktioner | Hurtig opladning, kortslutningsbeskyttelse |
Opsætning
Setting up your ACEFAST A25 charger is straightforward:
- Pak opladeren ud: Carefully remove the ACEFAST A25 charger from its packaging.
- Locate a Power Outlet: Find a standard AC wall outlet (100-240V) that is easily accessible.
- Tilslut opladeren: Insert the charger's prongs firmly into the wall outlet.
- Tilslut din enhed: Use a compatible charging cable (not included) to connect your device to either the USB-C or USB-A port on the charger.
Betjeningsvejledning
The ACEFAST A25 charger operates automatically once connected to a power source and a device.
- Opladning med én port: When using only the USB-C port, it can deliver up to 20W. When using only the USB-A port, it can deliver up to 18W.
- Opladning med dobbelt port: When both USB-C and USB-A ports are used simultaneously, the total output is shared, with a maximum combined output of 15W (5V/3A). The charger intelligently distributes power based on the connected devices' requirements.
- Hurtig opladning: For optimal fast charging, ensure your device and charging cable support the relevant fast charging protocols (e.g., PD, QC3.0).
Figure 2: ACEFAST A25 charger providing PD20W fast charge to an iPhone, illustrating quick charging capability.

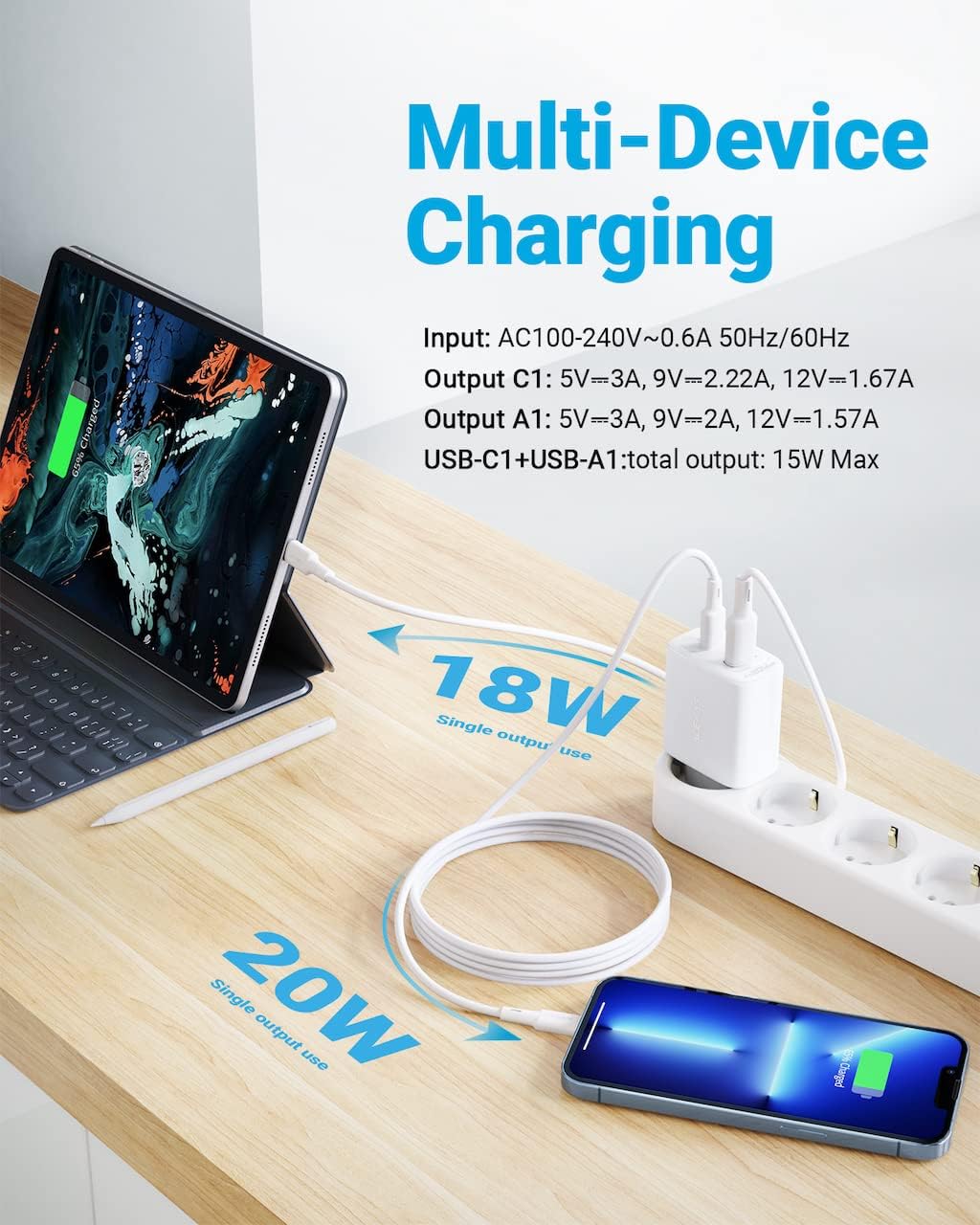

Figure 3: The ACEFAST A25 charger simultaneously charging an iPad and an iPhone, demonstrating its dual-port functionality and power distribution.
Kompatibilitet
The ACEFAST A25 charger is compatible with a wide range of USB charging digital devices, including but not limited to:
- iPhone models (e.g., iPhone 13 series, iPhone 12 series)
- Samsung Galaxy smartphones (e.g., S21+, S21, S21 Ultra, S series, Note series)
- Xiaomi and Huawei smartphones
- iPad models (e.g., iPad Pro 11", iPad Air 2020 10.9")
- AirPods, AirPods Pro, AirPods Max
- Other devices supporting PD20W, PPS, QC3.0, AFC, FCP, QC2.0, SCP, DCP1.5A, BC1.2 charging protocols.
Figure 4: Visual guide displaying various compatible devices including iPhone, iPad, Samsung Galaxy, and AirPods, highlighting multi-device charging.
Sikkerhedsoplysninger
For at sikre sikker drift og forhindre skader, bedes du overholde følgende sikkerhedsforanstaltninger:
- Udsæt ikke opladeren for vand, fugt eller ekstreme temperaturer.
- Undgå at tabe, udsætte den for stød eller skille opladeren ad.
- Brug ikke opladeren, hvis den ser beskadiget ud.
- Opbevares utilgængeligt for børn.
- Ensure proper ventilation when in use; do not cover the charger.
- Brug kun med kompatible enheder og kabler.
- Tag opladeren ud af stikkontakten, når den ikke er i brug, eller under tordenvejr.
Opretholdelse
The ACEFAST A25 charger requires minimal maintenance.
- Rensning: Tag opladeren ud af stikkontakten før rengøring. Tør overfladen af med en blød, tør klud. Brug ikke flydende rengøringsmidler eller aerosoler.
- Opbevaring: Opbevar opladeren på et køligt, tørt sted væk fra direkte sollys og ekstreme temperaturer.
Fejlfinding
Hvis du støder på problemer med din oplader, kan du se følgende almindelige problemer og løsninger:
- Enheden oplader ikke:
- Sørg for, at opladeren er tilsluttet korrekt til en fungerende stikkontakt.
- Kontroller, om opladningskablet er korrekt tilsluttet til både opladeren og din enhed.
- Prøv et andet opladningskabel for at udelukke en funktionsfejl.
- Test opladeren med en anden enhed for at bekræfte opladerens funktionalitet.
- Langsom opladning:
- Verify that your device and cable support fast charging protocols.
- If charging two devices simultaneously, the total output is shared, which may result in slower charging for each device compared to single-port use.
- Ensure the cable is not excessively long or damaged, as this can affect charging speed.
- Opladeren føles varm:
- It is normal for the charger to become slightly warm during operation, especially during fast charging.
- If the charger becomes excessively hot, unplug it immediately and discontinue use. Ensure it is not covered and has adequate ventilation.
Pakkens indhold
The ACEFAST A25 package typically includes the following items:
- 1 x ACEFAST A25 PD20W Dual Port Fast Charger
- 1 x Quick Start Guide / Product Manual
Note: Charging cables are typically not included and must be purchased separately.
Figure 5: Image showing the ACEFAST A25 charger, its packaging box, and the included quick start guide/product manual, detailing package contents.
Garanti og support
ACEFAST products are designed for reliability and performance. For warranty information or technical support, please refer to the warranty card included in your product packaging or visit the official ACEFAST website. Please have your product model number (A25) and purchase details ready when contacting support.
