BEITONG BAT 2 Wired USB Gaming Controller User Manual

Indledning

This manual provides detailed instructions for the BEITONG BAT 2 Wired USB Gaming Controller. It covers setup, operation, maintenance, and troubleshooting to ensure optimal performance and longevity of your device. The BEITONG BAT 2 is designed for a responsive and immersive gaming experience on compatible platforms.

Produktegenskaber

• 8th Generation Upgraded Chip: Features ultra-low latency (≤ 0.008 s) for smooth and responsive gameplay.
• Kablet USB-forbindelse: Ensures stable and reliable connectivity.
• Multi-platform kompatibilitet: Supports PC (Windows 7/8/10/11), Laptops, Android TV, and Tesla Model 3/Y (before 11/2021). Note: Does not support Xbox, PS4/5, or Switch.
• High Precision Joysticks: Designed for 360° flexible positioning and fine-tuning, enhancing control in various game genres.
• Dual Vibrating Motors: Built-in asymmetrical motors provide varied vibration feedback based on in-game events, increasing immersion. (Vibration effect is active only when supported by the game.)
• Turbofunktion: A dedicated turbo button simplifies complex combo inputs, offering an advantage i hurtige spil.

Pakkens indhold

• BEITONG BAT 2 Wired USB Gaming Controller
• Brugervejledning (dette dokument)

Opsætningsinstruktioner

1. Tilslut controlleren: Insert the USB connector of the BEITONG BAT 2 controller into an available USB port on your PC, Laptop, Android TV, or compatible Tesla vehicle.


   Image: The BEITONG BAT 2 controller connected via USB to a laptop, desktop PC, Steam Deck (with OTG adapter), Android TV, and Tesla car screen. This illustrates the multi-platform compatibility.
2. Driver installation: For Windows operating systems (7/8/10/11), the necessary drivers should install automatically upon first connection. Allow a few moments for the system to recognize the device.
3. Bekræft forbindelsen: Once connected, the controller's indicator light should illuminate, signifying a successful connection. You can test the controller's functionality through your operating system's game controller settings.
4. Tesla Compatibility Note: For Tesla Model 3 and Model Y, ensure your vehicle was manufactured before November 2021 for compatibility. An OTG adapter may be required for some devices, such as the Steam Deck.

Betjeningsvejledning

Controllerens layout og funktioner

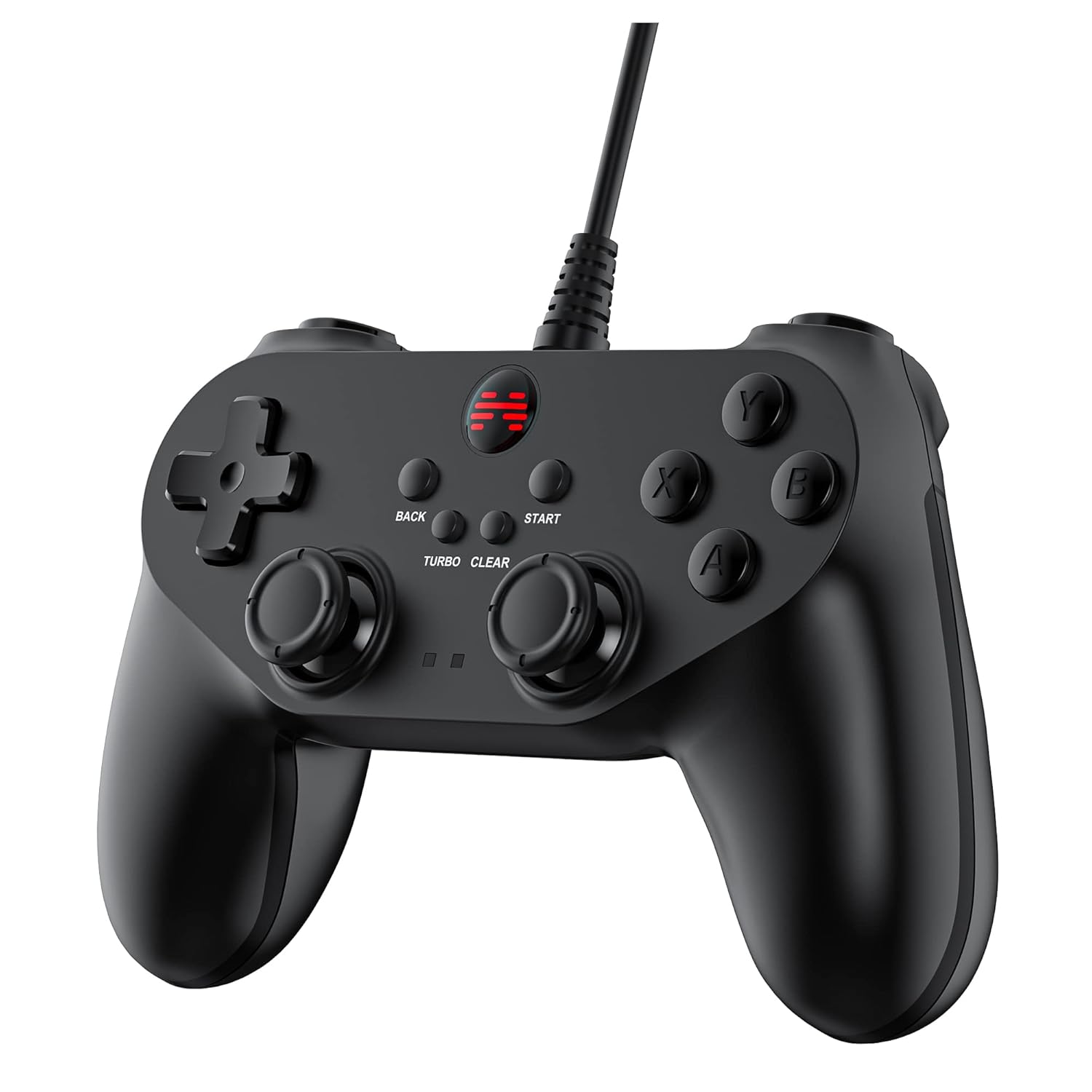

Billede: En detaljeret front view of the BEITONG BAT 2 controller, highlighting the ergonomic design, dual analog sticks, D-pad, action buttons (A, B, X, Y), and central function buttons (Back, Start, Turbo, Clear).

• Analoge joysticks: Use for precise 360° movement and camera control in games. The joysticks are designed for high precision and flexible positioning.
• D-Pad: Used for directional input, often for menu navigation or specific game actions.
• Handlingsknapper (A, B, X, Y): Primary input buttons for in-game actions.
• Skulderknapper (L1, R1) og aftrækkere (L2, R2): Located on the top of the controller for additional actions. Note that L2 and R2 are digital buttons, not analog triggers.
• BACK and START Buttons: Standard function buttons for pausing games, accessing menus, or other in-game commands.
• TURBO knap: Activates the turbo function.
• CLEAR -knap: Deactivates the turbo function.

Brug af Turbo-funktionen

1. Aktivér Turbo: Tryk og hold på TURBO button, then press the action button (e.g., A, B, X, Y, L1, R1, L2, R2) you wish to apply turbo to. The selected button will now repeatedly register input as long as it is held down.
2. Deaktiver Turbo: Tryk og hold på KLAR button, then press the action button that has turbo enabled. The turbo function for that specific button will be deactivated.
3. Global Turbo Clear: To clear all active turbo settings, press and hold the KLAR knap i cirka 3 sekunder.

Billede: Et nærbillede view of the central part of the controller, highlighting the "TURBO" and "CLEAR" buttons, indicating their function for rapid input.

Feedback om vibrationer

The controller features dual asymmetrical vibrating motors that provide haptic feedback during gameplay. The intensity and pattern of vibration vary based on in-game events, such as impacts, explosions, or specific actions. This feature is active only when supported by the game being played.

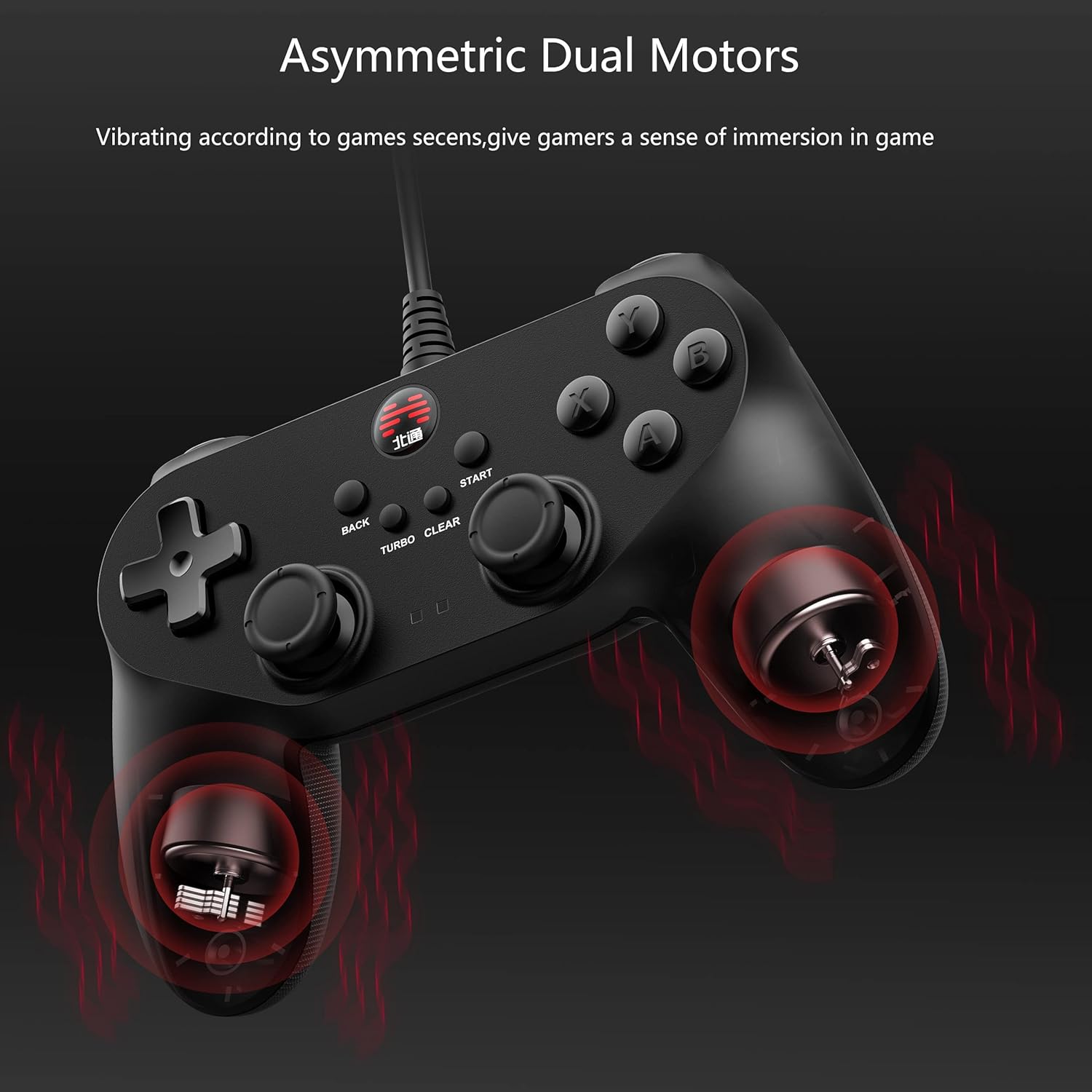

Image: An X-ray style diagram of the BEITONG BAT 2 controller, illustrating the placement of the two asymmetrical vibrating motors within the grips, with red waves indicating vibration.

Vedligeholdelse og pleje

• Rensning: Brug en blød, tør klud til at rengøre controlleren. Ved genstridigt snavs, gnid letamp En klud kan bruges, men sørg for, at der ikke kommer fugt ind i enheden. Undgå skrappe kemikalier eller slibende rengøringsmidler.
• Opbevaring: Store the controller in a cool, dry place away from direct sunlight and extreme temperatures. Avoid placing heavy objects on top of the controller.
• Kabelpleje: Do not sharply bend or pull the USB cable. Always grasp the plug when disconnecting, not the cable itself, to prevent damage.
• Undgå dråber: Protect the controller from drops and impacts, as these can damage internal components.

Fejlfinding

Controller not recognized by PC/device:

• Ensure the USB cable is securely plugged into both the controller and the device.
• Try a different USB port on your computer or device.
• Genstart din computer eller enhed.
• Check your operating system's device manager or game controller settings to see if the controller is listed. If there's an error, try updating or reinstalling drivers.
• Verify compatibility: The controller does not support Xbox, PS4/5, or Switch consoles.

Vibration virker ikke:

• Bekræft, at det spil, du spiller, understøtter vibrationsfeedback.
• Tjek indstillingerne i spillet for at sikre, at vibration er aktiveret.
• Some games may require specific drivers or software updates for full functionality.

Buttons or joysticks unresponsive/inaccurate:

• Ensure the controller is properly connected and recognized.
• Calibrate the controller through your operating system's game controller settings.
• Clean around the buttons and joysticks to remove any debris that might be causing sticking.
• If the issue persists, contact BEITONG customer support.

Turbo function not working:

• Follow the operating instructions carefully to activate and deactivate turbo for specific buttons.
• Ensure you are pressing the correct combination of TURBO/CLEAR and action buttons.

Specifikationer

Garanti og support

BEITONG is committed to providing quality products and customer satisfaction. While specific warranty details are not provided in this manual, the BEITONG technology team is available to provide support for any issues encountered with your controller.

For technical assistance, troubleshooting, or inquiries regarding your BEITONG BAT 2 controller, please refer to the official BEITONG website or contact their customer service channels. Contact information can typically be found on the product packaging or the manufacturer's official webwebsted.
