Globe Electric 50583 Works With Alexa Only Wi-Fi Smart Pendant Lighting Instruction Manual

1. Introduktion

This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Globe Electric Smart Pendant Lighting. Please read this manual thoroughly before installation and retain it for future reference.

The Globe Electric Smart Pendant Light (Model 50583) is a modern, matte brass finish lighting fixture designed for indoor use. It features integrated LED lighting with tunable white and RGB color-changing capabilities, offering 2000 lumens of brightness at 30 watts. This smart pendant light works exclusively with Amazon Alexa for voice and app control, connecting via 2.4GHz Wi-Fi.

2. Sikkerhedsoplysninger

Always follow basic safety precautions when installing or using this product to reduce the risk of fire, electric shock, or personal injury.

• Ensure power is OFF at the circuit breaker before installation, cleaning, or maintenance.
• Installationen skal udføres af en kvalificeret elektriker i overensstemmelse med lokale el-forskrifter.
• Do not modify the product in any way. Unauthorized modifications may void the warranty and create safety hazards.
• Use only with compatible voltage (120 volt).
• This product is for indoor use only. Do not expose to water or damp forhold.
• The integrated LED light source is non-replaceable. Do not attempt to disassemble or replace the LEDs.

3. Pakkens indhold

Kontroller, at alle komponenter er til stede, før installationen påbegyndes:

• 1 x Globe Electric Smart Pendant Lighting fixture
• Hardware til installation
• Installationsvejledning (denne vejledning)

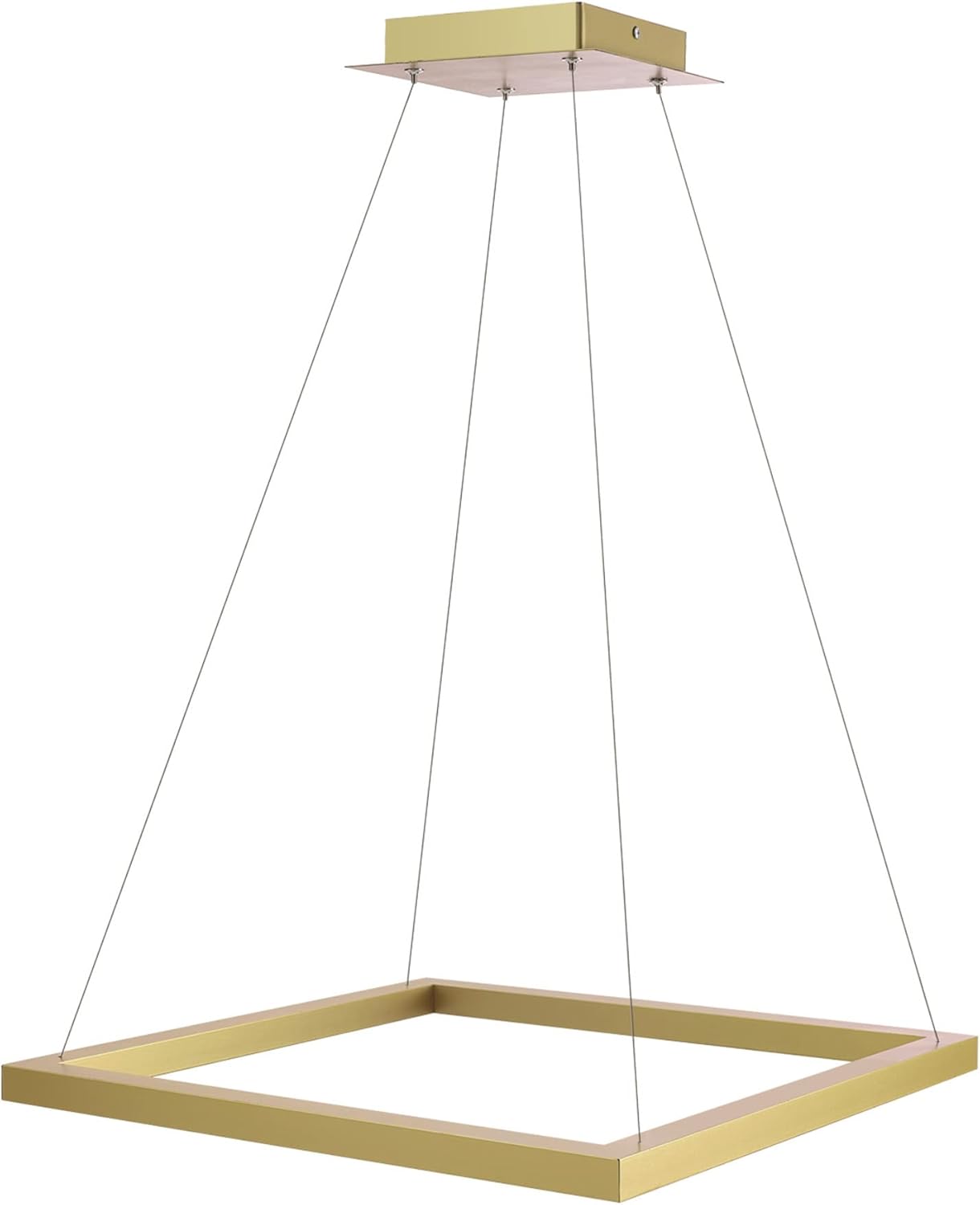

Figur 3.1: Hovedprodukt view of the Smart Pendant Light.

4. Opsætning

4.1 Fysisk installation

The Globe Electric Smart Pendant Light is designed for ceiling mount installation. Ensure the power is off at the circuit breaker before proceeding.

1. Pak forsigtigt alle komponenter ud af kassen.
2. Follow the detailed wiring instructions provided in the included hardware kit to connect the fixture to your electrical system.
3. Securely mount the fixture to the ceiling using the provided hardware. The pendant height is adjustable up to 70 inches.
4. Gendan strømmen ved afbryderen.

Figur 4.1: Produktmål til installationsplanlægning.

4.2 Smart Device Pairing (Alexa Exclusive)

This Smart Pendant Light works exclusively with Amazon Alexa and requires a 2.4GHz Wi-Fi connection. No hubs or third-party apps are required.

Frustration-Free Setup (Recommended)

If you selected "Link device to your Amazon account to simplify setup" during checkout, your device will automatically pair upon power-up.

1. Install the smart pendant light and power it on.
2. Åbn Amazon Alexa-appen på din smartphone eller tablet.
3. The Alexa app should notify you with "New device found" or "First light found". Confirm the device.
4. Your device is now connected and ready for use.

Figure 4.2: Visual guide for simple Alexa setup.

Figure 4.3: The pendant light immediately pairs with the Amazon Alexa app upon installation.

Manual Pairing (If Frustration-Free Setup is not used or fails)

If the device does not automatically pair, or if you have changed your Wi-Fi settings, you can manually add the device:

1. Ensure the Smart Pendant Light is powered on.
2. Åbn Amazon Alexa-appen.
3. Tap the "Devices" icon.
4. Tryk på "+"-ikonet i øverste højre hjørne for at tilføje en ny enhed.
5. Follow the on-screen prompts to discover and connect your Globe Electric Smart Pendant Light.

5. Betjeningsvejledning

Once connected, you can control your Smart Pendant Light using voice commands or the Amazon Alexa app.

5.1 Stemmekontrol

Use your Amazon Echo device to control the light hands-free:

• "Alexa, tænd [Lysnavn]."
• "Alexa, sluk [Lysnavn]."
• "Alexa, indstil [Lysnavn] til 50% lysstyrke."
• "Alexa, change [Light Name] to blue."
• "Alexa, indstil [Lysnavn] til varm hvid."

Figure 5.1: Seamless pairing with Alexa virtual assistant for hands-free voice control.

5.2 App Control (Amazon Alexa App)

The Alexa app provides full control over your light's features:

• Tænd/sluk: Slå lyset til eller fra.
• Lysstyrke: Adjust the light intensity (Dimmable).
• Farveændring (RGB): Choose from 16 million colors to create different moods.
• Afstembar hvid: Adjust color temperature from 2000K (warm) to 5000K (cool white).
• Rutiner: Create automated schedules for your light (e.g., turn on at sunset, turn off at bedtime).
• Grupper: Group multiple smart lights together for synchronized control.

Figure 5.2: Use the Amazon Alexa app to control your lighting with a full range of vibrant colors and vivid whites.

Figure 5.3: Using Moods, select lighting presets that cycle through colors with varying effects.

Figure 5.4: Create routines to fit your lifestyle using the Alexa app.

6. Vedligeholdelse

To ensure the longevity and optimal performance of your Smart Pendant Light, follow these maintenance guidelines:

• Rensning: Disconnect power before cleaning. Use a soft, dry cloth to wipe the fixture. Do not use abrasive cleaners or solvents.
• Lyskilde: The LED light source is integrated and non-removable. Do not attempt to replace the LEDs.
• Fejlfinding: Refer to the Troubleshooting section for common issues.

7. Fejlfinding

If you experience issues with your Smart Pendant Light, consult the table below. For further assistance, refer to the official Troubleshooting Guide PDF linked in the product information or contact customer support.

For a comprehensive troubleshooting guide, please refer to the official PDF document: Fejlfindingsvejledning (PDF).

8. Specifikationer

9. Garanti og support

This Globe Electric Smart Pendant Light comes with a 3 års begrænset producentgaranti.

For warranty claims, technical support, or additional information, please visit the official GLOBE Store on Amazon or contact Globe Electric customer service directly.

Online ressourcer:

• GLOBE Store: Besøg GLOBE-butikken
• Fejlfindingsvejledning (PDF): Download PDF
