Lucci Air Climate III ventilatorlyssæt (model 21064501) brugermanual

1. Introduktion

Thank you for choosing the Lucci Air Climate III Fan Light Kit. This kit is designed to seamlessly integrate with your Lucci Air Climate III ceiling fan (sold separately), providing efficient and dimmable LED illumination. This manual provides essential information for the safe installation, operation, and maintenance of your new light kit.

Figure 1: Lucci Air Climate III Fan Light Kit (Model 21064501)

The light kit features a replaceable 12-watt GX53 LED bulb, emitting a warm 3000 Kelvin temperature and 1100 lumens of light output. When combined with your Climate III ceiling fan, it offers dimmable functionality and an anti-burglary feature, allowing you to automate light activation via the remote control.

2. Vigtige sikkerhedsinstruktioner

Læs og forstå alle instruktioner, inden installationen påbegyndes. Manglende overholdelse af disse instruktioner kan resultere i elektrisk stød, brand eller personskade.

• Always turn off power at the main circuit breaker or fuse box before attempting any installation, maintenance, or troubleshooting.
• Sørg for, at alle elektriske forbindelser overholder lokale forskrifter og bestemmelser samt den nationale elektriske kode (NEC).
• Hvis du er usikker på ledningsføring eller installation, skal du kontakte en kvalificeret elektriker.
• Do not install this light kit in wet or damp steder. Den er kun beregnet til indendørs brug.
• Use only the specified GX53 LED bulb type.
• Do not attempt to modify the light kit or its components.

3. Pakkens indhold

Carefully unpack your light kit and ensure all items are present and undamaged. If any parts are missing or damaged, contact your retailer immediately.

• One (1) Lucci Air Climate III Fan Light Kit
• One (1) GX53 LED Bulb (pre-installed or separate)

4. Installationsvejledning

This light kit is designed for easy installation onto a compatible Lucci Air Climate III ceiling fan using a simple twist and lock mechanism. Ensure your ceiling fan is already securely installed and powered off before proceeding.

4.1 Forberedelse til installation

1. Sluk for strømmen: Locate the circuit breaker or fuse that supplies power to the ceiling fan and turn it off. Verify that the power is off by attempting to operate the fan or any existing light.
2. Access fan light housing: Refer to your Lucci Air Climate III ceiling fan manual for instructions on how to access the light housing area, typically at the bottom of the fan motor.

4.2 Attaching the Light Kit

1. Carefully align the light kit with the designated mounting points on the bottom of the Climate III ceiling fan motor housing.
2. Gently push the light kit upwards and twist it clockwise until it locks securely into place. You should feel or hear a click, indicating it is properly seated.
3. Ensure all wiring connections are secure and not pinched during installation.

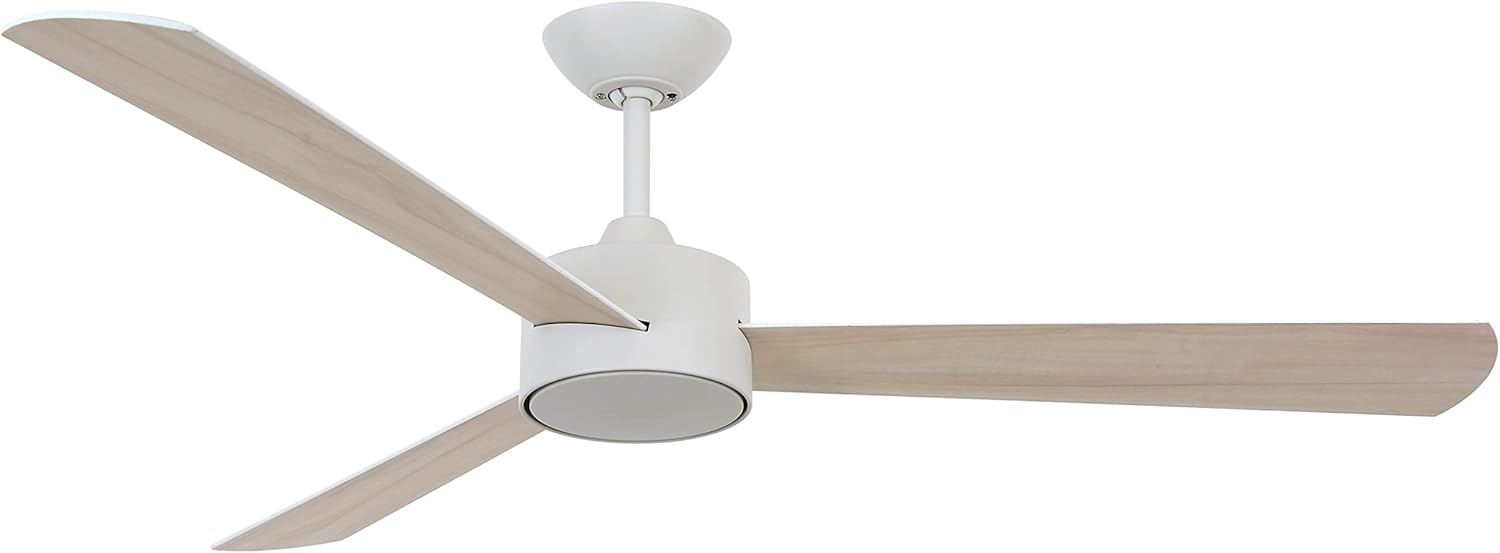

Figure 2: Lucci Air Climate III Ceiling Fan (Light Kit attaches to the bottom of the motor housing)

4.3 Bulb Installation/Replacement

The light kit comes with a replaceable GX53 LED bulb. If the bulb is not pre-installed or needs replacement:

1. Sørg for, at strømmen er slukket ved afbryderen.
2. Gently twist the GX53 bulb counter-clockwise to remove it from its socket.
3. Insert the new GX53 LED bulb into the socket and twist clockwise until it is secure. Do not overtighten.

4.4 sidste trin

1. Once the light kit is securely installed and the bulb is in place, restore power at the main circuit breaker.
2. Test the light kit using your Lucci Air Climate III ceiling fan remote control.

5. Betjeningsvejledning

The Lucci Air Climate III Fan Light Kit is controlled via the remote control provided with your Lucci Air Climate III ceiling fan.

5.1 Grundlæggende lysstyring

• Tænd/sluk: Press the designated light button on your fan's remote control to turn the light kit on or off.
• Dæmpning: If your remote control has dimming functionality, press and hold the light button or use the dedicated dimming buttons to adjust the brightness of the LED light.

5.2 Anti-Burglary Functionality

The light kit, in conjunction with your Climate III ceiling fan and its remote, offers an anti-burglary feature. This function allows you to program the light to turn on and off automatically for 5-20 minutes every 2 hours, simulating occupancy. Refer to your Climate III ceiling fan remote control manual for specific instructions on activating and customizing this feature.

6. Pleje og vedligeholdelse

Regular cleaning and proper care will ensure the longevity and optimal performance of your light kit.

• Rensning: Always turn off power to the fan and light kit at the circuit breaker before cleaning. Use a soft, dry, or slightly damp cloth to wipe down the exterior surfaces. Do not use abrasive cleaners, solvents, or polishes, as these can damage the finish.
• Udskiftning af pære: When replacing the GX53 LED bulb, ensure power is off. Allow the bulb to cool completely before handling.
• Inspektion: Periodically check for any loose connections or signs of wear. If any issues are found, turn off power and consult a qualified technician.

7. Fejlfinding

If you experience issues with your Lucci Air Climate III Fan Light Kit, refer to the following common problems and solutions:

If you continue to experience problems, please contact customer support.

8. Specifikationer

Detailed technical specifications for the Lucci Air Climate III Fan Light Kit (Model 21064501):

• Modelnavn: 21064501
• Mærke: Lucci Air
• Farve: Hvid
• Materiale: Metal, polycarbonat
• Lyskildetype: LED
• Pære base: GX53
• Wattage: 12 watt
• Lysstyrke: 1100 lumen
• Lys farvetemperatur: 3000 Kelvin (varm hvid)
• Voltage: 120 volt
• Kontrolmetode: Remote Control (via Climate III fan remote)
• Speciel funktion: Dimmable, Anti-Burglary Functionality
• Indendørs/udendørs brug: Indendørs
• Produktdimensioner: 6.9 x 6.9 x 2.2 tommer (diameter x højde)
• Varens vægt: 12 ounces (0.75 pund)
• Montering påkrævet: No (for the light kit itself, attaches to fan)
• Vandmodstandsniveau: Ikke vandafvisende

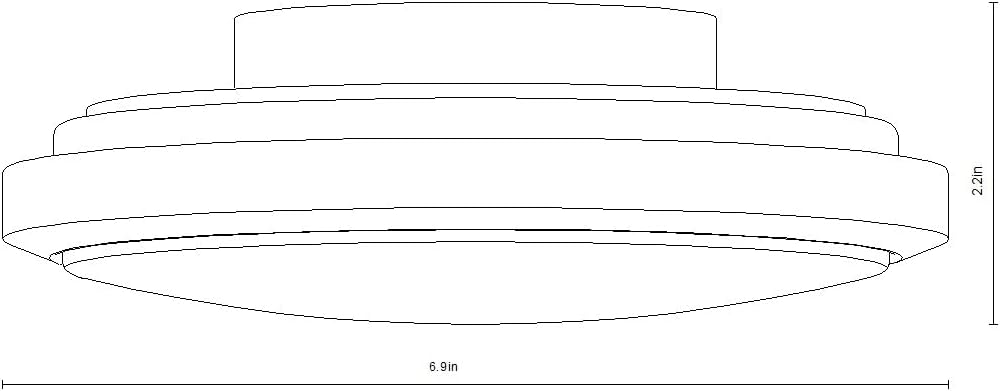

Figure 3: Light Kit Dimensions

9. Garantioplysninger

The Lucci Air Climate III Fan Light Kit (Model 21064501) is covered by a 1 års begrænset garanti fra købsdatoen. Denne garanti dækker defekter i materialer og udførelse ved normal brug. Den dækker ikke skader som følge af forkert installation, ulykker, misbrug, misbrug eller uautoriserede ændringer.

Gem venligst dit købsbevis for garantikrav.

10. Kundesupport

For technical assistance, warranty claims, or further inquiries regarding your Lucci Air Climate III Fan Light Kit, please contact your retailer or visit the official Lucci Air store:

Visit the Lucci Air Store on Amazon
