1. Introduktion
This user manual provides comprehensive instructions for the installation, operation, and maintenance of your Opticis LHM2-NT80 Active Optical HDMI 2.0 Cable. This high-performance cable is designed to transmit HDMI 2.0 signals over long distances, up to 80 meters (262 feet) or 100 meters (328 feet) depending on the specific model variant, utilizing hybrid fiber optic and copper technology. Please read this manual thoroughly before using the product to ensure proper functionality and safety.
2. Sikkerhedsoplysninger
Always observe the following safety precautions to prevent damage to the product or injury to yourself:
- Do not expose the cable to excessive force, bending, or crushing, as this can damage the internal optical fibers.
- Avoid exposing the cable to extreme temperatures or high humidity.
- Do not attempt to disassemble or modify the cable. This will void the warranty and may cause damage.
- Ensure proper grounding for all connected devices.
- Hold stikkene rene og fri for støv eller snavs.
3. Pakkens indhold
Bekræft at alle varer er til stede i din pakke:
- Opticis LHM2-NT80 Active Optical HDMI 2.0 Cable (1 unit)
- This User Manual (1 unit)
4. Produktet er slutview
The Opticis LHM2-NT80 is an active optical HDMI 2.0 cable designed for reliable long-distance transmission of high-bandwidth video and audio signals. It supports HDMI 2.0 standards, including 4K@60Hz (4:4:4) and 18Gbps data rates. The cable features a durable TPU jacket, making it suitable for various installation environments.

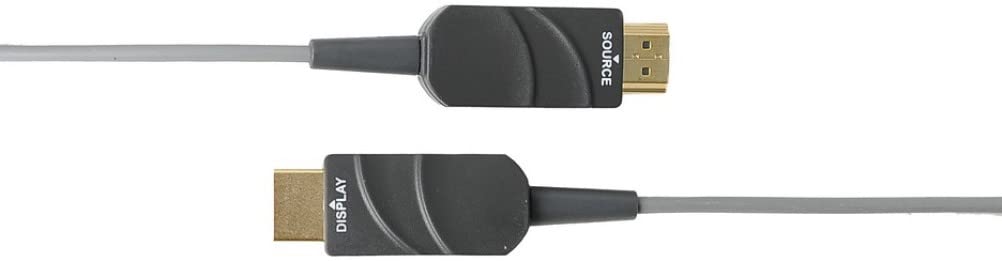

Figure 4.1: The Opticis LHM2-NT80 Active Optical HDMI Cable, showing the distinct 'SOURCE' and 'DISPLAY' labeled connectors. The 'SOURCE' end connects to the video source (e.g., PC, Blu-ray player), and the 'DISPLAY' end connects to the display device (e.g., TV, projector).

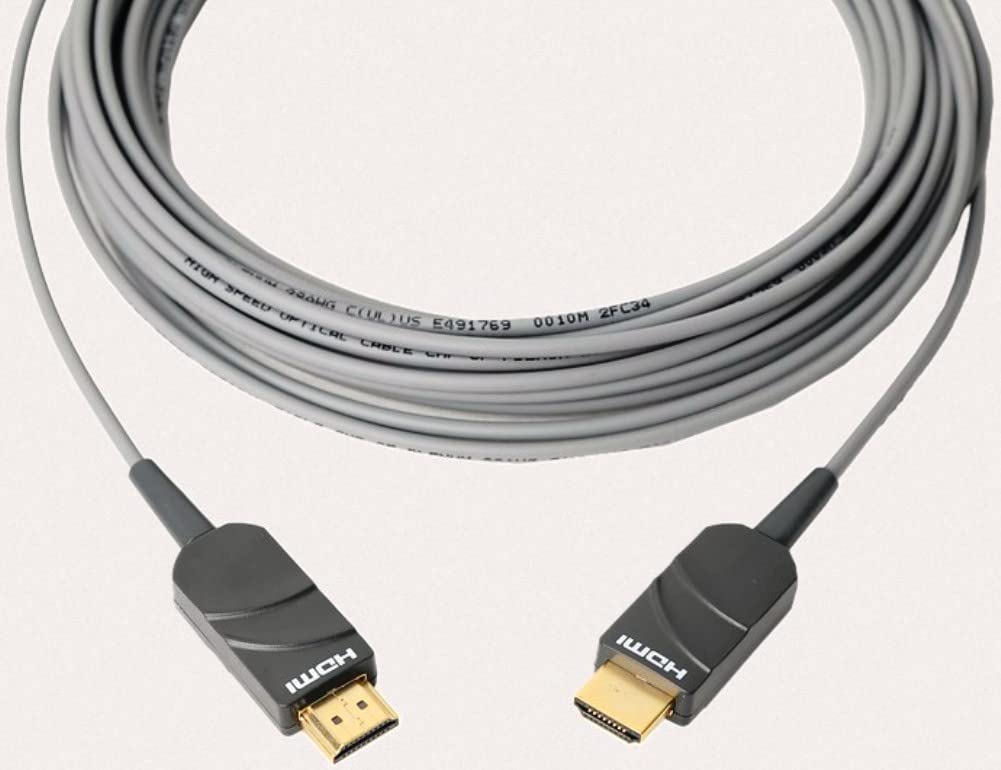

Figure 4.2: The Opticis LHM2-NT80 HDMI cable shown coiled, highlighting its flexible yet durable TPU jacket. The cable is designed for long-distance signal transmission.
Nøglefunktioner:
- Supports HDMI 2.0 standards (18Gbps bandwidth).
- Transmits 4K UHD (3840x2160) at 60Hz (4:4:4) up to 80m/100m.
- Hybrid fiber optic and copper construction for reliable long-distance transmission.
- Durable TPU jacket for enhanced flexibility and protection.
- Plug & Play operation, no external power required for most applications.
- Supports HDR, HDCP 2.2, EDID, and CEC.
Dimensioner:

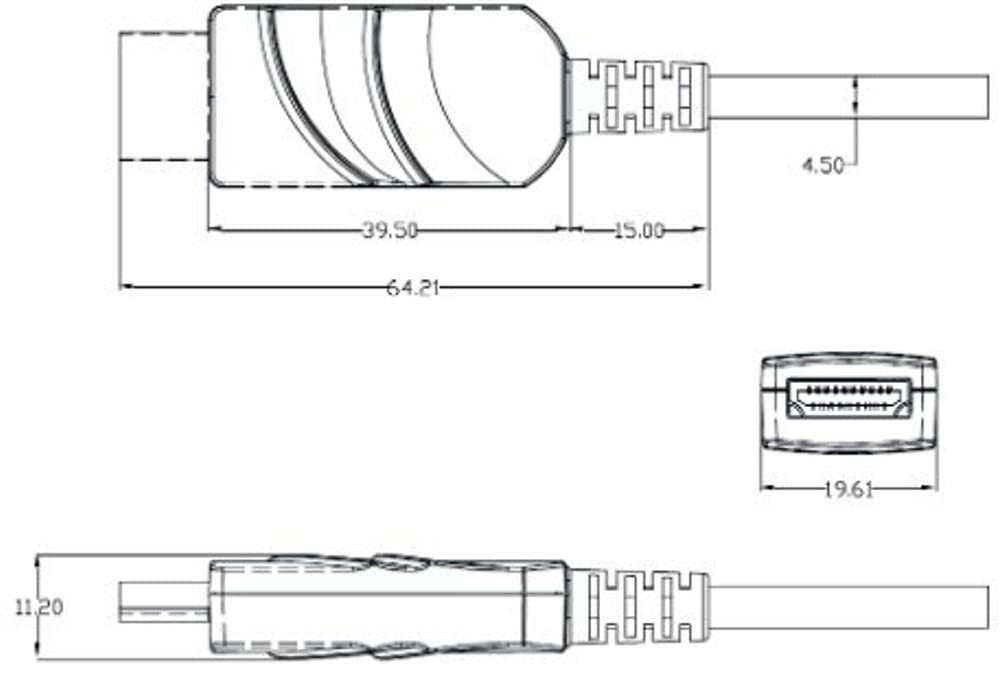

Figure 4.3: Technical drawing illustrating the dimensions of the HDMI connector housing. All measurements are in millimeters (mm).
5. Opsætning og installation
The Opticis LHM2-NT80 cable is designed for simple plug-and-play installation. It is crucial to connect the cable in the correct orientation.
- Identify Cable Ends: The cable connectors are clearly labeled. One end is marked "SOURCE" and the other is marked "DISPLAY".
- Forbind til kilde: Plug the HDMI connector labeled "SOURCE" into the HDMI output port of your source device (e.g., computer, Blu-ray player, game console).
- Tilslut til skærm: Plug the HDMI connector labeled "DISPLAY" into the HDMI input port of your display device (e.g., TV, monitor, projector).
- Tænd enheder: Ensure both the source and display devices are powered on. The cable will draw power from the HDMI ports.
Figure 5.1: Connection diagram illustrating the proper setup of the LHM2-N series cable. The 'Tx' (Transmitter/Source) end connects to the HDMI source, and the 'Rx' (Receiver/Display) end connects to the HDMI display. This ensures correct signal flow.
Vigtig bemærkning: The cable is directional. Connecting the "SOURCE" end to the display or the "DISPLAY" end to the source will result in no signal. Always ensure correct orientation.
6. Betjeningsvejledning
Once the Opticis LHM2-NT80 cable is correctly connected between your source and display devices, operation is automatic. The cable functions as a transparent extension of your HDMI connection.
- Ensure your source device is outputting a compatible HDMI signal.
- Vælg den korrekte HDMI-indgang på din skærmenhed.
- The cable will automatically transmit the video and audio signals. No additional software or drivers are required.
7. Vedligeholdelse
The Opticis LHM2-NT80 Active Optical HDMI Cable requires minimal maintenance. Follow these guidelines to ensure its longevity:
- Rensning: Brug en blød, tør klud til forsigtigt at tørre kablet og stikkene af. Brug ikke flydende rengøringsmidler eller slibende materialer.
- Opbevaring: When not in use, store the cable in a cool, dry place, away from direct sunlight and extreme temperatures. Avoid sharp bends or kinks.
- Håndtering: Always grasp the connector housing when plugging or unplugging the cable. Do not pull on the cable itself.
8. Fejlfinding
If you encounter issues with your Opticis LHM2-NT80 cable, refer to the following troubleshooting steps:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| No video/audio signal | Incorrect cable orientation (SOURCE/DISPLAY ends reversed). Source/display devices not powered on. Forkert input valgt på displayet. Kabelskader. | Ensure "SOURCE" end is connected to source and "DISPLAY" end to display. Kontroller, at begge enheder er tændt. Vælg den korrekte HDMI-indgang på din skærm. Inspect cable for visible damage. Try a different HDMI cable if available to isolate the issue. |
| Intermittent signal or flickering | Løs forbindelse. Signal compatibility issue. Cable length exceeding limits for specific resolution. | Ensure connectors are firmly seated. Check if source and display support the same HDMI version and features. Reduce resolution or refresh rate to see if signal stabilizes. |
| Poor picture quality (e.g., static, color distortion) | Kabelskader. Interferens. Kilde-/skærmindstillinger. | Inspect cable for damage. Ensure it's not near strong electromagnetic interference sources. Check video output settings on your source device and input settings on your display. |
9. Specifikationer
| Feature | Beskrivelse |
|---|---|
| Model | LHM2-NT80 (LHM2-N Series) |
| Mærke | Opticis |
| Kabeltype | Active Optical HDMI Cable |
| HDMI standard | HDMI 2.0 |
| Dataoverførselshastighed | 18 Gigabit pr. sekund (Gbps) |
| Understøttet opløsning | Up to 4K UHD (3840x2160) @ 60Hz (4:4:4) |
| Kabellængde | 80 Meters (LHM2-NT80) / Up to 100m (328 feet) for LHM2-N series |
| Jakke materiale | TPU (termoplastisk polyurethan) |
| Connector Køn | Mand til Mand |
| Farve | Transparent (Cable Jacket) |
| Magt | No external power required (draws power from HDMI port) |
| Overholdelse | HDCP 2.2, EDID, CEC, HDR |
10. Garanti og support
For information regarding product warranty, please refer to the official Opticis website or contact your authorized Opticis dealer. Standard manufacturer's warranty terms and conditions apply.
For technical support or further inquiries, please visit the Opticis support page or contact their customer service department. Contact details can typically be found on the manufacturer's official webwebsted: www.opticis.com
