1. Introduktion
The ThruNite TN12 Pro is a high-performance, USB-C rechargeable Everyday Carry (EDC) flashlight designed for versatility and reliability. It features a powerful SFT40 LED, delivering up to 1900 lumens, and offers a maximum beam distance of 380 meters. Its dual-switch interface provides intuitive control, making it suitable for various applications from daily tasks to tactical use.
Figure 1.1: The ThruNite TN12 Pro Flashlight, showcasing dens kompakte design og lommeklips.
Constructed from durable aluminum alloy with a scratch-resistant anodized finish, the TN12 Pro is built to withstand challenging conditions. It is also waterproof with an IPX-8 rating, ensuring performance even when submerged up to 2 meters. The integrated USB-C charging port allows for convenient and fast recharging without removing the battery.
2. Opsætning
2.1 Pakkens indhold
Før første brug skal du kontrollere, at alle dele er til stede i pakken:
- ThruNite TN12 Pro Flashlight
- 1x Lithium Ion Battery (included)
- USB-C ladekabel
- Hylster
- Snor
- Reserve O-ringe
- Spare USB Port Cover
Figure 2.1: All components included in the ThruNite TN12 Pro product package.
2.2 Battery Installation & Initial Charging
The TN12 Pro comes with a pre-installed Lithium Ion battery. Ensure the battery is properly seated before first use. For optimal performance, fully charge the flashlight before its initial operation.
- Skru hætten på lommelygten af.
- Ensure the included 18650 Lithium Ion battery is inserted with the positive (+) terminal facing towards the head of the flashlight.
- Skru halehætten sikkert på igen.
- Connect the provided USB-C cable to the flashlight's charging port and to a USB power source (e.g., wall adapter, computer USB port).
- Indikatorlampen på sidekontakten viser opladningsstatus:
- Rød: Opladning
- Blå: Fuldt opladet
- Lilla: Unormal opladning
- Once fully charged, disconnect the USB-C cable and replace the port cover to maintain water resistance.
Figure 2.2: Illustration of the USB-C charging port and the color-coded charging indicator on the side switch.
Figur 2.3: Detaljeret view of the power indicator on the side switch, showing battery level ranges.
3. Betjening
3.1 Generelle funktioner
- Lås/lås op: When the flashlight is off, press and hold the side switch to enter Firefly mode. From Firefly mode, press and hold the side switch again to access lockout mode. To unlock, press and hold the side switch.
- Tænd/sluk: After the light is unlocked, press the side switch to turn the light ON/OFF. The light will turn on in the last mode used, except for Firefly, Turbo, and Strobe.
- Skift tilstande: Single-click the side switch to activate the last used mode. Then, press and hold the side switch to cycle through Low, Medium, and High modes.
3.2 Specialtilstande
- Genvej til Firefly: When the light is off, press and hold the side switch to directly access Firefly mode.
- Direct Access to Turbo (Side Switch): Double-click the side switch quickly from any mode to activate Turbo mode.
- Direct Access to Turbo (Tail Switch): When the flashlight is unlocked, single-click the tactical tail switch to access Turbo mode directly.
- Strobe: Triple-click the side switch quickly from any mode to activate Strobe mode.
Figure 3.1: Demonstrates holding the TN12 Pro and its versatility for everyday carry, including clipping to a pocket or bag.
4. Vedligeholdelse
4.1 Generel pleje
- Keep the flashlight clean, especially the threads and O-rings. Lubricate O-rings periodically with silicone grease to maintain water resistance.
- Avoid dropping the flashlight or subjecting it to severe impacts.
- Opbevar lommelygten et køligt og tørt sted, når den ikke er i brug i længere perioder.
- If the flashlight will not be used for a long time, it is recommended to remove the battery to prevent potential leakage.
4.2 Vandtætning
The TN12 Pro is rated IPX-8 waterproof, meaning it can be continuously submerged in water up to 2 meters. To ensure this rating is maintained:
- Sørg for, at halekappen er strammet helt.
- Ensure the USB-C charging port cover is securely closed.
- Regularly inspect and replace O-rings if they appear damaged or worn.

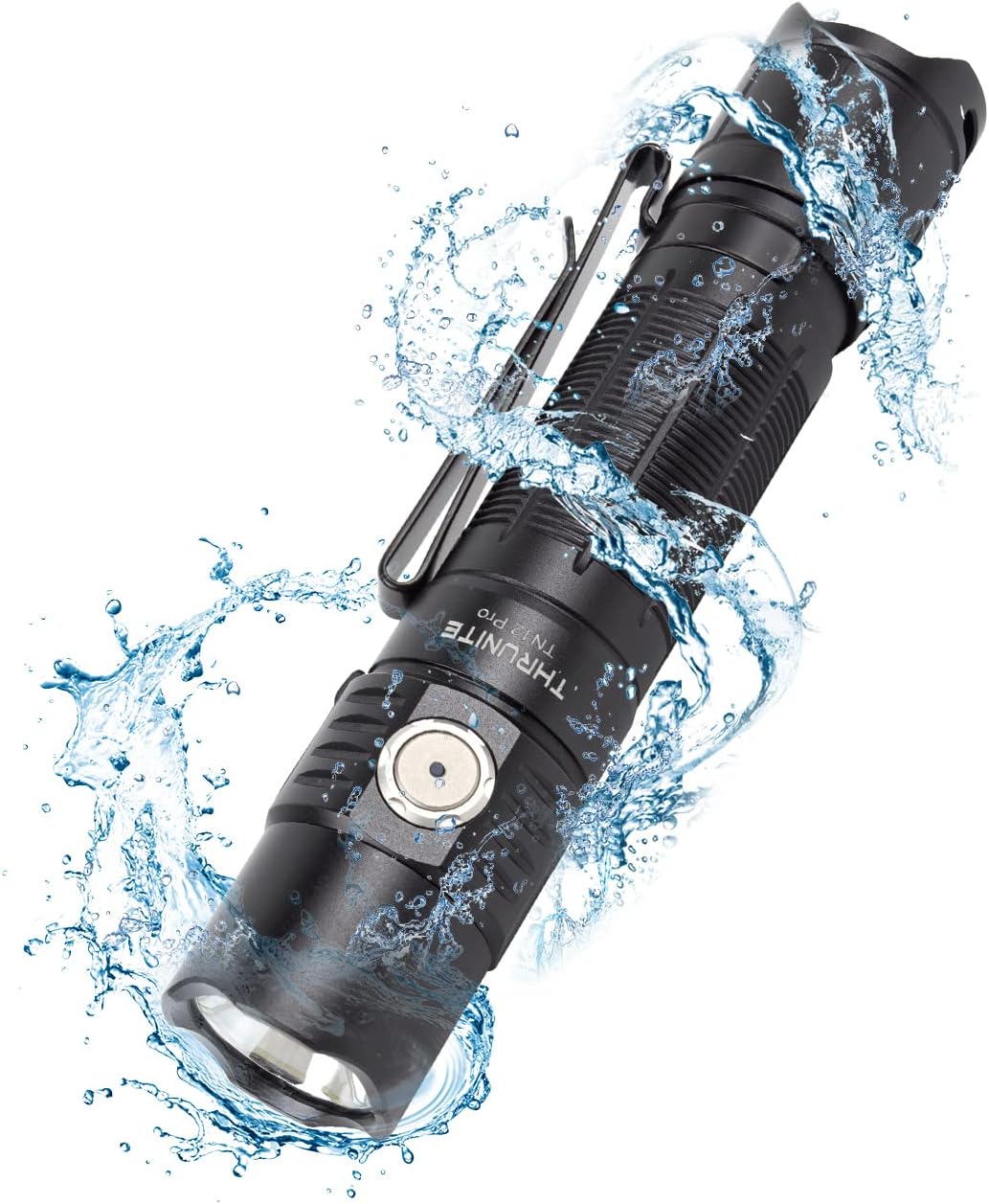

Figure 4.1: The TN12 Pro demonstrating its IPX-8 waterproof capability, suitable for use in wet conditions.
5. Specifikationer
Below are the detailed specifications for the ThruNite TN12 Pro Flashlight:
| Feature | Detalje |
|---|---|
| Model | TN12 Pro cw |
| Mærke | ThruNite |
| Lyskilde | SFT40 LED |
| Max output | 1900 lumen |
| Maksimal stråleafstand | 380 meter |
| Strømkilde | 1x Lithium Ion Battery (included) |
| Opladning | USB-C hurtig opladning |
| Materiale | Aluminiumslegering |
| Vandmodstand | IPX-8 (2 meters submersible) |
| Slagmodstand | 1.5 meter |
| Dimensioner | 131.5mm (Length) x 27mm (Head Diameter) x 25.5mm (Body Diameter) |
| Vægt | 85g (ekskluderet batteri) |
| Lystilstande | Firefly, Low, Medium, High, Turbo, Strobe |

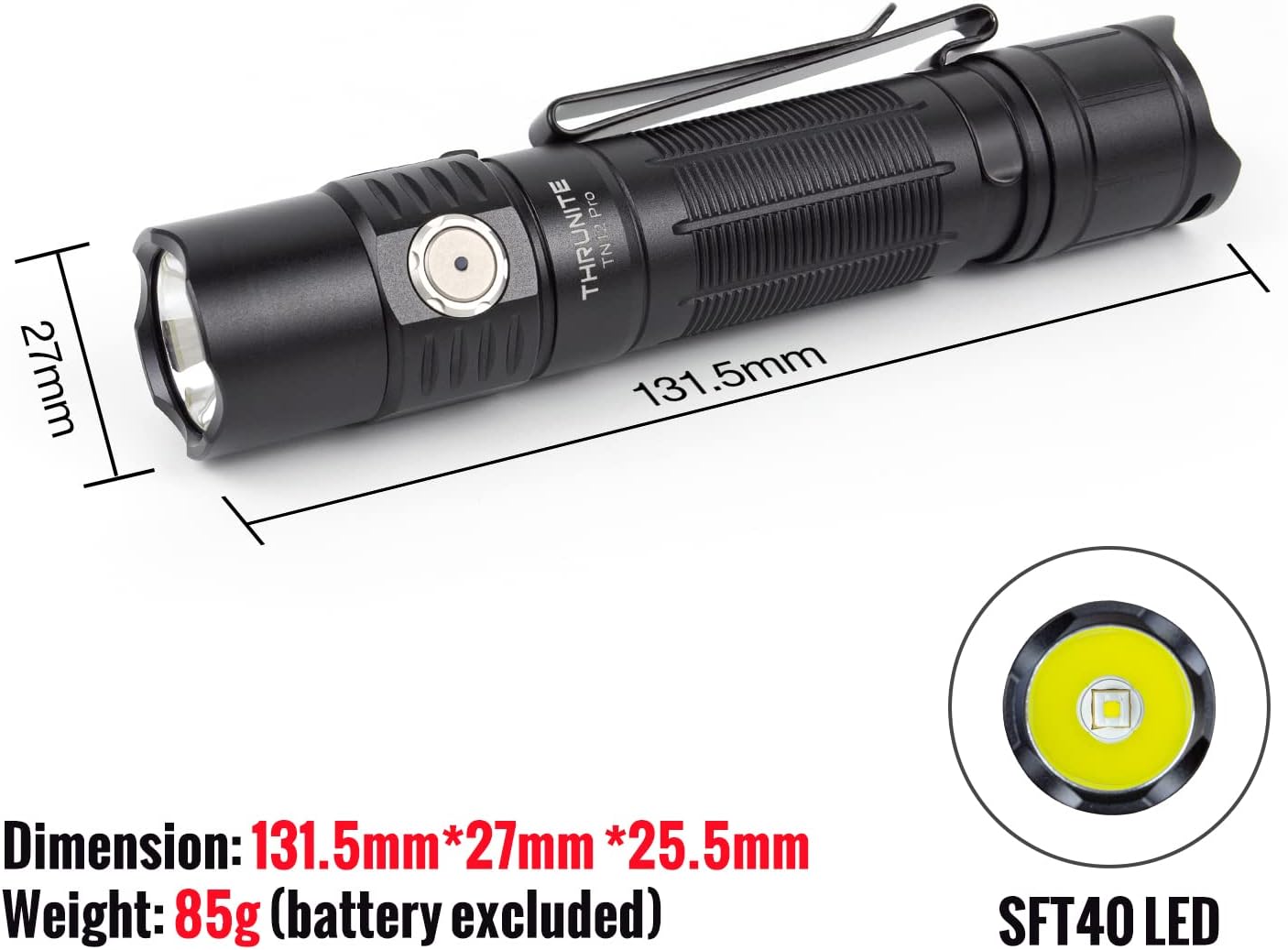

Figure 5.1: Physical dimensions and the SFT40 LED of the TN12 Pro flashlight.
Figure 5.2: Key performance metrics including max output, runtime, beam distance, waterproof rating, and impact resistance.
6. Fejlfinding
If you encounter issues with your ThruNite TN12 Pro, please refer to the following common solutions:
- Lommelygten tænder ikke:
- Ensure the battery is correctly inserted with the positive (+) terminal facing the head.
- Kontroller om batteriet er opladet. Genoplad om nødvendigt.
- Sørg for, at endekappen er helt strammet. En løs endekappe kan forhindre elektrisk kontakt.
- Check if the flashlight is in lockout mode. Press and hold the side switch to unlock.
- Lysudgangen er svag eller flimrer:
- Batteriet er muligvis lavt. Genoplad batteriet.
- Clean the battery contacts and flashlight threads with a clean cloth.
- Flashlight gets hot during use:
- High output modes (e.g., Turbo) generate significant heat. This is normal. The flashlight has thermal regulation to prevent overheating.
- If it becomes uncomfortably hot, switch to a lower mode.
- Opladning virker ikke:
- Sørg for, at USB-C-kablet er korrekt tilsluttet både lommelygten og strømkilden.
- Prøv et andet USB-C-kabel eller strømadapter.
- Check the charging indicator light for status (Red for charging, Blue for full, Purple for abnormal).
7. Garanti og support
7.1 Garantioplysninger
For detailed warranty information regarding your ThruNite TN12 Pro flashlight, please refer to the official ThruNite website or the warranty card included with your product. ThruNite typically offers a limited warranty covering manufacturing defects.
7.2 Kundesupport
If you require further assistance, have questions not covered in this manual, or need to report a defect, please contact ThruNite customer support through their official website or the contact information provided in your product packaging. Please have your model number (TN12 Pro cw) and purchase date ready when contacting support.
