OKNIFE Otacle EDC Udtrækkelig Universalkniv Brugermanual

1. Introduktion

The OKNIFE Otacle is a compact, multifunctional Everyday Carry (EDC) tool designed for various tasks. It features a retractable utility blade, bottle opener, 6.35 mm hex wrench, and a slotted screwdriver/mini pry bar. This manual provides instructions for safe and effective use, maintenance, and care of your Otacle utility knife.

Billede: Forside og bagside view of the OKNIFE Otacle EDC Retractable Utility Knife, showcasing its compact design and various integrated tools.

2. Nøglefunktioner

• Retractable Utility Blade: For cutting tasks.
• Flaskeåbner: Integreret for nemheds skyld.
• 6.35 mm Hex Wrench: For minor adjustments.
• Slotted Screwdriver / Mini Pry Bar: Versatile tool for various uses.
• Kompakt design: Easy to carry for everyday use.
• Holdbar konstruktion: Made with Stainless Steel and G10 handle material.

Image: A diagram illustrating the five key functions of the Otacle utility knife: blade, bottle opener, 6.35 mm hex wrench, slotted screwdriver/mini pry bar, and the slide button mechanism.

Image: Two Otacle knives on a log, highlighting the materials used: Stainless Steel for the body and SK2 Steel for the blade, with G10 handle scales on the green model.

3. Sikkerhedsoplysninger

Læs og forstå alle sikkerhedsadvarsler, før du bruger dette produkt. Manglende overholdelse af disse instruktioner kan resultere i personskade eller beskadigelse af produktet.

• FARE: Keep out of reach of children. Do not allow children to play with this knife to prevent injuries.
• ADVARSEL: The blade is extremely sharp. Exercise extreme caution when handling, using, or changing the blade. Improper use may cause severe injuries.
• Always ensure the blade is fully retracted when not in use.
• Brug ikke værktøjet til andre formål end dets tilsigtede design.
• Wear appropriate personal protective equipment (PPE) when handling sharp objects.

4. Setup: Blade Installation/Replacement

The Otacle utility knife uses specific replacement blades. Ensure you have the correct blade type before proceeding.

1. Locate the slotted screw on the back of the knife. Use a suitable screwdriver to remove this screw.
2. Carefully remove the slide button mechanism.
3. Remove the old blade. Dispose of used blades safely.
4. Insert a new blade (not included) into the designated slot. Ensure it is seated correctly.
5. Align the slide button with the hole on the new blade and re-insert it into the knife body.
6. Tighten the slotted screw to secure the blade and mechanism. Test the retraction and extension to ensure proper function.

Image: A step-by-step diagram illustrating the process of changing the blade on the Otacle utility knife, showing screw removal, blade extraction, new blade insertion, and reassembly.

5. Betjeningsvejledning

5.1 Retractable Blade

• To extend the blade: Push the slide button forward until the blade locks into the desired position. The blade can be safely locked in three positions.
• To retract the blade: Push the slide button backward until the blade is fully enclosed within the handle. Always retract the blade when not actively cutting.

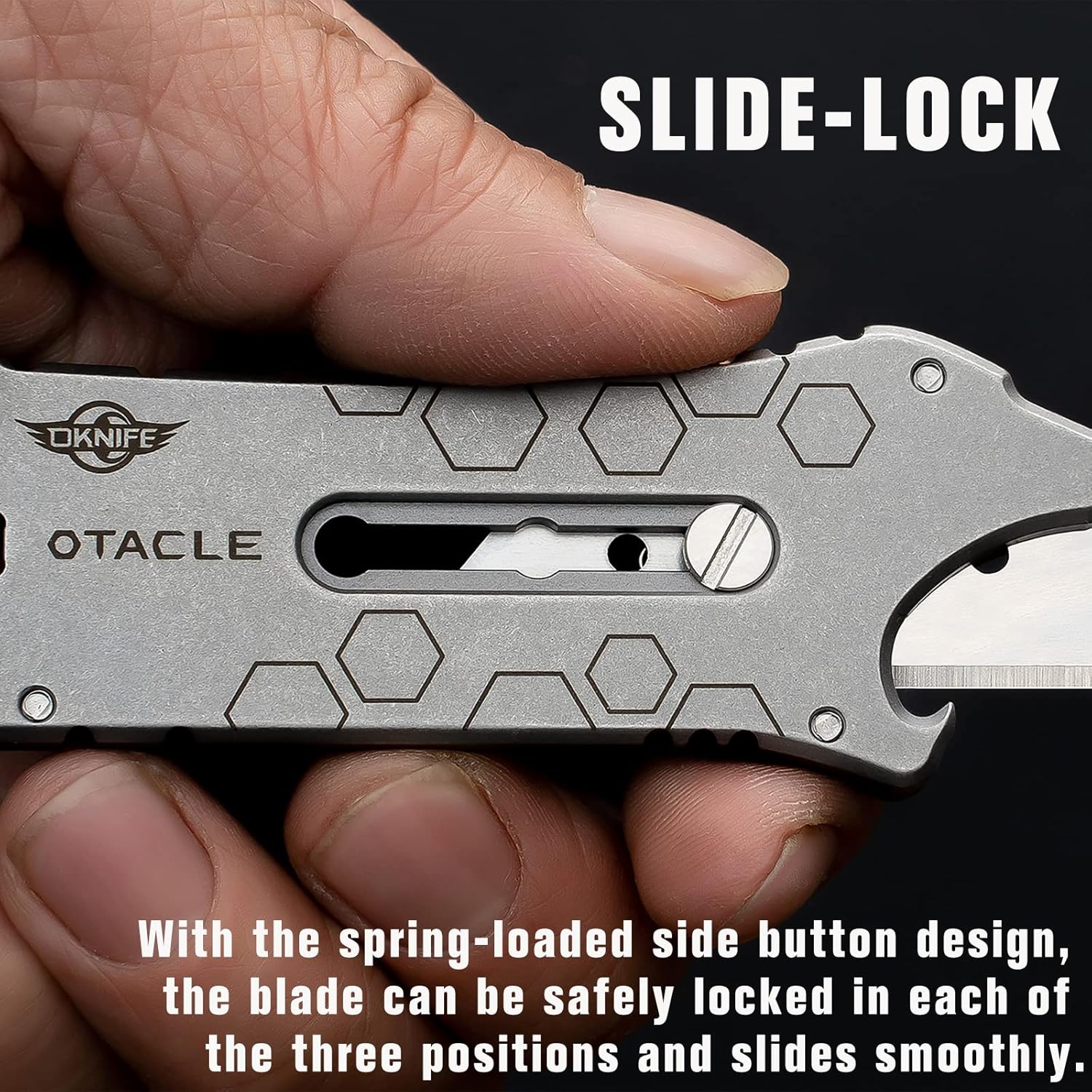

Billede: Et nærbillede view of the Otacle's slide-lock mechanism, demonstrating how the spring-loaded side button allows the blade to be securely locked in multiple positions and slide smoothly.

5.2 flaskeåbner

The integrated bottle opener is located at one end of the tool. Position it under the bottle cap and apply upward pressure to remove the cap.

Image: A close-up of the Otacle's blade extended, with the integrated bottle opener visible at the base of the tool, resting on a textured surface.

5.3 Hex Wrench and Slotted Screwdriver/Mini Pry Bar

The 6.35 mm hex wrench and the slotted screwdriver/mini pry bar are located at the ends of the tool. Use them for light-duty tasks as needed.

Image: The Otacle utility knife being used to tighten a hex bolt on a bicycle, demonstrating the functionality of its integrated hex wrench.

6. Vedligeholdelse og pleje

• Rensning: Wipe the tool with a clean, dry cloth after each use. For stubborn dirt, a slightly damp klud kan bruges, efterfulgt af grundig tørring.
• Smøring: Periodically apply a small amount of light oil to the blade slide mechanism to ensure smooth operation.
• Udskiftning af knive: Replace the blade when it becomes dull or damaged. Refer to Section 4 for blade replacement instructions.
• Opbevaring: Store the Otacle in a dry place with the blade fully retracted to prevent corrosion and accidental injury.

7. Fejlfinding

8. Specifikationer

9. Garanti og support

For information regarding warranty coverage, product support, or to purchase replacement blades, please visit the official OKNIFE store or contact their customer service directly.

OKNIFE Store: Visit the OKNIFE Store on Amazon

For further assistance, refer to the contact information provided with your product packaging or on the official OKNIFE webwebsted.
