LIONELO Irma Stroller User Manual

1. Introduktion

Thank you for choosing the LIONELO Irma Stroller. This manual provides essential information for the safe assembly, operation, and maintenance of your stroller. Please read it thoroughly before first use and keep it for future reference. The Irma Stroller is designed for children from 6 months up to 3 years of age, with a maximum weight of 15 kg.

2. Sikkerhedsoplysninger

ADVARSEL:

• This product is not suitable for jogging or roller skating.
• Brug altid fastholdelsessystemet.
• Efterlad aldrig barnet uden opsyn.
• Sørg for, at alle låseanordninger er aktiveret før brug.
• For at undgå skader skal du sørge for, at dit barn holdes væk, når dette produkt foldes ud og sammen.
• Lad ikke dit barn lege med dette produkt.
• Kontroller, at barnevognskroppen eller sædeenhedens fastgørelsesanordninger er korrekt tilkoblet før brug.
• The maximum load for the storage basket is 3 kg.
• Enhver belastning, der er fastgjort til håndtaget og/eller på bagsiden af ​​ryglænet og/eller på siderne af produktet, vil påvirke produktets stabilitet.
• The product is intended for children from 6 months up to 3 years, with a maximum weight of 15 kg.

3. Produktkomponenter

Familiarize yourself with the main parts of your LIONELO Irma Stroller:

• Ramme: Lightweight alloy steel and aluminum construction.
• Sædeenhed: Padded, 100% polyester fabric.
• Baldakin: Adjustable XXL canopy.
• Hjul: EVA foam wheels with 360° swivel front wheels and rear wheel brake.
• Seletøj: 5-punkts sikkerhedssele.
• Safety Bar: Front protection bar.
• Opbevaringskurv: Large under-seat basket.
• Tilbehør: Mosquito net, rain cover.

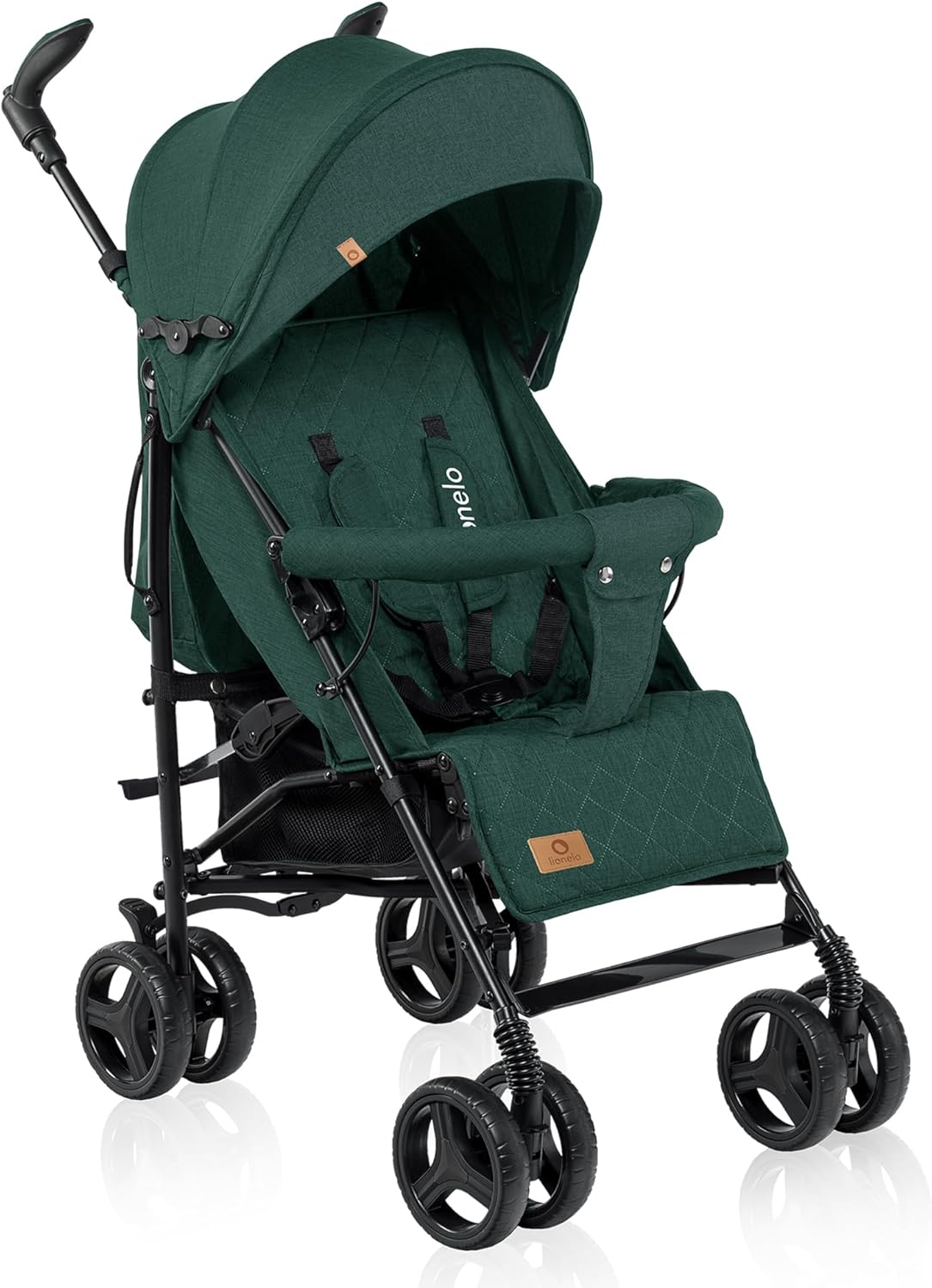

Image 3.1: The LIONELO Irma Stroller in Green Forest color, showcasindets overordnede design og funktioner.

4. Opsætningsvejledning

4.1 Udfoldning af klapvognen

1. Placer den sammenfoldede klapvogn på en plan overflade.
2. Release the folding lock (if present).
3. Lift the handle upwards until the frame locks into place with an audible click. Ensure all locking mechanisms are securely engaged.

4.2 Attaching Wheels

The wheels are typically pre-assembled or easily clicked into place. Refer to the visual guide for specific attachment points if required.

4.3 Installing the Safety Bar

Align the safety bar with the designated slots on the stroller frame and push until it clicks securely into place. Ensure it is firmly attached before placing your child in the stroller.

5. Betjeningsvejledning

5.1 Justering af ryglænet

The backrest can be adjusted to 4 different positions, from an upright sitting position to a fully reclined lying position. Locate the adjustment mechanism at the back of the seat and follow the instructions to select the desired angle. Ensure the backrest is securely locked in your chosen position.

Image 5.1: Illustration of the adjustable backrest, footrest, and 360-degree rotating handle features of the Irma Stroller.

5.2 Justering af fodstøtten

The footrest is also adjustable to provide optimal comfort for your child. Adjust it to a position that supports your child's legs comfortably.

5.3 Brug af 5-punktsselen

The stroller is equipped with a padded 5-point safety harness. To secure your child:

1. Placer dit barn i sædet.
2. Før skulderremmene over dit barns skuldre og taljeremmene omkring dets hofter.
3. Insert the buckles of the shoulder and waist straps into the central buckle until they click.
4. Adjust the straps to ensure a snug, secure fit without being too tight.

Billede 5.2: Detaljeret view of the 5-point adjustable safety harness, highlighting its components and secure fastening points.

5.4 Engaging and Disengaging the Brake

The parking brake is located on the rear wheels. To engage, press down firmly on the brake lever with your foot until the stroller is stationary. To disengage, lift the lever upwards. Always ensure the brake is engaged when the stroller is parked.

5.5 Swiveling and Locking Front Wheels

The front wheels feature a 360° swivel function for easy maneuverability. For stability on uneven terrain or long straight paths, the front wheels can be locked into a fixed forward position. Locate the locking mechanism above each front wheel and engage/disengage as needed.

Image 5.3: Close-up of the stroller wheels, illustrating the rear wheel brake, EVA foam material, shock absorption system, and the front wheel locking mechanism.

5.6 Sammenfoldning af klapvognen

The Irma Stroller features a simple one-hand folding mechanism for quick storage and transport. Follow these steps:

1. Ensure the canopy is folded back and the backrest is in an upright position.
2. Locate the folding mechanism (usually on the handle or side of the frame).
3. Activate the mechanism and push the handle downwards, allowing the stroller to collapse.
4. Secure the folding lock to keep the stroller in its compact state.

Image 5.4: The Irma Stroller highlighting its lightweight construction (7kg) and the convenient carry handle for portability.

6. Vedligeholdelse

6.1 Rengøringsinstruktioner

• Rengør stofdelene med enamp klud og mild sæbe.
• Undgå at bruge skrappe kemikalier eller slibende rengøringsmidler, da disse kan beskadige materialerne.
• Wipe the frame and plastic components with a damp klæde.
• Allow all parts to air dry completely before folding or storing the stroller.

6.2 Opbevaring

• Opbevar klapvognen et tørt sted, væk fra direkte sollys og ekstreme temperaturer.
• Protect the stroller from moisture to prevent rust or mildew.

6.3 Hjulvedligeholdelse

• Regularly check the wheels for debris and clean them as needed.
• Ensure the wheel axles are free from dirt to maintain smooth movement.

7. Fejlfinding

8. Specifikationer

Image 8.1: Technical diagram illustrating the various dimensions of the Irma Stroller when unfolded and folded.

9. Garanti og support

For warranty information, product support, or to report any issues, please contact Lionelo customer service. Details can typically be found on the manufacturer's official website or the product packaging. Please have your model number (LO-IRMA GREEN FOREST) and proof of purchase ready when contacting support.
