1. Introduktion
Tak for købetasing the Amazon Basics Air Purifier. This manual provides important information regarding the safe operation, installation, maintenance, and troubleshooting of your air purifier. Please read this manual thoroughly before using the product and retain it for future reference.
This air purifier is designed to improve indoor air quality in spaces up to 48 m² by filtering out various airborne particles and odours.
2. Produktfunktioner
- Innovative 3-Stage Filtreringssystem: Captures allergens, pet hair, and 99.97% of particles ≥0.3 microns.
- Ægte HEPA-filter: Effectively removes fine particles.
- Højeffektivt aktivt kulfilter: Works to improve indoor air quality and reduce odours.
- Stort dækningsområde: Designed for spaces up to 48 m² with a CADR of smoke (400m³/h). Ideal for living rooms, bedrooms, offices, basements, kitchens, and dining rooms.
- Intelligent Air Quality Sensor: Detects real-time air quality and provides feedback via three colour indicators. Automatically adjusts purification mode based on air quality.
- Stille drift: Operates at as low as 30 dB, suitable for night-time use without disturbing sleep.
- Påmindelse om udskiftning af filter: Built-in reminder indicates when it's time to change the filter.
3. Pakkens indhold
Når du åbner pakken, skal du sørge for, at alle varer er til stede og i god stand:
- 1 x Amazon Basics Air Purifier (48 m² model, UK plug)
- 1 x True HEPA and Activated Carbon Filter (pre-installed or separate)
- 1 x Brugermanual (dette dokument)
Billede: Forside view of the Amazon Basics Air Purifier, showing its white cylindrical design with a perforated lower section and a dark top grille.
4. Sikkerhedsinstruktioner
Læs og følg disse sikkerhedsforanstaltninger omhyggeligt for at forhindre personskade eller beskadigelse af produktet.
- Anbring altid luftrenseren på en fast, jævn overflade.
- Bloker ikke luftindtag eller -udtag. Hold mindst 20 cm afstand til vægge eller møbler.
- Brug ikke apparatet i vådt eller damp miljøer, såsom badeværelser.
- Keep the appliance away from heat sources like stoves, ovens, or direct sunlight.
- Tag stikket ud af luftrenseren, før du rengør eller udfører nogen form for vedligeholdelse.
- Lad ikke børn betjene luftrenseren uden opsyn.
- Use only genuine Amazon Basics replacement filters (search B09W9LXLF6).
- Hvis netledningen er beskadiget, skal den udskiftes af producenten, dennes serviceagent eller lignende kvalificerede personer for at undgå en fare.
5. Opsætning og første brug
- Pak luftrenseren ud: Tag forsigtigt luftrenseren og alt emballagemateriale ud af kassen.
- Fjern filteremballage: Before first use, open the filter compartment (usually at the bottom or back) and remove the plastic packaging from the filter. The filter is typically wrapped to protect it during shipping.
- Installer filteret: Insert the filter back into the compartment, ensuring it is correctly seated. Close the compartment cover securely.
- Placering af luftrenseren: Place the air purifier on a flat, stable surface in the desired room. Ensure there is adequate space around the unit for proper airflow.
- Tilslut til strøm: Plug the power cord into a suitable UK electrical outlet.
- Tænd: Press the Power button on the control panel to turn on the air purifier.
Billede: Top view of the air purifier showing the control panel with various touch buttons for power, fan speed, timer, and mode selection.
6. Betjeningsvejledning
Kontrolpanel overview

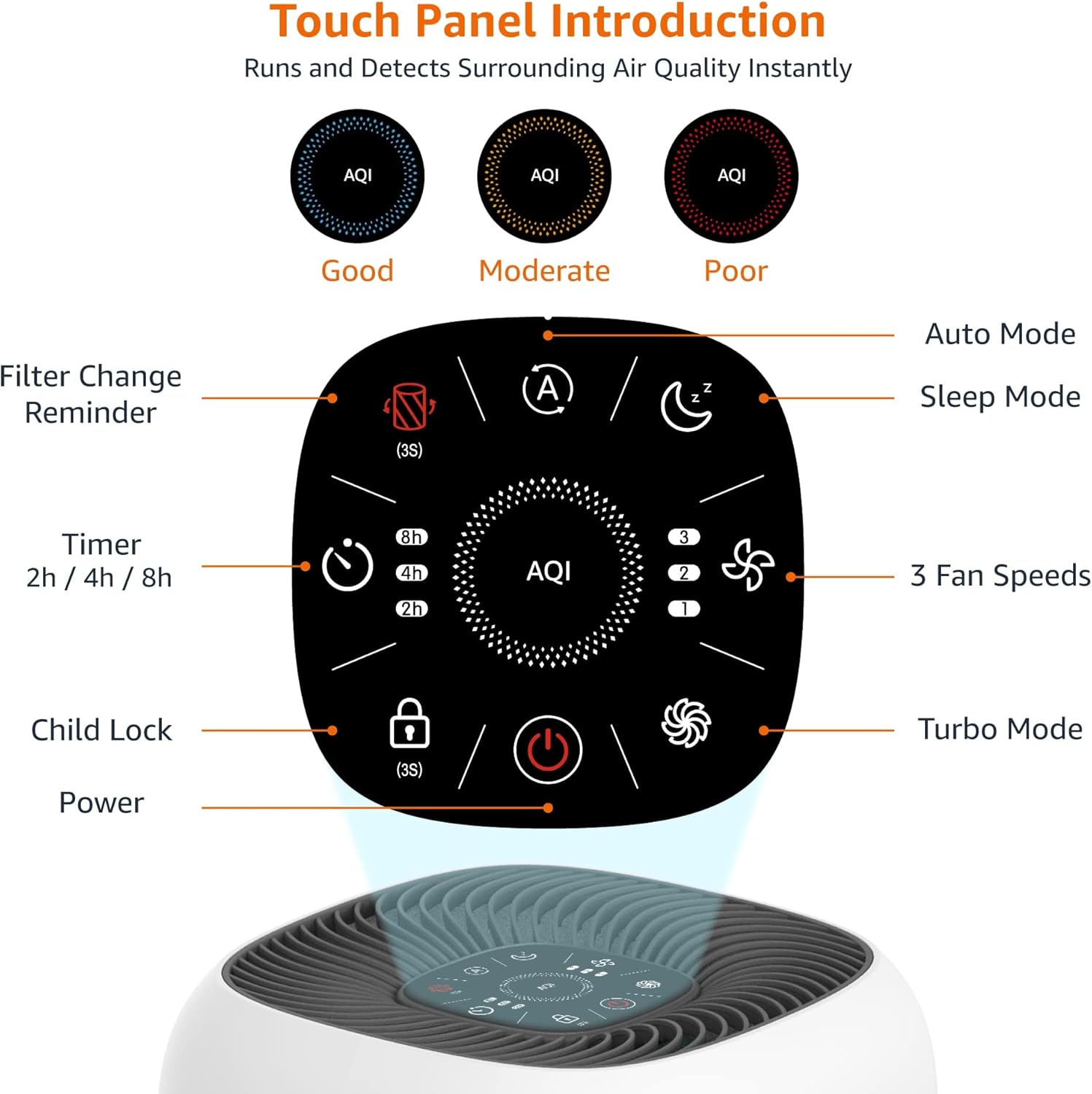

Image: Detailed diagram of the air purifier's touch control panel, illustrating the functions of each button including Power, Child Lock, Timer, Filter Change Reminder, Auto Mode, Sleep Mode, 3 Fan Speeds, and Turbo Mode. It also shows the AQI indicator with Good, Moderate, and Poor air quality levels.
- Power knap: Tryk for at tænde eller slukke enheden.
- Ventilatorhastighedsknap: Cycle through different fan speeds (e.g., 1, 2, 3) to adjust purification intensity.
- Automatisk tilstand: Activates the intelligent air quality sensor. The purifier will automatically adjust fan speed based on detected air quality.
- Sove mode: Reduces fan speed to the lowest setting and dims display lights for quiet operation during sleep.
- Timer knap: Set the operating time (e.g., 2h, 4h, 8h) after which the purifier will automatically turn off.
- Børnelås: Press and hold for 3 seconds to activate/deactivate. Prevents accidental changes to settings.
- Påmindelse om filterskift: An indicator light will illuminate when it's time to replace the filter. Press and hold for 3 seconds after filter replacement to reset.
- AQI Indicator: Displays current air quality (Good, Moderate, Poor) via color changes.
7. Vedligeholdelse
Rengøring af luftrenseren
- Tag altid stikket ud af luftrenseren før rengøring.
- Tør enhedens yderside af med en blød, tør klud. Brug ikke slibende rengøringsmidler eller opløsningsmidler.
- Clean the air inlet and outlet vents regularly with a soft brush or vacuum cleaner to remove dust buildup.
Udskiftning af filter
The filter replacement reminder will indicate when a new filter is needed. For best results, change the filter every 6-8 months, depending on air quality and device usage.
- Træk stikket til luftrenseren ud af stikkontakten.
- Åbn filterrummets dæksel.
- Remove the old filter. Dispose of it properly.
- Unpack the new replacement filter (Amazon Basics B09W9LXLF6).
- Insert the new filter into the compartment, ensuring it fits snugly.
- Luk filterrummets dæksel.
- Plug the air purifier back in.
- Press and hold the Filter Change Reminder button for 3 seconds to reset the filter life indicator.
Billede: Eksploderet view diagram illustrating the three stages of the filtration system: Pre-filter, True HEPA Filter, and Activated Carbon Filter, with an arrow indicating airflow through the purifier.
8. Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Luftrenseren tænder ikke. | Ikke tilsluttet; Sluk for strømmentage; Power button not pressed. | Ensure the power cord is securely plugged into a working outlet. Check circuit breaker. Press the Power button. |
| Reduceret luftstrøm eller dårlig rensning. | Filter is dirty or clogged; Air inlets/outlets are blocked; Filter packaging not removed. | Replace the filter. Ensure no obstructions around the unit. Verify filter packaging was removed during setup. |
| Usædvanlig støj. | Filter not installed correctly; Foreign object inside; Unit on uneven surface. | Reinstall filter correctly. Unplug and check for foreign objects. Place on a stable, flat surface. |
| Lampen for filterskift forbliver tændt efter filterskift. | Filter reminder not reset. | Press and hold the Filter Change Reminder button for 3 seconds to reset. |
9. Specifikationer
| Attribut | Detalje |
|---|---|
| Mærke | Grundlæggende om Amazon |
| Modelnummer | AM6117-UK |
| Farve | Hvid |
| Produktdimensioner | 27.41 x 27.41 x 54.61 cm |
| Varens vægt | 5 kg |
| Støjniveau | 28 dB (minimum) |
| Dækning af gulvareal | Op til 48 m² |
| CADR (røg) | 400 m³/t |
| Filtreringstype | True HEPA, Activated Carbon |
| ASIN | B09XXT3VWQ |
Image: Diagram showing the dimensions of the air purifier: 20.5 inches (52.1 cm) height, 10.8 inches (27.4 cm) width, and 10.8 inches (27.4 cm) depth.
10. Garanti og support
For garantioplysninger og kundesupport henvises til den officielle Amazon Basics-side. webwebstedet eller kontakt Amazons kundeservice direkte. Gem din købskvittering til garantikrav.
Replacement filters can be found by searching for ASIN B09W9LXLF6.
