Aideepen OV2640 Kameramodul Brugermanual

1. Introduktion

This manual provides detailed instructions for the installation, operation, and maintenance of the Aideepen OV2640 Camera Module. This module is designed for integration with microcontrollers, particularly the ESP32, offering a compact and versatile imaging solution.

1.1 Nøglefunktioner

• 160° vidvinkelobjektiv: Indfanger et bredt felt af view.
• 2 megapixel sensor: Delivers clear and stable color images.
• Kompakt design: Small size and low operating voltage for embedded applications.
• Image Quality Enhancement: Utilizes OmniVision sensor technology to reduce optical and electronic defects.
• Standard interface: Features an SCCB interface, compatible with I2C, for easy integration.
• Outputformater: Supports JPEG, RGB, and YUV image formats.

2. Produktkomponenter

Pakken indeholder følgende komponenter:

• 2 x Aideepen OV2640 Camera Modules (each with lens, FPC board, and connector)

Image: Two Aideepen OV2640 Camera Modules, showing their compact design and flexible flat cable.

Image: Detailed breakdown of the OV2640 Camera Module, highlighting the lens, FPC board, and connector. The lens provides accurate color reproduction and clear images. The FPC board is a printed circuit supported by flexible insulating material. The connector efficiently transmits camera data for stable and reliable image capture.

3. Opsætningsvejledning

The OV2640 Camera Module is commonly used with ESP32 development boards. Follow these general steps for integration:

1. Prepare the ESP32 Board: Ensure your ESP32 development board (e.g., ESP32-CAM) is ready for camera module connection.
2. Connect the Camera Module: Carefully insert the flexible flat cable (FPC) connector of the OV2640 camera module into the corresponding FPC socket on the ESP32 board. Ensure the connection is secure and correctly oriented.
3. Strømforsyning: Connect the ESP32 board to a stable power supply. Refer to your ESP32 board's documentation for specific power requirements.
4. Softwarekonfiguration:
   • Install the necessary drivers and libraries for the ESP32 and OV2640 camera in your development environment (e.g., Arduino IDE, ESP-IDF).
   • Upload example code or your custom firmware to the ESP32 board. This code will initialize the camera and handle image acquisition.
5. Test: After uploading the code, test the camera functionality. This typically involves accessing a web server hosted by the ESP32 to view the camera feed or capture images.

Image: Various ESP32-CAM configurations demonstrating compatibility with the OV2640 camera module, including ESP32-CAM-MB, standard ESP32-CAM, and ESP32-CAM with an external antenna. This illustrates common integration scenarios for the camera.

4. Betjeningsvejledning

Once the camera module is successfully set up with your ESP32 or other compatible MCU, operation is primarily controlled through software. The following outlines general operational aspects:

• Billedoptagelse: Use the programmed functions in your MCU firmware to trigger image capture. The camera supports various resolutions and frame rates, configurable via software.
• Billedbehandling: Captured images can be processed directly on the MCU or transmitted to another device (e.g., a computer, server) for further analysis or storage.
• Video streaming: For applications requiring live video, the module can stream video data, often over Wi-Fi when paired with an ESP32.
• Linsejustering: The lens may allow for manual focus adjustment by gently rotating the lens barrel. Perform this carefully to avoid damage.

Image: An illustration of the camera module being used in an application, such as video communication on a computer screen. This demonstrates a potential use case for the module in smart devices.

5. Vedligeholdelse

To ensure the longevity and optimal performance of your OV2640 Camera Module, observe the following maintenance guidelines:

• Håndtering: Handle the module by its edges to avoid touching the lens or the FPC contacts. Static electricity can damage electronic components.
• Rensning: If the lens becomes dusty, gently clean it with a soft, lint-free cloth or a specialized lens cleaning brush. Avoid using abrasive materials or harsh chemicals.
• Opbevaring: Store the module in a dry, cool environment, away from direct sunlight and extreme temperatures. Keep it in anti-static packaging when not in use.
• Miljøbeskyttelse: Protect the module from moisture, dust, and corrosive substances.

6. Fejlfinding

If you encounter issues with your OV2640 Camera Module, consider the following troubleshooting steps:

• No Image/Garbled Output:
  • Verify that the FPC cable is securely and correctly inserted into the ESP32 board's connector. Incorrect orientation can prevent operation.
  • Check the power supply to the ESP32 board. Insufficient power can lead to unstable camera operation.
  • Ensure the correct camera model (OV2640) is selected in your software configuration.
  • Re-upload the firmware to the ESP32 board to rule out software corruption.
• Dårlig billedkvalitet:
  • Clean the lens gently with a suitable lens cleaning tool.
  • Adjust the lens focus by carefully rotating the lens barrel.
  • Check ambient lighting conditions. The camera performs best in adequate light.
  • Review your software settings for resolution, exposure, and white balance.
• Modul ikke fundet:
  • Confirm that the camera module is compatible with your specific ESP32 board variant.
  • Inspect the FPC cable for any physical damage or bends.

If issues persist after attempting these steps, refer to online community forums for ESP32 and OV2640 users, or contact Aideepen customer support.

7. Specifikationer

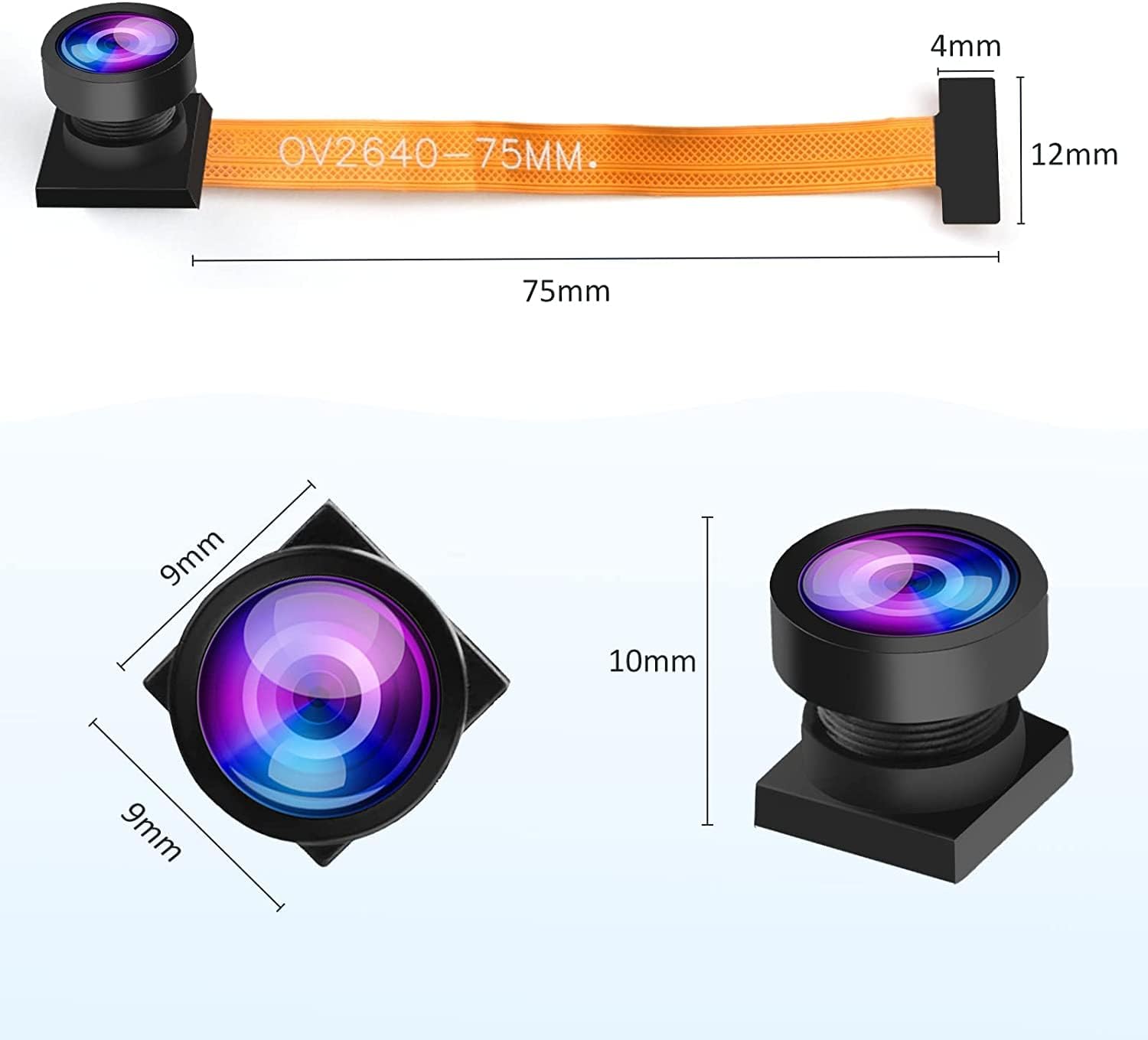

Image: Technical drawing showing the dimensions of the OV2640 Camera Module, including the lens size (9mm x 9mm x 10mm) and the FPC cable length (75mm).

Image: Illustrates diverse applications for the OV2640 Camera Module, such as integration into kiosks, smart lockers, and other embedded systems, highlighting its versatility.

8. Garanti og support

Aideepen products are designed for reliability and performance. For any questions or support needs, please refer to the following:

• Garanti: Each product purchased from Aideepen includes a 24-month service period.
• Udskiftninger: A new replacement can be obtained if there is any quality issue with your item within the warranty period.
• Kontakt support: If you have any questions or require assistance with the product, please contact Aideepen customer service.
