1. Introduktion
This manual provides detailed instructions for the setup, operation, and maintenance of your Odokee Digital Dual Alarm Clock, Model UE218-Wood-1. Please read this manual thoroughly before using the product to ensure proper function and longevity.
Figure 1: Odokee Digital Dual Alarm Clock (Model UE218-Wood-1)
2. Produktfunktioner
- Easy Setup & Dimmable Display: Intuitive controls with clearly labeled buttons. Large 1.6-inch white LED digits with 0-100% adjustable brightness via a dimmer dial.
- Customizable Dual Alarms: Set two independent alarms with 7-5-2 alarm modes (every day, weekdays, or weekends).
- 5 Alarm Sounds: Choose from Beep, Birds Chirping, Buzzer, Soft Music, or Siren. Alarm volume is adjustable from 30dB to 110dB.
- Easy Snooze: A large, accessible snooze button provides an additional 9 minutes of rest.
- USB opladningsport: Integrated USB port for charging mobile devices.
- Batteri-sikkerhedskopi: Kræver 3 AAA-batterier (medfølger ikke) for at opretholde tids- og alarmindstillinger under strømmentages.
- Tidsvisning: Supports both 12-hour and 24-hour time formats.
3. Opsætning
3.1 Strømtilslutning
- Connect the provided AC adapter to the DC 5V input port on the back of the alarm clock.
- Sæt strømadapteren i en almindelig stikkontakt. Displayet lyser.
Figure 2: Powering the Alarm Clock
3.2 Installation af batteribackup
For battery backup functionality, install 3 AAA batteries (not included) into the battery compartment located on the bottom of the clock. This ensures time and alarm settings are retained during a power outage. Note that the display will not remain continuously lit and the USB charging port will not function when operating solely on battery backup.
4. Betjeningsvejledning
Figure 3: Rear Controls Overview
4.1 Indstilling af klokkeslæt
- Tryk og hold på TIDSINDSTILLING knappen på bagsiden af uret. Timecifrene vil begynde at blinke.
- Brug TIME og MIN knapperne øverst på uret til at justere henholdsvis time og minut.
- Trykke TIDSINDSTILLING igen for at bekræfte tidspunktet.
- To set the day of the week, press the UGEDAG button repeatedly until the correct day is displayed.
4.2 12/24 timers format
Tryk på 12/24 timer button on the back of the clock to switch between 12-hour (with AM/PM indicator) and 24-hour time formats.
Figure 4: 12-Hour vs. 24-Hour Display
4.3 Indstilling af alarmer (Alarm 1 og Alarm 2)
Uret har to uafhængige alarmer. Opsætningsprocessen er identisk for begge.
- Tryk og hold på ALARM 1 SÆT or ALARM 2 SÆT knappen. Alarmtimecifrene blinker.
- Brug TIME og MIN knapperne for at indstille det ønskede alarmtidspunkt.
- Tryk på den respektive ALARM SÆT knappen igen for at bekræfte tiden.
- Next, the alarm mode will flash. Use the ALARMLYD button to cycle through the 7-5-2 alarm modes:
- LØR-SØN: Weekend alarm (Saturday and Sunday only).
- MAN-FRE: Weekday alarm (Monday to Friday only).
- MAN-SØN: All 7 days alarm.
- Tryk på den respektive ALARM SÆT button again to confirm the alarm mode.
- For at aktivere eller deaktivere en alarm skal du trykke på ON/OFF button located on the front side of the clock corresponding to Alarm 1 or Alarm 2. An alarm icon (1 or 2) will appear on the display when active.
Figure 5: Dual Alarms with 7-5-2 Modes
Figure 6: Alarm 1 and Alarm 2 Indicators
4.4 Valg af alarmlyde
After setting the alarm time and mode, you can select one of five alarm sounds:
- During alarm setting, after confirming the alarm mode, the current alarm sound will flash.
- Tryk på ALARMLYD button repeatedly to cycle through the available sounds: Beep, Birds Chirping, Buzzer, Soft Music, or Siren.
- Tryk på den respektive ALARM SÆT knappen for at bekræfte dit valg.
Figure 7: Selectable Alarm Sounds
4.5 Justering af alarmlydstyrke
The alarm volume can be adjusted from 30dB (low) to 110dB (high) using the BIND dial located on the left side of the clock.
4.6 Snooze -funktion
Når en alarm lyder, skal du trykke på den store SLUM button on the top of the clock to temporarily silence the alarm for 9 minutes. The alarm will sound again after 9 minutes.

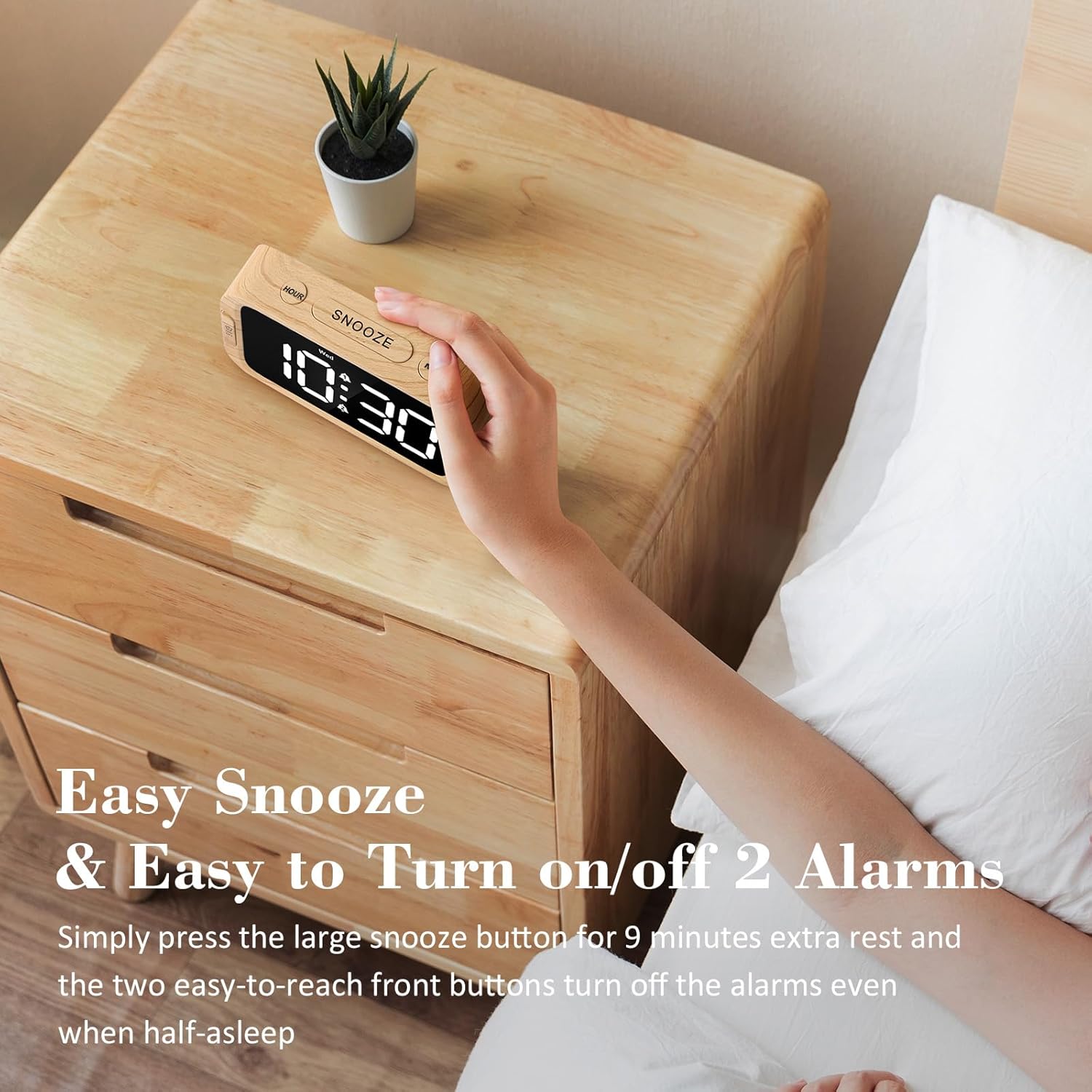

Figure 8: Using the Snooze Function
4.7 Justering af displayets lysstyrke (dæmper)
The display brightness can be adjusted from 0% (fully dark) to 100% (very bright) using the DIMMER dial located on the right side of the clock.
Figure 9: Display Brightness Adjustment
4.8 USB-opladningsport
A USB charging port is located on the back of the clock. Connect your mobile device's USB cable to this port to charge it. This port is active only when the clock is powered by the AC adapter.
Figur 10: USB-opladeport i brug
5. Battery Backup Functionality
The battery backup feature requires 3 AAA batteries (not included). When AC power is interrupted, the batteries will preserve the time and alarm settings. The display will turn off to conserve battery power, but the internal clock will continue to run, and alarms will still activate at the set time. The USB charging port will not function during battery backup mode. It is recommended to use the battery backup only for power outage situations, as continuous use on batteries will drain them quickly.
6. Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Displayet er tomt eller lyser ikke. | Ingen strøm, strøm udtage, or dimmer set to 0%. | Ensure AC adapter is securely plugged in. Check power outlet. Adjust the DIMMER dial. If on battery backup, press any button to briefly illuminate the display. |
| Alarmen lyder ikke. | Alarm not activated, volume too low, or incorrect alarm mode. | Ensure the alarm is activated (alarm icon visible). Adjust the VOLUME dial. Verify the alarm mode (7-5-2) is set correctly for the current day. |
| Tidspunktet er forkert. | Time not set correctly, or power interruption without battery backup. | Re-set the time using the TIME SET button. Install fresh AAA batteries for backup. |
| USB-opladning virker ikke. | Clock is on battery backup, or cable/device issue. | Ensure the clock is connected to AC power. Try a different USB cable or device to rule out external issues. |
7. Specifikationer
- Mærke: Odokee
- Modelnummer: UE218-Wood-1
- Skærmtype: Digital LED (White)
- Skærmstørrelse: 1.6 tommer (cifferhøjde)
- Produktdimensioner: 5.3"W x 2.9"H x 1.95"D (approximate, based on image a7e9cdcf-2bbb-4f2d-b58e-081cedcaeaaa)
- Strømkilde: Corded Electric (AC adapter included), 3x AAA batteries for backup (not included)
- Alarm lyder: 5 selectable (Beep, Birds Chirping, Buzzer, Soft Music, Siren)
- Alarmvolumen: Adjustable (30dB-110dB)
- Skærmens lysstyrke: 0-100% adjustable dimmer
- Snooze-varighed: 9 minutter
- Tidsformat: 12/24 timers valgbar
- Materiale: Plast (acrylonitrilbutadienstyren)
- Varens vægt: 6.3 ounces (178.6 gram)
Figur 11: Produktmål
8. Garanti og support
Odokee products come with a hassle-free 18-month warranty. For any questions, issues, or warranty claims, please contact Odokee customer service. Odokee is dedicated to providing functional and stylish products and values customer feedback.
You can visit the official Odokee store for more information: Odokee Store on Amazon.
