1. Introduktion
Thank you for choosing the Patriot Lighting LED Solar Dual Head Motion Sensor Outdoor Security Flood Light. This product is designed to provide reliable, motion-activated illumination for outdoor areas such as garages, doorways, sheds, and backyards, utilizing solar power for energy efficiency. Please read this manual thoroughly before installation and operation to ensure proper function and longevity of your device.
2. Sikkerhedsoplysninger
- Håndter altid produktet med forsigtighed.
- Sørg for, at solpanelet er udsat for direkte sollys for optimal opladning.
- Forsøg ikke at adskille eller ændre produktet, da dette kan ugyldiggøre garantien og udgøre en sikkerhedsrisiko.
- Hold produktet væk fra åben ild eller ekstreme varmekilder.
- Bortskaf batterier i henhold til lokale regler.
- Dette produkt er kun designet til udendørs brug.
3. Pakkens indhold
Kontroller, at alle komponenter er til stede før installation:

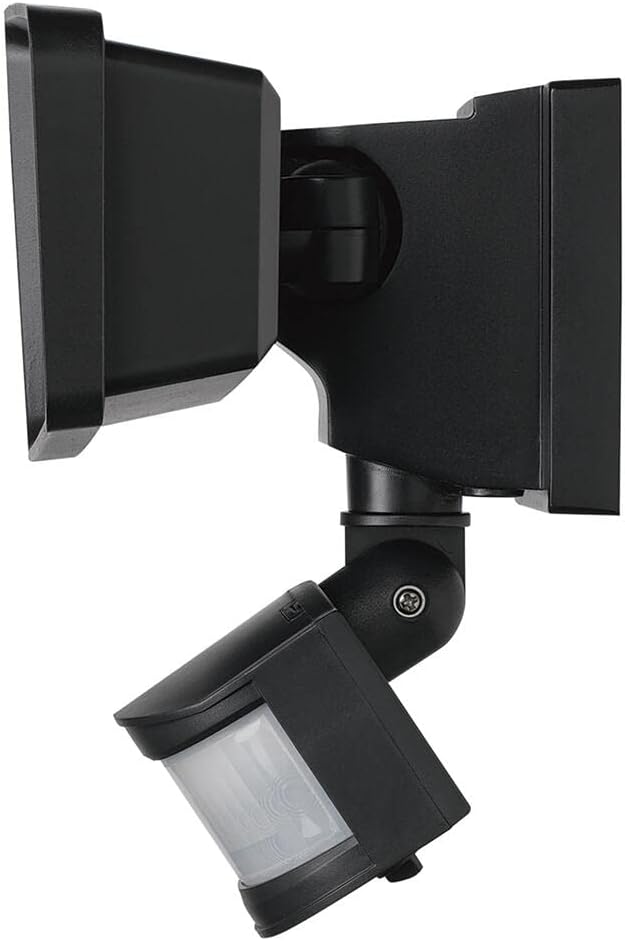

- 1 x LED Solar Dual Head Motion Sensor Outdoor Security Flood Light
- 1 x Replaceable 3.7V 1800mAh Li-ion Rechargeable Battery (pre-installed or included separately)
- Monteringsudstyr (skruer, vægankre)
- Instruktionsmanual
4. Produktfunktioner
- Solcelledrevet: Operates without electrical hard wiring, utilizing a replaceable 3.7V 1800mAh Li-ion rechargeable battery.
- Dobbelt hoved design: Two adjustable LED light heads for broad coverage.
- Bevægelsessensor: Detects motion up to 45 feet within a 180-degree range.
- Kraftig belysning: 1000 lumens with a 5000K (Daylight) color temperature.
- Holdbar konstruktion: Manufactured from industry-leading plastic materials.
- Lang levetid: LED life expectancy of 20,000 hours.
5. Opsætning og installation
5.1 Valg af monteringssted
Select a location that receives direct sunlight for at least 6-8 hours daily to ensure optimal battery charging. The motion sensor should be positioned to cover the desired detection area, typically facing pathways or entry points. Avoid placing the light near other strong light sources that might interfere with the motion sensor's operation.
5.2 Monteringstrin
- Forbered monteringsoverfladen: Ensure the surface is clean and sturdy enough to support the light fixture.
- Marker borehuller: Hold the mounting bracket of the light against the desired surface and mark the positions for drilling.
- Bore huller: Use an appropriate drill bit to create holes at the marked positions. Insert wall anchors if mounting on masonry or drywall.
- Sikre lyset: Align the light's mounting bracket with the drilled holes and secure it using the provided screws.
- Juster lyshoveder og sensor: Loosen the adjustment screws on the light heads and motion sensor to position them for optimal coverage. Tighten the screws once adjusted.
6. Betjeningsvejledning
6.1 Indledende drift
Upon initial installation, allow the solar light to charge for at least 24-48 hours in direct sunlight before its first use. This ensures the battery reaches a full charge. The light is designed to operate automatically, turning on when motion is detected in low-light conditions.
6.2 Justering af bevægelsessensor
The motion sensor has a detection range of up to 45 feet and a 180-degree angle. The sensitivity and duration of the light can typically be adjusted using controls on the sensor unit or via a remote control (if included with your model). Refer to the specific markings on your device for adjustment options.
6.3 lystilstande
The flood light is primarily motion-activated. It will remain off during daylight hours while charging and will activate its 1000-lumen output when motion is detected in the dark. The light will turn off automatically after a set period of no motion, conserving battery life.
7. Vedligeholdelse
7.1 Rengøring
Regularly clean the solar panel and light heads with a soft, damp cloth to remove dust, dirt, and debris. A clean solar panel ensures efficient charging. Avoid using abrasive cleaners or solvents.
7.2 Udskiftning af batteri
The product includes one replaceable 3.7V 1800mAh Li-ion rechargeable battery. Over time, rechargeable batteries may lose capacity. If you notice a significant decrease in performance, the battery may need replacement. Use only the specified battery type. Refer to the product's battery compartment for instructions on safe replacement.
8. Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Lyset tænder ikke om natten. | Utilstrækkelig solopladning. | Ensure solar panel receives 6-8 hours of direct sunlight daily. Clean the solar panel. |
| Light stays on or flashes. | Motion sensor interference or malfunction. | Check for objects moving in the detection zone (e.g., tree branches). Reposition the sensor or adjust sensitivity. |
| Light is dim or short-lived. | Batteriet er ikke fuldt opladet eller er gammelt. | Allow more charging time. Consider replacing the rechargeable battery. |
| Bevægelsessensor registrerer ikke. | Sensor obstructed or incorrectly aimed. | Clear any obstructions. Adjust the sensor angle to cover the desired area. |
9. Specifikationer
- Modelnummer: ES00992G
- Mærke: Patriot Lighting
- Strømkilde: Solcelledrevet
- Batteri: 1 x Replaceable 3.7V 1800mAh Li-ion Rechargeable Battery
- Lyskilde: LED
- Lysstyrke: 1000 lumen
- Farvetemperatur: 5000K (dagslys)
- CRI: 70
- Wattage: 12 watt
- Voltage: 3.7 volt
- Bevægelsesdetekteringsområde: Op til 45 fod
- Bevægelsesdetekteringsvinkel: 180 grader
- Materiale: Plast
- Farve: Bronze
- Installationstype: Flush Mount
- Indendørs/udendørs brug: Udendørs
- Gennemsnitlig levetid: 20,000 timer
- Varens vægt: 1.54 pund
- Pakkedimensioner: 7.5 x 7.13 x 5.13 tommer
10. Garanti og support
For warranty information or technical support, please refer to the documentation included with your purchase or contact Patriot Lighting customer service. Keep your purchase receipt as proof of purchase.
