This manual provides detailed instructions for the KETOTEK KT5000 Dimming Thermostat. This device is designed for precise temperature control and timing functions, suitable for various applications such as reptile enclosures, incubators, greenhouses, and aquariums.
It features PID temperature control for heating and a separate timing output, offering stable and reliable environmental management. Please read this manual thoroughly before operation to ensure correct usage and to maximize the product's lifespan and performance.
Image: The KETOTEK KT5000 Dimming Thermostat shown in various application settings, including a reptile terrarium, an aquarium, an incubator, and a greenhouse, demonstrating its versatility.
Vigtige sikkerhedsoplysninger
Sørg for, at strømforsyningen voltage matches the device's specifications (220VAC ± 15%/50Hz).
Do not exceed the maximum power ratings for heating (440W) and timer output (Resistive: 1100W, Inductive: 275W, Incandescent: 220W).
Keep the device away from water, except for the waterproof probe.
Enheden må ikke skilles ad eller ændres. Overlad al service til kvalificeret personale.
Always unplug the device from the power outlet before cleaning or performing maintenance.
Denne enhed er ikke et legetøj. Holde utilgængeligt for børn.
Pakkens indhold
Bekræft at alle varer er til stede i pakken:
1 x KETOTEK KT5000 Dimming Thermostat Unit
2 x Double-sided Adhesive Pads
1 x brugsanvisning
Image: KETOTEK KT5000 Dimming Thermostat, including the main unit, double-sided adhesive pads, and the instruction manual, packaged in its retail box.
Produkt overview
The KETOTEK KT5000 consists of a control unit with a digital display and a power socket unit. It features two independent outputs: one for PID temperature control of heating devices and another for timing functions.
Image: The KETOTEK KT5000 Dimming Thermostat showing the main control unit with display, the dual-socket power unit, and the temperature probe.
Komponenter:
Kontrolenhed: Features an LCD display for temperature and time, and buttons for settings.
Power Socket Unit: Contains two power outlets. One is for the heating device (PID controlled), and the other is for the timed device.
Temperaturprobe: A waterproof sensor for accurate temperature measurement.
Image: Diagram illustrating the two outputs of the KETOTEK KT5000. One socket is labeled for PID Temperature Heating Control, typically used for a heating lamp. The other socket is labeled for Timer control, shown connected to an air pump for an aquarium.
Tekniske specifikationer
Parameter
Værdi
Model
KT5000
Input bindtage
220VAC ± 15%/50Hz
Temperaturkontrolområde
0°C til 50°C
Temperatur nøjagtighed
±1°C
Maksimal varmeeffekt
440W
Maximum Timer Output (Resistive Load)
1100W
Maximum Timer Output (Inductive Load)
275W
Maximum Timer Output (Incandescent Lamps)
220W
Produktmål (L x B x H)
9.2 x 3.5 x 15.7 cm (overall)
Vægt
590 gram
Farve
Sort
Probtype
Vandtæt

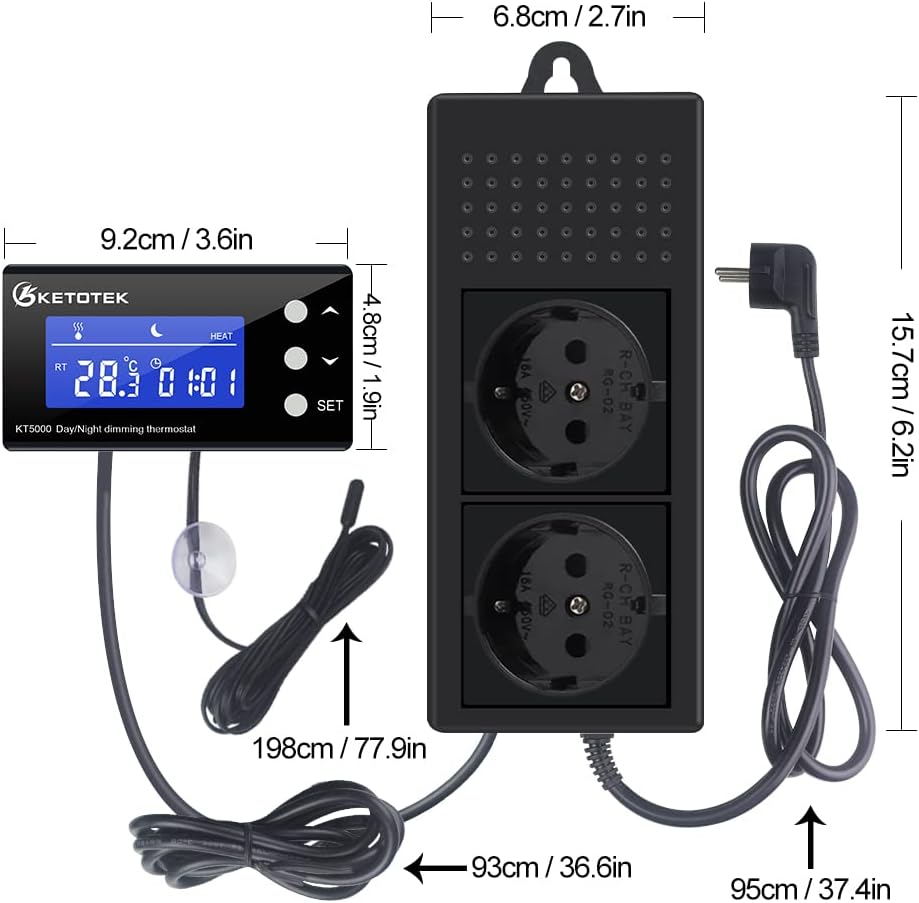

Image: Detailed dimensions of the KETOTEK KT5000 Dimming Thermostat, including the control unit, power socket unit, and cable lengths for the power cord and temperature probe.
Opsætning og installation
Montering af styreenheden:
Use the provided double-sided adhesive pads to securely attach the control unit to a clean, dry surface. Ensure it is placed in a location where the display is easily visible and buttons are accessible.
Positioning the Temperature Probe:
Place the waterproof temperature probe in the environment where temperature needs to be controlled (e.g., terrarium, incubator). Ensure the probe is not directly exposed to heating elements or direct light sources that could affect its readings. The probe can be submerged in water if required.
Tilslutning af enheder:
Plug your heating device (e.g., ceramic heat emitter, heat lamp) into the socket designated for PID Temperature Heating Control.
Plug your timed device (e.g., lighting, humidifier, air pump) into the socket designated for Timer control.
Strømtilslutning:
Plug the main power cord of the KETOTEK KT5000 into a suitable 220VAC power outlet.

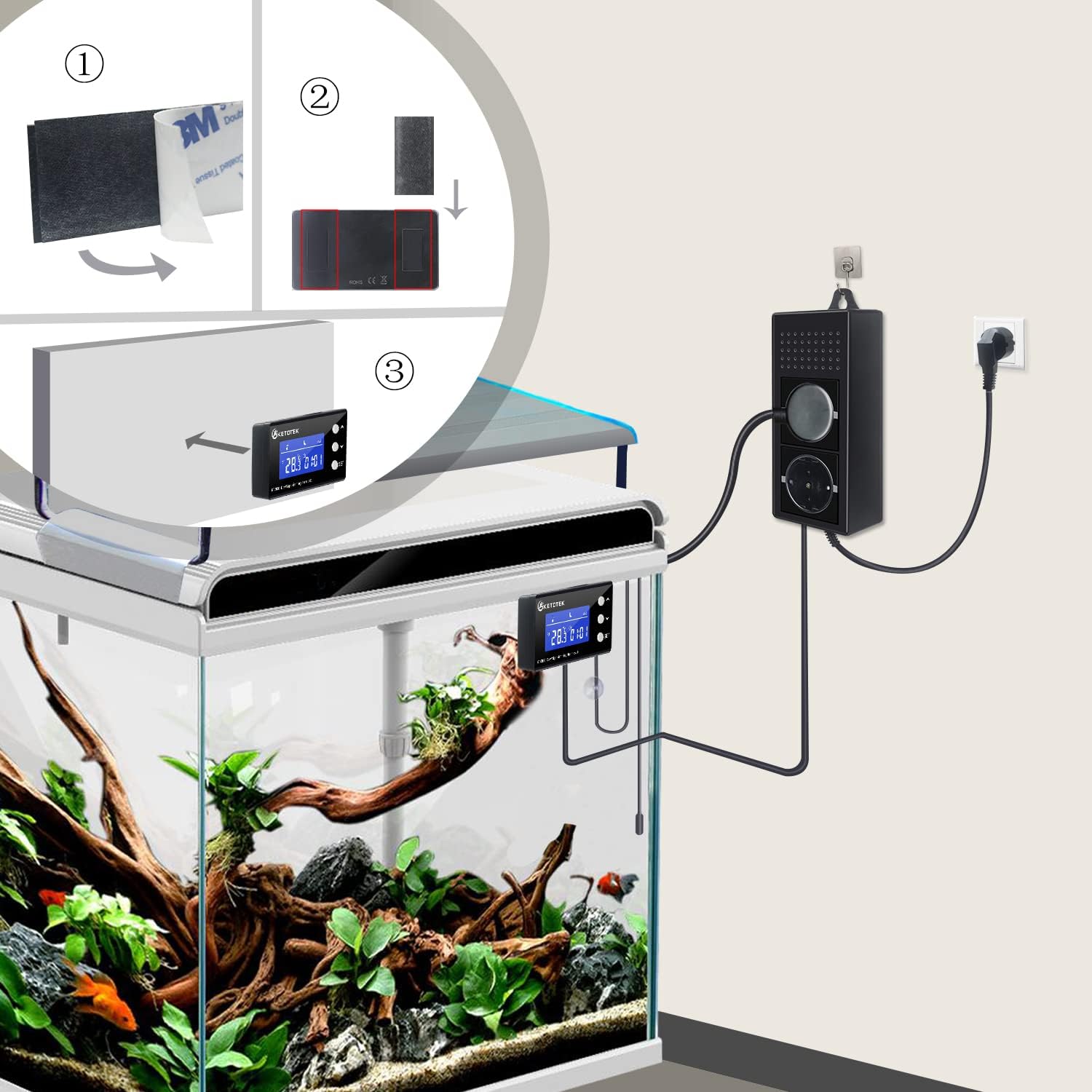

Billede: En eksample setup showing the KETOTEK KT5000 Dimming Thermostat mounted on an aquarium, with the probe submerged and the power unit connected to a wall outlet.
Betjeningsvejledning
The KETOTEK KT5000 features a user-friendly interface for setting temperature and timing parameters.
Grundlæggende betjening:
Upon powering on, the display will show the current temperature measured by the probe.
Brug SÆT knappen for at gå ind i indstillingstilstanden.
Brug Up og Ned arrow buttons to adjust values.
Trykke SÆT again to confirm and move to the next parameter.
Setting Day and Night Temperatures:
The device allows for different temperature settings during day and night cycles over a 24-hour period. This is achieved through its dual-cycle time function.
Enter the setting mode by pressing SÆT.
Navigate through the settings until you find the parameters for "Day Temperature" and "Night Temperature".
Set the desired temperature for the day period (e.g., 20°C).
Set the desired temperature for the night period (e.g., 25°C).
Configure the start and end times for the day and night cycles (e.g., Day: 8:00 to 18:00; Night: 18:00 to 8:00 the next day). The device will automatically cycle these settings daily.
Timer funktion:
The second output socket is controlled by a timer function. This allows you to schedule when an attached device turns on and off.
Få adgang til timerindstillingerne via SÆT menu.
Set the desired ON time and OFF time for the timed output.
Confirm settings to activate the timer.
Avancerede funktioner:
Høj temperatur alarm: Set a maximum temperature threshold. If the temperature exceeds this, an alarm will activate.
Temperaturkalibrering: Adjust the temperature reading to match an external reference thermometer for increased accuracy.
Nulstil funktion: Gendan enheden til fabriksindstillingerne.
Power-off Data Record: The device retains your settings even after a power outage.
Image: The KETOTEK KT5000 Dimming Thermostat display, highlighting icons for heating control, timing function, over-temperature alarm, and probe fault alarm, indicating its various operational features.
Opretholdelse
Rensning: Disconnect the device from power before cleaning. Wipe the control unit and power socket unit with a soft, dry cloth. Do not use abrasive cleaners or solvents.
Probepleje: The temperature probe is waterproof and can be cleaned with water. Ensure no damage occurs to the probe cable.
Opbevaring: Hvis enheden opbevares i længere tid, skal du tage stikket ud af stikkontakten og opbevare den et køligt, tørt sted væk fra direkte sollys.
Fejlfinding
Problem
Mulig årsag
Løsning
Enheden tænder ikke.
Ingen strøm fra stikkontakten; løs forbindelse.
Check power outlet with another device; ensure power cord is securely plugged in.
Heating device not working.
Incorrect temperature setting; heating device malfunction; exceeding max power.
Verify target temperature is above current temperature; test heating device separately; ensure total wattage is within 440W.
Timed device not working.
Incorrect timer setting; device malfunction; exceeding max power.
Check timer ON/OFF settings; test device separately; ensure total wattage is within limits (1100W resistive, 275W inductive, 220W incandescent).
Relocate probe away from direct heat/light; check for probe damage; use temperature calibration function.
Displayet viser en fejlkode.
Specific error condition (e.g., probe fault).
Refer to the full manual for specific error codes. Generally, check probe connection or replace if damaged.
Garanti og support
KETOTEK products are manufactured to high-quality standards. For warranty information or technical support, please refer to the contact details provided with your purchase or visit the official KETOTEK webwebsted.
Gem venligst dit købsbevis for garantikrav.
