1. Introduktion
This manual provides essential information for the safe and efficient use of your Gonhom PAR38 LED Flood Light Bulb. Please read these instructions carefully before installation and operation, and retain them for future reference.
The Gonhom PAR38 LED Flood Light Bulb is designed for both indoor and outdoor applications, offering bright, energy-efficient illumination. It features a standard E26 base for easy installation and is dimmable to suit various lighting needs.

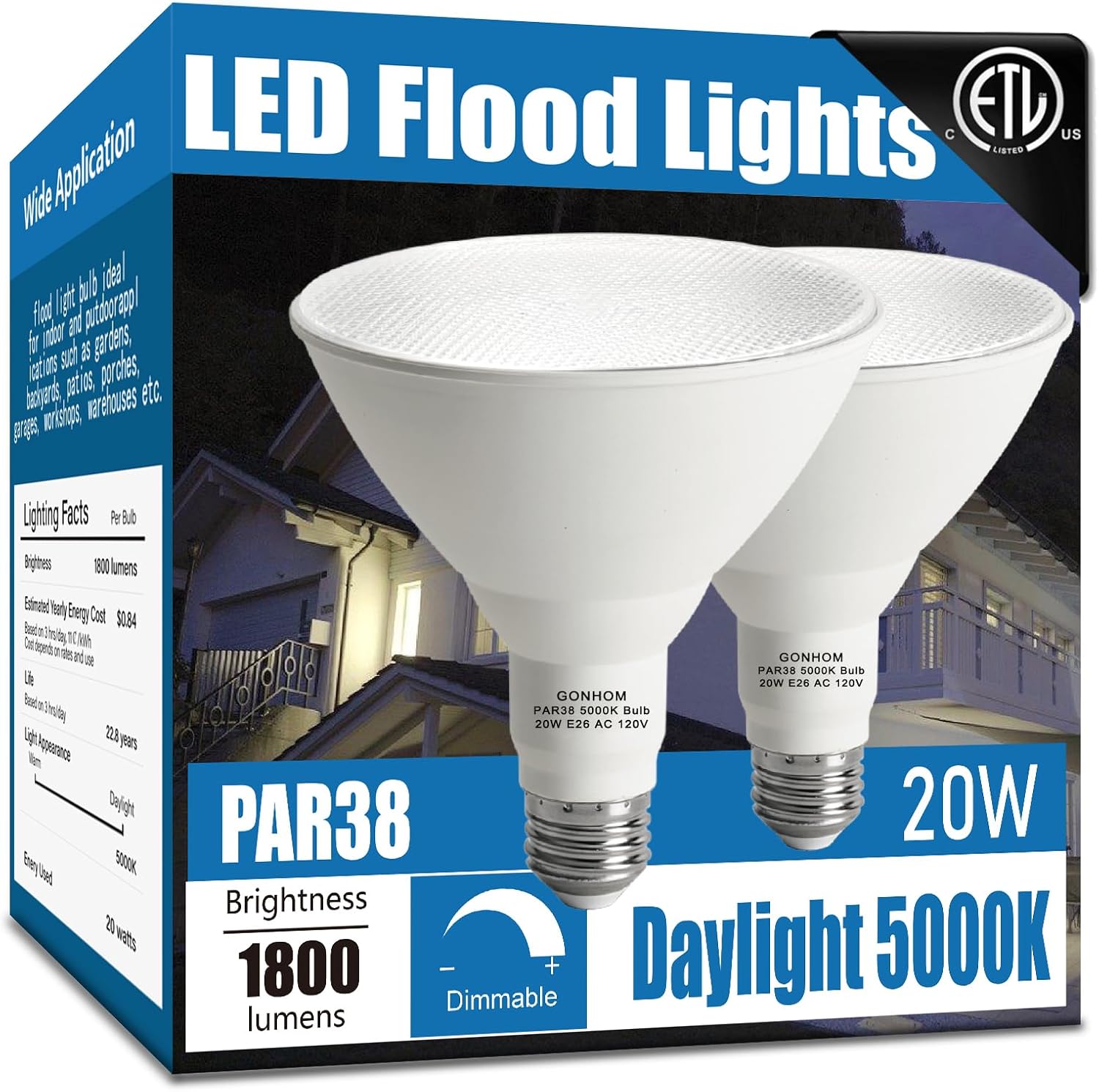

Image 1.1: Packaging of the Gonhom PAR38 LED Flood Light Bulb.
2. Sikkerhedsoplysninger
Følg altid grundlæggende sikkerhedsforanstaltninger for at reducere risikoen for brand, elektrisk stød og personskade.
- Sluk: Always turn off the power supply at the circuit breaker before installing or replacing the bulb.
- Korrekt installation: Ensure the bulb is securely screwed into a compatible E26 socket.
- Voltage Kompatibilitet: Use only with AC 110V-120V, 60Hz power supplies.
- Udendørs brug: Suitable for outdoor use in appropriate fixtures. Ensure fixtures are sealed to prevent water ingress.
- Dæmpbar funktion: Use with compatible LED dimmers for optimal performance. Non-compatible dimmers may cause flickering or damage.
- Varme: Although LED bulbs produce less heat than incandescent bulbs, they can still be warm. Allow the bulb to cool before handling.
- Bortskaffelse: Bortskaf brugte pærer i henhold til lokale regler.
3. Produktet er slutview
The Gonhom PAR38 LED Flood Light Bulb offers superior illumination and energy efficiency. Key features include:
- Energibesparelse: 20W LED replaces up to 200W incandescent bulbs, saving up to 85% on electricity.
- Høj lysstyrke: Delivers 1800 lumens of daylight 5000K light.
- Bred strålevinkel: 180-degree beam angle illuminates a broad area, up to 70 feet.
- Dæmpbar: Compatible with most LED dimmers for adjustable brightness.
- Lang levetid: Designed for up to 50,000 hours of service life.
- Holdbar konstruktion: Made with plastic and aluminum for effective cooling and durability.
- Nem installation: Standard E26 medium screw base fits most common fixtures.
Image 3.1: Visual representation of the bulb's key features including light color, wattage equivalency, brightness, and energy efficiency.
4. Opsætning og installation
Installing your Gonhom PAR38 LED Flood Light Bulb is a straightforward process. Follow these steps:
- Sørg for, at strømmen er slukket: Before beginning, turn off the power to the light fixture at the circuit breaker to prevent electric shock.
- Fjern gammel pære: Skru forsigtigt den eksisterende pære af og fjern den fra armaturet.
- Indsæt ny pære: Screw the Gonhom PAR38 LED Flood Light Bulb into the E26 socket clockwise until it is finger-tight. Do not overtighten.
- Gendan strøm: Tænd for strømmen igen ved afbryderen.
- Prøve: Tænd lyskontakten for at sikre, at pæren fungerer korrekt.
Image 4.1: Illustration of a hand screwing the PAR38 bulb into a standard E26 base fixture.
5. Betjeningsvejledning
The Gonhom PAR38 LED Flood Light Bulb operates like a standard light bulb but offers dimmable functionality.
- Tænd/sluk: Brug din eksisterende lyskontakt til at tænde eller slukke pæren.
- Dæmpning: If connected to a compatible LED dimmer switch, adjust the dimmer to achieve your desired brightness level. Ensure your dimmer is specifically designed for LED bulbs to prevent performance issues.
6. Vedligeholdelse
LED bulbs require minimal maintenance. Follow these guidelines to ensure longevity:
- Rensning: Sørg for, at strømmen er slukket, og at pæren er kold, inden rengøring. Tør pæren af med en blød, tør klud. Brug ikke flydende rengøringsmidler eller slibende materialer.
- Inspektion: Kontrollér regelmæssigt pæren og armaturet for tegn på skader eller løse forbindelser.
- Udskiftning: Due to the long lifespan of LED bulbs, frequent replacement is not typically necessary. Replace the bulb if it stops functioning or its light output significantly diminishes.
7. Fejlfinding
If you encounter issues with your Gonhom PAR38 LED Flood Light Bulb, consider the following common solutions:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Pæren lyser ikke | No power to the fixture; Loose connection; Faulty bulb | Check circuit breaker; Ensure bulb is screwed in tightly; Test bulb in another working fixture. |
| Bulb flickers or hums | Inkompatibel lysdæmper; Løs forbindelse; Vol.tage udsving | Replace with an LED-compatible dimmer; Tighten bulb; Consult an electrician if voltage-problemerne fortsætter. |
| Lysudbyttet er for lavt | Dimmer setting too low; Incorrect bulb for application | Adjust dimmer to maximum; Verify bulb specifications meet your lighting needs. |
8. Specifikationer
Detailed technical specifications for the Gonhom PAR38 LED Flood Light Bulb:
| Specifikation | Værdi |
|---|---|
| Mærke | Gonhom |
| Modelnavn | PAR38-5000K-2 |
| Lys type | LED |
| Speciel funktion | Dæmpbar |
| Wattage | 20 watt |
| Pære form størrelse | PAR38 |
| Pære base | E26 |
| Glødelampe Tilsvarende Wattage | 200 watt |
| Lys farve | Dagslys hvid (5000K) |
| Voltage | 110-120 volt |
| Lysstyrke | 1800 lumen |
| Gennemsnitligt liv | 50000 timer |
| Strålevinkel | 180 grader |
| Materiale | Plast, aluminium |
| Indendørs/Udendørs brug | Udendørs |
| Produktdimensioner | 120 mm x 132 mm (4.72" B x 5.2" H) |
| Varens vægt | 8.8 ounces (0.55 pund) |
| Certificering | ETL opført |
Image 8.1: Detailed size and electrical specifications of the PAR38 LED bulb.
9. Garanti og support
Gonhom products are manufactured to high-quality standards. For warranty information or technical support, please refer to the product packaging or contact Gonhom customer service directly. Keep your purchase receipt for warranty claims.
For further assistance, please visit the official Gonhom webwebstedet eller kontakt deres kundesupportkanaler.
