Rapoo E9700M trådløst tastatur brugermanual

1. Introduktion

This manual provides detailed instructions for the setup, operation, and maintenance of your Rapoo E9700M Wireless Keyboard. Please read this manual thoroughly before using the product to ensure proper functionality and to prevent damage.

Image 1.1: The Rapoo E9700M Wireless Keyboard. This image shows the keyboard from an angled perspective, highlighting its slim profile and dark gray finish.

2. Pakkens indhold

Bekræft at alle varer er til stede i pakken:

• Rapoo E9700M Wireless Keyboard
• USB-C ladekabel
• Nano USB Receiver (typically stored in the keyboard's battery compartment)
• Lynvejledning (dette dokument fungerer som en omfattende vejledning)

3. Funktioner

• Multi-Mode Wireless Connectivity: Supports Bluetooth 3.0, 5.0, and 2.4 GHz for stable transmission up to 10 meters.
• Smart Switching: Automatically pairs and connects to multiple devices, allowing one-click switching.
• Ultra-slankt design: Constructed with an aluminum alloy for stability and durability.
• Genopladeligt batteri: Integrated eco-friendly lithium battery eliminates the need for disposable batteries.
• Multimedie-genvejstaster: Dedicated keys for quick access to multimedia functions.
• DE-Layout QWERTZ: German keyboard layout.

4. Opsætning

4.1. Opladning af tastaturet

Before initial use, fully charge the keyboard. Connect the supplied USB-C cable to the keyboard's charging port and the other end to a USB power source (e.g., computer USB port, USB wall adapter).

• Opladningsindikatorlampen lyser under opladning.
• The light will turn off or change color once fully charged.

4.2. Forbindelse via 2.4 GHz trådløs

1. Locate the Nano USB receiver, typically stored in a compartment on the underside of the keyboard.
2. Plug the Nano USB receiver into an available USB port on your computer.
3. Turn on the keyboard using the power switch (usually located on the side or back).
4. Tryk på Fn + 4 key combination to activate 2.4 GHz mode. The corresponding indicator light will blink.
5. Your computer should automatically detect and install the necessary drivers. The keyboard is ready for use.

Billede 4.2: Top-down view of the Rapoo E9700M keyboard, showing the German (DE-Layout QWERTZ) key arrangement. Note the function keys with blue icons for connectivity modes.

4.3. Tilslutning via Bluetooth

The keyboard supports two Bluetooth channels (Bluetooth 1 and Bluetooth 2).

1. Tænd for tastaturet ved hjælp af afbryderen.
2. Trykke Fn + 1 for Bluetooth 1 or Fn + 2 for Bluetooth 2. The corresponding indicator light will blink slowly.
3. Tryk på og hold nede for at gå ind i parringstilstand Fn + 1 or Fn + 2 for 3 seconds until the indicator light blinks rapidly.
4. On your device (PC, Mac, smartphone, tablet), open Bluetooth settings and search for new devices.
5. Select "Rapoo E9700M" from the list of available devices.
6. Follow any on-screen prompts to complete the pairing process. The indicator light will stop blinking once connected.

4.4. Skift mellem tilsluttede enheder

The Rapoo E9700M allows seamless switching between up to three connected devices (one 2.4 GHz and two Bluetooth devices).

• Trykke Fn + 1 for at skifte til Bluetooth-enhed 1.
• Trykke Fn + 2 for at skifte til Bluetooth-enhed 2.
• Trykke Fn + 4 to switch to the 2.4 GHz wireless connection.

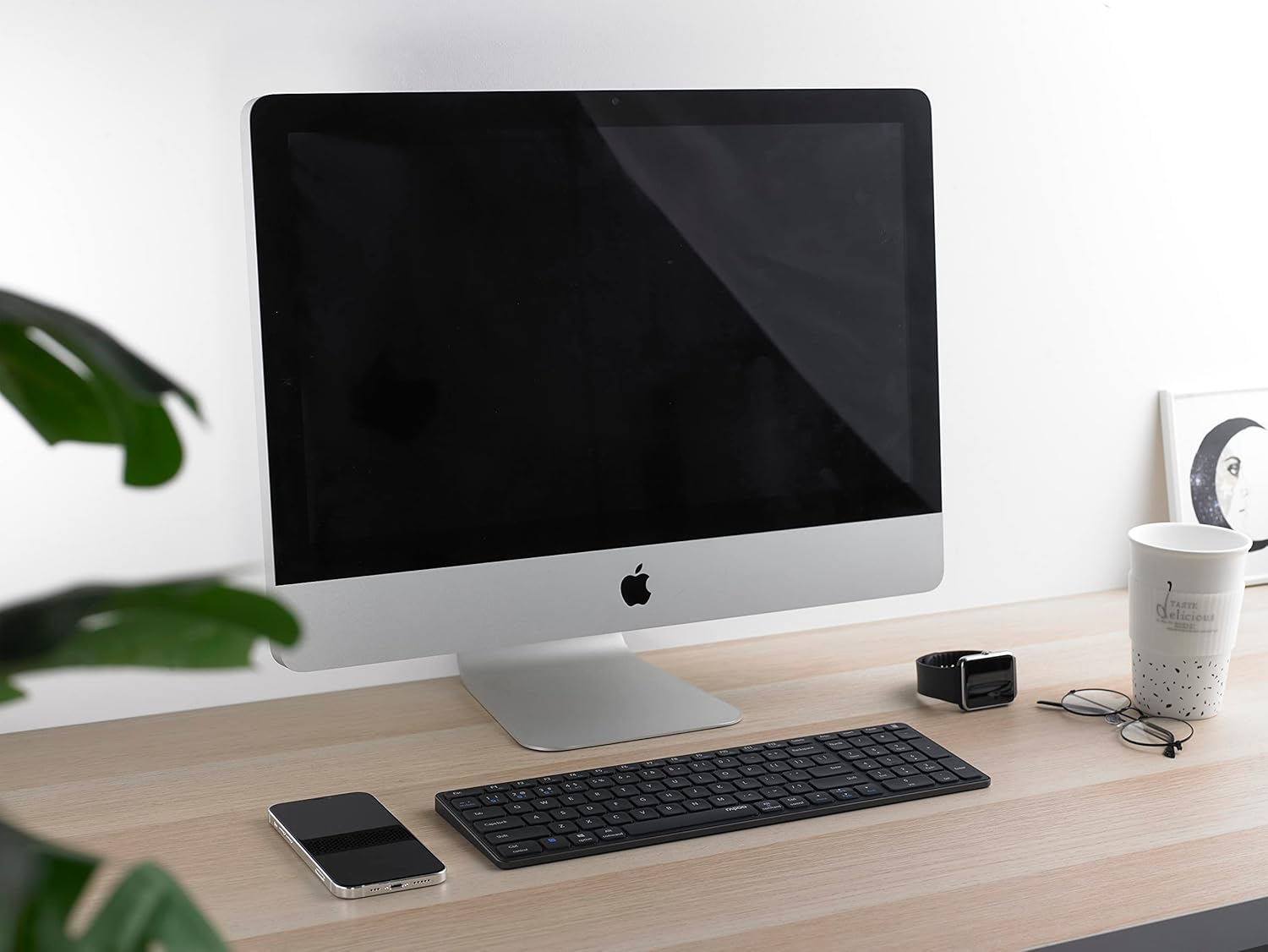

Image 4.4: The Rapoo E9700M keyboard positioned on a desk next to an iMac, demonstrating its compatibility with macOS devices.

5. Betjeningsvejledning

5.1. Multimediegenvejstaster

The keyboard features multimedia hotkeys for quick access to various functions. These keys are typically activated by pressing the Fn key simultaneously with the corresponding function key (F1-F12).

5.2. Indikatorlys

The keyboard has indicator lights to show connection status and battery level:

• Bluetooth 1/2/4 (2.4G) Indicator: Blinks slowly when searching for connection, blinks rapidly when in pairing mode, solid when connected.
• Caps Lock-indikator: Lyser, når Caps Lock er aktiv.
• Batteristatusindikator: Illuminates when charging, blinks when battery is low.

6. Vedligeholdelse

To ensure the longevity and optimal performance of your Rapoo E9700M keyboard, follow these maintenance guidelines:

• Rensning: Use a soft, dry cloth to wipe the surface of the keyboard. For stubborn dirt, slightly dampRengør kluden med vand eller et mildt, ikke-slibende rengøringsmiddel. Undgå for meget fugt.
• Opbevaring: Opbevar tastaturet et køligt, tørt sted væk fra direkte sollys og ekstreme temperaturer.
• Undgå væsker: Do not expose the keyboard to liquids. In case of accidental spills, immediately power off the keyboard and allow it to dry completely before reuse.
• USB-modtager: When not in use, store the Nano USB receiver in its designated compartment within the keyboard to prevent loss.

Image 6.1: The underside of the Rapoo E9700M keyboard, showing the smooth aluminum finish and regulatory markings. The USB receiver compartment is typically located here.

7. Fejlfinding

Hvis du støder på problemer med dit tastatur, kan du se følgende almindelige problemer og løsninger:

• Tastaturet reagerer ikke:
  • Sørg for, at tastaturet er tændt.
  • Kontroller batteriniveauet og oplad om nødvendigt.
  • Verify the correct connection mode (2.4 GHz, Bluetooth 1, or Bluetooth 2) is selected using Fn + 1/2/4.
  • For 2.4 GHz, ensure the Nano USB receiver is securely plugged into a working USB port.
  • For Bluetooth skal du sørge for, at Bluetooth er aktiveret på din enhed, og at tastaturet er parret. Prøv at parre igen, hvis det er nødvendigt.
  • Try connecting to a different USB port or device to rule out port/device issues.
• Forsinket eller intermitterende forbindelse:
  • Reduce the distance between the keyboard and your device (maximum 10 meters).
  • Remove any obstacles that might interfere with the wireless signal (e.g., large metal objects).
  • Avoid using the keyboard near other strong wireless interference sources (e.g., Wi-Fi routers, other wireless devices).
  • Sørg for, at tastaturet er fuldt opladet.
• Keys not working or typing incorrectly:
  • Clean the keyboard to remove any debris that might be obstructing the keys.
  • Genstart din computer/enhed.
  • If using Bluetooth, try unpairing and re-pairing the keyboard.

8. Specifikationer

9. Garanti og support

Rapoo products are designed with quality and reliability in mind. For warranty information and technical support, please refer to the warranty card included with your product or visit the official Rapoo webwebsted. Gem din købsbevis til garantikrav.

For further assistance, please contact Rapoo customer support through their official channels.
