1. Introduktion
This manual provides detailed instructions for the safe and efficient use of your KickAss 12V 300W Super Thin Portable Solar Panel. Designed for portability and high efficiency, this solar panel is ideal for charging 12V battery systems in various outdoor and off-grid applications.
Sikkerhedsoplysninger
- Always read and understand all instructions before operating the solar panel.
- Do not attempt to disassemble or modify the solar panel or its integrated controller.
- Ensure all connections are secure and correct polarity is observed to prevent damage to the panel, controller, or battery.
- Avoid exposing the panel to extreme physical impact or sharp objects.
- Keep the panel clean and free from debris for optimal performance.
- Handle with care, especially when unfolding and folding, to avoid pinching or damaging cables.
2. komponenter
Your KickAss 12V 300W Super Thin Portable Solar Panel package typically includes:
- KickAss 300W Super Thin Portable Solar Panel with integrated PWM Controller
- Attached cables for connection to a 12V battery system
- Integrated adjustable support legs
- Carry bag (may be included depending on package)
Image: The KickAss 300W Super Thin Portable Solar Panel fully unfolded, showcasing its slim design and multiple panels.
3. Opsætning
3.1 Udfoldning og placering
- Place the folded solar panel on a flat, stable surface.
- Carefully unfold the panels completely until they lie flat.
- Extend the integrated support legs from the back of the panel. Adjust the angle of the legs to position the panel directly towards the sun for maximum efficiency.
- Ensure the panel is in an area free from shade throughout the day. Even partial shading can significantly reduce power output.

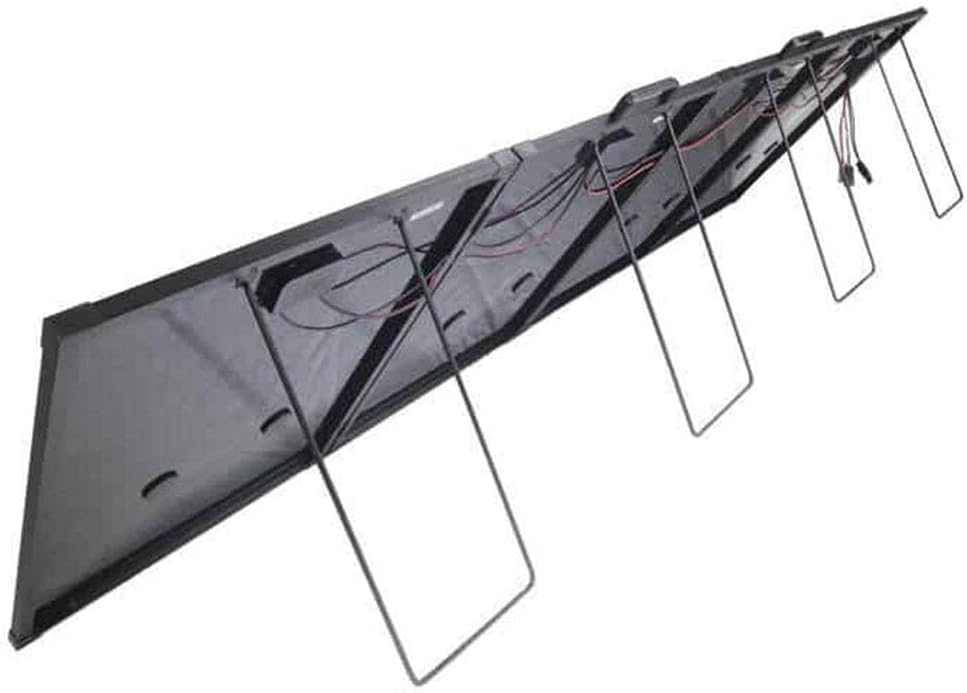

Billede: Bagside view of the solar panel showing the integrated support legs extended, allowing for angled positioning.
Image: The solar panel deployed on a sandy surface next to a vehicle, demonstrating a typical outdoor setup.
3.2 Elektrisk tilslutning
The KickAss 300W Super Thin Portable Solar Panel features an integrated PWM (Pulse Width Modulation) controller, simplifying the connection process.
- Locate the output cables from the integrated PWM controller. These typically have Anderson-style connectors or similar.
- Connect these cables directly to your 12V battery system. Ensure correct polarity: positive to positive, negative to negative. Incorrect polarity can damage the controller or battery.
- The PWM controller will automatically regulate the charging process, protecting your battery from overcharging and optimizing the charge cycle.
- Once connected, the controller's display (if present) will show charging status and battery voltage.
Billede: En detaljeret view of the integrated PWM controller and its various connection terminals, including the input from the solar panel and output to the battery.
4. Betjening
4.1 Monitoring Charge
The integrated PWM controller typically features a display that provides real-time information. Monitor the following:
- Batteri Voltage: Indicates the current charge level of your battery.
- Ladestrøm: Shows how much current is being supplied to the battery from the solar panel.
- Opladningsstatus: The controller will indicate if the battery is charging, fully charged, or in float mode.
4.2 Optimal ydeevne
- Eksponering for sollys: Always ensure the panel receives direct, unobstructed sunlight. Reposition the panel throughout the day as the sun moves to maximize energy harvest.
- Vinkel: Adjust the panel's angle to be perpendicular to the sun's rays. In most cases, this means a steeper angle in winter and a flatter angle in summer.
- Temperatur: Solar panels perform best in cooler temperatures with strong sunlight. High temperatures can slightly reduce efficiency.
- Renhed: Keep the panel surface clean from dust, dirt, leaves, and bird droppings.
5. Vedligeholdelse
5.1 Rengøring
Regular cleaning ensures maximum power output.
- Clean the solar panel surface with a soft, damp klud og et mildt, ikke-slibende rengøringsmiddel.
- Skyl grundigt med rent vand for at fjerne eventuelle sæberester.
- Do not use harsh chemicals, abrasive cleaners, or sharp objects that could scratch the panel surface.
- Clean connections periodically to ensure good electrical contact.
Billede: Et nærbillede view of the solar panel's surface, highlighting the individual monocrystalline silicon cells and their arrangement.
5.2 Opbevaring
When not in use, proper storage will prolong the life of your solar panel.
- Fold the panel carefully, ensuring cables are not pinched.
- Store the panel in its protective carry bag (if supplied) to prevent scratches and damage.
- Opbevares på et køligt, tørt sted væk fra direkte sollys og ekstreme temperaturer.
Image: The KickAss branded carry bag designed for the super thin portable solar panel, providing protection during transport and storage.
6. Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| No power output from panel | Ingen eller utilstrækkelig sollys Løse eller forkerte forbindelser Damaged panel or controller | Ensure panel is in direct sunlight and free of shade. Check all cable connections for security and correct polarity. Inspect panel and controller for visible damage. Contact support if damaged. |
| Lav effekt | Delvis skygge Panel surface is dirty Forkert panelvinkel Overskyet vejr | Relocate panel to a completely unshaded area. Clean the panel surface thoroughly. Adjust panel angle to face the sun directly. Lower output is normal during cloudy conditions. |
| Controller display not working | No power input from panel No battery connected or low battery voltage Controller fejlfunktion | Ensure panel is in sunlight and connected. Connect to a battery with sufficient voltage (typically >8V). Contact support if the controller remains unresponsive. |
7. Specifikationer
| Feature | Detalje |
|---|---|
| Model | KASTSP300 |
| Strømudgang | 300W |
| Maksimal voltage | 12 volt |
| Paneltype | Monokrystallinsk silicium |
| Effektivitet | Høj effektivitet |
| Produktmål (foldet) | 8.7 x 7.25 x 1.7 cm (This seems incorrect for a 300W panel, likely package dimensions. Actual unfolded dimensions will be significantly larger.) |
| Varens vægt | 16.8 kg (16800 gram) |
| Controller type | Integrated PWM Controller |
| Fabrikant | GIVE DEN GAS |
| Oprindelsesland | Schweiz |
Note: Product dimensions provided may refer to packaging or a component, not the full unfolded panel. Refer to product packaging for precise unfolded dimensions.
8. Garanti og support
For specific warranty terms and conditions, please refer to the documentation provided with your purchase or visit the official KickAss website. KickAss products are designed for durability and performance, and support is available for any operational queries or issues.
You can find more information and contact support via the official KickAss store page: Visit the KICKASS Store on Amazon
