VOVO STYLEMENT TCB-8100W Smart Bidet Toilet Brugermanual

Indledning

This user manual provides detailed instructions for the installation, operation, and maintenance of your VOVO STYLEMENT TCB-8100W Smart Bidet Toilet. Please read this manual thoroughly before installation and use to ensure proper function and safety. This smart bidet toilet features an automatic dual flush system, wireless remote control, heated seat, warm water wash, air dryer, and an automatic deodorization system, all designed for enhanced hygiene and comfort.

Figure 1: VOVO STYLEMENT TCB-8100W Smart Bidet Toilet, an elongated one-piece toilet with a sleek design.

Sikkerhedsoplysninger

Overhold altid følgende sikkerhedsforanstaltninger for at forhindre personskade eller beskadigelse af produktet:

• Sørg for, at toilettet installeres af en kvalificeret fagmand i overensstemmelse med lokale VVS- og el-forskrifter.
• Do not expose the electrical components to water or excessive moisture.
• Tag stikket ud af stikkontakten, før du udfører vedligeholdelse eller rengøring.
• Forsøg ikke at reparere eller adskille enheden selv. Kontakt kvalificeret servicepersonale for at få hjælp.
• Hold børn og personer med nedsatte fysiske, sensoriske eller mentale evner væk fra enheden, medmindre de er under opsyn.
• Ensure the power outlet meets the specified voltage og nuværende krav.

Produkt overview

The VOVO STYLEMENT TCB-8100W is designed with advanced features for optimal comfort and hygiene.

Nøglefunktioner:

• Automatic Dual Flush: A smart seat sensor detects user presence and duration to automatically select between a small or full flush (1.12 GPF / For 35 PSI), providing hands-free operation.
• Trådløs fjernbetjening: Manage all functions including posterior, feminine, and turbo wash, as well as automatic deodorization, from a convenient wireless remote.
• Tankless Flushing System: The Tornado wash system powerfully cleans the inner bowl using a direct water supply, eliminating stale water.
• Opvarmet sæde: The seat is optimized for comfort with adjustable temperature settings.
• Warm Dryer & Water: Features a water heating system for warm water wash and a built-in air dryer with 3 adjustable temperatures.
• Automatisk lugtfjerning: An integrated system provides automatic deodorization to remove unpleasant odors.
• Natlys: A subtle night light illuminates the bowl for convenience in low-light conditions.
• 3-in-1 Full Stainless Steel Nozzle: Offers posterior, feminine, and turbo wash functions.
• Selvrensende dyse: Dysen renser sig selv automatisk før og efter hver brug.

Figure 2: Illustration of the automatic dual flush system, which differentiates between large and small flushes based on user detection.

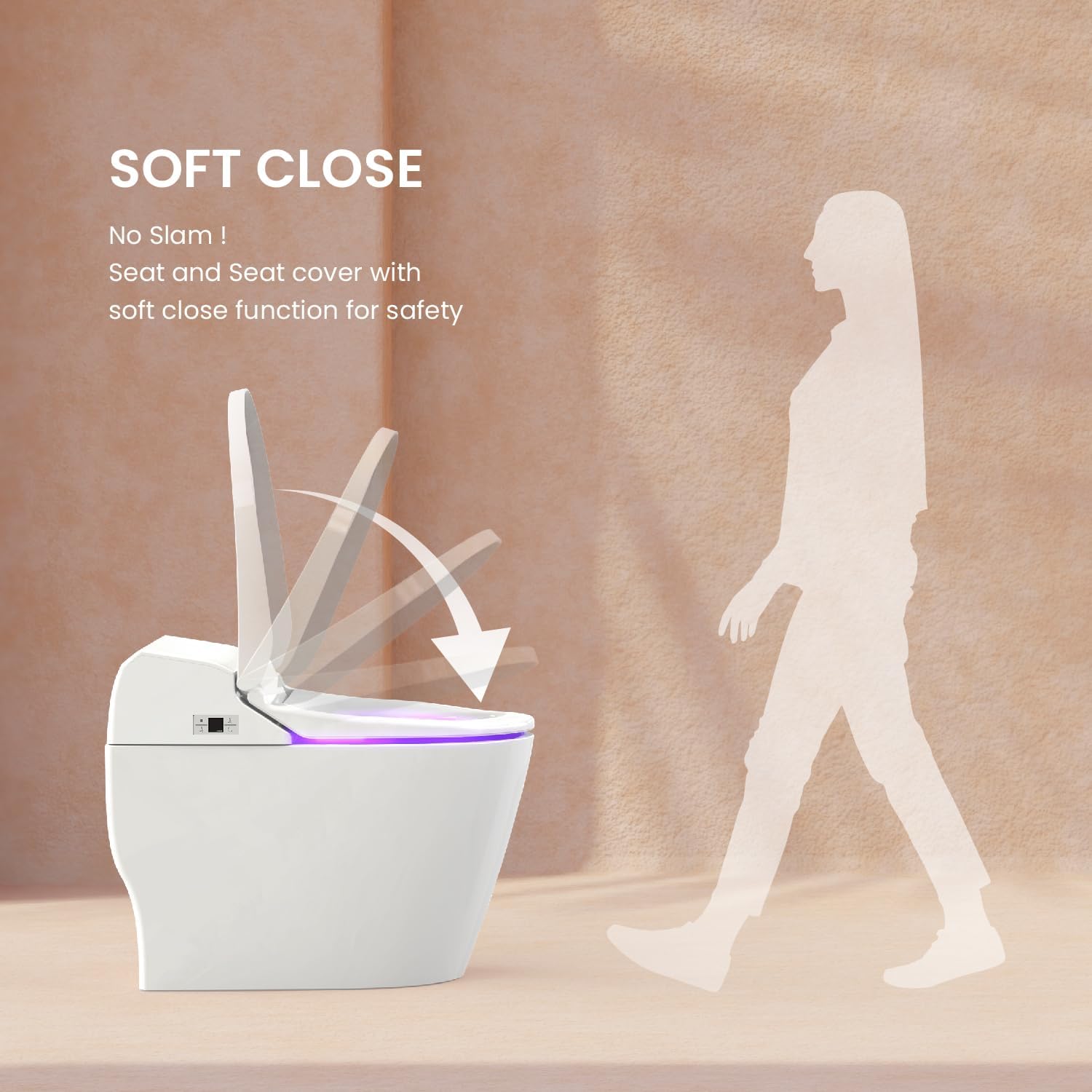

Figure 3: The soft-close function of the seat and seat cover, preventing slamming and ensuring safety.

Figure 4: Visual representation of the heated seat, warm air dryer, and automatic deodorization features.

Figure 5: Diagram showing the 3-in-1 full stainless steel nozzle for posterior, feminine, and turbo wash, along with its self-cleaning mechanism.

Opsætning og installation

Proper installation is crucial for the optimal performance and longevity of your smart bidet toilet. It is highly recommended to have this unit installed by a licensed plumber and electrician.

Tjekliste før installation:

• Verify that the product dimensions (25.9"D x 15.5"W x 21.4"H) are suitable for your bathroom space.
• Ensure a standard 120V AC electrical outlet is available near the toilet location.
• Confirm water supply pressure is adequate (minimum 35 PSI recommended for optimal flush).
• Gather necessary tools: adjustable wrench, screwdriver, measuring tape.

Installationstrin:

1. Forbered området: Turn off the water supply to the existing toilet and flush to empty the tank. Disconnect the water supply line and remove the old toilet. Clean the flange area thoroughly.


Figure 6: Diagram illustrating the standard installation process, including water valve connection.

2. Installer monteringshardwaren: Place the new wax ring and secure the mounting bolts to the floor flange.
3. Placering af toilettet: Carefully lower the VOVO STYLEMENT TCB-8100W onto the mounting bolts, ensuring it is level and stable. Tighten the nuts securely.


Figur 7: En eksploderet view showing the internal components and how they connect during installation.

4. Tilslut vandforsyning: Connect the flexible water supply hose from the toilet to the water shut-off valve. Ensure all connections are tight to prevent leaks.

Figure 8: Close-up of connecting the water supply line to the toilet's water valve.
5. Tilslut strøm: Sæt netledningen i en jordet 120V AC stikkontakt.


Figure 9: Illustration of plugging the toilet's power cord into a standard electrical outlet.

6. Test funktionalitet: Turn on the water supply. Check for leaks. Allow the toilet to fill and perform a test flush. Verify all smart features are operational.

Figure 10: Important dimensions for installation and a reminder that an electrical outlet is required.

Betjeningsvejledning

Your VOVO STYLEMENT TCB-8100W Smart Bidet Toilet offers intuitive controls for a personalized experience.

Automatisk lågåbning:

The lid automatically opens when a user approaches the toilet, thanks to the integrated sensor at the base.

Trådløs fjernbetjening:

The primary control for all advanced functions is the wireless remote. Familiarize yourself with the button layout for optimal use.

Figure 11: Detailed layout of the wireless remote controller, showing buttons for various functions like flush, wash modes, temperature, and pressure adjustments.

Vaskefunktioner:

• Bagvaskning: Press the "Posterior/Rhythm" button for a thorough posterior cleanse.
• Feminin vask: Press the "Feminine/Rhythm" button for a gentle feminine wash.
• Turbovask: Activate the "Turbo Wash" function for a stronger, more focused spray.
• Justering af vandtryk: Use the "Pressure" up/down arrows on the remote to adjust the water intensity.
• Justering af dyseposition: Adjust the nozzle's position using the "Position" up/down arrows for precise cleaning.
• Vandtemperaturjustering: Select your preferred water temperature using the "Water temp" controls.

Drying and Deodorization:

• Varmlufttørrer: After washing, press the "Dry" button to activate the warm air dryer. Adjust the air temperature using the "Dry temp" controls.
• Automatisk lugtfjerning: The deodorization system activates automatically to neutralize odors.

Andre funktioner:

• Opvarmet sæde: The seat temperature can be adjusted using the "Seat temp" controls on the remote.
• Natlys: Det integrerede natlys giver et blødt lys.
• Automatisk skylning: The toilet automatically flushes after use, with dual flush options based on usage duration.

Opretholdelse

Regular cleaning and maintenance will ensure the longevity and hygienic operation of your smart bidet toilet.

Generel rengøring:

• Always unplug the toilet from the power outlet before cleaning.
• Brug en blød, damp klud og et mildt, ikke-slibende rengøringsmiddel til at tørre de udvendige overflader af.
• Brug ikke skrappe kemikalier, slibende rengøringsmidler eller skurebørster, da disse kan beskadige overfladen.

Rengøring af dyse:

• The nozzle has a self-cleaning function that activates before and after each use.
• For manual cleaning, extend the nozzle using the remote control (refer to operating instructions) and gently wipe it with a soft cloth and mild soap. Do not force the nozzle.

Filtervedligeholdelse:

• Periodically check the water inlet filter for any debris. Clean if necessary by turning off the water supply, disconnecting the hose, and rinsing the filter under running water.

Fejlfinding

If you encounter issues with your VOVO STYLEMENT TCB-8100W, refer to the following common problems and solutions:

Hvis problemet fortsætter efter at have forsøgt disse løsninger, bedes du kontakte kundesupport.

Specifikationer

Garanti og support

For warranty information, product registration, or technical support, please contact VOVO customer service. Keep your purchase receipt as proof of purchase for warranty claims.

• Fabrikant: VOVO Corporation
• Sælger: VOVO USA (via Amazon)
• Kontaktoplysninger: Refer to the product packaging or the official VOVO webhjemmeside for de mest aktuelle kontaktoplysninger til kundeservice.
• Beskyttelsesplaner: Udvidede beskyttelsesplaner kan muligvis købes separat.
