VOVO STYLEMENT TCB-8100B Smart Toilet Brugsanvisning

Indledning

This manual provides detailed instructions for the installation, operation, and maintenance of your VOVO STYLEMENT TCB-8100B Smart Toilet. Please read this manual thoroughly before installation and use to ensure proper function and safety. Keep this manual for future reference.

Image: The VOVO STYLEMENT TCB-8100B Smart Toilet, showcasing its sleek, elongated design.

Vigtige sikkerhedsinstruktioner

To reduce the risk of injury, electric shock, fire, or damage to the product, always follow basic safety precautions:

• Sørg for, at produktet er tilsluttet en stikkontakt med jordforbindelse.
• Nedsænk ikke produktet i vand eller andre væsker.
• Tag stikket ud af produktet under tordenvejr, eller når det ikke skal bruges i længere perioder.
• Do not attempt to repair or disassemble the product yourself. Contact qualified service personnel.
• Hold alle elektriske forbindelser tørre og væk fra vand.

Pakkens indhold

Kontroller, at alle komponenter er til stede, før installationen påbegyndes:

• VOVO STYLEMENT TCB-8100B Smart Toilet (Upper and Lower parts)
• Trådløs fjernbetjening
• Vandslange
• Strainer Filter (Option)
• T-Valve (Option)
• Wax Ring (Option)
• Installationsskabelon
• Mounting Hardware (screws, nuts)
• Strømledning

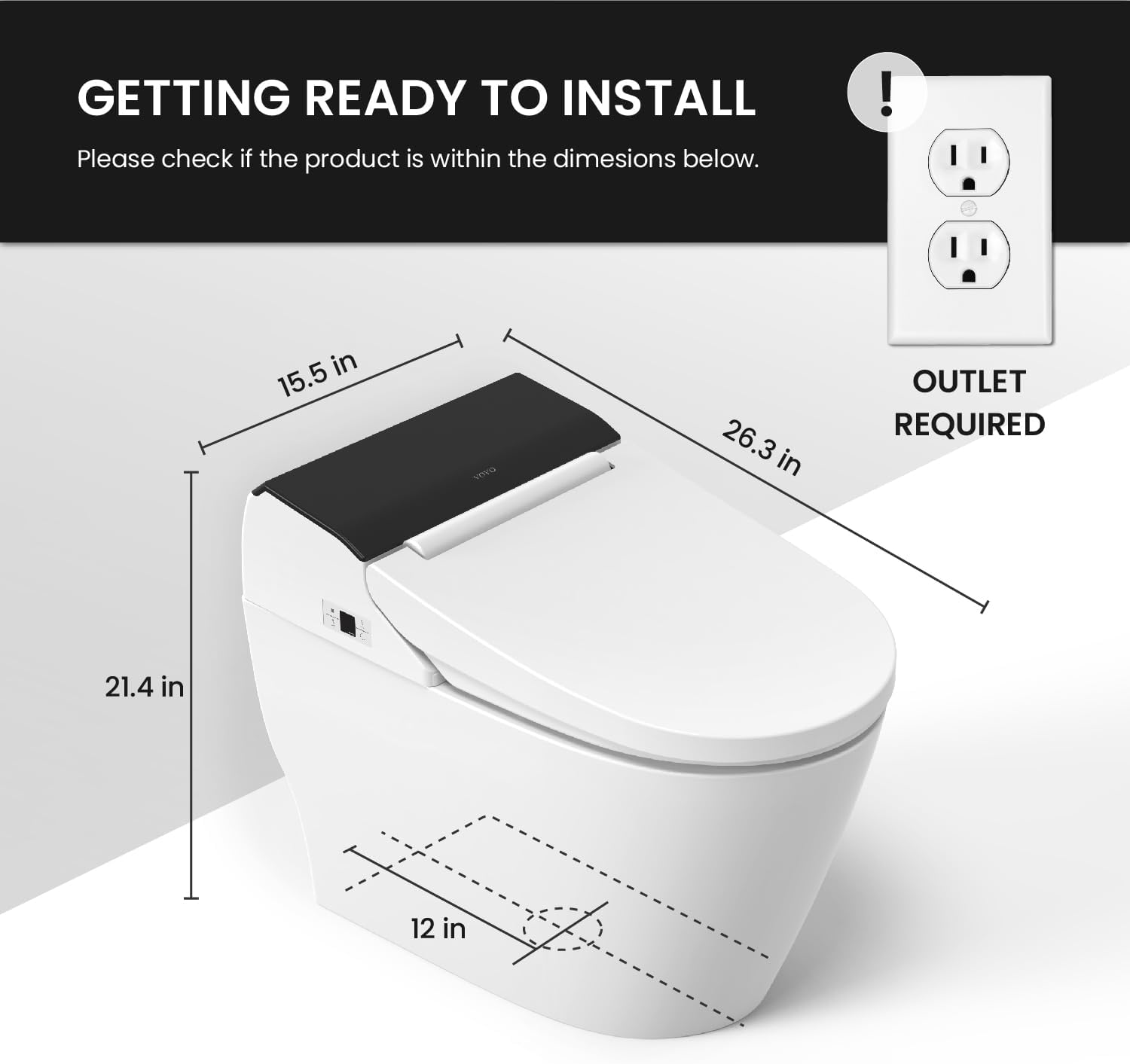

Image: A diagram illustrating the dimensions of the TCB-8100B Smart Toilet and the requirement for an electrical outlet for installation.

Installationsvejledning

Follow these steps for proper installation of your smart toilet. Professional installation is recommended.

1. Sluk for vandforsyningen: Locate the main water shut-off valve and turn it off.
2. Remove old toilet: Disconnect the water supply line and remove the old toilet. Clean the flange area.
3. Prepare the floor: Use the provided template to mark the installation points for the new toilet.
4. Install wax ring: Attach the wax ring to the bottom of the new toilet or directly to the floor flange.
5. Position the toilet: Carefully place the lower part of the toilet onto the floor flange, aligning it with the marked points. Secure it with the provided screws.
6. Tilslut vandforsyning: Connect the strainer filter and T-connector to the tap. Then, connect the water hose from the T-connector to the toilet's water inlet.
7. Connect upper part: Attach the upper part (bidet seat) to the lower toilet part, ensuring all connections are secure.
8. Turn on water supply: Slowly turn the main water supply back on and check for leaks.
9. Plug in power: Connect the power cord to a grounded electrical outlet. Check that the power LED light on the toilet illuminates.
10. Attach remote control: Mount the remote control holder to a convenient wall location and place the remote control in it.

For a visual guide, please refer to the official installation video:

Betjeningsvejledning

Your VOVO STYLEMENT TCB-8100B Smart Toilet offers a range of features for enhanced comfort and hygiene. All functions are controlled via the wireless remote.

Fjernbetjeningsfunktioner

Image: The wireless remote controller for the TCB-8100B, showing buttons for various bidet functions and settings.

• Bagvaskning: For rear cleansing. Adjust water pressure and nozzle position as needed.
• Feminin vask: For front cleansing. Adjust water pressure and nozzle position as needed.
• Turbovask: Provides a stronger water stream for thorough cleansing.
• Tørre: Activates the warm air dryer. Adjust dry temperature to your preference.
• Sædetemperatur: Adjust the heated seat temperature for comfort.
• Vandtemperatur: Control the temperature of the wash water.
• Dyseposition: Adjust the nozzle's forward/backward position.
• Vandtryk: Increase or decrease the intensity of the water spray.
• UV LED Sterilization: Activates UV light for bowl sterilization.
• Rengøring af dyse: Initiates an automatic self-cleaning cycle for the nozzle.

Automatiske funktioner

• Automatisk dobbeltskyl: The smart seat sensor detects usage duration to automatically select between a small (1.12 GPF) or full flush, providing hands-free operation.
• Blød lukning: The seat and lid feature a soft-close mechanism to prevent slamming.
• Automatisk lugtfjerning: An integrated system automatically activates to remove unpleasant odors.

Billede: Tværsnit view demonstrating the auto-flushing system, differentiating between large and small flushes based on user detection.

Image: A sequence showing the soft-close function of the toilet seat and cover, ensuring quiet and safe operation.

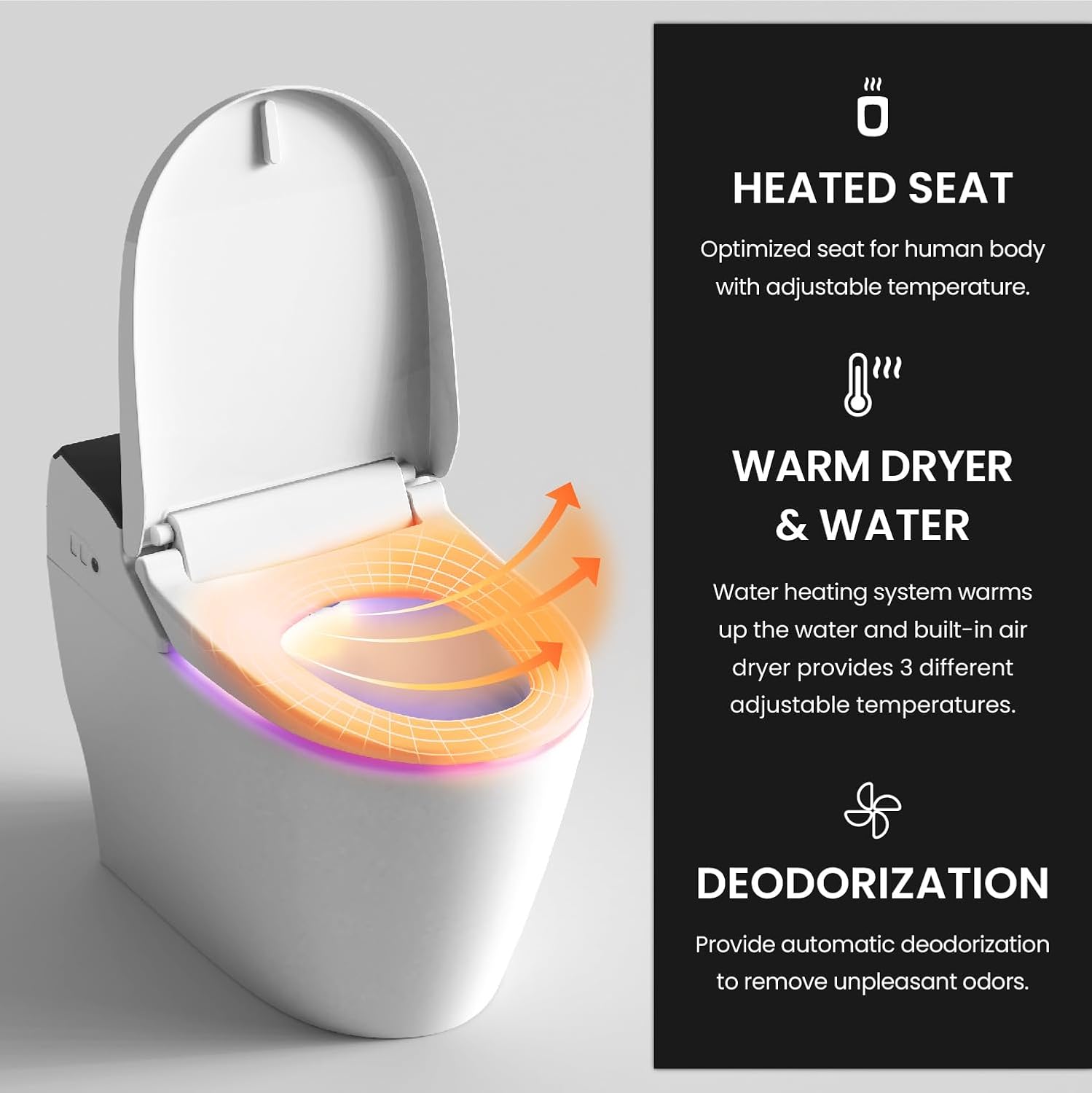

Image: Visual representation of the heated seat, warm air dryer, warm water, and automatic deodorization features.

Opretholdelse

Regular cleaning and maintenance will ensure the longevity and hygiene of your smart toilet.

• Rengøring af dyse: The stainless steel nozzle performs an automatic self-cleaning cycle before and after each use. For additional cleaning, press the 'Nozzle Cleaning' button on the remote to extend the nozzle for manual cleaning with a soft brush and mild detergent.
• Udvendig rengøring: Tør de udvendige overflader af med en blød, damp klud og mildt, ikke-slibende rengøringsmiddel. Undgå skrappe kemikalier.
• Rengøring af skål: Clean the toilet bowl regularly using standard toilet bowl cleaners.

Billede: Detaljeret view of the 3-in-1 full stainless steel nozzle, highlighting its posterior, feminine, and turbo wash functions, along with its self-cleaning capability.

Produktspecifikationer

Garanti og kundesupport

Your VOVO STYLEMENT TCB-8100B Smart Toilet is backed by a manufacturer's warranty. For specific warranty details, please refer to the warranty card included in your product packaging or visit the official VOVO website. If you encounter any issues or require assistance, please contact VOVO customer support. Contact information can typically be found on the manufacturer's webhjemmeside eller gennem din forhandler.
