Pecron E3000 bærbar kraftstation brugermanual

1. Introduktion

This user manual provides comprehensive instructions for the safe and efficient operation, maintenance, and troubleshooting of your Pecron E3000 Portable Power Station. Please read this manual thoroughly before using the product and retain it for future reference.

Vigtige sikkerhedsoplysninger

• Enheden må ikke skilles ad, repareres eller ændres. Forkert samling kan forårsage brand eller elektrisk stød.
• Placer ikke enheden i nærheden af ​​ild, og udsæt den ikke for varme. Holdes væk fra direkte sollys.
• Enheden må ikke oplades, bruges eller opbevares på et badeværelse eller i et område, der er udsat for regn eller fugt.
• Use only the original or certified accessories.
• Sørg for tilstrækkelig ventilation under brug og opladning for at forhindre overophedning.
• Opbevares utilgængeligt for børn og kæledyr.
• I tilfælde af brand, brug en tørpulverslukker. Vand kan forårsage elektrisk stød.

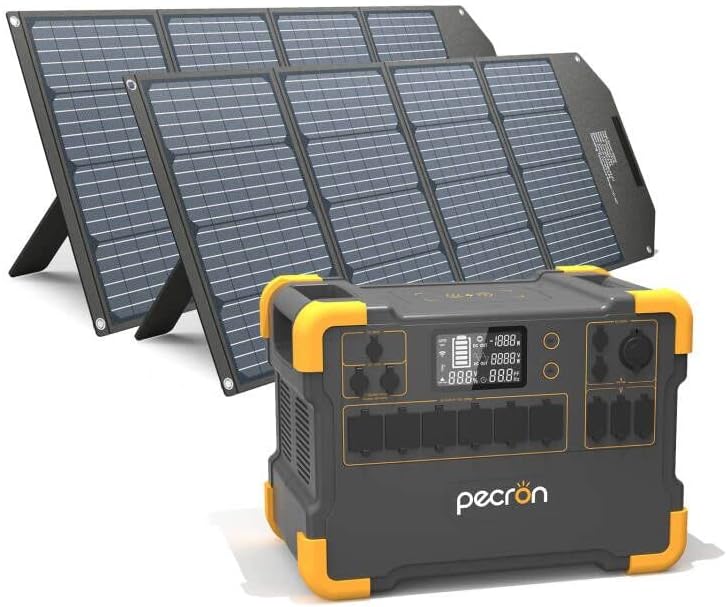

Figure 1.1: Pecron E3000 Portable Power Station with included 200W solar panels.

2. Produktet er slutview & Komponenter

The Pecron E3000 is a high-capacity portable power station designed for various applications, from outdoor camping to emergency home backup. It features a robust design and multiple output ports to power a wide range of devices.

Nøglefunktioner:

• Massiv kapacitet: 3108Wh battery capacity, suitable for extended use.
• Høj udgangseffekt: 2000W rated power (4000W surge) with 110V Pure-sine wave inverter.
• Alsidige udgange: 16 output ports including 6x AC outlets, 6x USB ports (up to PD 100W), 1x Cigar port, 2x DC ports, and 1x 15W wireless charger.
• Flere opladningsmuligheder: Supports wall outlet, dual wall outlet, solar panel, generator, car socket, and combined wall + solar charging.
• Effektiv solopladning: Dual independent 600W (PV 32V~95V) MPPT charge controllers and one step-up 100W (PV 18V) MPPT charge controller.
• Sikkerhed og pålidelighed: Built-in Battery Management System (BMS) for protection against short circuit, overload, and overheat. UL-Certified Automotive-Grade Batteries.

Komponentidentifikation:

Figur 2.1: Forside og side view of the Pecron E3000 with labeled ports and dimensions.

• AC 110V Output Port: Standard household outlets for AC appliances.
• Adapter & PV Charging Port: Input for AC adapter and solar panel charging.
• 12V PV & Car Charging Port: Input for 12V solar panels and car charging.
• Trådløs oplader: For compatible wireless charging devices.
• LCD-skærm: Viser batteriniveau, input/output-strøm og statusindikatorer.
• DC12V/USB & Wireless Charging Switch: Button to activate DC, USB, and wireless charging outputs.
• AC Output Switch: Button to activate AC outputs.
• DC 12V10A Cigar Port: Standard car cigarette lighter port.
• DC 12V(5525) Output Port: DC output for specific devices.
• USB/Type-C udgangsport: USB-A and USB-C ports for charging mobile devices.

Figur 2.2: Overview of Pecron E3000's massive capacity and key functionalities.

3. Opsætning

3.1 Udpakning og første inspektion

Upon receiving your Pecron E3000, carefully open the packaging and remove all components. Verify that all items listed in the "What You Get" section of the product description are present:

• Pecron E3000 Portable Power Station
• 2 Pcs 200W Solar Panels
• Tilbehørspakke
• AC strømadapter
• 5-Pin Aviation Plug To MC4 Solar Charging Cable (2x)
• Bil oplader kabel
• Brugervejledning (dette dokument)

Inspect the unit and accessories for any signs of damage. If any components are missing or damaged, contact Pecron customer service immediately.

3.2 Indledende opladning

Before first use, it is recommended to fully charge the Pecron E3000. This ensures optimal battery performance and calibration.

1. Connect the AC Power Adapter to the "Adapter & PV Charging Port" on the power station.
2. Plug the AC Power Adapter into a standard wall outlet (110V AC).
3. The LCD display will indicate charging status. A full charge via wall outlet typically takes 5-6 hours.

Alternatively, you can use solar panels for initial charging, though this may take longer depending on sunlight conditions.

4. Betjening

4.1 Tænd/sluk

• To turn on the unit: Press and hold the main power button (usually located near the LCD display) for a few seconds until the display illuminates.
• To turn off the unit: Press and hold the main power button again until the display turns off.

4.2 Activating Output Ports

Individual output sections (AC, DC/USB) have their own activation buttons to conserve power when not in use.

• AC udgange: Press the "AC Output Switch" button to enable the AC outlets. The AC indicator on the display will light up. Press again to turn off.
• DC/USB/Wireless Outputs: Press the "DC12V/USB & Wireless Charging Switch" button to enable the DC, USB, and wireless charging ports. The corresponding indicators will light up. Press again to turn off.

4.3 Tilslutning af enheder

Once the desired output ports are activated, plug your devices into the appropriate ports. The LCD display will show the real-time output wattage.

Figur 4.1: Eksamples of devices and their estimated runtimes when powered by the Pecron E3000.

Note: The total power consumption of connected devices should not exceed the E3000's rated output of 2000W. If the load exceeds 2000W, the power station will automatically shut down to prevent damage.

4.4 Genopladning af kraftværket

The Pecron E3000 offers multiple ways to recharge:

Figure 4.2: Six different methods for recharging your Pecron E3000.

• Wall Outlet (AC Adapter): Connect the included AC adapter to the "Adapter & PV Charging Port" and plug into a standard wall outlet. (Approx. 5-6 hours)
• Dual Wall Outlet: Using two AC adapters (second adapter sold separately), connect both to the appropriate input ports for faster charging. (Approx. 2-3 hours)
• Solpanel: Connect compatible solar panels (like the included 200W panels) to the "Adapter & PV Charging Port" or "12V PV & Car Charging Port" using the provided MC4 cables. Ensure the solar panel's open circuit voltage (Voc) does not exceed 95V for the main MPPT inputs. (Approx. 5-6 hours with 4x 200W solar panels)
• Generator: Connect the AC adapter to a generator's AC output. (Approx. 5-6 hours with 1 adapter, 2-3 hours with 2 adapters)
• Bil stikkontakt: Use the included car charger cable to connect to your vehicle's 12V cigarette lighter socket. (Approx. 31 hours)
• Wall + Solar: Combine AC wall charging with solar panel charging for the fastest recharge time. (Approx. 3-4 hours with wall + 200W solar panel*3)

The E3000 features dual built-in MPPT charge controllers, supporting up to 1200W max solar input. For optimal solar charging, position panels directly towards the sun.

5. Vedligeholdelse

5.1 Opbevaring

• Store the Pecron E3000 in a cool, dry place, away from direct sunlight, heat sources, and moisture.
• Ved langtidsopbevaring skal enheden oplades til cirka 50-80% hver 3.-6. måned for at opretholde batteriets sundhedstilstand.
• Avoid storing in extreme temperatures (below 0°C or above 40°C).

5.2 Rengøring

• Ensure the unit is turned off and disconnected from all power sources before cleaning.
• Use a soft, dry, lint-free cloth to wipe the exterior of the power station.
• Do not use abrasive cleaners, solvents, or immerse the unit in water.
• Hold ventilationsåbningerne fri for støv og snavs.

5.3 Pleje af batterier

• The Pecron E3000 uses UL-Certified Automotive-Grade Batteries for durability and safety.
• Undgå at aflade batteriet helt ofte, da dette kan reducere dets levetid.
• Charge the unit fully before significant use.
• If the unit will not be used for an extended period, charge it to 50-80% and recharge every 3-6 months.

6. Fejlfinding

If the problem persists after attempting these solutions, please contact Pecron customer service for further assistance.

7. Specifikationer

Figure 7.1: Detailed specifications for the included 200W Monocrystalline Solar Panels.

8. Garanti og support

8.1 Garantioplysninger

The Pecron E3000 Portable Power Station comes with a 12-måneders bekymringsfri garanti fra købsdatoen. Denne garanti dækker fabrikationsfejl og udførelse under normal brug. Den dækker ikke skader forårsaget af misbrug, ulykker, uautoriserede ændringer eller naturkatastrofer.

Gem venligst dit købsbevis for garantikrav.

8.2 Kundesupport

For any questions, technical assistance, or warranty claims, please contact Pecron customer service. Our team is available 24 timer i døgnet, 7 dage om ugen to provide friendly and prompt support.

You can find contact information on the official Pecron webwebsted eller via din købsplatform.
