Smartmi Luftrenser 2 Brugermanual

1. Introduktion og overview

The Smartmi Air Purifier 2 is designed to provide clean and healthy air for your home. It features advanced filtration technology and smart controls to ensure optimal air quality.

Nøglefunktioner:

• Wide Coverage & Improved Performance: Features Nanoguard Technology and 360° air intake, refreshing air 3 times per hour in rooms up to 484 ft² (45 m²). Effectively removes particles 0.08 micrometers in size with a CADR of 380 m³/h, including Volatile Organic Compounds (VOC) and large pollutants.
• Multiple Levels of Purification: Certified with TÜV Rheinland "Allergy Care". The H13 True HEPA Filter, Pre-Filter, and High-Efficiency Activated Carbon Filter capture 99.98% of airborne particles like dust, pollen, pet dander, smoke, and odor.
• Additional Layer of Protection: Built-in, short-wave UV-C light kills germs, bacteria, and viruses trapped in the filter. This feature can be turned off via the app.
• Stille og effektivt: Consumes 40W of energy with noise levels from 30dB to 64dB. Offers Auto, Favorite, and Sleep modes for customized operation.
• Easy App Smart Control: Control the purifier from anywhere using the free Smartmi Link app. Compatible with Alexa, Google Assistant, and Homekit.

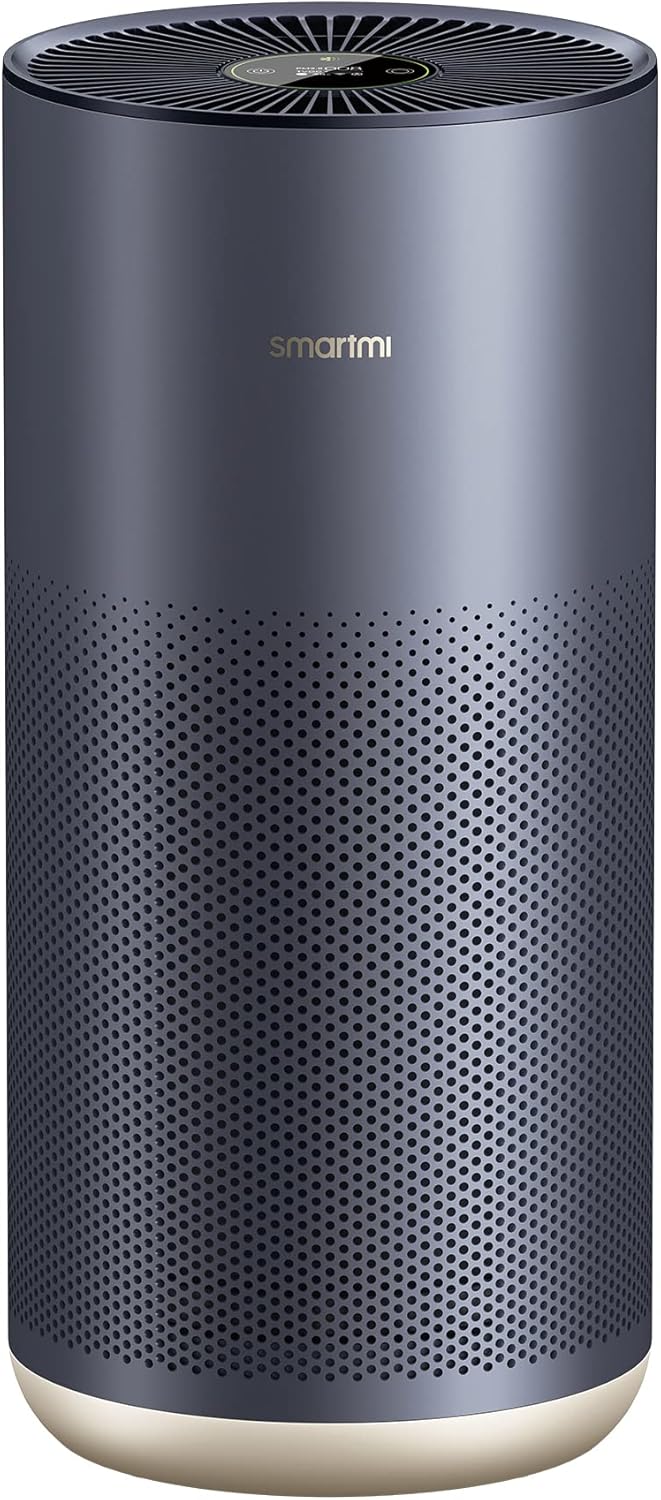

Figure 1: Smartmi Air Purifier 2, a sleek and modern device designed for efficient air purification.

Figure 2: The purifier effectively cleans a room of 517 sq.ft in just 20 minutes, reaching every corner.

Figure 3: The multi-level purification system includes a Pre-Filter, Activated Carbon Filter, and H13 True HEPA Filter to protect from allergens and pollutants.

Figure 4: The built-in short-wave UV-C light provides an additional layer of protection by killing airborne germs and viruses.

2. Opsætning

Follow these steps to set up your Smartmi Air Purifier 2.

2.1 Indledende placering

Place your air purifier in the room where you spend most of your time, such as the living room, bedroom, study room, or office. Ensure there is a suitable distance (at least 8 inches) between the air inlet and any obstructions like walls to allow for effective operation.

2.2 Installation af filter

Before first use, open the filter door on the back of the unit and remove the filter. Remove the plastic film protecting the filter. Place the filter back into the air purifier and close the door. (Refer to Video 2, timestamp 0:22 for visual instructions).

2.3 Strømtilslutning

Connect the power cord to the designated port on the air purifier and then plug it into a power outlet. Press the power button on the top display to start the air purifier. (Refer to Video 2, timestamp 0:43 for visual instructions).

2.4 Smartmi Link App Connection

Download the Smartmi Link App from your device's app store. Open the app and select your Smartmi Air Purifier 2 from the list of found devices. Follow the on-screen prompts to connect the device to your Wi-Fi network. Ensure your phone is close to the product during this process. (Refer to Video 2, timestamp 1:25 for visual instructions).

2.5 Smart Home-integration

The Smartmi Air Purifier 2 is compatible with Homekit, Google Assistant, and Alexa, allowing for convenient voice and app control.

3. Betjeningsvejledning

Understand the various functions and controls of your Smartmi Air Purifier 2.

3.1 Display overview

The top OLED display provides real-time information about your air quality and device status. It shows PM2.5 levels, TVOC status, temperature, Wi-Fi indicator, and current mode. (Refer to Video 2, timestamp 0:56 for visual instructions).

Figure 5: Enjoy undisturbed sleep with the purifier's low noise, sleep mode, and display-off features.

Figure 6: The purifier offers smart features like scheduling, filter life checks, and child lock, compatible with Apple Homekit, Google, and Alexa.

3.2 Modeskift

Press the mode switch button on the top display to cycle through the available modes: Auto, Sleep, and Favorite (Manual). (Refer to Video 2, timestamp 1:06 for visual instructions).

• Automatisk tilstand: Automatically switches modes based on indoor air quality.
• Sove mode: Provides ultra-low noise for a comfortable sleeping environment.
• Favorite Mode (Manual): Allows you to set and save a customized coverage area in the app to adjust purifying intensity.

3.3 Justering af skærmens lysstyrke

Press the display on/off button on the back of the unit to cycle through its brightness levels: on, dim, and off. (Refer to Video 2, timestamp 1:18 for visual instructions).

3.4 Timer funktion

You can set an on/off timer for the air purifier through the Smartmi Link app. This allows you to schedule operation according to your needs. (Refer to Video 2, timestamp 2:07 for visual instructions).

3.5 Børnelås

Activate the child lock feature via the Smartmi Link app to prevent accidental changes to settings by children. (Refer to Video 2, timestamp 2:19 for visual instructions).

3.6 UV Lamp Kontrollere

UV lamp can be turned on or off through the Smartmi Link app, providing flexibility for disinfection. (Refer to Video 2, timestamp 2:15 for visual instructions).

3.7 Air Quality Monitoring

The purifier continuously monitors air quality, displaying PM2.5 and TVOC levels on the OLED screen and in the Smartmi Link app. The app also provides historical data for air quality. (Refer to Video 2, timestamp 2:26 for visual instructions).

4. Vedligeholdelse

Regular maintenance ensures optimal performance and longevity of your Smartmi Air Purifier 2.

4.1 Filterudskiftning

The average filter lifespan is 6-12 months. You will be notified via the app when the filter needs to be replaced. To replace, open the filter door, remove the old filter, and insert a new one. Close the filter door securely. (Refer to Video 2, timestamp 3:34 for visual instructions).

4.2 Cleaning Fan Blades and Air Duct

To clean the fan blades and air duct, rotate the top grille clockwise to remove it. Use a vacuum cleaner to remove any dust from the air duct and fan blades. (Refer to Video 2, timestamp 3:57 for visual instructions).

4.3 Cleaning the Filter Housing

To maintain optimal ventilation and purification efficiency, remove any dust on the ventilation holes and housing walls using a vacuum cleaner or soft cloth. (Refer to Video 2, timestamp 4:10 for visual instructions).

4.4 Cleaning the Laser Particle Sensor

The particle sensor cover flap is on the rear cover just above the filter housing. Press the catch upwards and open the sensor flap. Use an air blow gun or hair dryer to clean the filter on the cover and the sensor. (Refer to Video 2, timestamp 4:22 for visual instructions).

5. Fejlfinding

If you encounter issues with your Smartmi Air Purifier 2, try the following common troubleshooting steps:

• Forbindelsesproblemer: If the device loses Wi-Fi connection or fails to connect to the app, try resetting the Wi-Fi on the device (refer to Video 2, timestamp 1:35) and ensure your router is within range.
• Usædvanlig støj: If the purifier makes unusual noises, especially at lower settings, check for any obstructions in the fan or air duct, and ensure all covers are securely closed. Regular cleaning of fan blades and air ducts can help.
• Filterudskiftning: Ensure you are using genuine Smartmi replacement filters. Issues with filter availability should be directed to the retailer or manufacturer support.
• Displayfejl: If the display is not working correctly or not dimming in sleep mode, try adjusting the display brightness settings via the app or the physical button on the back.
• App funktionalitet: If the app is not updating correctly or device changes are not reflecting, ensure the device firmware is up to date and try restarting the app or the purifier.

Ved vedvarende problemer henvises til den fulde brugermanual eller kontakt kundesupport.

6. Specifikationer

7. Garanti og support

For detailed warranty information and customer support, please refer to the official user manual PDF provided by the manufacturer.

You can download the full user manual her.

For any assistance, you may also contact Smartmi customer support via the Amazon platform.
