Garland 56ESG-0005 Gasoline Scarifier Instruction Manual

1. Introduktion

This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your Garland 56ESG-0005 gasoline scarifier. This machine is designed for aerating and dethatching lawns, promoting healthier grass growth by removing thatch and improving soil aeration. Please read this manual thoroughly before assembly, operation, or maintenance to ensure proper use and to prevent injury or damage.

2. Sikkerhedsinstruktioner

Operating power equipment requires careful attention to safety. Always follow these guidelines:

• Læs manualen: Familiarize yourself with all controls and safety warnings before operating the machine.
• Personligt beskyttelsesudstyr (PPE): Always wear appropriate safety glasses, hearing protection, sturdy footwear, and long pants. Avoid loose clothing that could get caught in moving parts.
• Ryd arbejdsområde: Before starting, inspect the work area and remove any objects such as rocks, sticks, wires, or debris that could be thrown by the blades.
• Brændstofhåndtering: Handle gasoline with extreme care. Store fuel in approved containers, in a well-ventilated area, away from ignition sources. Refuel outdoors, with the engine off and cool. Do not smoke while refueling.
• Motor slukket: Always turn off the engine, disconnect the spark plug wire, and allow the machine to cool before performing any adjustments, cleaning, or maintenance.
• Hold tilskuere væk: Ensure children, pets, and other people are kept at a safe distance (at least 15 meters) from the operating area.
• Hældning: Exercise extreme caution when operating on slopes. Scarify across the face of slopes, never up and down. Avoid excessively steep slopes.
• Klingebevidsthed: The scarifying blades are sharp. Never touch them while the engine is running.
• Maskinens tilstand: Do not operate the machine if it is damaged or not in proper working order. Ensure all guards and safety devices are in place.

3. Produktet er slutview

The Garland 56ESG-0005 is a robust gasoline-powered scarifier designed for efficient lawn maintenance. Key components include:

• Gasoline Engine: Provides power for the scarifying action.
• Scarifying Roller: Equipped with steel blades for effective thatch removal and soil aeration.
• Samlingstaske: Gathers removed thatch and debris.
• Ergonomisk styr: Designed for comfortable operation and features a tool-free folding mechanism for compact storage.
• Dybdejusteringshåndtag: Centralized control for setting the scarifying depth.
• Transport Mode Lever: Allows for easy movement of the machine without engaging the blades.

Figur 1: Overview of the Garland 56ESG-0005 Gasoline Scarifier.

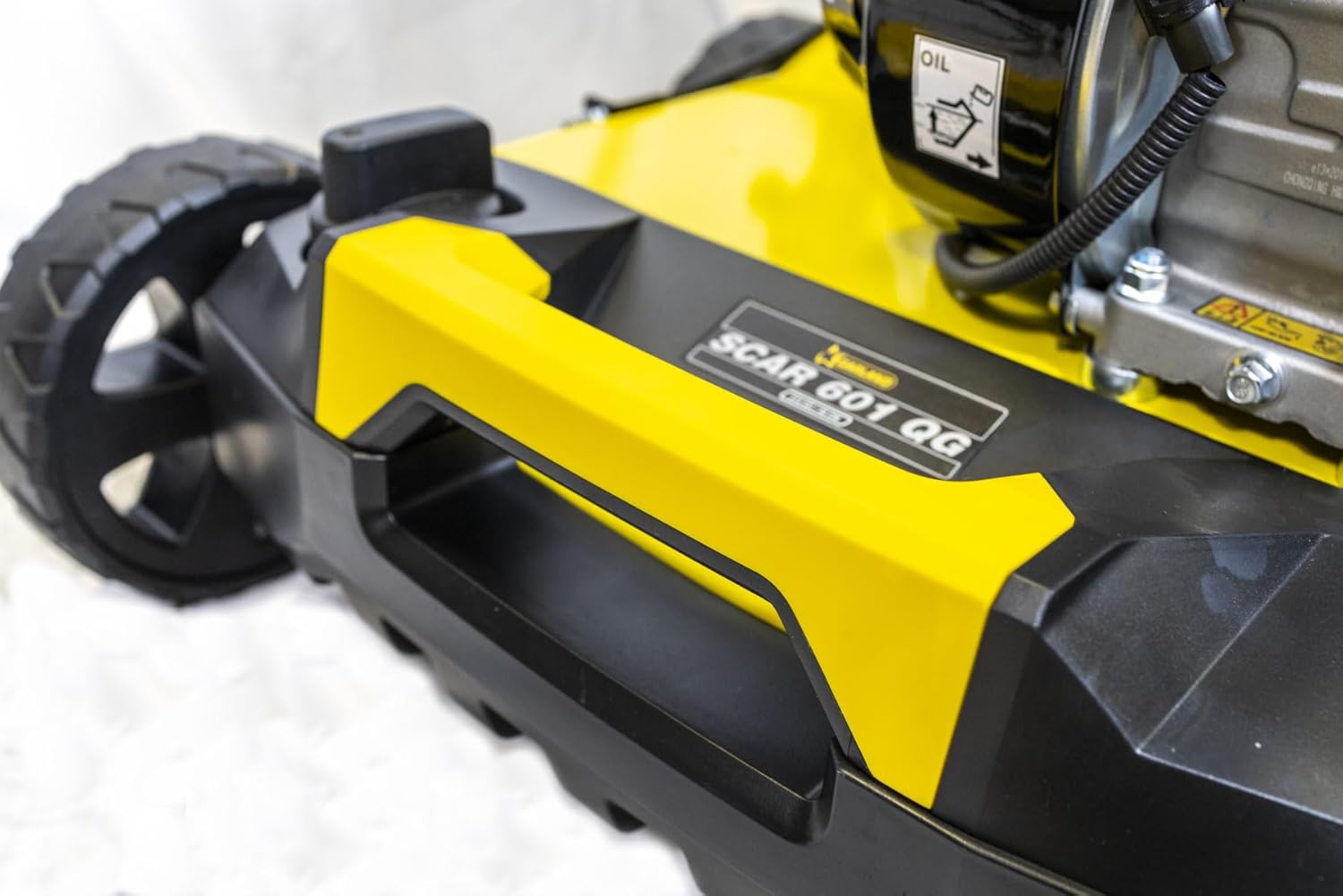

Figur 2: Nærbillede view of the scarifier deck, indicating the model 'SCAR 601 QG'.

Figure 3: The ergonomic handlebar with its safety lever for user comfort and control.

4. Opsætning

Follow these steps to prepare your scarifier for first use:

1. Udpakning: Fjern forsigtigt alle komponenter fra emballagen. Kontroller for eventuelle skader under transporten.
2. Styrsamling: Unfold the handlebar and secure it in the operating position. The design allows for tool-free folding and unfolding. Ensure all locking mechanisms are engaged.
3. Fastgørelse af opsamlingspose: Assemble the collection bag if necessary and securely attach it to the rear of the scarifier. Ensure it is properly seated to prevent debris from escaping.
4. Tilsæt motorolie: Before starting the engine for the first time, fill the engine with the recommended type and amount of engine oil. Refer to the engine manual for specific oil requirements and capacity. Do not overfill.
5. Tilføj brændstof: Fill the fuel tank with fresh, unleaded gasoline. Use a funnel to prevent spills. Do not fill the tank completely; leave space for fuel expansion. Securely close the fuel cap.
6. Kontrol før operation: Verify that all nuts, bolts, and fasteners are tight. Ensure the scarifying roller rotates freely and is not obstructed.

5. Betjening

Proper operation ensures effective results and extends the life of your scarifier.

5.1 Start af motoren

1. Ensure the fuel valve is open (if applicable) and the engine switch is in the 'ON' position.
2. Apply choke as needed for a cold engine (refer to engine manual).
3. Træk godt i startsnoren, indtil motoren starter.
4. Once started, gradually release the choke.

5.2 Justering af vertikalskærerdybde

The scarifier features a centralized depth adjustment system with 5 positions, ranging from -5mm to 15mm.

• Use the depth adjustment lever located on the handlebar to select the desired working depth.
• For initial passes or lighter dethatching, choose a shallower depth (e.g., 0mm to 5mm).
• For more aggressive thatch removal or aeration, select a deeper setting (e.g., -5mm to 15mm).
• Always start with a shallower depth and gradually increase if needed to avoid damaging the lawn.

Figure 4: Close-up of the depth adjustment lever on the handlebar.

Figure 5: The scarifier in use, demonstrating the position of the depth adjustment lever during operation.

5.3 Scarifying Technique

• Push the scarifier at a steady, even pace. Avoid rushing or stopping abruptly.
• Overlap each pass slightly to ensure complete coverage of the lawn.
• Empty the collection bag frequently to maintain optimal performance and prevent clogging.

5.4 Transporttilstand

The independent centralized selector lever allows you to switch between 'work' and 'transport' positions. In transport mode, the blades are raised, preventing them from contacting the ground, which is useful for moving the machine without scarifying or damaging the blades.

• Move the selector lever to the 'transport' position when moving the scarifier to and from the work area.
• Return the lever to the 'work' position before beginning scarifying.

5.5 Standsning af motoren

• Release the safety lever on the handlebar.
• Flyt motorkontakten til 'OFF'-positionen.
• Lad motoren køle af før opbevaring eller vedligeholdelse.

6. Vedligeholdelse

Regular maintenance is crucial for the longevity and performance of your scarifier.

• Rensning: After each use, clean the machine thoroughly. Remove grass clippings, dirt, and debris from the deck, blades, and engine cooling fins. Use a brush or compressed air. Do not use a high-pressure washer directly on the engine or electrical components.
• Scarifying Blades: Regularly inspect the steel blades for wear or damage. Replace worn or bent blades to maintain effective scarifying. Ensure all blades are securely fastened.
• Motorvedligeholdelse: Refer to the separate engine manual for detailed maintenance schedules, including oil changes, spark plug inspection/replacement, and air filter cleaning/replacement.
• Samlingstaske: Empty and clean the collection bag regularly. Inspect for tears or damage.
• Opbevaring: For long-term storage, especially over winter, drain the fuel tank or use a fuel stabilizer. Clean the machine thoroughly and store it in a dry, well-ventilated area. The foldable handlebar allows for compact storage.

7. Fejlfinding

Dette afsnit omhandler almindelige problemer, du kan støde på.

Hvis du støder på problemer, der ikke er nævnt her, eller hvis løsningerne ikke løser problemet, bedes du kontakte kundesupport.

8. Specifikationer

Technical specifications for the Garland 56ESG-0005 Scarifier:

9. Garanti og support

For information regarding warranty coverage, spare parts availability, or technical support, please refer to the warranty card included with your product or contact your retailer or the Garland customer service department. Keep your purchase receipt as proof of purchase.
