UrbanX KBM030 Genopladeligt Bluetooth-tastatur og -muskombination Brugermanual

Indledning

This manual provides detailed instructions for the setup, operation, and maintenance of your UrbanX KBM030 Rechargeable Bluetooth Keyboard and Mouse Combo. Please read this manual thoroughly before use to ensure optimal performance and longevity of your device.

Pakkens indhold

• UrbanX KB030 Bluetooth Keyboard
• UrbanX M030 Bluetooth Mouse
• USB opladningskabel
• Velkomstguide (denne manual)

Produkt overview

The UrbanX KBM030 combo includes a full-size Bluetooth keyboard and an ergonomic Bluetooth mouse, designed for broad compatibility and comfortable use across various operating systems.

Image: The UrbanX KBM030 Bluetooth Keyboard and Mouse Combo. This image displays both the full-size keyboard and the ergonomic mouse, showcasing deres slanke, sorte design.

Tastaturfunktioner

• Layout i fuld størrelse: Provides a complete set of keys for efficient typing.
• Lav-Profile Nøgler: Designed for quiet and comfortable typing.
• System-Specific Function Keys: Optimized for Windows, Android, and Mac OS.
• Genopladeligt batteri: Built-in Li-polymer battery for extended use.

Image: The UrbanX keyboard positioned in front of a tablet displaying a flowchart. This illustrates the keyboard's use with mobile devices for productivity.

Image: Keyboard showing compatibility with iOS, Android, and Windows operating systems. This image highlights the keyboard's versatility across different platforms.

Image: Close-up of a keyboard key demonstrating the X-structure mechanism. This illustrates the design for comfortable and consistent keystrokes.

Image: The keyboard with dimensions indicating its light, slim, and portable design. Measurements are shown as 24.7cm / 9.72in length, 15cm / 6in width, and 0.5cm / 0.2in thickness.

Musfunktioner

• Ergonomisk design: Reduces stress during prolonged use.
• Justerbar DPI: Three sensitivity levels (800, 1200, 1600 DPI) for precise control.
• Genopladeligt batteri: Built-in Li-polymer battery, charged via Micro USB.

Image: Diagram illustrating the mouse's 3-grade DPI switch (800, 1200, 1600 DPI). This shows how users can easily adjust mouse sensitivity.

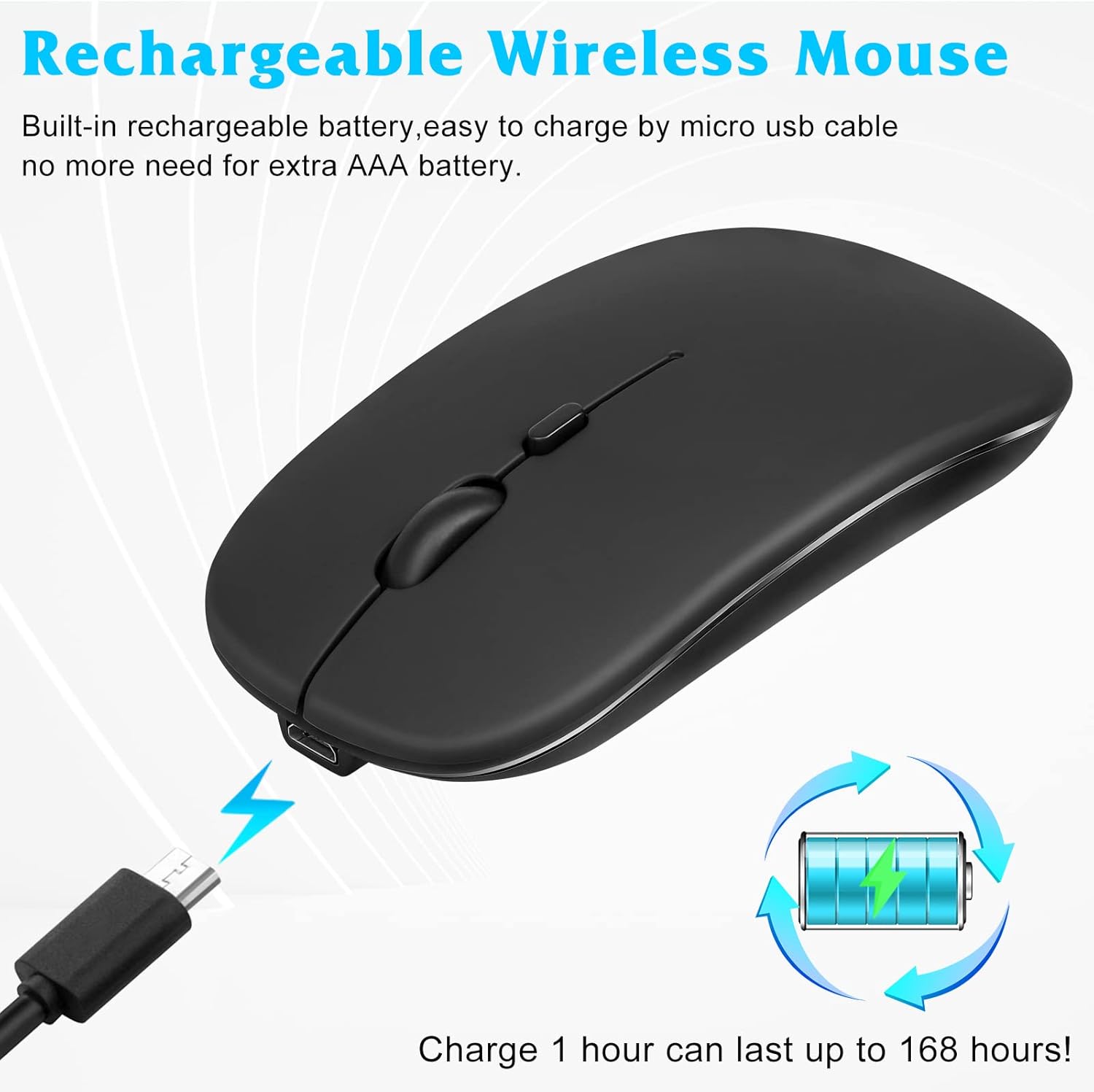

Image: The mouse connected to a USB charging cable, with an icon indicating its rechargeable battery. This highlights the convenience of not needing disposable AAA batteries.

Opsætningsvejledning

1. Opladning af enhederne

Before initial use, fully charge both the keyboard and the mouse. Use the provided USB charging cable to connect the devices to a USB power source (e.g., computer USB port, USB wall adapter).

• The keyboard's "Charge" indicator light will illuminate during charging and turn off when fully charged.
• The mouse's indicator light will show charging status.

2. Bluetooth Pairing - Keyboard

1. Turn on the keyboard by sliding the "OFF/ON" switch to "ON". The "Power" indicator light will briefly illuminate.
2. Press the "Connect" button on the keyboard. The "BT" (Bluetooth) indicator light will start blinking, indicating it's in pairing mode.
3. Gå til Bluetooth-indstillinger på din enhed (computer, tablet, smartphone).
4. Aktiver Bluetooth og søg efter tilgængelige enheder.
5. Select "Bluetooth Keyboard" or a similar name from the list of found devices.
6. Follow any on-screen prompts to complete the pairing process. You may be asked to enter a code displayed on your screen using the keyboard and press Enter.
7. Once paired, the "BT" indicator light will stop blinking.

3. Bluetooth Pairing - Mouse

1. Turn on the mouse by sliding the power switch on its underside to "ON".
2. Press and hold the Bluetooth pairing button (usually located on the underside or top near the scroll wheel) for a few seconds until the indicator light starts blinking.
3. Gå til Bluetooth-indstillinger på din enhed.
4. Aktiver Bluetooth og søg efter tilgængelige enheder.
5. Select "Bluetooth Mouse" or a similar name from the list.
6. Once paired, the indicator light will stop blinking.

4. System Compatibility and Special Notes

The keyboard and mouse are compatible with Windows, Android, and Mac OS. For optimal functionality, ensure your device's operating system is up to date.

Image: Instructions for connecting the mouse to an iPad or iPhone. It shows the steps to enable Bluetooth and AssistiveTouch in iOS settings. Ensure your iOS is 13 or above for mouse support.

• For iOS Devices (iPad/iPhone): Ensure your iOS version is 13.0 or above for full mouse functionality. You may need to enable "AssistiveTouch" in Accessibility settings for the mouse to work correctly.
• Funktionstaster: The keyboard features system-specific function keys. Use the Fn key in combination with other keys to switch between operating system modes (e.g., Fn + Q for Android, Fn + W for Windows, Fn + E for iOS).

Betjeningsvejledning

Tastaturbrug

• Indtastning: Den lavproffefile taster giver en behagelig og rolig skriveoplevelse.
• Funktionstaster: Access common functions like volume control, media playback, and copy/paste using the dedicated function keys. These keys are often activated by pressing the Fn tasten samtidig med den ønskede funktionstast (F1-F12).
• OS Mode Switching: To optimize function keys for your operating system, press Fn + Q til Android, Fn + W for Windows, or Fn + E til iOS.

Brug af mus

• Clicking and Scrolling: Standard left/right click and scroll wheel functionality.
• DPI-justering: Press the DPI button (usually located near the scroll wheel) to cycle through the three sensitivity levels: 800, 1200, and 1600 DPI. Adjust to your preference for cursor speed and precision.

Strømstyring

• Automatisk dvaletilstand: Both the keyboard and mouse will enter sleep mode after a period of inactivity to conserve battery. Press any key on the keyboard or move/click the mouse to wake them up.
• Sluk: For extended periods of non-use, slide the "OFF/ON" switch on both devices to "OFF" to completely power them down and save battery.

Opretholdelse

• Rensning: Brug en blød, tør og fnugfri klud til at rengøre overfladerne på tastaturet og musen. Tør let genstridigt snavs af.ampRengør kluden med vand eller en mild rengøringsopløsning. Undgå for meget fugt.
• Batteripleje: To prolong battery life, avoid fully discharging the devices frequently. Recharge them when the low battery indicator appears. Do not expose batteries to extreme temperatures.
• Opbevaring: When not in use for a long time, store the devices in a cool, dry place. Ensure they are powered off to prevent battery drain.
• Undgå væsker: Hold tastatur og mus væk fra væsker for at forhindre beskadigelse af interne komponenter.

Fejlfinding

Device Not Connecting/Pairing

• Sørg for strøm: Check if both the keyboard and mouse are turned on and have sufficient battery charge.
• Genindtast parringstilstand: For the keyboard, press the "Connect" button. For the mouse, press and hold its pairing button.
• Enhedens Bluetooth: Ensure Bluetooth is enabled on your host device (computer, tablet, phone) and it's discoverable.
• Glem enhed: If previously paired, try "forgetting" or "removing" the device from your host device's Bluetooth list and then attempt to pair again.
• Afstand: Ensure the devices are within the operating range (up to 33 feet or 10 meters).
• Interferens: Flyt dig væk fra andre trådløse enheder, der kan forårsage interferens.

Keyboard Typing Incorrectly or Not Responding

• Batteriniveau: Genoplad tastaturet.
• OS Mode: Ensure the correct operating system mode is selected (Fn + Q/W/E).
• Reparation: Try unpairing and re-pairing the keyboard.

Mouse Cursor Jumpy or Not Moving

• Batteriniveau: Recharge the mouse.
• Overflade: Brug musen på en ren, ikke-reflekterende overflade.
• DPI -indstilling: Adjust the DPI setting to see if it improves responsiveness.
• Reparation: Prøv at ophæve parringen og parre musen igen.
• iOS AssistiveTouch: For iOS devices, ensure AssistiveTouch is enabled in Accessibility settings.

Kort batterilevetid

• Opladningstid: Sørg for, at enhederne er fuldt opladede.
• Anvendelse: Battery life varies with usage intensity.
• Sluk: Remember to turn off devices when not in use for extended periods.

Specifikationer

Garanti og support

Your UrbanX KBM030 Rechargeable Bluetooth Keyboard and Mouse Combo comes with a 90-day warranty. For any questions, technical support, or warranty claims, please contact UrbanX customer service.

Refer to the contact information provided in your purchase documentation or visit the official UrbanX webwebsted for support.
