Puig 20998N License Plate Holder Instruction Manual

1. Introduktion

This manual provides detailed instructions for the installation, operation, and maintenance of the Puig 20998N License Plate Holder. This product is designed to replace the original license plate holder on compatible motorcycles, offering a lighter and more streamlined alternative while maintaining functionality.

2. Sikkerhedsoplysninger

Always prioritize safety during installation and use. Please observe the following guidelines:

• Sørg for, at motorcyklen er stabil og sikkert understøttet, før du påbegynder noget arbejde.
• Use appropriate tools and wear personal protective equipment, such as gloves and eye protection.
• If you are uncertain about any step of the installation process, consult a qualified motorcycle mechanic.
• Ensure all fasteners are securely tightened to prevent components from detaching during motorcycle operation.
• Disconnect the motorcycle's battery before working with any electrical components.

3. Pakkens indhold

The Puig 20998N License Plate Holder package typically includes the following components:

• Main license plate bracket assembly
• Motorcycle-specific mounting brackets
• LED license plate illumination light
• Red reflector
• Kabelbindere
• Necessary fasteners (bolts, nuts, washers)

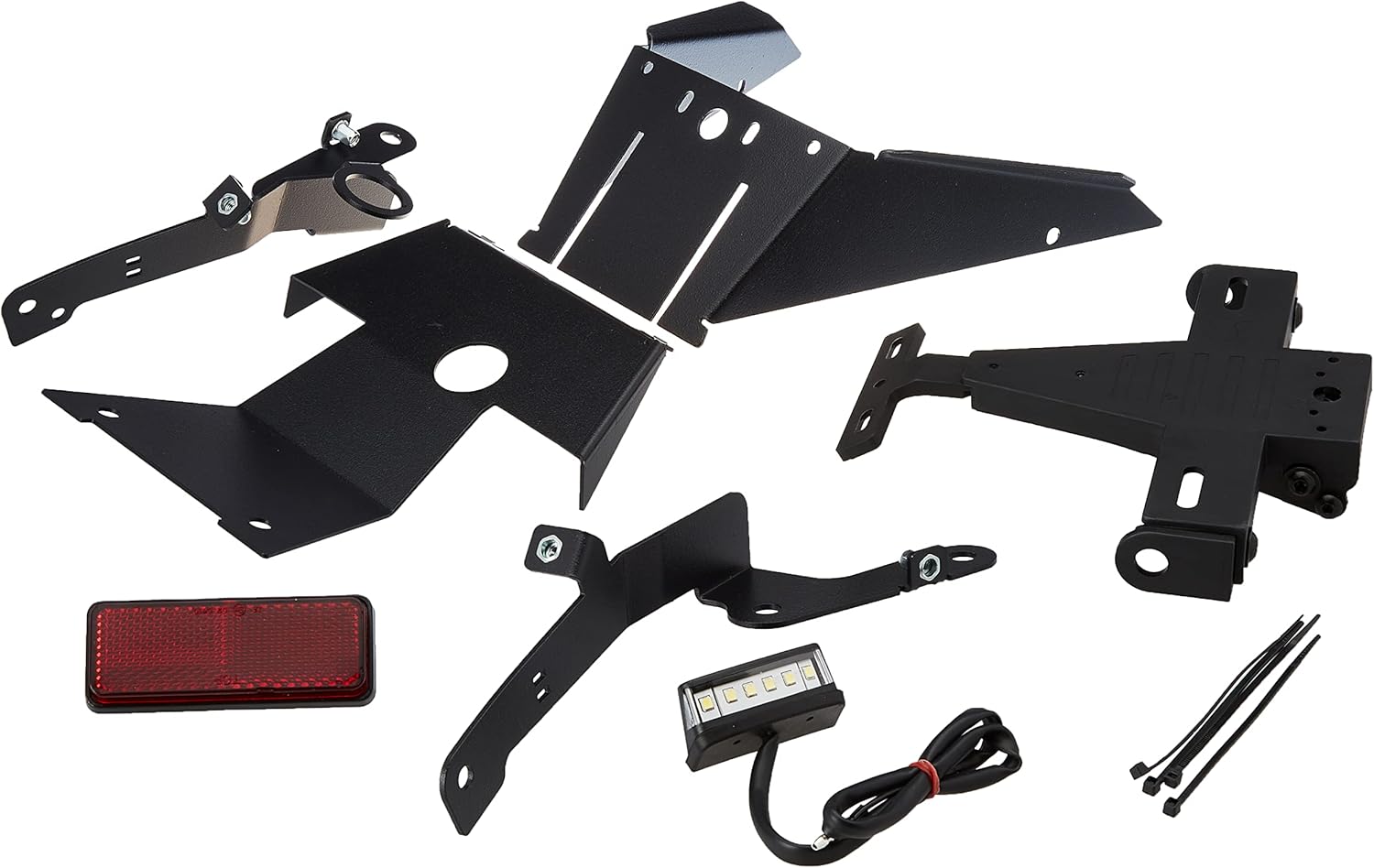

Billede: Overview of all components included in the Puig 20998N License Plate Holder kit.

4. Opsætning og installation

This section outlines the steps required to install the Puig 20998N License Plate Holder. The kit combines steel components with an epoxy paint finish and polyamide pieces for reduced weight.

Nødvendige værktøjer: Standard motorcycle tools (e.g., appropriate wrenches, screwdrivers, wire cutters/strippers).

1. Forberedelse: Park the motorcycle on a stable, level surface. Ensure the engine is off and cool. Disconnect the motorcycle's battery to prevent electrical shorts during wiring.
2. Remove Original License Plate Holder: Carefully remove the existing license plate holder from your motorcycle. Pay attention to the routing of any wiring for lights and indicators, and disconnect them.
3. Assemble the Puig Holder: Assemble the main license plate bracket and the motorcycle-specific mounting arms using the provided fasteners. Refer to any specific diagrams included with your product for precise assembly.


Image: The main license plate bracket component.

4. Montering: Attach the assembled Puig license plate holder to the motorcycle's frame using the designated mounting points. Ensure a secure fit. Some versions of the support may be fixed, while others offer adjustability up to 3 cm for optimal positioning.


Image: An upper mounting bracket component.



Billede: Side view of a mounting bracket component, showing its design.

5. Install License Plate Illumination: Connect the provided LED license plate illumination light to the motorcycle's electrical system. Ensure proper wiring polarity and secure routing of the wires to prevent pinching or damage.
6. Install Reflector: Attach the red reflector to the designated area on the license plate holder.


Image: The LED license plate light and red reflector components.

7. Indicator Installation (Important Note): The Puig license plate holder includes dedicated space for aftermarket indicators. Please note that original motorcycle indicators are typically not compatible with this holder and will require adapters or replacement with aftermarket units. Indicators are not included with this product and must be purchased separately.
8. Afsluttende kontrol: Reconnect the motorcycle's battery. Verify that all components are securely fastened and that the license plate holder is stable. Check all electrical connections for proper function (license plate light, and aftermarket indicators if installed).

5. Betjening

Once correctly installed, the Puig 20998N License Plate Holder functions passively as a secure mounting point for your license plate and associated lighting. Ensure your license plate is securely attached to the holder using appropriate fasteners.

6. Vedligeholdelse

To ensure the longevity and proper function of your license plate holder, follow these maintenance guidelines:

• Regularly inspect all fasteners for tightness, especially after riding on rough terrain or after extended periods of use.
• Clean the license plate holder with a mild soap and water solution. Avoid abrasive cleaners or harsh chemicals that could damage the epoxy paint finish.
• Periodically check the LED license plate light and reflector for proper function and cleanliness. Replace if damaged or non-functional.

7. Fejlfinding

Se følgende almindelige problemer og deres løsninger:

• Issue: License Plate Holder Feels Loose.
  Løsning: Re-tighten all mounting bolts and fasteners. Refer to Section 4: Setup and Installation for correct mounting procedures.
• Issue: License Plate Light Not Working.
  Løsning: Check all electrical connections for the LED light. Ensure wires are not pinched, cut, or improperly connected. Verify that the motorcycle's electrical system is supplying power to the light.
• Issue: Original Indicators Do Not Fit.
  Løsning: As noted in Section 4, the Puig 20998N License Plate Holder is designed for aftermarket indicators. Original indicators are generally not compatible and will require either adapters or replacement with aftermarket units.

8. Specifikationer

9. Kompatibilitet

The Puig 20998N License Plate Holder is specifically designed for and compatible with the following motorcycle models:

• Honda X-ADV 2021
• Honda X-ADV 2022

Always verify compatibility with your specific motorcycle model and year before purchasing and attempting installation.

10. Garanti og support

For detailed warranty information, technical support, or to inquire about replacement parts, please refer to the official Puig website or contact your authorized Puig dealer. It is recommended to retain your purchase receipt as proof of purchase for warranty claims.
