TANLANIN TE-2028BR Vinylpladespiller Brugsanvisning

1. Introduktion

This manual provides essential information for the safe and efficient operation of your TANLANIN TE-2028BR Vinyl Record Player. Please read it thoroughly before use and retain it for future reference.

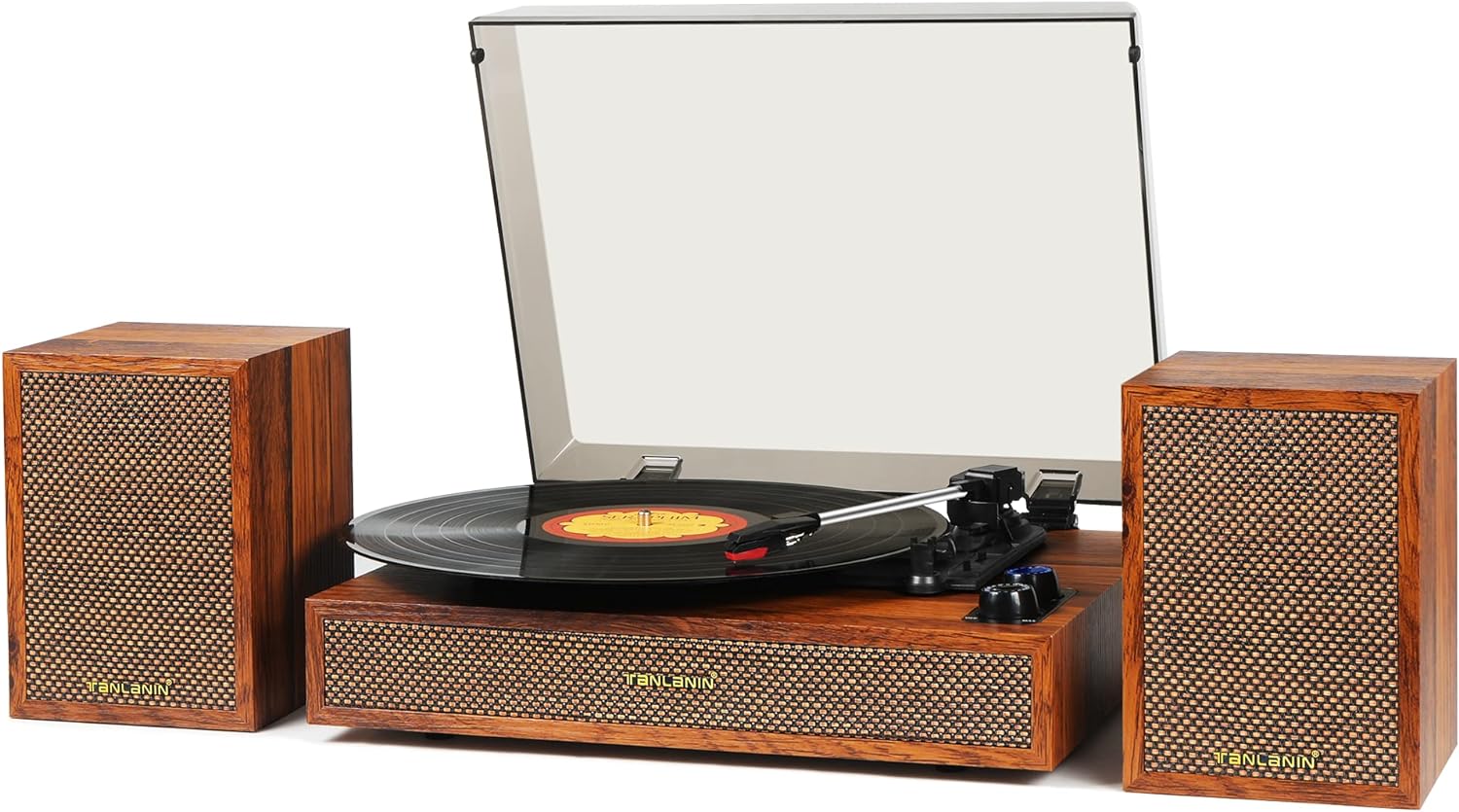

Image 1.1: TANLANIN TE-2028BR Vinyl Record Player with external speakers.

2. Sikkerhedsinstruktioner

Overhold følgende sikkerhedsforanstaltninger for at forhindre elektrisk stød, brand eller beskadigelse af enheden:

• Udsæt ikke enheden for regn eller fugt.
• Åbn ikke kabinettet. Overlad kun service til kvalificeret personale.
• Undgå at placere enheden i nærheden af ​​varmekilder eller i direkte sollys.
• Sørg for korrekt ventilation omkring enheden.
• Brug kun den strømadapter, der følger med enheden.
• Hold enheden væk fra stærke magnetiske felter.
• Rengør kun med en tør klud.

3. Pakkens indhold

Bekræft at alle varer er til stede i pakken:

• TANLANIN TE-2028BR Turntable Unit
• External Stereo Speakers (2 units)
• 45 omdr./min. Adapter
• slipmat
• Spare Needle (Stylus)
• Strømadapter
• Instruktionsmanual

4. Produktet er slutview

4.1 Front and Top Panel Components

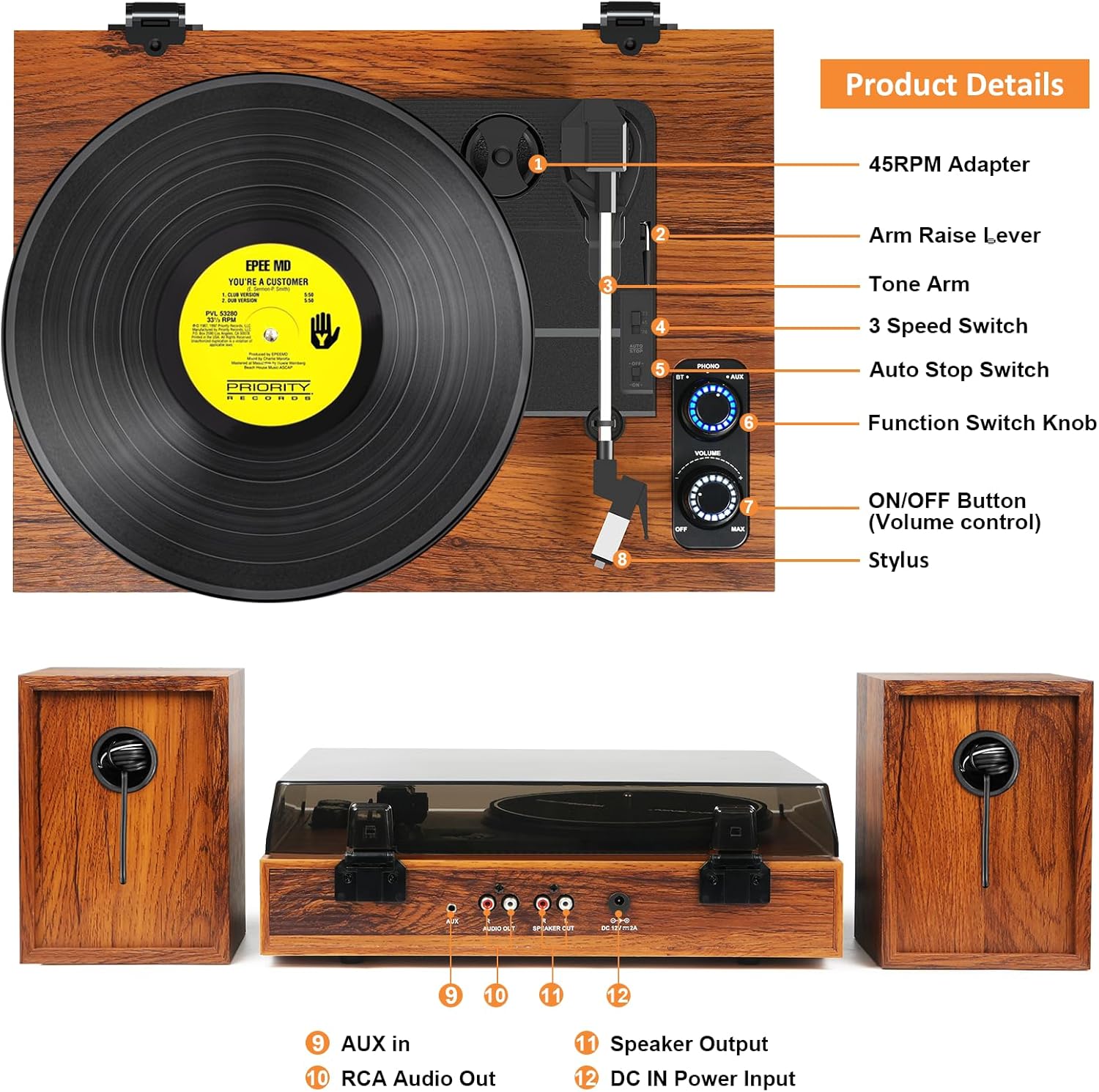

Image 4.1: Front and Top Panel Components. Key components include the 45 RPM Adapter, Arm Raise Lever, Tone Arm, 3 Speed Switch, Auto Stop Switch, Function Switch Knob, ON/OFF Button (Volume control), and Stylus.

1. 45 RPM Adapter: Used for playing 45 RPM records with a large center hole.
2. Armløftshåndtag: Løfter og sænker tonearmen.
3. Tonearm: Holder pennen og sporer pladens riller.
4. 3 Speed Switch: Vælger afspilningshastighed (33, 45 eller 78 RPM).
5. Automatisk stopknap: Enables or disables the auto-stop function.
6. Function Switch Knob: Selects input mode (BT, PHONO, AUX).
7. ON/OFF Button (Volume control): Tænder/slukker enheden og justerer lydstyrken.
8. Stylus: Nålen, der aflæser pladens riller.

4.2 Bagpaneltilslutninger

Image 4.2: Rear Panel Connections. Includes AUX IN, RCA Audio Out (L/R), Speaker Output (L/R), and DC IN Power Input.

9. AUX IN: 3.5 mm indgang til tilslutning af eksterne lydenheder.
10. RCA lydudgang (V/H): For connecting to an external amplifier eller drevne højttalere.
11. Speaker Output (L/R): For connecting the included external passive speakers.
12. DC IN Power Input: Tilslut strømadapteren her.

5. Opsætning

Følg disse trin for indledende opsætning:

1. Pakker ud: Fjern forsigtigt alle komponenter fra emballagen.
2. Placering: Place the turntable unit and speakers on a stable, level surface. Ensure adequate space for ventilation.
3. Tilslut højttalere: Connect the included external speakers to the "SPEAKER OUT" ports on the rear of the turntable using the provided speaker cables. Ensure correct polarity (red to red, black to black).
4. Strømtilslutning: Connect the power adapter to the "DC IN 12V" port on the rear of the turntable, then plug the adapter into a wall outlet.
5. Fjern pennens beskytter: Gently remove the clear plastic stylus protector from the needle.
6. Place Slipmat: Place the felt slipmat onto the turntable platter.

6. Betjening

6.1 Afspilning af vinylplader

Image 6.1: The turntable supports 3 speeds: 33, 45, and 78 RPM for various record sizes.

1. Tænd: Turn the ON/OFF (Volume) knob clockwise to power on the unit.
2. Select PHONO Mode: Rotate the Function Switch Knob to "PHONO".
3. Vælg hastighed: Set the 3 Speed Switch to the appropriate speed (33, 45, or 78 RPM) for your record. Use the 45 RPM adapter if needed for singles.
4. Stedrekord: Placer forsigtigt din vinylplade på pladespillerens tallerken.
5. Auto stop: Set the Auto Stop Switch to ON if you want the platter to stop automatically when the record finishes. Set to OFF for continuous play.
6. Start afspilning: Lift the tone arm using the Arm Raise Lever. Position the tone arm over the desired track on the record. Gently lower the tone arm using the Arm Raise Lever.
7. Juster lydstyrken: Adjust the volume using the ON/OFF (Volume) knob.
8. Afslut afspilning: At the end of the record (if auto-stop is OFF), or when you wish to stop, lift the tone arm using the Arm Raise Lever and return it to the tone arm rest.

6.2 Bluetooth-tilstand

Image 6.2: Bluetooth connectivity allows wireless audio streaming from compatible devices.

1. Tænd: Turn the ON/OFF (Volume) knob clockwise to power on the unit.
2. Select BT Mode: Rotate the Function Switch Knob to "BT". The LED indicator will flash, indicating pairing mode.
3. Par enhed: On your Bluetooth-enabled device (smartphone, tablet, etc.), search for "TANLANIN" in the Bluetooth settings and select it to pair.
4. Afspil lyd: Once paired, the LED indicator will stop flashing. You can now stream audio from your device to the record player's speakers.
5. Juster lydstyrken: Adjust the volume using the ON/OFF (Volume) knob on the record player and/or your connected device.

6.3 AUX-indgang

1. Tænd: Turn the ON/OFF (Volume) knob clockwise to power on the unit.
2. Vælg AUX-tilstand: Rotate the Function Switch Knob to "AUX".
3. Tilslut enhed: Connect your external audio device (e.g., MP3 player, smartphone) to the "AUX IN" port on the rear of the turntable using a 3.5mm audio cable (not included).
4. Afspil lyd: Start afspilning på din eksterne enhed.
5. Juster lydstyrken: Adjust the volume using the ON/OFF (Volume) knob on the record player and/or your connected device.

6.4 RCA Audio Output

The RCA Audio Out ports allow you to connect the turntable to an external amplifier or powered speakers for an alternative audio experience.

1. Tilslut kabler: Connect RCA cables (not included) from the "RCA AUDIO OUT" ports on the turntable to the corresponding input ports on your amplifier eller drevne højttalere.
2. Vælg input: Vælg den relevante indgang på dit eksterne lydsystem.
3. Afspil lyd: Follow the instructions for playing vinyl records (Section 6.1). The audio will be routed through your external system.

7. Vedligeholdelse

7.1 Rengøring af enheden

• Wipe the turntable and speakers with a soft, dry cloth.
• Brug ikke hårde kemikalier eller slibende rengøringsmidler.
• Hold støvdækslet lukket, når det ikke er i brug, for at forhindre støvophobning.

7.2 Pleje af pennen

Image 7.1: The ruby stylus is designed for precise record tracking.

• Undgå at berøre pennens spids med fingrene.
• Rengør pennen med jævne mellemrum med en blød børste, og børst bagfra og forfra.
• Replace the stylus when you notice a decrease in sound quality or visible wear. A spare needle is included.

8. Fejlfinding

Hvis du støder på problemer, kan du se følgende almindelige problemer og løsninger:

9. Specifikationer

Image 9.1: Product dimensions for the turntable and external speakers.

10. Garanti og support

TANLANIN is committed to providing quality products and customer satisfaction. If you encounter any issues or require assistance with your TE-2028BR Vinyl Record Player, please contact our customer support team.

For further information or support, please visit the official TANLANIN store on Amazon: TANLANIN Store
