Indledning
Tak for købetasing the DANFI AUDIO DF TE-2021 Bluetooth Record Player. This manual provides essential information for the safe and efficient operation of your new record player. Please read it thoroughly before use and retain it for future reference.
Image: The DANFI AUDIO DF TE-2021 Bluetooth Record Player in white and gold, shown open with a pink vinyl record ready for playback.
Pakkens indhold
Kontroller venligst, at alle nedenstående varer er inkluderet i din pakke:
- DANFI AUDIO DF TE-2021 Record Player (White)
- Power Adapter & Cord (100V-240V~)
- 45 RPM Adapter
- Extra Stylus Needle
- Brugervejledning (dette dokument)
Produktegenskaber
The DANFI AUDIO DF TE-2021 record player offers a blend of classic vinyl playback with modern connectivity options:
- 3-hastigheds pladespiller: Supports 33 1/3, 45, and 78 RPM playback for 7, 10, and 12-inch vinyl records.
- Indbyggede stereohøjttalere: Integrerede højttalere til direkte lydudgang.
- Bluetooth 5.0-forbindelse: Wirelessly stream digital music from compatible devices to the record player.
- USB MP3 Recording: Convert vinyl records to MP3 digital filedirekte på et USB-drev.
- Auto-stop funktion: Automatically stops playback when a record finishes, protecting your vinyl.
- Flere lydudgange: Includes RCA output for external speakers, AUX input, and a headphone jack.
- Portable Suitcase Design: Compact and vintage-style design for easy transport and aesthetic appeal.
- Replaceable Stylus: Comes with an extra diamond stylus for convenient replacement.
Image: The record player showcasing its key features, including Bluetooth connectivity, RCA output, headphone jack, built-in speakers, 3-speed turntable, external speaker connection, and portable design.
Opsætningsinstruktioner
- Pak enheden ud: Tag forsigtigt pladespilleren og alt tilbehør ud af emballagen.
- Placering: Placer pladespilleren på en stabil, plan overflade væk fra direkte sollys, varmekilder og for meget støv eller vibrationer.
- Strømtilslutning: Connect the power adapter to the DC IN port on the back of the unit, then plug the adapter into a standard wall outlet (100V-240V~).
- Fjern pennens beskytter: Gently remove the clear plastic stylus protector from the needle before first use. Be careful not to damage the stylus.
- Lågposition: The lid can be opened and closed. For optimal sound and to prevent resonance, it is recommended to keep the lid open or fully closed during playback.
Betjeningsvejledning
1. Afspilning af vinylplader
- Tænd: Turn the VOLUME knob clockwise to power on the unit and adjust the volume.
- Vælg tilstand: Indstil FUNCTION-kontakten til PHONO-tilstand.
- Stedrekord: Open the lid and place a vinyl record on the turntable platter.
- Vælg hastighed: Set the SPEED SELECTOR switch to the appropriate speed (33, 45, or 78 RPM) for your record. Use the 45 RPM adaptor for 7-inch records with large center holes.
- Start afspilning: Release the tonearm lock. Gently lift the tonearm using the cue lever and position the stylus over the desired track on the record. Lower the cue lever to slowly drop the stylus onto the record.
- Auto-stop: The turntable features an auto-stop function. When enabled, the platter will stop spinning automatically at the end of the record. To enable/disable, use the AUTO STOP switch.
- Afslut afspilning: At the end of the record, or when you wish to stop, lift the tonearm using the cue lever and return it to the tonearm rest. Secure it with the tonearm lock.

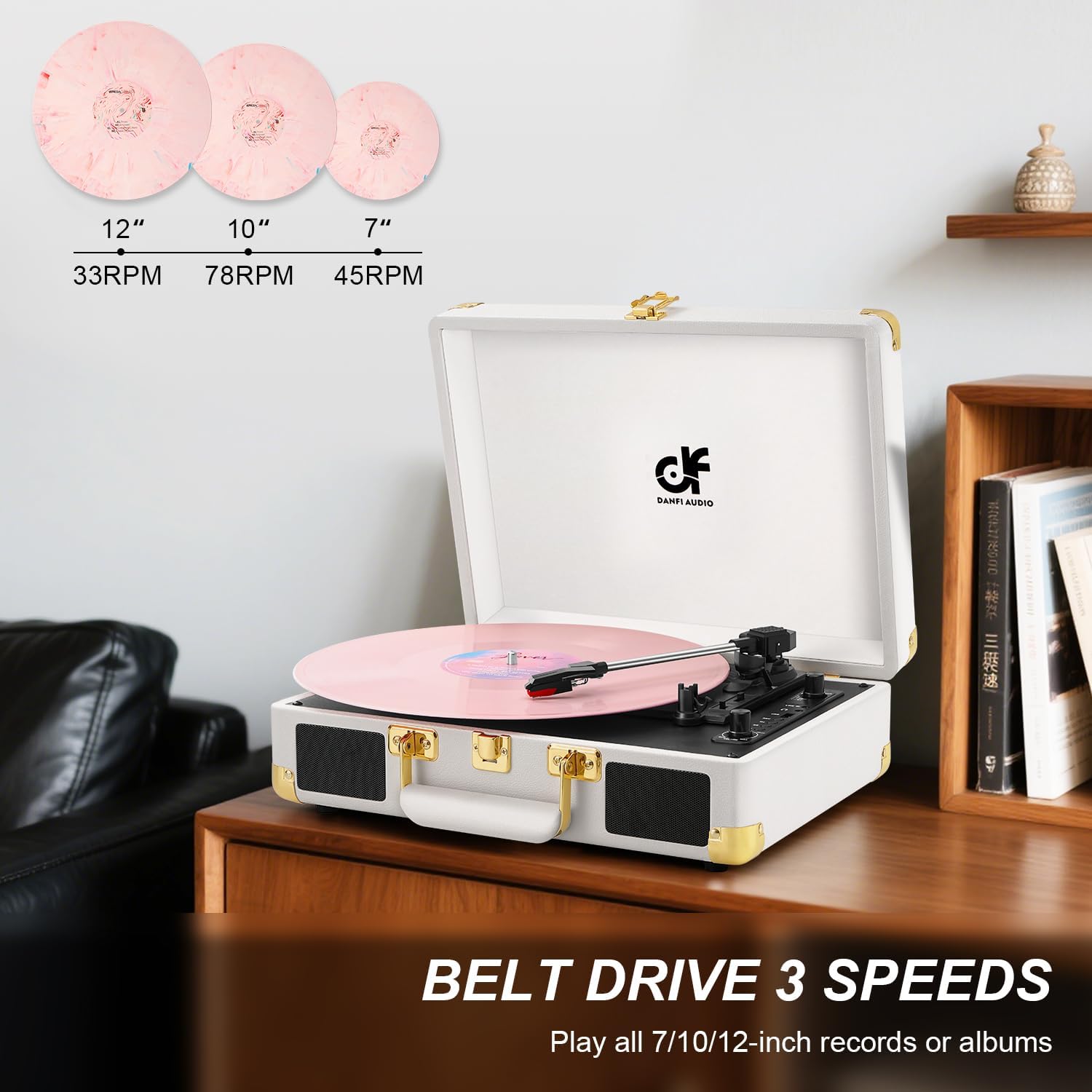

Image: Illustration of different record sizes (7, 10, 12 inches) and their compatible playback speeds (33, 45, 78 RPM) for the record player.
2. Bluetooth-forbindelse
- Vælg tilstand: Set the FUNCTION switch to BT (Bluetooth) mode. The Bluetooth indicator light will flash, indicating it is ready for pairing.
- Aktivér Bluetooth på enheden: Aktiver Bluetooth på din smartphone, tablet eller anden Bluetooth-aktiveret enhed, og søg efter tilgængelige enheder.
- Par: Select "DANFI AUDIO" from the list of devices. Once paired, the Bluetooth indicator light will stop flashing and remain solid.
- Afspil musik: You can now play music from your device through the record player's speakers. Adjust volume using the VOLUME knob on the record player or your connected device.
Image: The record player connected via Bluetooth to a smartphone, demonstrating wireless music streaming.
3. USB MP3 Recording
- Indsæt USB-drev: Insert a USB flash drive into the USB port on the record player. Ensure the USB drive is formatted as FAT32 or exFAT.
- Vælg tilstand: Indstil FUNCTION-kontakten til PHONO-tilstand.
- Start optagelse: Begin playing your vinyl record. Press and hold the REC button for approximately 1 second to start recording. The indicator light will flash.
- Stop optagelse: To stop recording, press and hold the REC button again for approximately 1 second. The indicator light will stop flashing. The recorded MP3 file will be saved to your USB drive.
- Afspilning via USB: For at afspille MP3 files from the USB drive, set the FUNCTION switch to USB mode. Use the control buttons (Play/Pause, Next, Previous) to navigate tracks.
Image: Detail of the USB recording function, showing a USB drive inserted into the player and the resulting MP3 file.
4. Eksterne forbindelser
- RCA-udgang: Connect RCA cables (not included) from the RCA OUT ports on the back of the record player to an external ampeller strømforsynede højttalere for forbedret lydoutput.
- AUX-indgang: Connect an external audio device (e.g., smartphone, MP3 player) to the AUX IN port using a 3.5mm audio cable (not included) to play audio through the record player's speakers. Set the FUNCTION switch to AUX mode.
- Hovedtelefonstik: Plug headphones into the 3.5mm HEADPHONE jack for private listening. The built-in speakers will be muted when headphones are connected.
Image: A user enjoying music privately with headphones connected to the record player.
Opretholdelse
- Rengøring af enheden: Wipe the exterior of the record player with a soft, dry cloth. Do not use abrasive cleaners, waxes, or solvents.
- Rengøringsoptegnelser: Use a soft, anti-static brush to gently wipe dust and debris from your vinyl records before and after each play.
- Styluspleje: The stylus is delicate. Clean it periodically with a soft brush, brushing gently from back to front. Avoid touching the stylus with your fingers. Replace the stylus if you notice a decrease in sound quality or visible damage.
- Opbevaring: When not in use, close the lid to protect the turntable from dust. If storing for an extended period, disconnect the power adapter.
Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Ingen strøm | Strømadapteren er ikke tilsluttet, eller stikkontakten er ikke aktiv. | Sørg for, at strømadapteren er korrekt tilsluttet enheden og en fungerende stikkontakt. |
| Ingen lyd fra højttalerne | Lydstyrken er for lav; hovedtelefoner er tilsluttet; forkert tilstand er valgt. | Increase volume. Disconnect headphones. Ensure correct mode (PHONO, BT, AUX) is selected. |
| Spring over rekord | Dirty or damaged record; stylus dirty or worn; unit not level; excessive vibration. | Clean record. Clean or replace stylus. Place unit on a stable, level surface. Avoid placing near vibrating objects. |
| Bluetooth forbinder ikke | Record player not in BT mode; device Bluetooth off; device too far. | Set FUNCTION switch to BT. Ensure Bluetooth is enabled on your device. Move device closer to the record player. |
| USB-optagelse virker ikke | USB drive not formatted correctly; REC button not pressed correctly. | Ensure USB drive is FAT32 or exFAT. Press and hold REC button for 1 second to start/stop. |
Specifikationer
| Feature | Detalje |
|---|---|
| Modelnavn | TE-2021 |
| Mærke | DANFI AUDIO DF |
| Produktdimensioner | 10 x 5 x 14 tommer (ca.) |
| Varens vægt | 5.35 pund (ca.) |
| Afspilningshastigheder | 33 1/3, 45, 78 omdr./min |
| Forbindelse | Bluetooth 5.0, USB, RCA Out, AUX In, Headphone Out |
| Optagelsesformat | MP3 (via USB) |
| Materiale | Konstrueret træ, plastik |
| Farve | Hvid & Guld |
| Strømforbrug (tændt tilstand) | 5.00 watt |

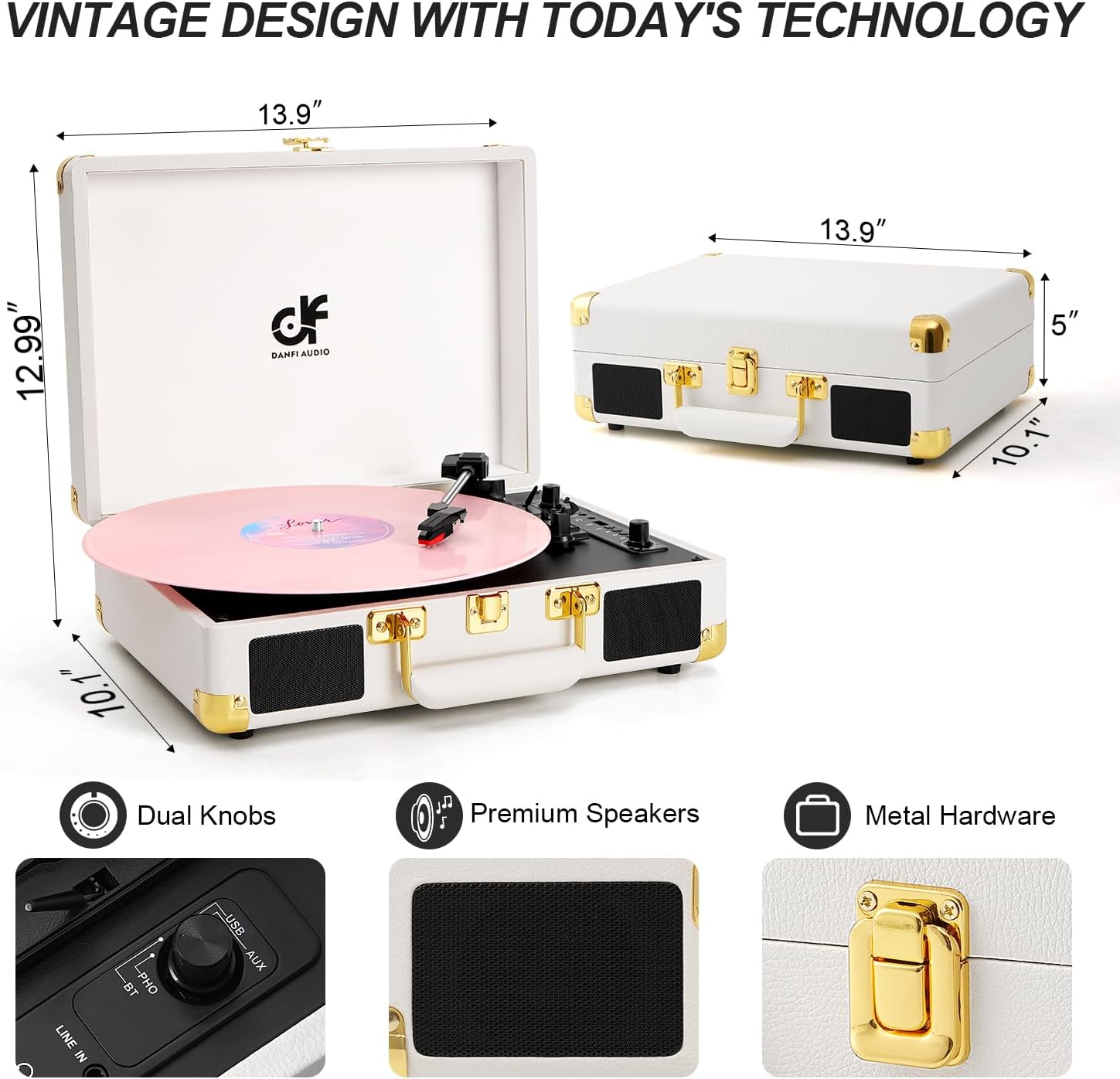

Billede: Detaljeret view of the record player's dimensions and key components like control knobs, speakers, and metal accents.
Garanti og support
DANFI AUDIO DF products are designed for reliability and performance. For specific warranty details, please refer to the warranty card included with your purchase or visit the official DANFI AUDIO DF website. If you encounter any issues or require technical assistance, please contact DANFI AUDIO DF customer support.
Kontaktoplysninger: Please refer to the contact details provided on the DANFI AUDIO DF official webwebstedet eller din produktemballage for at få de mest opdaterede supportoplysninger.
