Tera 9200-Wired Desktop Barcode Scanner Instruction Manual

1. Introduktion

This manual provides comprehensive instructions for the setup, operation, and maintenance of your Tera 9200-Wired Omnidirectional Desktop Barcode Scanner. This device is designed for efficient and hands-free scanning of 1D, 2D, and QR barcodes in various environments such as retail stores, warehouses, and offices.

2. Produktet er slutview

The Tera 9200-Wired scanner is a high-performance, plug-and-play device engineered for reliability and ease of use. Its omnidirectional scanning capability allows for quick and accurate barcode reading from various angles.

2.1 Nøglefunktioner

• Plug and Play: No driver or software installation required. Simply connect the USB cable to your computer, POS system, or cash register.
• Håndfri scanning: Designed as a desktop platform scanner, it allows for convenient, hands-free operation, improving efficiency for both cashiers and customers.
• Stabilt design: Equipped with four small non-slip pads on the bottom and an internal iron slab, ensuring stability during operation.
• Bred kompatibilitet: Compatible with various operating systems including Windows XP, Windows 7, Windows 8, Windows 10, Android, and Linux. Works with PCs, laptops, iPads, and smartphones.
• Understøttelse af flersproget tastatur: Supports keyboard layouts for US, UK, German, French, Italian, Spanish, Japanese, and more.
• Powerful Decoding Ability: Capable of reading a wide range of 1D and 2D barcodes, including those that are reflective, smudged, damaged, or fuzzy.

2.2 Pakkens indhold

• Tera 9200-Wired Desktop Barcode Scanner
• USB 2.0 Data Cable (integrated)
• Instruktionsmanual (dette dokument)

2.3 Produktdiagram

Figur 2.3.1: Forside view of the Tera 9200-Wired Desktop Barcode Scanner, showing its compact, black and white design with the scanning window.

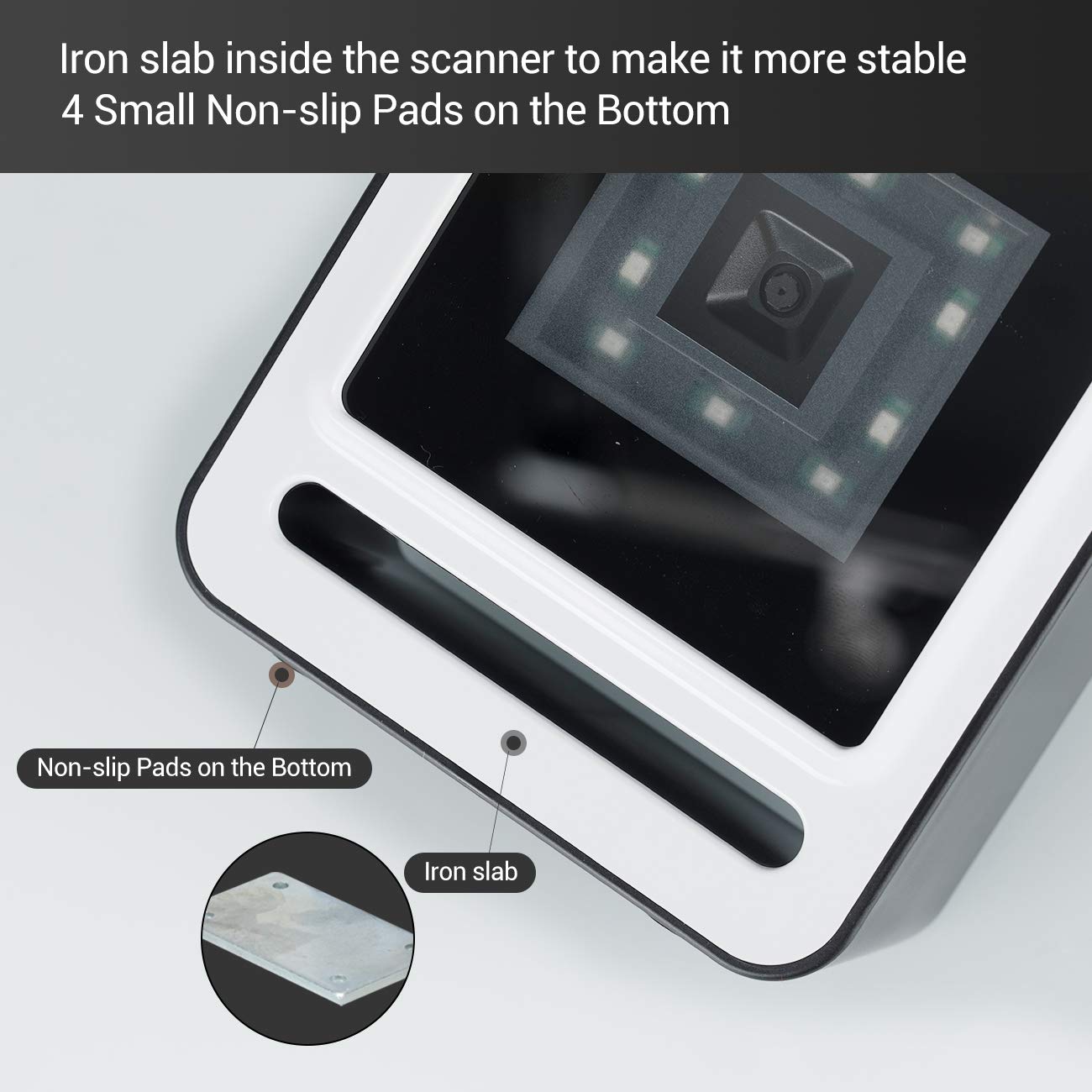

Figur 2.3.2: Nærbillede view of the scanner's base, highlighting the four non-slip pads and the internal iron slab designed for enhanced stability.

3. Opsætning

The Tera 9200-Wired barcode scanner is designed for quick and easy setup, requiring no special drivers or software installation.

1. Pak scanneren ud: Carefully remove the scanner from its packaging.
2. Tilslut USB-kablet: Insert the integrated USB 2.0 data cable into an available USB port on your computer, POS system, or cash register.
3. Systemgenkendelse: The operating system will automatically detect and configure the scanner. This process typically takes a few seconds.
4. Klar til brug: Once recognized, the scanner is ready for immediate use.

Figure 3.1: The scanner connected via USB to a laptop, demonstrating its plug-and-play functionality and compatibility with Windows, Android, and Linux systems, as well as PCs, laptops, iPads, and phones.

4. Betjeningsvejledning

The Tera 9200-Wired scanner offers hands-free operation for efficient barcode reading.

4.1 Grundlæggende scanning

1. Position the Item: Place the barcode of the item directly in front of the scanner's window.
2. Automatic Scanning: The scanner will automatically detect the barcode and emit a successful scan indication (e.g., a beep or light change).
3. Dataoverførsel: The scanned data will be transmitted to your connected device (computer, POS system) as if typed via a keyboard.

Figure 4.1: A smartphone displaying a QR code being scanned by the Tera 9200-Wired scanner, illustrating its hands-free capability for digital barcodes.

4.2 Understøttede stregkodetyper

The scanner supports a wide array of 1D and 2D barcode symbologies:

• 1D Decode Capability: Codabar, Code 11, Code93, MSI, Code 128, UCC/EAN-128, Code 39, EAN-8, EAN-13, UPC-A, ISBN, Industrial 25, Interleaved 25, Standard 25, 2/5 Matrix.
• 2D Decode Capability: QR Code, PDF417, Data Matrix, Aztec code, Maxi Code.

Figure 4.2: Visual representation of the scanner's advanced decoding capabilities, showing its ability to read challenging barcodes such as reflective, smudged, damaged, and fuzzy ones.

4.3 Advanced Settings (via Configuration Codes)

The scanner can be configured for various settings by scanning specific configuration barcodes (not provided in this manual, refer to a separate programming guide if available from manufacturer). These settings may include:

• Tastatursprog: Adjust the output keyboard language to match your system (e.g., US, UK, German, French, Italian, Spanish, Japanese).
• Virtuel COM-port: Enable virtual COM port mode for specific software applications.
• Præfiks/suffiks: Tilføj brugerdefinerede tegn før eller efter scannede data.
• Hide Characters: Configure the scanner to hide certain characters from the output.
• Lydstyrkeindstilling: Adjust the volume of the scan confirmation beep.

Figure 4.3: The scanner illustrating its support for multiple keyboard languages, including English, Spanish, German, Japanese, French, and Italian, allowing for versatile international use.

5. Vedligeholdelse

Korrekt vedligeholdelse sikrer din stregkodescanners lange levetid og optimale ydeevne.

• Rengøring af scanningsvinduet: Regularly clean the scanning window with a soft, lint-free cloth. For stubborn smudges, slightly dampRengør kluden med vand eller et mildt, ikke-slibende rengøringsmiddel. Brug ikke skrappe kemikalier eller slibende materialer.
• Generel rengøring: Wipe the exterior of the scanner with a dry or slightly damp klud til at fjerne støv og snavs.
• Undgå ekstreme forhold: Do not expose the scanner to extreme temperatures, humidity, or direct sunlight for prolonged periods.
• Håndteres med forsigtighed: Undgå at tabe scanneren eller udsætte den for kraftige stød.

6. Fejlfinding

If you encounter issues with your Tera 9200-Wired scanner, refer to the following common problems and solutions:

7. Specifikationer

8. Garanti og support

For warranty information and technical support, please refer to the documentation provided with your purchase or contact Tera customer service directly. Keep your purchase receipt as proof of purchase for warranty claims.

For the most up-to-date support resources, visit the official Tera webwebsted.
