Gravity 2X 10-Inch 2000 Watt Car Audio Subwoofer (4 Ohm DVC) Instruction Manual

Indledning

This manual provides detailed instructions for the installation, operation, and maintenance of your Gravity 2X 10-Inch 2000 Watt Car Audio Subwoofer. Please read this manual thoroughly before installation and use to ensure optimal performance and longevity of your product.

Billede: Flere views of the Gravity 10-inch car audio subwoofer, highlighting its design and components.

Produktegenskaber

• Gravity Warzone Dual Voice Coil Subwoofer Configuration
• Great Low End Frequency Response / Hard Hitting Bass
• Engineered for incredibly deep, dynamic, and powerful bass
• Competition Grade Pressed Paper Cone / High Roll Foam Surround
• Powerful High Flux motor performance with advanced air Flow Cooling Design

Billede: Nærbillede view of the subwoofer's high roll foam surround, showcasing the durable construction and distinctive green stitching.

Pakkens indhold

Din pakke skal indeholde følgende varer:

• 2 x Gravity 10-Inch Car Audio Subwoofers

Specifikationer

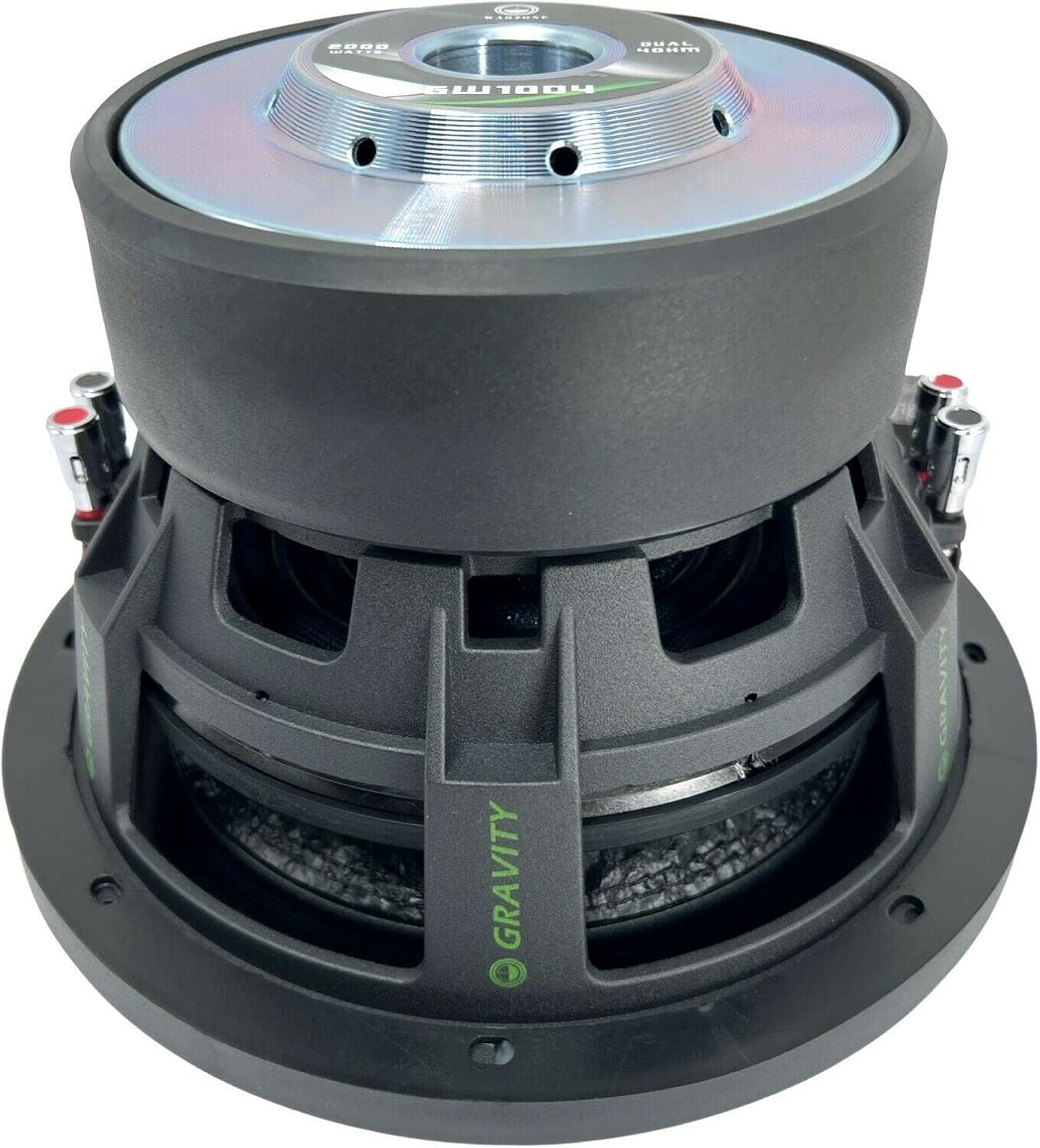

Billede: Bund view of the Gravity 10-inch subwoofer, revealing the robust magnet structure and speaker terminals.

Opsætning og installation

Proper installation is crucial for the performance and safety of your subwoofers. It is recommended to have a professional install your car audio system if you are unfamiliar with the process.

Wiring Configurations for Two 4 Ohm DVC Subwoofers

Your Gravity subwoofers feature Dual Voice Coils (DVC) with a 4 Ohm impedance per coil. When wiring two of these subwoofers, several configurations are possible to achieve different final impedances. Always ensure your amplifier is stable at the final impedance load.

1. Series Wiring (8 Ohm Final Impedance per Subwoofer)

For each individual subwoofer, connect the positive terminal of one voice coil to the negative terminal of the other voice coil. This will result in an 8 Ohm impedance for each subwoofer. This configuration is generally safer for amplifiers but delivers less power.

To achieve a final 4 Ohm load for the pair (if wiring the two 8 Ohm subs in parallel):

1. For each subwoofer: Connect the positive terminal of Voice Coil 1 to the negative terminal of Voice Coil 2.
2. Connect the remaining positive terminal of Subwoofer 1 to the positive terminal of Subwoofer 2.
3. Connect the remaining negative terminal of Subwoofer 1 to the negative terminal of Subwoofer 2.
4. Tilslut ampforsyningens positive udgang til de kombinerede positive terminaler, og ampstrømforsyningens negative udgang til de kombinerede negative terminaler.

This results in a final impedance of 4 Ohms for the pair.

2. Parallel Wiring (2 Ohm Final Impedance per Subwoofer)

For each individual subwoofer, connect the positive terminals of both voice coils together, and connect the negative terminals of both voice coils together. This will result in a 2 Ohm impedance for each subwoofer. This configuration draws more power from the amplivligere.

To achieve a final 1 Ohm load for the pair (if wiring the two 2 Ohm subs in parallel):

1. For each subwoofer: Connect the positive terminal of Voice Coil 1 to the positive terminal of Voice Coil 2.
2. For each subwoofer: Connect the negative terminal of Voice Coil 1 to the negative terminal of Voice Coil 2.
3. Tilslut amplifier's positive output to the combined positive terminals of Subwoofer 1 and Subwoofer 2.
4. Tilslut amplifier's negative output to the combined negative terminals of Subwoofer 1 and Subwoofer 2.

This results in a final impedance of 1 Ohm for the pair. Ensure your amplifier is 1 Ohm stable.

Visual Aids for Wiring

The following videos provide visual guidance on subwoofer wiring techniques. While the specific impedance or number of subwoofers in the videos may vary, the fundamental principles of connecting voice coils and subwoofers remain applicable.

Indkapsling og montering

Ensure your subwoofer is mounted securely in an appropriate enclosure. The enclosure should be designed to match the subwoofer's specifications for optimal sound quality and to prevent damage. Refer to the subwoofer's technical specifications for recommended enclosure volumes and port tuning frequencies.

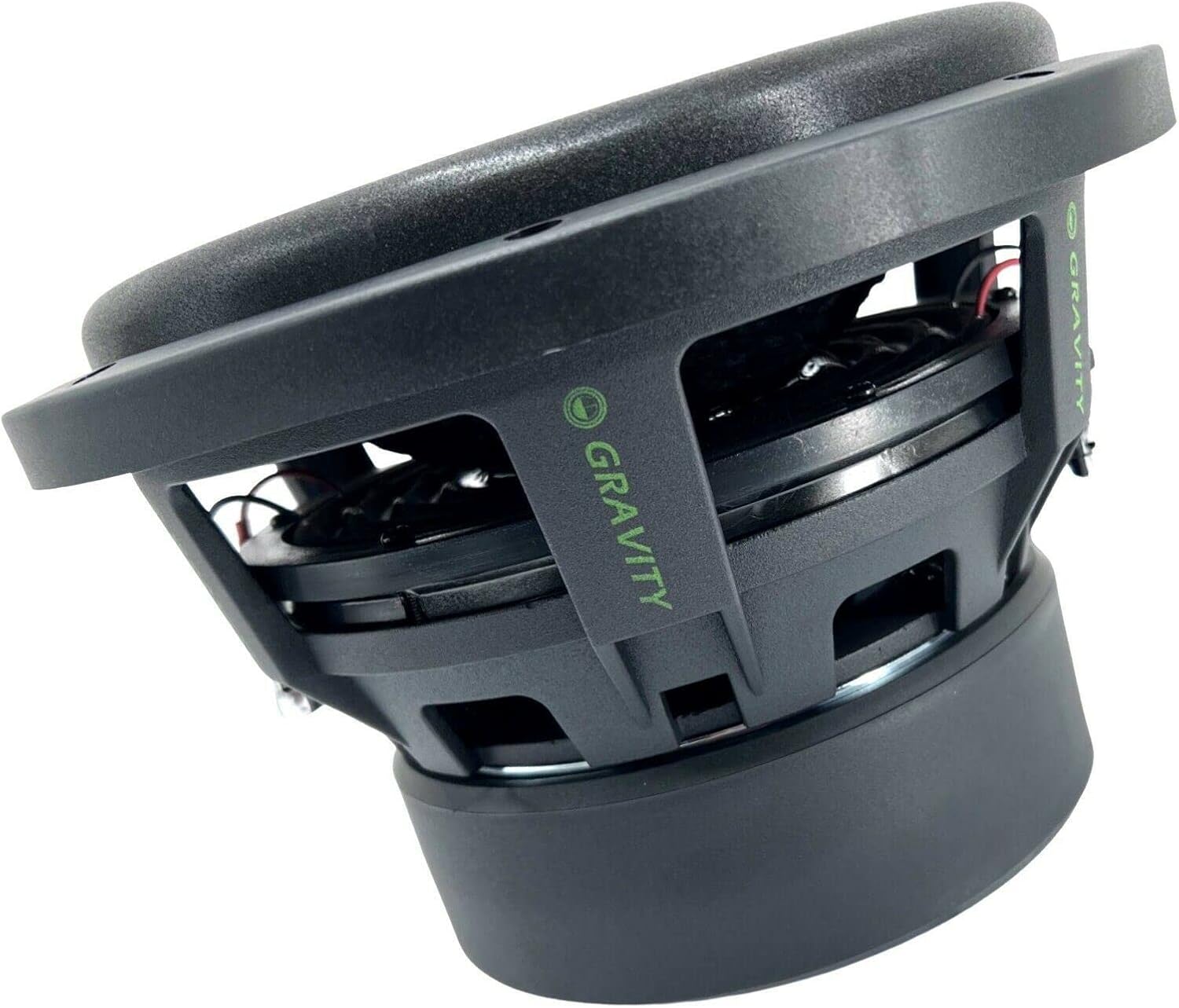

Billede: Side profile of the Gravity 10-inch subwoofer, illustrating its compact design suitable for various car audio installations.

Betjeningsvejledning

Once installed, ensure your amplifier settings (gain, crossover, bass boost) are properly adjusted to prevent damage to the subwoofers and achieve desired sound quality. Start with low gain settings and gradually increase them while listening for distortion.

• Indbrudsperiode: Allow a break-in period of approximately 10-20 hours of moderate listening before operating the subwoofers at high volumes. This allows the suspension components to loosen up and perform optimally.
• Crossover-indstillinger: Set your low-pass filter (LPF) on your amplifier or head unit to prevent high frequencies from reaching the subwoofer, typically between 80Hz and 120Hz.
• Forstærkningsjustering: Juster ampforstærkningen, der matcher udgangsvolumenettage of your head unit. Avoid setting the gain too high, as this can lead to clipping and damage.
• Bass Boost: Use bass boost sparingly, if at all. Excessive bass boost can cause distortion and damage.

Opretholdelse

Regular maintenance ensures the longevity and performance of your subwoofers.

• Rensning: Keep the subwoofer cones and surrounds free from dust and debris. Use a soft, dry cloth for cleaning. Avoid using harsh chemicals.
• Inspektion: Periodically inspect the wiring connections for any signs of corrosion or looseness. Ensure all mounting screws are tight.
• Undgå overvældelse: Do not continuously operate the subwoofers at levels that cause audible distortion. This can lead to voice coil overheating and failure.

Fejlfinding

Produktdemonstrationer

Watch these videos to see subwoofers in action and understand their capabilities. Note that these videos may feature different models or configurations, but they illustrate general performance and installation concepts.

Garanti og support

Your Gravity 2X 10-Inch Car Audio Subwoofer comes with a limited warranty. Please refer to the warranty card included in your package or visit the official Gravity website for detailed terms and conditions. For technical support or service inquiries, please contact Gravity customer service.

Garantitype: Begrænset
