1. Introduktion og overview
The Edision EDI-RCU 4 Learn is a versatile 2-in-1 universal remote control designed for seamless operation of your Edision receiver and television. It is pre-programmed for common TV brands like Samsung and LG, and offers a learning function to customize up to four buttons for any TV.
Dette billede viser forsiden view of the Edision EDI-RCU 4 Learn universal remote control, highlighting its compact design and button layout.
Nøglefunktioner:
- 2-in-1 functionality for Edision receivers and televisions.
- Pre-programmed for major TV brands (Samsung, LG).
- Four programmable TV buttons for custom control.
- Original replacement remote for compatible Edision models.
This image highlights the 2-in-1 functionality of the Edision EDI-RCU 4 Learn remote, indicating its use for both Set-Top Box (STB) and TV control. It also shows a close-up of the TV control buttons.
2. Opsætning
2.1 Batteriinstallation
The Edision EDI-RCU 4 Learn remote control requires two AAA batteries (not included). Follow these steps to install them:
- Find batterirummets dæksel på bagsiden af fjernbetjeningen.
- Skub dækslet nedad, eller tryk på låsen for at åbne det.
- Isæt to AAA-batterier, og sørg for, at de positive (+) og negative (-) poler er justeret korrekt med indikatorerne i batterirummet.
- Skub batteridækslet tilbage på plads, indtil det klikker sikkert.

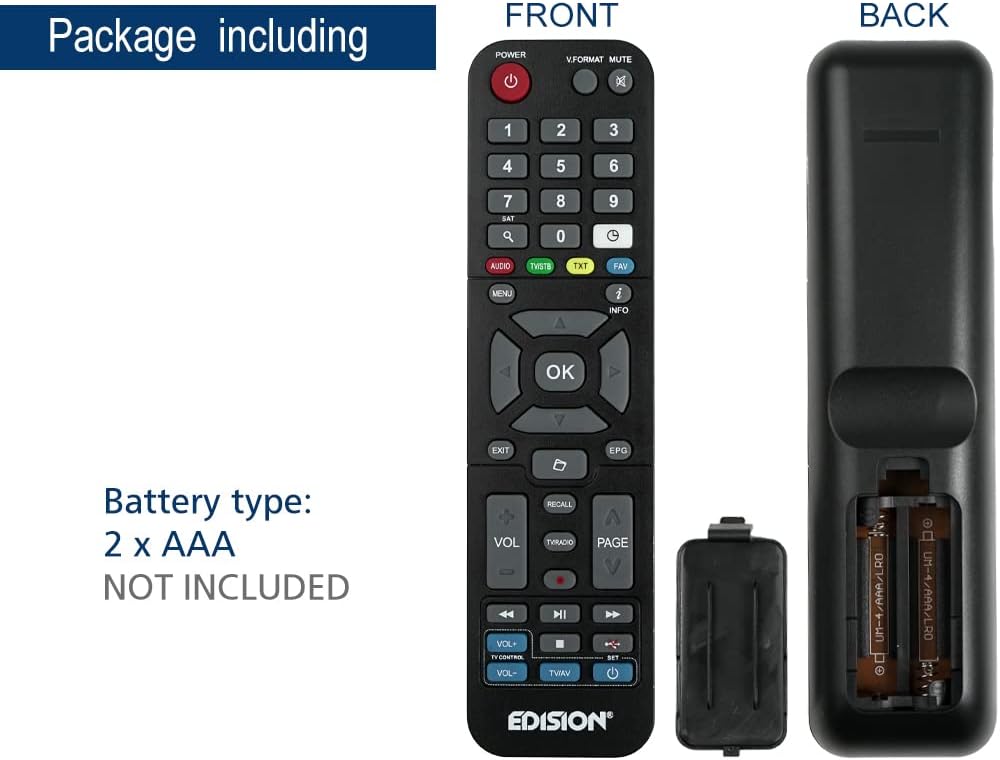

This image illustrates the battery compartment of the Edision EDI-RCU 4 Learn remote control, showing where to insert two AAA batteries. Batteries are not included.
2.2 Initial Setup and Pre-programmed Functions
The remote is pre-programmed for immediate use with compatible Edision receivers. Additionally, the four main TV control buttons (VOL+, VOL-, TV/AV, Power) are pre-programmed for Samsung and LG televisions. For other TV brands or custom functions, use the learning feature described in the Operating Instructions section.
3. Betjeningsvejledning
3.1 Grundlæggende funktioner
The remote control features standard buttons for navigating your Edision receiver and controlling basic TV functions:
- Tænd/sluk-knap (rød): Turns the Edision receiver on or off.
- Numerisk tastatur (0-9): Til direkte kanalindgang.
- Navigationsknapper (op, ned, venstre, højre, OK): Til menunavigation og valg.
- VOL+ / VOL-: Adjusts volume (pre-programmed for TV).
- CH+ / CH-: Skifter kanaler.
- STUM: Mutes TV sound.
- MENU: Giver adgang til modtagerens hovedmenu.
- AFSLUT: Afslutter den aktuelle menu eller skærm.
- INFO: Viser programoplysninger.
- TV/AV: Switches TV input source (pre-programmed for TV).
- TV Power Button (Blue): Turns the TV on or off (pre-programmed for TV).
3.2 Learning Function for TV Control
The EDI-RCU 4 Learn allows you to program its four dedicated TV control buttons (VOL+, VOL-, TV/AV, TV Power) using your original TV remote control. This enables universal control over your TV's essential functions.
- Gå ind i læringstilstand: Press and hold the blue 'SET' button on the EDI-RCU 4 Learn remote until the red LED light stays lit.
- Select Button to Learn: Press the specific TV control button on the EDI-RCU 4 Learn remote that you wish to program (e.g., VOL+). The red LED will blink slowly.
- Send signal: Point your original TV remote control directly at the EDI-RCU 4 Learn remote (infrared sensors should face each other, typically 1-3 cm apart). Press and hold the corresponding button on your original TV remote (e.g., TV's VOL+ button). The red LED on the EDI-RCU 4 Learn will blink rapidly, then light up steadily to indicate successful learning.
- Afslut læringstilstand: Once all desired buttons are programmed, press the blue 'SET' button again to exit learning mode. The red LED will turn off.
Image illustrating holding the SET button to enter learning mode.
Image showing selection of a button on the EDI-RCU 4 Learn remote for learning.
Image depicting the process of transmitting the signal from the original TV remote to the EDI-RCU 4 Learn.
Image showing pressing the SET button to exit learning mode.
Tips for Learning:
- Ensure both remotes have fresh batteries.
- Perform the learning process in a well-lit area, away from direct sunlight or strong artificial light sources that might interfere with infrared signals.
- If a button fails to learn, repeat the process for that specific button.
4. Vedligeholdelse
4.1 Udskiftning af batteri
Replace the AAA batteries when the remote's performance degrades or if the LED indicator does not light up during button presses. Refer to section 2.1 for battery installation instructions.
4.2 Rengøring
Brug en blød, tør klud til at rengøre fjernbetjeningen. Ved genstridigt snavs, tør letampRengør kluden med vand eller et mildt, ikke-slibende rengøringsmiddel. Brug ikke skrappe kemikalier, og fjernbetjeningen må ikke nedsænkes i vand.
5. Fejlfinding
- Fjernbetjeningen svarer ikke:
- Kontroller, om batterierne er isat korrekt, og at de er tilstrækkeligt opladede. Udskift dem om nødvendigt.
- Ensure there are no obstructions between the remote and the receiver/TV.
- Verify that the remote is pointed directly at the device's infrared sensor.
- Læringsfunktionen virker ikke:
- Ensure the original remote has working batteries and is transmitting a strong signal.
- Make sure the distance between the two remotes is correct (1-3 cm) and they are aligned properly.
- Avoid strong light sources during the learning process.
- Gentag indlæringstrinnene omhyggeligt.
- Some buttons work, others don't:
- For TV control buttons, re-program the non-working buttons using the learning function.
- For receiver control buttons, ensure the remote is compatible with your specific Edision receiver model.
6. Specifikationer
This image displays the Edision EDI-RCU 4 Learn remote control, indicating its dimensions: approximately 17.5 cm in length and 4.5 cm in width. It also lists key features such as original replacement, 2-in-1 functionality, learn function, and 4 programmable TV buttons.
| Feature | Detalje |
|---|---|
| Modelnavn | EDI-RCU 4 Lær |
| Modelnummer | 07-00-0064 |
| Mærke | Udgave |
| Farve | Sort |
| Forbindelsesteknologi | Infrarød |
| Speciel funktion | Universal, Programmable |
| Kompatible enheder | EDISION Set Top Box, Various TVs (via learning function) |
| Batteritype | 2 x AAA (ikke inkluderet) |
| Maksimal rækkevidde | 2 meter |
| Antal programmerbare knapper | 4 (for TV control) |
7. Garanti og support
Warranty information for the Edision EDI-RCU 4 Learn remote control is typically provided with your purchase or can be found on the official Edision webwebsted. Gem venligst din købsbevis til garantikrav.
For technical support, troubleshooting assistance, or further inquiries, please visit the official Edision support website or contact their customer service department. Contact details are usually available on the manufacturer's packaging or webwebsted.
