MageGee V650 trådløst tastatur og mus-kombination brugermanual

1. Introduktion

The MageGee V650 Wireless Keyboard and Mouse Combo is designed for efficient and comfortable use with your computer. This combo features a full-size 104-key keyboard with a number pad and multimedia shortcuts, paired with a sensitive and quiet mouse. Both devices connect wirelessly via a single 2.4G USB receiver, offering a stable connection within a 10-meter range.

Image 1.1: MageGee V650 Wireless Keyboard and Mouse Combo.

Image 1.2: Key features of the MageGee V650 combo.

2. Pakkens indhold

Tjek venligst pakken for følgende varer:

• 1 x trådløst tastatur
• 1 x trådløs mus
• 1 x USB Receiver (stored inside the keyboard)
• 1 x AA-batteri (til mus)
• 2 x AAA-batterier (til tastatur)
• 1 x brugermanual

3. Opsætningsvejledning

3.1. Batteriinstallation

1. Til tastaturet: Locate the battery compartment on the underside of the keyboard. Insert two AAA batteries, ensuring correct polarity (+/-).
2. Til musen: Locate the battery compartment on the underside of the mouse. Insert one AA battery, ensuring correct polarity (+/-).

Image 3.1: Keyboard battery compartment and USB receiver storage.

3.2. Tilslutning af USB-modtageren

1. Locate the USB receiver. It is typically stored in a dedicated slot on the underside of the keyboard for safekeeping.
2. Plug the USB receiver into an available USB port on your computer (PC, desktop, laptop, or notebook).
3. The system should automatically detect and install the necessary drivers. No additional software download is required.

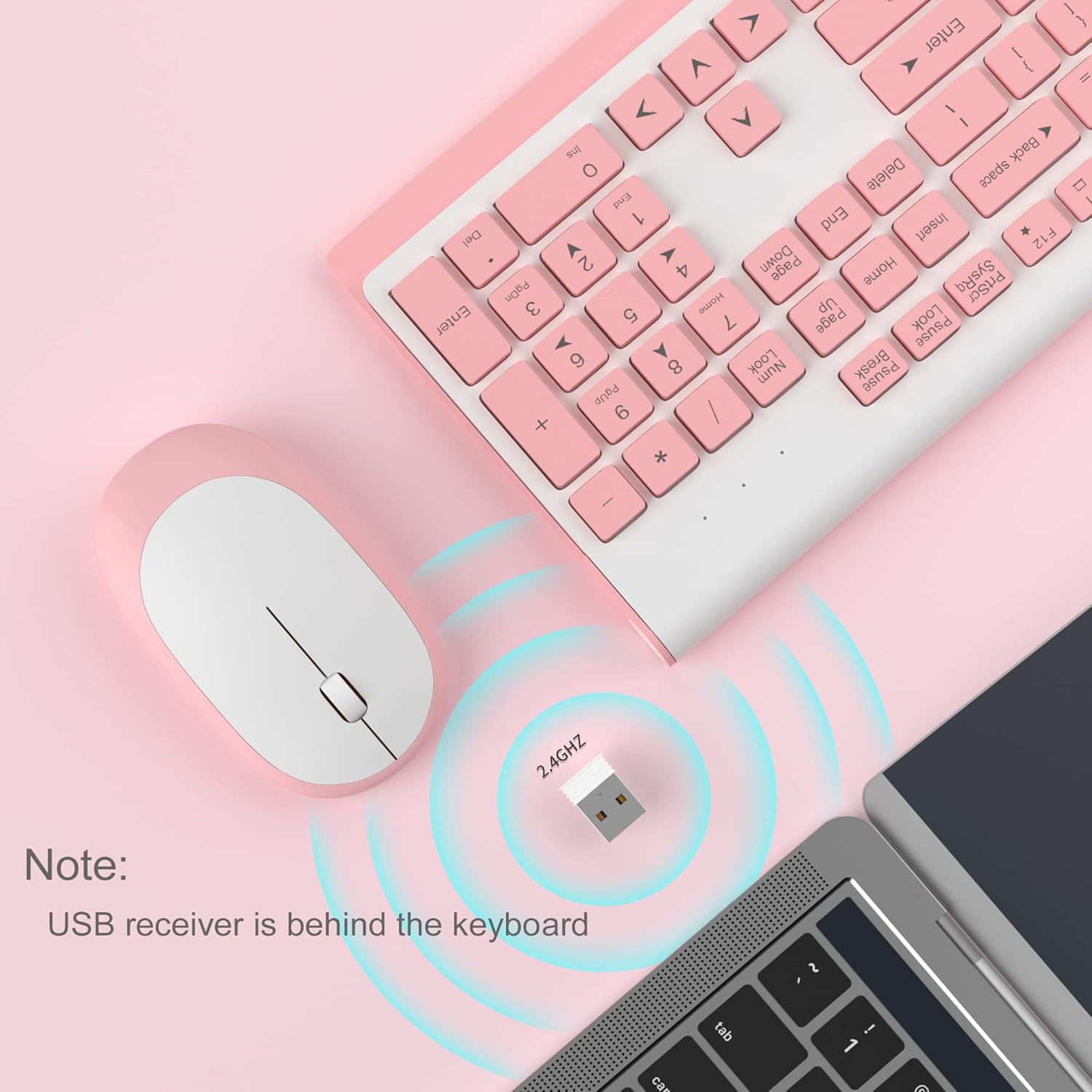

Image 3.2: USB receiver connection and storage location.

Image 3.3: 2.4G wireless connection diagram.

3.3. Tænd

Ensure the power switches on both the keyboard and mouse are in the 'ON' position. The devices should now be ready for use.

4. Betjeningsvejledning

4.1. Tastaturfunktioner

The V650 keyboard features a standard 104-key layout, including a full number pad for data entry and dedicated arrow keys. The keys are designed for quiet and responsive typing.

Multimediegenveje

The keyboard includes 12 multimedia shortcuts accessible by pressing the Fn key in combination with the F1-F12 function keys. These shortcuts allow quick access to common functions such as volume control, media playback, and more.

Image 4.1: Keyboard multimedia function key combinations.

4.2. Musefunktioner

The wireless mouse offers precise 1200 DPI tracking and quiet clicks. It features standard left and right click buttons and a scroll wheel for navigation.

Image 4.2: Mouse features: 1200 DPI and quiet operation.

4.3. Automatisk dvaletilstand

To conserve battery life, both the keyboard and mouse will enter an automatic sleep mode after a period of inactivity. To wake them up, simply press any key on the keyboard or move the mouse.

5. Vedligeholdelse og pleje

• Rensning: Brug en blød, tør klud til at rengøre overfladerne på tastaturet og musen. Ved genstridigt snavs kan du bruge en let tør klud.amp cloth can be used, but ensure no liquid enters the devices. Avoid harsh chemicals or abrasive cleaners.
• Udskiftning af batteri: Replace batteries when performance degrades or devices stop responding. Always use new batteries of the specified type (AAA for keyboard, AA for mouse) and dispose of old batteries responsibly.
• Opbevaring: When not in use for extended periods, turn off the devices to save battery life. Store the USB receiver in its dedicated slot on the keyboard to prevent loss.
• Miljø: Avoid exposing the devices to extreme temperatures, direct sunlight, or excessive moisture.

6. Fejlfinding

If you encounter issues with your MageGee V650 combo, please refer to the following common solutions:

• No Connection / Lag:
  • Ensure both the keyboard and mouse are powered on and have fresh batteries.
  • Verify the USB receiver is securely plugged into a working USB port on your computer.
  • Prøv at sætte USB-modtageren i en anden USB-port.
  • Move the keyboard and mouse closer to the USB receiver to ensure they are within the 10-meter operating range.
  • Undgå at placere modtageren i nærheden af ​​andre trådløse enheder eller store metalgenstande, der kan forårsage interferens.
• Keys Not Responding / Stuck Keys:
  • Kontroller batteriniveauer og udskift om nødvendigt.
  • Gently clean around the affected keys to remove any debris that might be causing them to stick.
  • Re-establish the connection by unplugging and re-plugging the USB receiver.
• Mouse Not Working / Cursor Jumps:
  • Ensure the mouse has a fresh AA battery and is powered on.
  • Rengør den optiske sensor på undersiden af ​​musen.
  • Use the mouse on a suitable surface (not highly reflective or transparent).
  • Re-establish the connection by unplugging and re-plugging the USB receiver.
• Letters Fading on Keys:
  • This is typically a result of prolonged use and wear. While not a functional defect, it can affect visibility.

7. Produktspecifikationer

Billede 7.1: Produktmål.

8. Garanti og kundesupport

MageGee products are designed for reliability and performance. For any warranty inquiries, technical support, or assistance with your product, please contact MageGee customer support through the retailer where you purchased the item or visit the official MageGee store online.

Du kan finde mere information og kontaktoplysninger på MageGee-butik på Amazon.
