FORIOUS FB-0302BD Waterfall Bathroom Faucet Instruction Manual

1. Introduktion

This manual provides detailed instructions for the installation, operation, and maintenance of your FORIOUS FB-0302BD Waterfall Bathroom Faucet. Please read this manual thoroughly before installation and retain it for future reference. Proper installation and care will ensure optimal performance and longevity of your faucet.

2. Sikkerhedsoplysninger

Sluk altid for hovedvandforsyningen, inden du påbegynder VVS-arbejde.
Bær passende personlige værnemidler, såsom sikkerhedsbriller og handsker.
Hvis du er usikker på nogle installationstrin, skal du kontakte en kvalificeret VVS-installatør.
Sørg for, at alle forbindelser er sikre for at forhindre lækager.
Do not overtighten nuts or connections, as this can damage components.

3. Pakkens indhold

Kontroller, at alle komponenter er til stede, før installationen påbegyndes:

FORIOUS Waterfall Faucet Body (Matte Black)
Metal Pop-Up Drain with Strainer
Hot and Cold Water Supply Hoses (3/8-inch)
Mounting Hardware (gasket, washer, mounting nut)
Deck Plate / Cover Plate (for 3-hole installation)

FORIOUS Waterfall Bathroom Faucet and Pop-Up Drain — Image 3.1: Faucet and Pop-Up Drain components.

4. Specifikationer

Feature	Detalje
Mærke	FORIOUS
Modelnavn	FB-0302BD
Finish Type	Mat sort
Materiale	Brass (faucet body), Zinc (handle)
Monteringstype	Dækmontering
Hulantal	1 eller 3 (med inkluderet dækplade)
Antal håndtag	1
Maksimal flowhastighed	1.2 gallon pr. Minut
Tudhøjde	3.66 tommer
Tud rækkevidde	4.8 tommer
Samlet højde	6.57 tommer
Varens vægt	3.5 pund

Faucet and Pop-Up Drain Dimensions — Image 4.1: Detailed dimensions of the faucet and pop-up drain.

Water supply hose construction — Image 4.2: Illustration of the durable, explosion-proof PEX water supply hose.

5. Opsætning og installation

Nødvendige værktøjer (ikke inkluderet):

Justerbar skruenøgle
Phillips hovedskruetrækker
VVS-kit eller silikoneforsegling
Lommelygte (valgfrit)
Spand og håndklæde

Trin før installation:

Sluk for varmt- og koldtvandsventilerne under vasken. Hvis der ikke er nogen afspærringsventiler, skal du slukke for hovedvandforsyningen til dit hjem.
Åbn den eksisterende vandhane for at dræne eventuelt resterende vand fra rørene.
Fjern den gamle vandhane og rengør vaskens overflade grundigt.

Vandhane installation:

Forbered vandhanen: If your sink has three holes, place the deck plate (cover plate) over the holes. Ensure the rubber gasket is properly seated on the underside of the deck plate or faucet base.
Indsæt vandhane: Insert the faucet body through the center hole of the sink (and deck plate, if used). Ensure the faucet is oriented correctly.

Step 1: Insert faucet into sink hole — Image 5.1: Insert the faucet body through the sink hole.

Sikker vandhane: From underneath the sink, slide the rubber washer, then the metal washer, onto the threaded shank of the faucet. Hand-tighten the mounting nut, then use an adjustable wrench to secure it firmly. Do not overtighten.

Step 2: Secure faucet with mounting hardware — Image 5.2: Secure the faucet from underneath the sink using the provided hardware.

Tilslut vandslanger: Connect the hot and cold water supply hoses to the corresponding inlets on the faucet body. The hoses are typically color-coded (red for hot, blue for cold). Hand-tighten, then use a wrench for a snug fit. Connect the other ends of the hoses to your hot and cold water supply valves.

Step 3: Connect hot and cold water supply hoses — Image 5.3: Attach the hot and cold water supply hoses to the faucet and supply lines.

Pop-Up Drain Installation:

Disassemble Drain: Unscrew the nut and remove the washers from the drain body.
Påfør tætningsmiddel: Apply a bead of plumber's putty or silicone sealant around the underside of the drain flange.
Insert Drain: Insert the drain body through the sink drain hole from above.

Step 4: Install pop-up drain into sink — Image 5.4: Insert the pop-up drain into the sink drain hole.

Secure Drain: From underneath the sink, slide the rubber washer, then the plastic washer, and finally the mounting nut onto the drain body. Hand-tighten the nut, then use a wrench to secure it firmly. Wipe away any excess sealant.

Step 5: Secure pop-up drain from underneath — Image 5.5: Secure the pop-up drain assembly from below the sink.

Sidste trin:

Åbn langsomt ventilerne for varmt og koldt vand.
Kontrollér alle forbindelser for lækager. Spænd eventuelle utætte forbindelser efter behov.
Remove the detachable strainer from the pop-up drain and flush the faucet for a few minutes to clear any debris from the water lines. Reinstall the strainer.

6. Betjeningsvejledning

The FORIOUS FB-0302BD faucet features a single lever handle for controlling both water flow and temperature.

Vandflow: Løft håndtaget opad for at øge vandgennemstrømningen. Tryk det nedad for at mindske gennemstrømningen og slukke for vandet.
Temperaturkontrol: Flyt håndtaget til venstre for varmt vand og til højre for koldt vand. Juster håndtagets position mellem venstre og højre for at opnå den ønskede vandtemperatur.

Faucet handle for hot and cold water — Image 6.1: The single lever handle controls both water temperature and flow.

Waterfall faucet flow — Image 6.2: The open channel design provides a gentle waterfall flow, minimizing splashing.

7. Vedligeholdelse

Rengøring af vandhanen:

To maintain the matte black finish, clean the faucet regularly with a soft, damp klæde.
Undgå at bruge slibende rengøringsmidler, skrappe kemikalier eller skuresvampe, da disse kan beskadige overfladen.
The multi-layer sprayed black surface is designed to be non-corrosive, non-rusting, and anti-scratch.

Matte black finish durability features — Image 7.1: The matte black finish is designed for durability, offering anti-fingerprint, anti-rust, and waterproof properties.

Ceramic Valve Core:

The faucet is equipped with a patented ceramic valve core, tested for 500,000 non-leakage cycles, ensuring long-term reliability. No user maintenance is typically required for the valve core itself.

Cleaning the Pop-Up Drain:

The metal pop-up drain includes a detachable anti-clogging strainer. Periodically remove the strainer and clean any accumulated debris to maintain proper drainage.

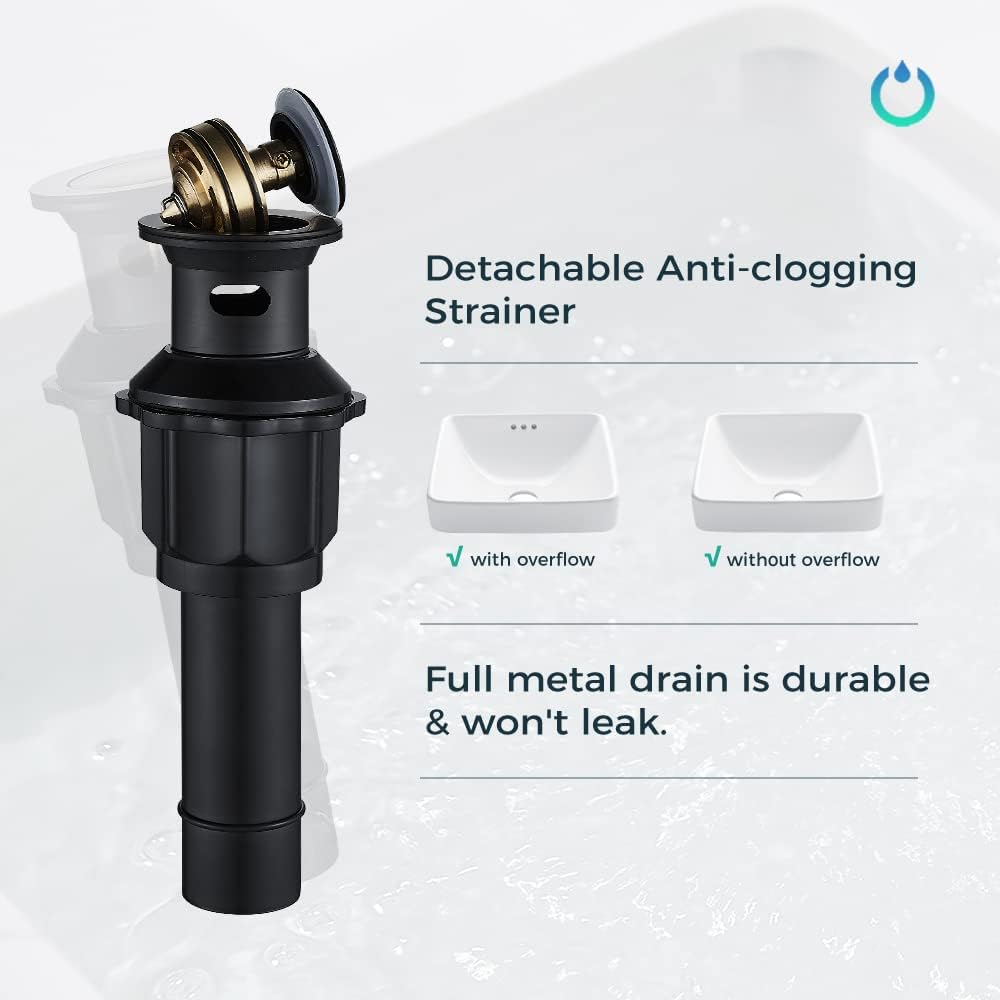

Detachable anti-clogging strainer in pop-up drain — Image 7.3: The pop-up drain features a detachable strainer for easy cleaning and clog prevention.

8. Fejlfinding

Problem	Mulig årsag	Løsning
Lav vandgennemstrømning	Delvist lukkede vandforsyningsventiler. Debris in water lines or faucet. Clogged pop-up drain strainer.	Sørg for, at ventilerne til varmt og koldt vand er helt åbne. Flush the faucet by running water for several minutes. Remove and clean the detachable strainer in the pop-up drain.
Lækager fra forbindelser	Løse forbindelser. Damaged washers or seals.	Carefully tighten all connections with a wrench. Do not overtighten. Inspect washers and seals for damage and replace if necessary.
Water not turning off completely	Debris in the ceramic valve. Worn ceramic valve cartridge.	Flush the faucet thoroughly. Hvis problemet fortsætter, skal du kontakte kundesupport for at få hjælp.

9. Garanti

The FORIOUS FB-0302BD Waterfall Bathroom Faucet comes with a livstidsgaranti. Please retain your proof of purchase for warranty claims. For specific terms and conditions, refer to the warranty information provided with your product packaging or contact FORIOUS customer support.

10. Support

If you encounter any issues or have questions regarding your FORIOUS faucet that are not covered in this manual, please contact FORIOUS customer support. You can typically find contact information on the product packaging or on the official FORIOUS webwebsted.
