WHILL Model F el-kørestol brugermanual

1. Introduktion

Welcome to the WHILL Model F Power Chair User Manual. This guide provides essential information for the safe and effective use, maintenance, and troubleshooting of your new WHILL Model F. Please read this manual thoroughly before operating the device.

The WHILL Model F is a revolutionary foldable power chair designed for convenience, performance, and smart technology integration. It offers enhanced mobility for adults and elderly users, featuring a lightweight design, remote control capabilities via a dedicated app, and excellent maneuverability for both indoor and outdoor environments.

2. Sikkerhedsoplysninger

Your safety is paramount. Adhere to all safety guidelines to prevent injury or damage to the device.

Maksimal vægtkapacitet: Overskrid ikke den maksimale brugervægt på 113 kg.
Fjernlås: Always engage the remote lock feature when the chair is not in use to prevent unintended movement.
Flyrejser: If traveling by air, consult with your airline regarding their specific policies for mobility devices and batteries. Follow all safety guidelines for air travel, including battery removal and proper storage as instructed by the airline and WHILL.
Forhindringsfrihed: The Model F can climb obstacles up to 1.4 inches (3.5 cm) high. Do not attempt to climb higher obstacles.
Miljømæssig brug: Designed for both indoor and outdoor use on hard floors and carpets. Avoid extreme temperatures or wet conditions.

3. Produktet er slutview

The WHILL Model F combines innovative design with practical features for enhanced mobility.

Nøglefunktioner:

Foldable & Lightweight: Folds in less than 3 seconds and weighs less than 53 lbs (24 kg) when the battery is removed, making it highly portable.
Høj ydeevne: Offers a 12.4-mile (20 km) range per charge with its Lithium-ion battery, a 250 lb (113 kg) user weight capacity, and a top speed of 3.7 mph (6 km/h).
Fjernbetjening: Utilize the WHILL app to remotely drive and control the Model F.
Powerful & Maneuverable: Equipped with two powerful motors, it can climb over obstacles up to 1.4 inches (3.5 cm) high. Its 30.7-inch (78 cm) turning radius allows for easy navigation in narrow spaces.
Justerbar: Controller and armrest height, controller side (right or left), arm height, and arm width (18–20 inches / 45.7–50.8 cm between armrests) are all adjustable for personalized comfort.

WHILL Model F Power Chair in Light Blue, unfolded and ready for use.

Figure 3.1: WHILL Model F Power Chair (Unfolded)

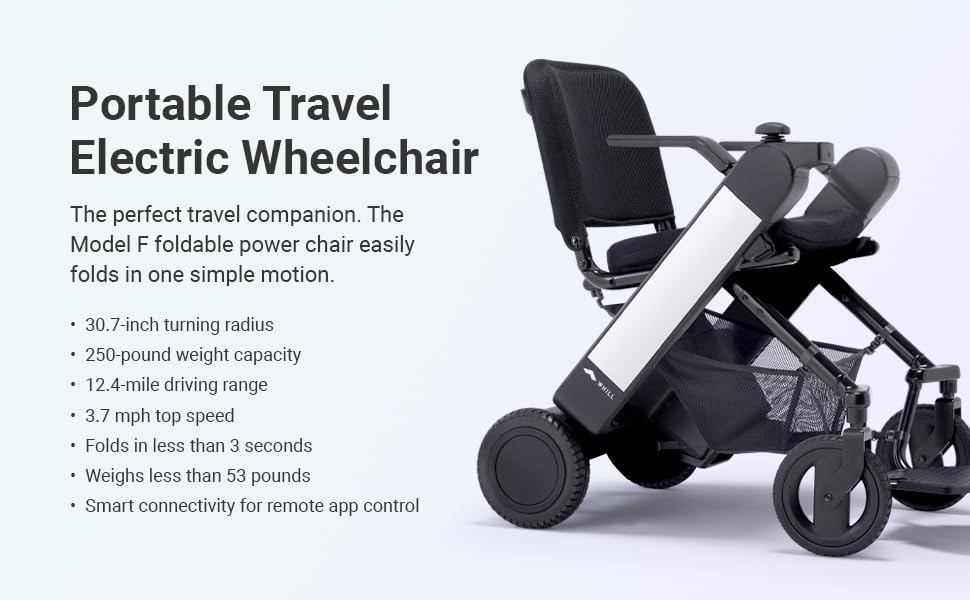

Diagram highlighting key features of the WHILL Model F including turning radius, weight capacity, driving range, top speed, folding time, weight, and smart connectivity.

Figure 3.2: Portable Travel Electric Wheelchair Features

4. Opsætning

4.1 Udpakning

Carefully remove all components from the packaging. Ensure all included components are present: the chair, WHILL app (download required), remote control, and user manual.

4.2 Battery Installation & Initial Charge

Locate the battery compartment, typically under the seat or at the rear of the chair.
Insert the Lithium-ion battery securely until it clicks into place.
Connect the charger to the charging port on the chair and then to a standard electrical outlet.
Allow the battery to fully charge before first use. The charging indicator will show completion.

4.3 Unfolding the Chair

The WHILL Model F is designed for easy unfolding. Follow these steps:

Place the folded chair on a flat, stable surface.
Grasp the designated handle or frame part.
Gently pull upwards and outwards until the chair locks into its open position. Ensure all locking mechanisms are engaged.

Three sequential images showing a person unfolding the WHILL Model F power chair from a compact folded state to an upright, ready-to-use position.

Figure 4.1: Unfolding the WHILL Model F

4.4 Justeringer

Customize your chair for optimal comfort and control:

Armlænshøjde: Adjust the armrests to your preferred height using the release levers.
Controller Side: The controller can be mounted on either the right or left side of the chair. Consult the quick start guide for specific instructions on switching sides.
Armbredde: Adjust the width between the armrests (18-20 inches) to suit your body frame.

5. Operating the WHILL Model F

5.1 Tænd/sluk

To power on the chair, press and hold the power button on the controller until the indicator lights illuminate. To power off, press and hold the power button again until the lights turn off.

5.2 Driving Controls

The WHILL Model F is controlled via a joystick. Push the joystick in the desired direction to move. The further you push, the faster the chair will move, up to its maximum speed of 3.7 mph.

Frem/tilbage: Push the joystick forward or backward.
Drejning: Push the joystick left or right to turn. The chair has a tight turning radius of 30.7 inches for excellent maneuverability.
Stopper: Release the joystick to its neutral position to engage the electromagnetic brakes and stop the chair.

5.3 Folding/Unfolding Procedure

The Model F features a quick-fold mechanism for easy transport and storage.

At folde: Locate the lock release button (Figure 5.1). Press the button and gently push the backrest forward until the chair folds into its compact form. Ensure the chair is powered off before folding.
At folde ud: Se afsnit 4.3.

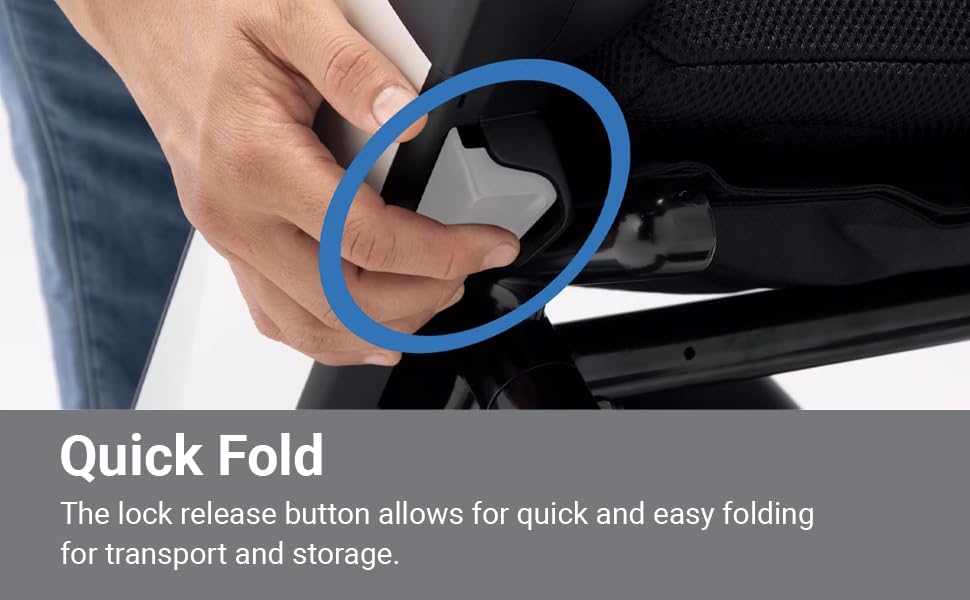

Close-up of a hand pressing a white lock release button on the WHILL Model F, circled in blue.

Figure 5.1: Quick Fold Lock Release Button

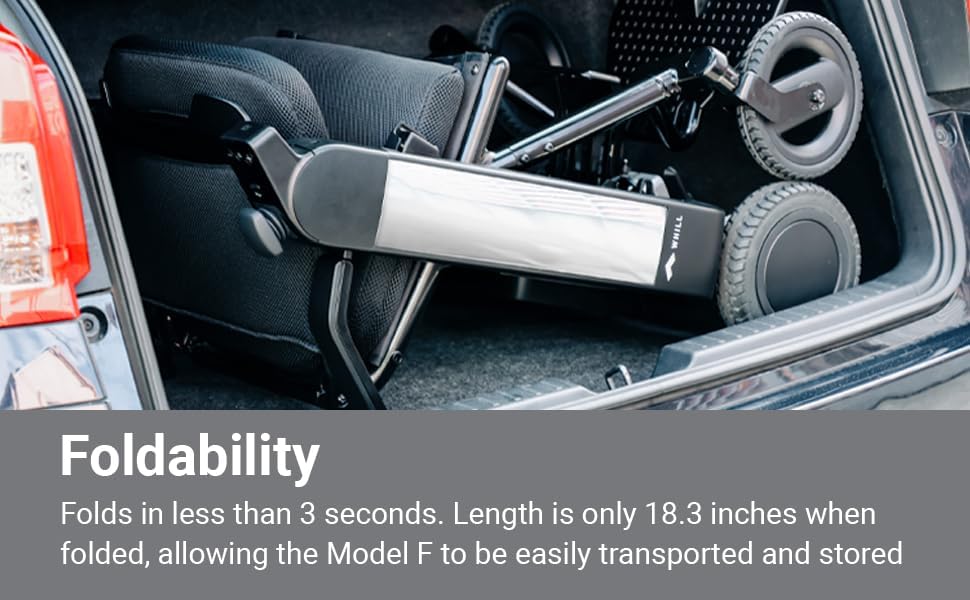

The folded WHILL Model F power chair stored in the trunk of a car, demonstrating its compact size for transport.

Figure 5.2: Folded Chair in Car Trunk

The folded WHILL Model F power chair standing upright in a closet, demonstrating its compact storage capability.

Figure 5.3: Compact Storage

5.4 Using the WHILL App

The WHILL app allows for remote control and monitoring of your Model F. Download the app from your device's app store.

Parring: Follow the in-app instructions to pair your smartphone with the Model F via Bluetooth.
Remote Driving: Use the app interface to remotely drive the chair, useful for parking or retrieving it from a distance.
Statusovervågning: View battery level, mileage, and other diagnostic information.
Lås/lås op: Remotely lock or unlock the chair for added security.

6. Vedligeholdelse

Regular maintenance ensures the longevity and optimal performance of your WHILL Model F.

Rensning: Rengør stolen med adamp klæde. Undgå at bruge slibende rengøringsmidler eller for meget vand.
Batteripleje: Charge the battery as instructed in the manual. Do not allow the battery to fully discharge for extended periods. Store the battery in a cool, dry place if not in use for a long time.
Dæk inspektion: Periodically check the tires for wear and tear.
Generel inspektion: Regularly inspect all moving parts, connections, and fasteners for any signs of damage or looseness. Contact customer support if you notice any issues.

7. Fejlfinding

If you encounter issues with your WHILL Model F, refer to the following common problems and solutions:

Problem	Mulig årsag	Løsning
Stolen tænder ikke.	Batteriet er ikke installeret korrekt eller afladet.	Sørg for, at batteriet er sat helt i. Oplad batteriet.
Chair does not move.	Joystick not in neutral position; remote lock engaged; error code displayed.	Release joystick. Disengage remote lock via app or controller. Consult manual for error codes.
Reduceret rækkevidde eller hastighed.	Low battery charge; operating on inclines; exceeding weight capacity.	Recharge battery. Avoid prolonged use on steep inclines. Ensure user weight is within limits.
Problemer med app-forbindelse.	Bluetooth off; app not updated; chair not powered on.	Ensure Bluetooth is on. Update app. Power on chair. Re-pair if necessary.

If the problem persists after attempting these solutions, please contact WHILL customer support.

8. Specifikationer

Detailed technical specifications for the WHILL Model F Power Chair.

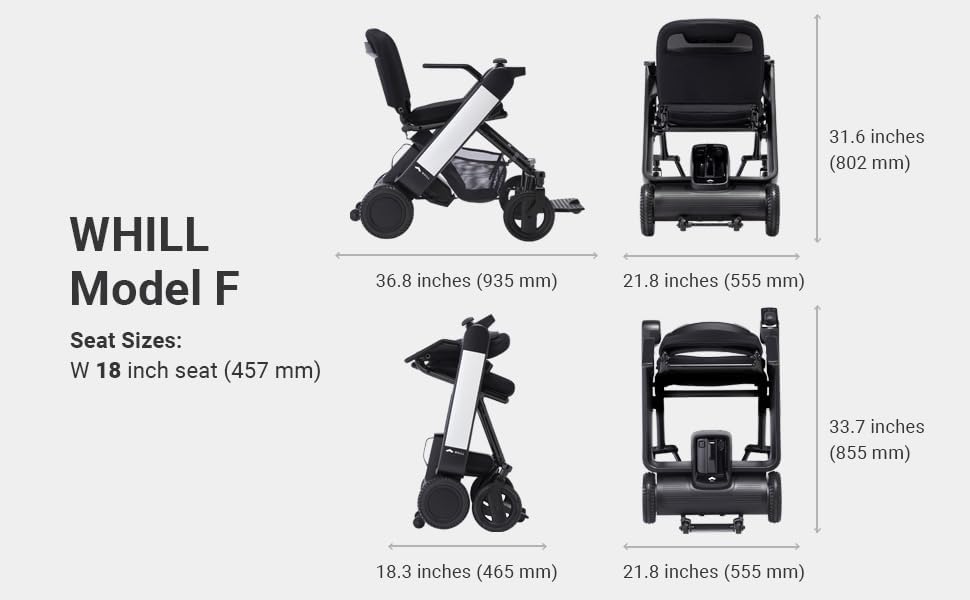

Diagram showing the dimensions of the WHILL Model F in both unfolded and folded states, including length, width, height, and seat size.

Figure 8.1: WHILL Model F Dimensions

Specifikation	Værdi
Modelnavn	Model F (Fi)
Dimensioner (udfoldet)	36.8 x 21.9 x 31.6 tommer (935 x 555 x 802 mm)
Dimensioner (foldet)	18.3 x 21.8 x 33.7 tommer (465 x 555 x 855 mm)
Varens vægt	58.9 pund (26.7 kg)
Vægt (uden batteri)	Mindre end 24 kg
Maksimal vægtanbefaling	250 pund (113 kg)
Tophastighed	3.7 mph (6 km/t)
Rækkevidde pr. opladning	12.4 miles (20 km)
Venderadius	30.7 tommer (78 cm)
Max hældning	1.4 inches (3.5 cm) obstacle clearance
Batteritype	Lithium-ion (1 medfølger)
Sædestørrelse	18 inch (457 mm) width
Sammenfoldelig	Ja
Inkluderede komponenter	Chair, WHILL app, remote control, user manual

9. Garanti og support

For warranty information, please refer to the documentation included with your purchase or visit the official WHILL website. WHILL provides customer support for any inquiries, technical assistance, or service needs.

Kontaktoplysninger: Besøg venligst WHILL-butik på Amazon or the official WHILL website for the most up-to-date support contact details.
