1. Produktet er slutview

The Sophos CS210-8FP is an 8-port network switch designed for robust and efficient network connectivity. It features eight 2.5 Gigabit Ethernet ports with full Power over Ethernet (PoE) capabilities, providing both data and power to connected devices such as IP cameras, wireless access points, and VoIP phones. This switch is suitable for various network environments requiring high-speed data transfer and reliable power delivery.

Nøglefunktioner omfatter:

• 8 x 2.5 Gigabit Ethernet ports for high-speed connections.
• Full Power over Ethernet (PoE) support on all 8 ports.
• Designed for reliable performance in various network setups.

2. Sikkerhedsoplysninger

Please read all safety instructions carefully before installing or operating the Sophos CS210-8FP Switch. Failure to follow these guidelines may result in injury, damage to the device, or property damage.

• Strømkilde: Use only the provided power cord and connect the device to a grounded power outlet. Ensure the voltage opfylder enhedens krav.
• Ventilation: Bloker ikke ventilationsåbninger. Sørg for tilstrækkelig luftgennemstrømning omkring enheden for at forhindre overophedning.
• Miljø: Operate the switch in a dry, well-ventilated area, away from direct sunlight, heat sources, and excessive moisture.
• Håndtering: Håndter enheden forsigtigt. Undgå at tabe den eller udsætte den for hårde stød.
• Service: Forsøg ikke at åbne eller reparere enheden selv. Overlad al service til kvalificeret personale.

3. Pakkens indhold

Verify that all items are present in the package. If any item is missing or damaged, contact your vendor immediately.

• Sophos CS210-8FP Switch
• US Power Cord (C28C1CSUS)
• Dokumentation (hurtigstartguide, sikkerhedsoplysninger)
• Rackmount Kit (if applicable to your specific model variant)

4. Hardware overview

4.1 Frontpanel

Billede 4.1: Forside view of the Sophos CS210-8FP Switch, showing the console port, LED indicators, eight 2.5G Ethernet ports, and four SFP+ ports.

• Konsolport: RJ-45 port for local management and configuration.
• Power LED: Angiver enhedens strømstatus.
• Link/Activity LEDs (Ports 1-8): Indicate network link status and data activity for each 2.5G Ethernet port.
• PoE-LED'er (porte 1-8): Indicate Power over Ethernet status for each 2.5G Ethernet port.
• 2.5G Ethernet-porte (1-8): RJ-45 ports supporting 2.5 Gigabit Ethernet with full PoE.
• SFP+ porte (9-12): Four SFP+ ports for high-speed fiber or copper uplink connections.

4.2 Bagpanel

Billede 4.2: Bagside view of the Sophos CS210-8FP Switch, showing the power input connector.

• Strømindgang: Connector for the AC power cord.

4.3 Rackmontering (valgfrit)

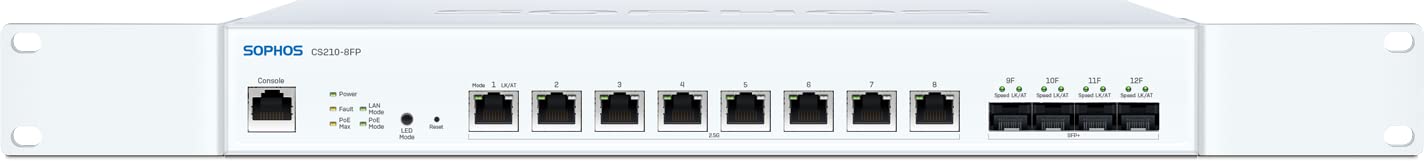

Billede 4.3: Forside view of the Sophos CS210-8FP Switch with rackmount ears attached, indicating its suitability for rack installation.

The Sophos CS210-8FP Switch can be installed in a standard 19-inch equipment rack using the provided rackmount kit. Attach the rackmount ears to the sides of the switch using the screws provided, then secure the switch into the rack.

5. Opsætning og installation

5.1 Udpakning

1. Tag forsigtigt kontakten og alt tilbehør ud af emballagen.
2. Inspect the device for any signs of damage. Report any damage to your vendor immediately.
3. Gem emballagen til senere transport eller opbevaring.

5.2 Montering af kontakten

The switch can be placed on a desktop or mounted in a standard 19-inch equipment rack.

Desktopplacering:

• Placer kontakten på en flad, stabil overflade.
• Ensure adequate space around the device for proper ventilation.

Rack montering:

1. Attach the two rackmount ears to the sides of the switch using the screws provided in the rackmount kit.
2. Align the switch with an available U-space in your 19-inch equipment rack.
3. Secure the switch to the rack using appropriate rack screws (not typically included with the switch).

5.3 Tilslutning af strøm

1. Connect the provided US power cord to the power input connector on the rear panel of the switch.
2. Sæt den anden ende af netledningen i en jordet stikkontakt.
3. Strøm-LED'en på frontpanelet skal lyse, hvilket indikerer, at kontakten modtager strøm.

5.4 Netværksforbindelser

Connecting Devices to 2.5G Ethernet Ports:

• Use standard Ethernet cables (Cat5e or higher) to connect your network devices (e.g., computers, servers, access points) to the RJ-45 ports (1-8) on the front panel.
• For devices requiring Power over Ethernet (PoE), ensure they are PoE-compatible. The switch will automatically detect and provide power.
• Observe the Link/Activity and PoE LEDs for connection status.

Connecting to SFP+ Ports:

• Insert compatible SFP+ transceivers into the SFP+ ports (9-12).
• Connect fiber optic or direct attach copper cables to the transceivers as required for your uplink or high-speed connections.

5.5 Indledende konfiguration

For initial configuration and advanced settings, refer to the Sophos CS Series Switch Management Guide. Typically, this involves connecting to the console port via a serial cable and using a terminal emulator, or accessing the web-based management interface via a connected network device.

6. Betjening

6.1 Tænd/sluk

• Tænd: Connect the power cord to the switch and a power outlet. The switch will power on automatically.
• Sluk: Tag netledningen ud af stikkontakten.

6.2 LED-indikatorer

LED'erne på frontpanelet viser visuel status for kontaktens drift:

• Power LED:
  • Solid grøn: Enheden er tændt og fungerer normalt.
  • Slukket: Enheden er slukket eller modtager ikke strøm.
• Link/Activity LEDs (per port):
  • Solid grøn: En gyldig netværksforbindelse er etableret.
  • Blinkende grønt: Der forekommer dataaktivitet på porten.
  • Slukket: No network link detected.
• PoE-LED'er (pr. port):
  • Solid grøn: PoE-strøm forsynes til den tilsluttede enhed.
  • Blinkende grønt: PoE fault or overload condition.
  • Slukket: No PoE device connected or PoE is not active.

7. Vedligeholdelse

7.1 Rengøring

• Sørg for, at enheden er slukket og frakoblet strømkilden, før den rengøres.
• Use a soft, dry cloth to wipe the exterior surfaces of the switch.
• Brug ikke flydende rengøringsmidler eller aerosolrengøringsmidler, da de kan beskadige enheden.
• Hold ventilationsåbningerne fri for støv og snavs.

7.2 firmwareopdateringer

Regularly check the Sophos support website for the latest firmware updates. Keeping the firmware updated ensures optimal performance, security, and access to new features. Follow the instructions provided with the firmware update package for proper installation.

8. Fejlfinding

This section provides solutions to common issues you might encounter with the Sophos CS210-8FP Switch.

8.1 Ingen strøm

• Tjek strømledningen: Ensure the power cord is securely connected to both the switch and the electrical outlet.
• Bekræft stikkontakt: Test the electrical outlet with another device to confirm it is functional.
• Power LED: Confirm the Power LED on the front panel is illuminated. If not, recheck connections.

8.2 No Network Link

• Check Ethernet Cable: Ensure the Ethernet cable is securely connected to both the switch port and the network device. Try a different cable.
• Verify Device: Sørg for, at den tilsluttede netværksenhed er tændt og fungerer korrekt.
• Link/aktivitet LED: Check if the Link/Activity LED for the corresponding port is solid green. If not, there is no active link.
• Portkonfiguration: If managing the switch, verify the port is enabled and correctly configured.

8.3 PoE fungerer ikke

• Check PoE Device: Ensure the connected device is PoE-compatible and requires power from the switch.
• PoE LED: Check if the PoE LED for the corresponding port is solid green. If it's off, PoE is not being delivered. If flashing, there might be a fault or overload.
• Strømbudget: Verify that the total power consumption of all connected PoE devices does not exceed the switch's maximum PoE power budget.
• Kabelkvalitet: Use high-quality Ethernet cables (Cat5e or higher) for PoE connections.

If you are unable to resolve an issue after following these steps, please contact Sophos technical support or your authorized reseller for assistance.

9. Specifikationer

Note: Specifications are subject to change without notice. Refer to the official Sophos webwebsted for de nyeste oplysninger.

10. Garanti og support

The Sophos CS210-8FP Switch typically includes a 1-year support and services package. For detailed warranty terms and conditions, please refer to the documentation included with your product or visit the official Sophos webwebsted.

Teknisk support: For technical assistance, troubleshooting, or service requests, please contact Sophos support through their official channels. Have your product model and serial number ready when contacting support.

Udvidet beskyttelse: Additional protection plans may be available from your vendor. Consult your reseller for options regarding extended warranties or service agreements.

You can find more information and resources on the official Sophos webwebsted: www.sophos.com
