1. Introduktion

This manual provides detailed instructions for the installation, configuration, and operation of your Hikvision DS-7104HGHI-K1 4-Channel Digital Video Recorder (DVR). Please read this manual thoroughly before using the product to ensure correct and safe operation. Keep this manual for future reference.

2. Produktet er slutview og funktioner

The Hikvision DS-7104HGHI-K1 is a 4-channel 1080p Lite DVR designed for reliable surveillance recording. It supports various camera types and features advanced video compression technology.

Figur 2.1: Top view of the Hikvision DS-7104HGHI-K1 DVR, showing its compact design and branding.

Nøglefunktioner:

• 4-Channel Video Input: Supports up to 4 analog cameras.
• 1080p Lite Recording: Provides high-definition recording at 1080p Lite resolution.
• H.265+ Compression: Advanced video compression technology for efficient storage and reduced bandwidth usage.
• Multi-format Input: Compatible with HDTVI, AHD, CVI, CVBS, and up to 5 IP camera inputs (up to 2MP).
• HDMI/VGA-udgang: For local monitoring.
• Fjernadgang: Understøtter fjernbetjening viewing via Hik-Connect app.

Figur 2.2: For og bag views of the Hikvision DVR, highlighting various ports and connectivity options, along with icons representing H.265 Pro, Mobile access, 5-in-1 compatibility, and IP/Analog XVR capabilities.

H.265+ Compression Benefits:

H.265+ compression significantly reduces the required storage space and bandwidth compared to older compression standards like H.264, without compromising video quality.

Figur 2.3: A bar graph illustrating the reduction in 24-hour recording file size (GB) when using H.265+ compression compared to H.264 and H.265, showing up to an 83% gap in storage requirements.

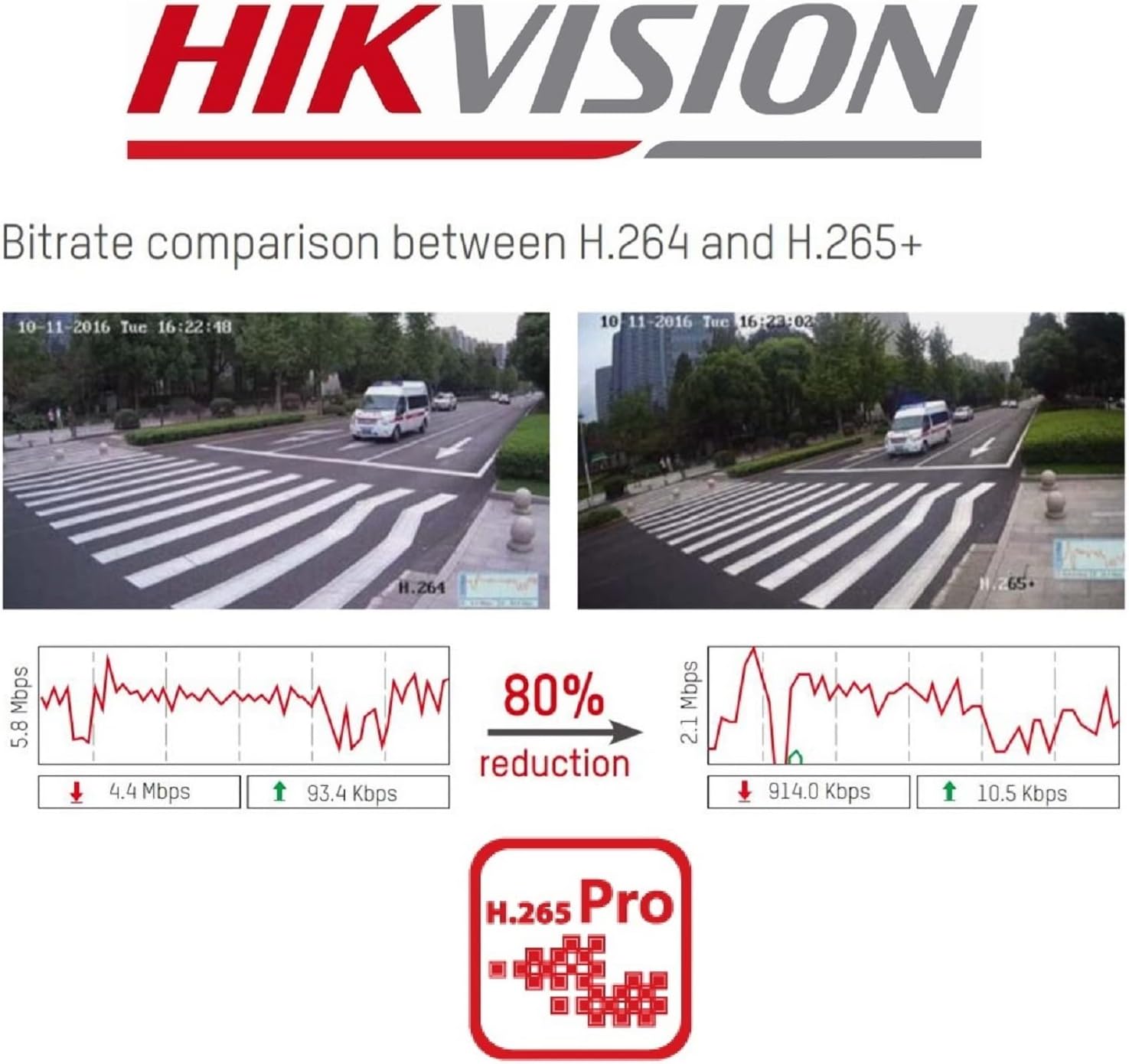

Figur 2.4: A visual comparison of bitrate usage between H.264 and H.265+ compression, demonstrating an 80% reduction in bitrate with H.265+ while maintaining similar video quality in sampovervågningsfodtage.

3. Pakkens indhold

Bekræft at alle varer er til stede i din pakke:

• Hikvision DS-7104HGHI-K1 DVR Unit
• Strømadapter
• USB-mus
• SATA Cables (for HDD connection)
• Hurtig startvejledning
• Note: Hard drive is not included and must be purchased separately.

4. Sikkerhedsoplysninger

• Sørg for, at strømforsyningen passer til DVR'ens krav.
• Udsæt ikke DVR'en for vand eller fugt.
• Undgå at placere DVR'en i direkte sollys eller i nærheden af ​​varmekilder.
• Sørg for korrekt ventilation for at forhindre overophedning.
• Brug kun tilbehør specificeret af producenten.

5. Opsætning

5.1 Hardwareinstallation

1. Hard Drive Installation (HDD not included):
   • Unscrew and remove the top cover of the DVR.
   • Connect the SATA power and data cables from the DVR to the hard drive.
   • Secure the hard drive inside the DVR using the provided screws.
   • Sæt topdækslet på igen, og fastgør det med skruer.
2. Tilslut kameraer: Connect your analog cameras to the BNC video input ports on the rear panel of the DVR.
3. Tilslut skærm: Connect a monitor to the HDMI or VGA output port.
4. Tilslut netværk: Connect an Ethernet cable from the DVR's LAN port to your router or network switch.
5. Tilslut USB-mus: Sæt USB-musen i en USB-port på DVR'en.
6. Tænd: Connect the power adapter to the DVR and then to a power outlet. The DVR will power on automatically.

5.2 Indledende konfiguration

1. First-Time Startup: Upon first boot, the DVR will guide you through a setup wizard.
2. Indstil adgangskode: Create a strong password for the admin user. This is crucial for security.
3. Netværksindstillinger: Konfigurer netværksindstillinger (DHCP er normalt tilstrækkeligt til de fleste hjemmenetværk).
4. HDD-initialisering: The DVR will prompt you to initialize the newly installed hard drive. This step is necessary for recording.
5. Dato og tid: Indstil den korrekte dato og tid.

6. Betjening

6.1 Live View

After initial setup, the DVR will display the live view from connected cameras on the monitor. You can switch between single-camera view og multikameragitter view using the on-screen controls or mouse.

6.2 Optagelse

The DVR is typically configured to record continuously by default once the HDD is initialized. You can customize recording schedules, motion detection recording, and alarm recording settings through the DVR's menu:

• Gå til Menu > Record > Schedule to adjust recording times.
• Gå til Menu > Alarm > Motion Detection to configure motion-triggered recording.

6.3 Afspilning

Til view optaget footage:

1. Gå til Menu > Playback.
2. Select the camera(s) and the date/time range you wish to review.
3. Brug afspilningsknapperne (afspil, pause, spol frem, spol tilbage) til at navigere gennem fodsporenetage.

6.4 Remote Access (Hik-Connect)

The Hik-Connect app allows you to view live footage, play back recordings, and receive alerts on your smartphone or tablet from anywhere with an internet connection.

Figur 6.1: The Hik-Connect application icon alongside a smartphone displaying a multi-camera live view, illustrating the remote monitoring capabilities of the DVR system.

1. Download the Hik-Connect app from your device's app store.
2. Create a Hik-Connect account.
3. Tilføj din DVR til appen ved at scanne QR-koden på DVR'en eller manuelt indtaste serienummeret.
4. Ensure your DVR is connected to the internet and Hik-Connect service is enabled in the DVR's network settings.

7. Vedligeholdelse

• Regelmæssig rengøring: Keep the DVR free from dust. Use a soft, dry cloth for cleaning.
• Firmwareopdateringer: Periodically check the Hikvision official webwebsted for firmwareopdateringer for at sikre optimal ydeevne og sikkerhed.
• Data backup: Regularly back up important recordings to an external storage device.
• Adgangskodesikkerhed: Change your DVR password periodically to enhance security.

8. Fejlfinding

• Ingen videoudgang:
  • Kontroller HDMI/VGA-kabelforbindelserne.
  • Sørg for, at skærmen er tændt og indstillet til den korrekte indgang.
• Ingen optagelse:
  • Verify that a hard drive is installed and initialized.
  • Check recording schedules and ensure they are active.
  • Ensure cameras are properly connected and functioning.
• Cannot Access Remotely:
  • Sørg for, at DVR'en er forbundet til internettet.
  • Check network settings and Hik-Connect status on the DVR.
  • Verify your Hik-Connect account and device binding in the app.
• DVR Unresponsive:
  • Restart the DVR by disconnecting and reconnecting the power.
  • If issues persist, consider a factory reset (note: this will erase configurations).

9. Specifikationer

10. Garanti og support

For warranty information and technical support, please refer to the official Hikvision website or contact your authorized Hikvision dealer. Keep your purchase receipt as proof of purchase.
