1. Introduktion
Thank you for choosing the Xoopar Mini Xboy Eco Bluetooth Portable Speaker. This speaker combines innovative design with eco-friendly materials, offering powerful 360° sound and an integrated selfie remote control. This manual provides essential information for setting up, operating, and maintaining your device.
The Mini Xboy Eco features a head made from recycled plastic bottles and a body incorporating non-food wheat fiber with a biosphere additive to enhance biodegradability. Its compact size and integrated wrist strap make it ideal for portable use.
Image: The Xoopar Mini Xboy Eco Bluetooth Portable Speaker.
2. Pakkens indhold
Markér venligst feltet for følgende elementer:
- Xoopar Mini Xboy Eco Bluetooth Portable Speaker
- Integreret håndrem
- USB Charging Cable (assumed to be included for charging functionality)
- Brugervejledning (dette dokument)
Billede: Forside og side view of the Xoopar Mini Xboy Eco speaker.
3. Opsætning
3.1 Indledende opladning
Before first use, fully charge your Mini Xboy Eco speaker. Connect the provided USB charging cable to the charging port on the speaker and to a standard USB power source (e.g., computer USB port, USB wall adapter). The LED indicator will show charging status (refer to product packaging for specific LED behavior).
3.2 Tænd/sluk
- For at tænde: Tryk og hold tænd/sluk-knappen (refer to speaker for button location) until the LED indicator lights up.
- For at slukke: Tryk og hold tænd/sluk-knappen nede, indtil LED-indikatoren slukker.
4. Betjeningsvejledning
4.1 Bluetooth -parring
The Mini Xboy Eco uses Bluetooth 5.0 for wireless connectivity, with a transmission distance of up to 10 meters (33 feet).
- Ensure the speaker is powered on and within range of your device.
- Aktivér Bluetooth på din smartphone, tablet eller computer.
- Søg efter available Bluetooth devices. The speaker will typically appear as "Xoopar Mini Xboy Eco" or similar.
- Select the speaker from the list to pair. A confirmation sound or LED indication will confirm successful pairing.
Once paired, the speaker will automatically connect to your device when both are powered on and within range.
Image: The Mini Xboy Eco speaker connected to a tablet for audio playback.
4.2 Stereo Pairing (TWS Function)
If you have two Xoopar Mini Xboy Eco speakers, you can pair them together for a stereo sound experience.
- Sørg for, at begge højttalere er tændt og ikke er forbundet til nogen anden Bluetooth-enhed.
- On one speaker (this will be the primary speaker), double-press the power button (refer to speaker for specific action) to initiate TWS pairing mode.
- The speakers will automatically search for and connect to each other. A confirmation sound will indicate successful stereo pairing.
- Connect your device to the primary speaker via Bluetooth as described in Section 4.1. Both speakers will now play audio in stereo.
4.3 Selfie Remote Control
The Mini Xboy Eco features an integrated selfie remote control function.
- Ensure the speaker is paired with your smartphone via Bluetooth.
- Åbn din smartphones kameraapplikation.
- Press the designated button on the speaker (refer to speaker for button location) to trigger the camera shutter.

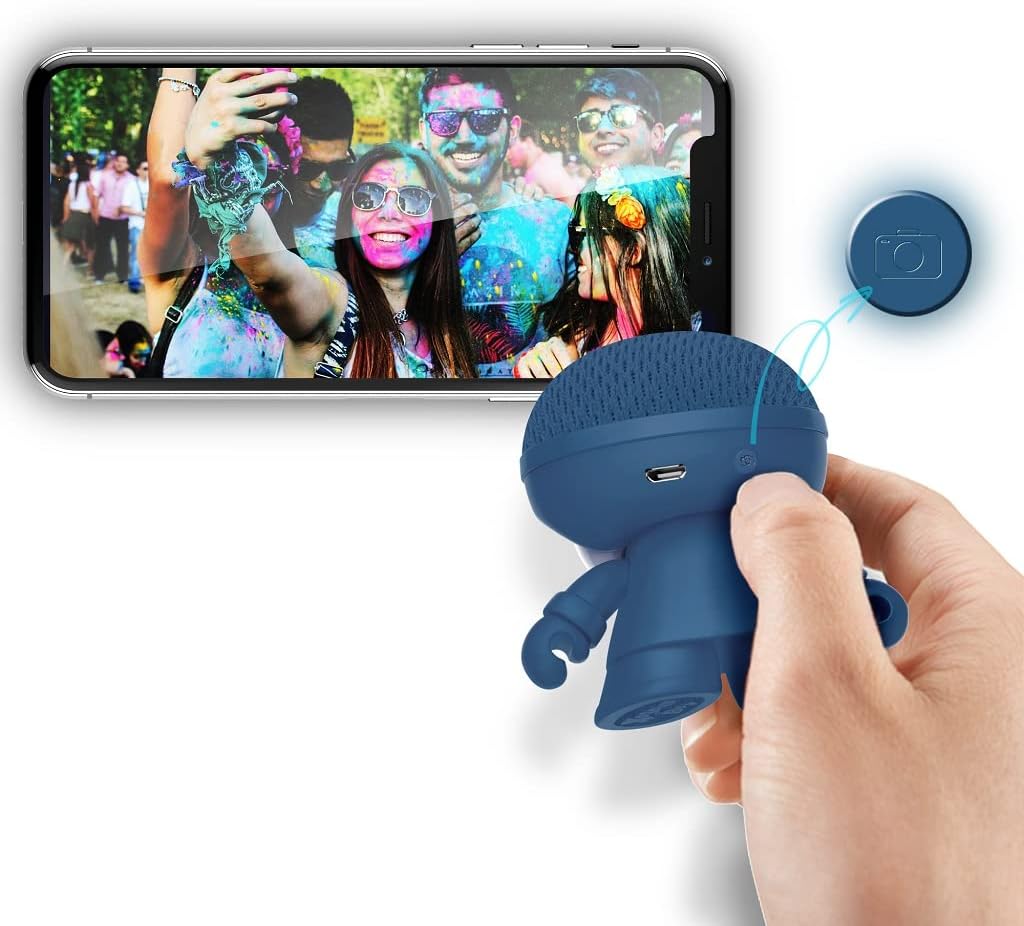

Image: The Xoopar Mini Xboy Eco speaker can be used as a remote shutter for your smartphone camera.
4.4 LED-lysfunktion
The Mini Xboy Eco features a multi-LED lighted face. The lights may indicate power status, charging status, or simply provide ambient lighting.
Image: The Mini Xboy Eco speaker features a multi-LED lighted face.
5. Vedligeholdelse
5.1 Rengøring
To clean your speaker, gently wipe the surface with a soft, dry, or slightly damp cloth. Do not use harsh chemicals, solvents, or abrasive cleaners, as these may damage the finish or internal components.
5.2 Opbevaring
When not in use for extended periods, store the speaker in a cool, dry place away from direct sunlight and extreme temperatures. It is recommended to charge the battery periodically (e.g., every 3-6 months) to maintain battery health.
6. Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Højttaleren tænder ikke. | Batteriet er afladet. | Oplad højttaleren ved hjælp af det medfølgende USB-kabel. |
| Kan ikke parres via Bluetooth. | Højttaleren er ikke i parringstilstand eller uden for rækkevidde. | Ensure speaker is on and within 10 meters. Turn Bluetooth off/on on your device. Restart both devices. |
| Ingen lyd eller lav lydstyrke. | Lydstyrken på højttaleren eller den tilsluttede enhed er for lav. | Skru op for lydstyrken på både højttaleren og din tilsluttede enhed. |
| Selfie remote not working. | Speaker not paired or camera app not open. | Ensure speaker is paired and camera app is active. |
7. Specifikationer
- Modelnavn: Mini Xboy Eco
- Varemodelnummer: XBOY81001.16BO
- Mærke: puffe
- Forbindelse teknologi: Bluetooth 5.0
- Højttalers maksimale udgangseffekt: 3 watt
- Lydudgangstilstand: Stereo (med TWS-parring)
- Højttalertype: Koaksial
- Frekvensrespons: 20 GHz (Note: This value is unusually high for a speaker and may be a typo in the source data. Typical speaker frequency ranges are in Hz-kHz.)
- Batteri: 1 Lithium Polymer (inkluderet)
- Batteriautonomi: Cirka 4 timer
- Transmissionsafstand: Op til 10 meter (33 fod)
- Produktdimensioner: 1 x 1 x 1 cm
- Varens vægt: 50 g
- Materiale: ABS, Acrylonitrile Butadiene Styrene (head from recycled plastic bottles, body with non-food wheat fiber and biosphere additive)
- Monteringstype: Bordplade montering
- Speciel funktion: Mini portable Bluetooth speaker, integrated selfie remote, multi-LED lighted face
8. Garanti og support
For warranty information and customer support, please refer to the documentation provided with your purchase or visit the official Xoopar webwebsted. Gem din købsbevis i tilfælde af garantikrav.
Fabrikant: puffe
