1. Introduktion

This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your SEYVUM C11 12V Cordless Drill Set. Please read this manual thoroughly before using the product and retain it for future reference.

2. Sikkerhedsoplysninger

Følg altid grundlæggende sikkerhedsforanstaltninger for at reducere risikoen for brand, elektrisk stød og personskade, når du bruger elværktøj.

• Bær øjenbeskyttelse: Brug altid passende øjenbeskyttelse, når du betjener boremaskinen.
• Sikkert arbejdsemne: Clamp eller på anden måde fastgør emnet for at forhindre bevægelse under boring.
• Hold arbejdsområdet rent: Rodede områder og bænke inviterer til skader.
• Undgå farligt miljø: Brug ikke elværktøj i damp eller våde steder, eller udsæt dem for regn.
• Maintain Tool: Keep tools clean and in good working condition. Follow instructions for lubricating and changing accessories.
• Afbryd strømmen: Disconnect the battery pack from the drill before making any adjustments, changing accessories, or storing the tool.

3. Pakkens indhold

Your SEYVUM C11 Cordless Drill Set includes the following items:

• SEYVUM C11 12V Cordless Drill
• 12V Lithium-Ion Battery (1.5Ah)
• 1-times hurtigoplader
• Værktøjstaske
• Assorted Drill Bits (for wood and metal)
• Assorted Screwdriver Bits with Bit Holder
• Instruktionsmanual

Image: SEYVUM C11 Cordless Drill Set with included battery, charger, tool bag, and various drill and screwdriver bits.

4. Produktet er slutview og funktioner

The SEYVUM C11 is a compact and powerful 12V cordless drill designed for various drilling and driving tasks.

Image: Diagram showing key components of the SEYVUM C11 drill, including the 3/8 inch keyless chuck, 21 torque settings, LED light, variable speed trigger, forward/reverse switch, and 12V Max Li-Ion battery.

Nøglefunktioner:

• Børsteløs motor: Provides higher efficiency, longer runtime, and extended tool life compared to brushed motors.
• Kompakt og let design: Weighs only 1.7 pounds and measures 5.5 inches long, ideal for working in tight spaces and reducing user fatigue.
• 20+1 Torque Adjustment: Offers precise control for various materials and applications, preventing screw stripping. Maximum torque of 350 in-Lbs (40N.M).
• 2 variable hastighedsindstillinger: (0-450 RPM for screws driving, 0-1500 RPM for drilling) allows for optimal speed control.
• 3/8-tommer nøglefri borepatron: Til hurtige og nemme borskift.
• LED arbejdslys: Oplyser arbejdsområdet for forbedret udsyn.
• Frem/Baglæns kontakt: For driving and removing fasteners.
• Indikator for batterilevetid: Viser den resterende batteriopladning.

Billede: Udsnit view highlighting the powerful brushless motor, which offers longer life and higher torque.

5. Opsætning

5.1 Batteriopladning

The 12V Lithium-Ion battery requires approximately 1 hour for a full charge using the provided fast charger.

1. Connect the charger to a standard power outlet. The charger indicator light will show its status.
2. Plug the barrel connector of the charger into the charging port on the battery.
3. The indicator light on the charger will change to indicate charging status (e.g., red for charging, green for fully charged).
4. Once fully charged, disconnect the charger from the battery and the power outlet.

Image: Illustration of the 1-hour fast charging process for the SEYVUM C11 battery, showing the charger connected to the battery and the battery being inserted/removed from the drill.

5.2 Installation og fjernelse af batteri

1. Installation: Align the battery with the base of the drill handle and slide it in until it clicks securely into place.
2. Fjernelse: Press the two release buttons on the sides of the battery pack and pull the battery downwards to remove it from the drill.

5.3 Chuck Adjustment and Bit Installation

The SEYVUM C11 features a 3/8-inch keyless chuck for easy bit changes.

1. Åbn chuck: Rotate the chuck counter-clockwise until the jaws are wide enough to insert your desired drill bit or screwdriver bit.
2. Indsæt bit: Insert the bit into the chuck, ensuring it is centered and fully seated.
3. Spænd borepatronen: Rotate the chuck clockwise to securely tighten the jaws around the bit. Ensure the bit is firmly held to prevent slippage during operation.

Image: Visual guide on how to adjust the keyless chuck: factory status, drilling (clockwise rotation), and releasing (counter-clockwise rotation).

6. Betjeningsvejledning

6.1 Tænd/sluk og variabel hastighed

The drill is activated by pressing the variable speed trigger. The speed of rotation is controlled by the amount of pressure applied to the trigger. Releasing the trigger turns the drill off.

6.2 Frem/Baglæns kontakt

The forward/reverse switch is located above the trigger. Push the switch to the left for forward rotation (clockwise) for drilling and driving screws. Push it to the right for reverse rotation (counter-clockwise) for removing screws or freeing stuck bits. Ensure the switch is in the center position to lock the trigger and prevent accidental startup.

6.3 Momentjustering (koblingsindstillinger)

The 20+1 position clutch allows you to select the appropriate torque setting for your task, preventing over-driving screws or damaging materials. Rotate the numbered ring behind the chuck to adjust the torque. The higher the number, the greater the torque. The drill icon setting is for maximum torque, suitable for drilling.

Image: Close-up of the drill's torque adjustment ring, showing settings from 1 to 20 for driving screws into various materials like wood, marble, brick, and metal, plus a dedicated drill mode.

6.4 hastighedsvalg

The drill features a 2-speed gearbox. Use the switch on top of the drill to select between:

• Hastighed 1 (0-450 o/min): Lower speed, higher torque, ideal for driving screws and larger diameter drilling.
• Hastighed 2 (0-1500 o/min): Higher speed, lower torque, ideal for smaller diameter drilling in wood or metal.

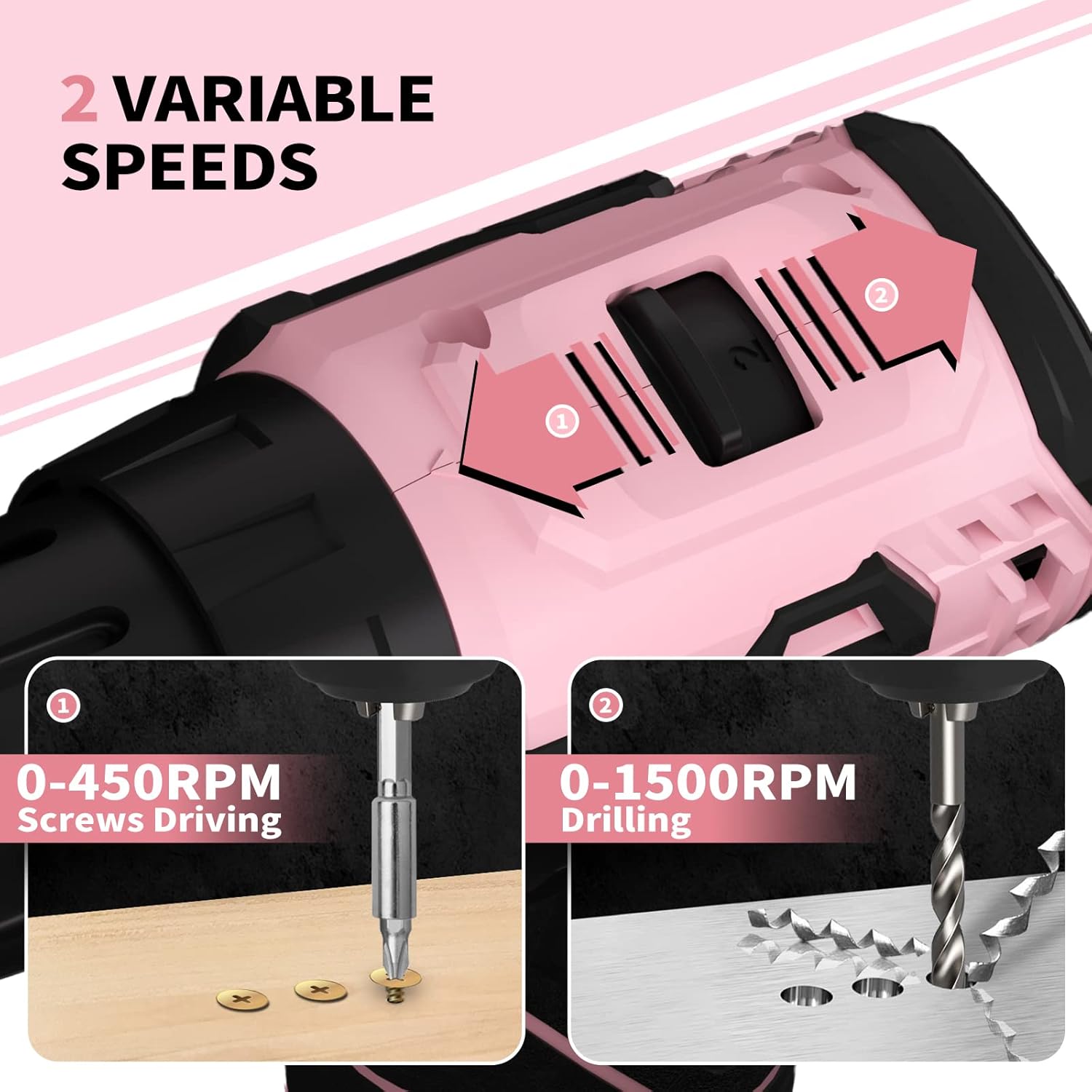

Image: Visual representation of the two variable speed settings: 0-450 RPM for screws driving and 0-1500 RPM for drilling.

6.5 Drilling and Driving Techniques

• Generel brug: Tryk konstant og jævnt. Brug ikke for meget kraft på boremaskinen.
• Screws Driving: Use lower speed (Speed 1) and adjust torque to prevent stripping.
• Træboring: Use appropriate wood drill bits. Higher speeds (Speed 2) are generally suitable.
• Metalboring: Use appropriate metal drill bits. Start with a pilot hole for larger bits. Use lower speeds (Speed 1) and apply cutting oil to prevent overheating.

6.6 Working in Tight and Dark Areas

The compact and lightweight design of the SEYVUM C11 allows for easy maneuverability in confined spaces. The integrated LED light illuminates the work surface, providing clear visibility when working in dimly lit environments.

Image: A person using the SEYVUM C11 drill, demonstrating its lightweight and ergonomic design for comfortable use.

7. Vedligeholdelse

7.1 Rengøring

Rengør boremaskinens ventilationsåbninger regelmæssigt for at forhindre overophedning. Brug en blød, tøramp klud til at tørre ydersiden af. Brug ikke skrappe kemikalier eller slibende rengøringsmidler.

7.2 Opbevaring

Store the drill and its accessories in the provided tool bag or original packaging in a dry, secure location away from direct sunlight and extreme temperatures. Ensure the battery is removed from the drill before storage.

7.3 Pleje af batterier

To maximize battery life, store the battery in a cool, dry place. Avoid fully discharging the battery before recharging. If storing for extended periods, charge the battery to approximately 50% capacity every few months.

8. Fejlfinding

• Boremaskine starter ikke: Ensure the battery is fully charged and properly installed. Check the forward/reverse switch is not in the locked (center) position.
• Reduceret effekt/ydelse: The battery may be low on charge. Recharge the battery. Ensure the correct speed and torque settings are selected for the task.
• Bit Slipping in Chuck: Ensure the chuck is tightened securely around the bit. The bit shank might be worn; replace if necessary.
• Overophedning: Allow the drill to cool down. Avoid continuous heavy-duty use. Ensure ventilation slots are clear.

9. Specifikationer

10. Garanti og support

SEYVUM provides lifetime technical support for the C11 Cordless Drill Set. For any questions, issues, or technical assistance, please contact SEYVUM customer service.
