Hidizs AP80 Pro-X MP3-afspiller brugermanual

1. Introduktion

The Hidizs AP80 Pro-X is a portable high-resolution digital audio player (DAP) designed for audiophiles seeking exceptional sound quality on the go. Featuring dual ESS9219C DAC chips and support for various lossless audio formats, it delivers a rich and immersive listening experience. This manual provides comprehensive instructions for setting up, operating, maintaining, and troubleshooting your AP80 Pro-X.

2. Produktet er slutview

Familiarize yourself with the components and features of your Hidizs AP80 Pro-X.

Figure 2.1: Hidizs AP80 Pro-X MP3 Player (Blue variant)

This image displays the Hidizs AP80 Pro-X MP3 player, showcasing its compact design and the user interface on the screen. The device is presented in a vibrant blue color, highlighting its sleek form factor and the prominent volume knob on the side.

Nøglefunktioner:

• Dual ESS9219C DAC Chips: For high-fidelity audio processing.
• Precise FPGA Chip (HBC3000): Ensures native DSD 64/128/256 support.
• MQA 8X Unfold: Supports Master Quality Authenticated files.
• Bidirectional Bluetooth 4.2: With CSR APT-X and Sony LDAC support.
• 2.45" Samsung IPS HD Touchscreen: For intuitive navigation.
• 3.5mm and 2.5mm Outputs: Versatile headphone connectivity.
• Multifunktionel: Includes step counter and e-book reader capabilities.
• Lang ventetid: Op til 40 dage.

3. Opsætning

3.1 Udpakning og første inspektion

Upon receiving your AP80 Pro-X, carefully open the packaging and inspect all contents. The box should include:

• Hidizs AP80 Pro-X MP3 Player
• Brugermanual
• Garantikort
• Skærmbeskytter (x2)
• Type-C to Type-C OTG Cable
• Type-C kabel

3.2 Opladning af enheden

Before first use, fully charge the AP80 Pro-X. Connect the provided Type-C cable to the device's Type-C port and the other end to a USB power adapter (not included) or a computer's USB port. The charging indicator will show the charging status. A full charge typically takes about 1 hour.

3.3 Indsættelse af et Micro SD-kort

The AP80 Pro-X does not have internal storage for music files. A Micro SD card (up to 512GB, 1TB confirmed by users) is required. Locate the Micro SD card slot on the side of the device. Gently insert the Micro SD card until it clicks into place. To remove, push the card in slightly until it springs out.

Figure 3.1: Expandable Storage for Endless Music

This image illustrates the Hidizs AP80 Pro-X with a Micro SD card, emphasizing its expandable storage capability up to 512GB. The visual highlights how users can easily insert a Micro SD card to store a vast music library.

3.4 Overførsel af musik Files

Connect the AP80 Pro-X to your computer using the provided Type-C cable. The device will appear as a removable storage drive. Drag and drop your music files (e.g., FLAC, WAV, MP3, DSD, MQA) onto the Micro SD card. After transferring, safely eject the device from your computer. On the AP80 Pro-X, navigate to the settings and select "Update Database" to scan for new music files.

4. Betjeningsvejledning

4.1 Tænd/sluk

To power on, press and hold the power button (usually the volume knob) until the screen lights up. To power off, press and hold the power button until the power-off options appear, then select "Power Off".

4.2 Navigering i brugerfladen

The AP80 Pro-X features a 2.45-inch Samsung IPS HD touchscreen for navigation. You can also use the physical buttons and the ALPS volume wheel for control.

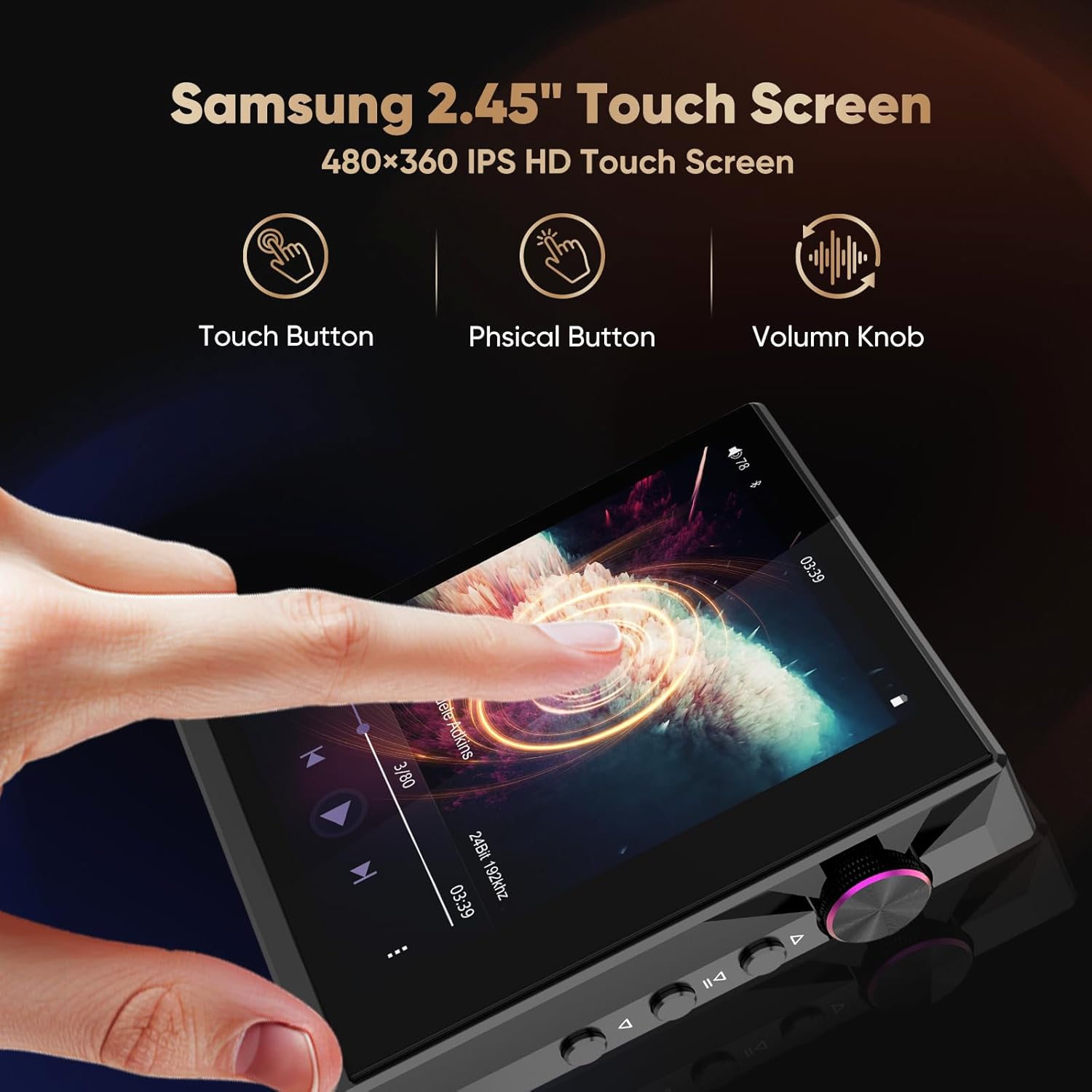

Figure 4.2: Samsung 2.45" Touch Screen and Controls

This image demonstrates the interactive elements of the Hidizs AP80 Pro-X, including its 2.45-inch Samsung IPS HD touch screen, physical buttons for playback control, and the precise volume knob. It illustrates how users can interact with the device for seamless operation.

4.3 Afspilning af musik

From the main menu, select the "Player" icon. You can browse your music library by artist, album, genre, or folder. Tap on a song to play it. Use the physical playback buttons (Previous, Play/Pause, Next) or the on-screen controls.

Figure 4.3: Supported Wide AudioFile Format

This image highlights the extensive range of audio file formats supported by the Hidizs AP80 Pro-X, including DSD, WAV, FLAC, MP3, WMA, AIFF, OGG, AAC, and MQA. It visually confirms the player's versatility in handling various high-resolution and standard audio formats.

4.4 Bluetooth-forbindelse

The AP80 Pro-X supports bidirectional Bluetooth 4.2 with CSR APT-X and Sony LDAC. This allows it to act as a Bluetooth audio source (connecting to headphones/speakers) or a Bluetooth DAC AMP (receiving audio from a smartphone/PC).

• Connecting to Bluetooth Headphones/Speakers: Go to Bluetooth settings, enable Bluetooth, and scan for devices. Select your device to pair.
• Using as a Bluetooth DAC AMP: Enable Bluetooth on your smartphone/PC and pair with the AP80 Pro-X. Select the AP80 Pro-X as the audio output device on your source.

Figure 4.4: Two-way 4.2 Bluetooth Connectivity

This image illustrates the two-way Bluetooth 4.2 capabilities of the Hidizs AP80 Pro-X, showing its ability to connect to smartphones, Bluetooth headphones, in-car Bluetooth stereos, and Bluetooth speakers. It highlights the support for HiBy UAT, Sony LDAC, and CSR APT-X for high-quality wireless audio transmission.

4.5 USB DAC-funktionalitet

The AP80 Pro-X can function as an external DAC AMP for your computer or smartphone, enhancing audio quality. Connect the device to your computer (macOS 10.7+, Windows XP/7/8/10+) or smartphone (iPad OS, Android) using the Type-C cable. Select the AP80 Pro-X as the audio output device in your system settings.

Figure 4.5: Bidirectional USB DAC

This image demonstrates the Hidizs AP80 Pro-X connected to both a smartphone and a laptop via USB, illustrating its bidirectional USB DAC functionality. It shows how the device can enhance audio quality for mobile and PC devices, providing noise-free performance with its own battery power.

4.6 Other Functions (Step Counter, E-book)

The AP80 Pro-X includes additional features accessible from the main menu:

• Trintæller: Track your daily steps and activity.
• E-bogslæser: Read e-books directly on the device's screen.

Figure 4.6: Multi-function Meets Your Usage Scenarios

This image highlights the multi-functional capabilities of the Hidizs AP80 Pro-X, specifically showcasing its built-in step counter and e-book reader features. It visually represents how the device can serve various user needs beyond just music playback.

5. Vedligeholdelse

5.1 Rengøring

To clean the device, use a soft, dry, lint-free cloth. For stubborn smudges, slightly dampen the cloth with water. Avoid using harsh chemicals, abrasive cleaners, or solvents, as these can damage the screen and finish.

5.2 Opbevaring

When not in use for extended periods, store the AP80 Pro-X in a cool, dry place away from direct sunlight and extreme temperatures. It is recommended to charge the device to about 50% before long-term storage to preserve battery health.

5.3 Skærmbeskyttelse

The device comes with two screen protectors. Apply one to protect the screen from scratches and smudges. Replace it if it becomes worn or damaged.

6. Fejlfinding

6.1 Almindelige problemer og løsninger

If the issue persists, please refer to the official Hidizs support resources or contact customer service.

7. Specifikationer

8. Garanti og support

8.1 Garantioplysninger

Your Hidizs AP80 Pro-X MP3 Player is covered by a manufacturer's warranty. Please refer to the included Warranty Card for specific terms, conditions, and duration of the warranty. Keep your proof of purchase for warranty claims.

8.2 Kundesupport

For technical assistance, troubleshooting beyond this manual, or warranty inquiries, please contact Hidizs customer support. You can find contact information on the official Hidizs website or the Warranty Card.

Visit the official Hidizs Store for more information: Hidizs Official Store
