1. Introduktion
Thank you for choosing the Yaheetech Metal Bed Frame. This manual provides detailed instructions for the safe assembly, operation, and maintenance of your new bed frame. Please read all instructions carefully before beginning assembly and retain this manual for future reference.
Image 1.1: Fully assembled Yaheetech Metal Bed Frame.
2. Sikkerhedsoplysninger
For at sikre sikker brug af dette produkt, bedes du overholde følgende advarsler:
- Vægtgrænse: Overskrid ikke den maksimale vægtkapacitet for 136 kg (300 lbs). Overloading may cause structural failure and injury.
- Korrekt samling: Ensure the bed frame is correctly and securely assembled according to the instructions to prevent instability or tipping.
- Klemmepunkter: Be cautious of potential pinch points and sharp edges during assembly and use. Keep hands clear of moving parts.
- Børn: Hold små dele og emballagematerialer væk fra børn for at forhindre kvælningsfare.
- Regelmæssig kontrol: Kontrollér regelmæssigt alle bolte og forbindelser for at sikre, at de forbliver stramme. Efterspænd efter behov.
- Plan overflade: Always place the bed frame on a flat, level surface to ensure stability.
3. Pakkens indhold
Før montering skal du kontrollere, at alle komponenter er til stede og ubeskadigede. Hvis der mangler eller er beskadigede dele, bedes du kontakte kundesupport.
(A detailed parts list is typically included with the physical product. Please refer to the diagram and list provided in your product packaging.)
4. Monteringsvejledning
Follow these steps carefully to assemble your Yaheetech Metal Bed Frame. It is recommended to have two people for assembly.
- Udpak og identificer dele: Carefully unpack all components and lay them out on a clean, soft surface (e.g., a carpet) to prevent scratches. Identify each part using the provided parts list.
- Saml hovedgærdet og fodgærdet: Connect the vertical and horizontal bars of the headboard and footboard sections. Ensure all connections are secure but do not fully tighten bolts until the entire frame is assembled.
- Fastgør sideskinner: Connect the side rails to the assembled headboard and footboard sections. Align the holes and insert bolts, hand-tightening them for now.
- Installer støtteben: Attach any central support legs to the main frame as indicated in your specific product diagram.
- Indsæt lameller: Place the metal slats into the designated slots or hooks on the side rails. Ensure each slat is properly seated and secured. Some slats may require aiming the iron pipe at a notch and pressing firmly to fix into place.
- Endelig stramning: Once all components are in place and aligned, systematically tighten all bolts and screws using the provided tool. Do not overtighten.
- Tjek stabilitet: Ryst forsigtigt den samlede sengeramme for at sikre, at den er stabil, og at alle forbindelser er sikre.
Image 4.1: Aiming the iron pipe at the notch during slat installation.
Image 4.2: Pressing firmly to secure the slat.
Image 4.3: Built-in slats designed to prevent mattress sliding.
5. Brugsanvisning (brug)
Your Yaheetech Metal Bed Frame is designed for use with a 90x190cm mattress. Simply place your mattress directly onto the assembled metal slat base. The robust metal construction and integrated slats provide stable support for your mattress, promoting good air circulation.
The bed frame features a high headboard, allowing for comfortable back support when reading or watching television in bed. The 32 cm clearance between the floor and the bed base provides ample under-bed storage space for boxes, luggage, or other items.
Image 5.1: Illustration of the 32 cm under-bed storage space.
6. Vedligeholdelse
To maintain the longevity and appearance of your bed frame, follow these simple maintenance guidelines:
- Rensning: Tør metalrammen af med en blød kludamp cloth. Avoid using harsh chemicals or abrasive cleaners, as these can damage the powder-coated finish.
- Regelmæssig inspektion: Periodically inspect all bolts, screws, and connections to ensure they are tight. Retighten any loose fasteners to maintain stability.
- Undgå fugt: Keep the bed frame in a dry environment to prevent rust.
- Beskyttende puder: The frame is equipped with protective pads on the legs. Ensure these are intact to prevent scratching floors.
Image 6.1: Key features including protective pads and metal tube construction.
7. Fejlfinding
Hvis du støder på problemer med din sengeramme, kan du se følgende almindelige problemer og løsninger:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Sengerammen er vaklende eller ustabil. | Løse bolte eller ujævnt gulv. | Ensure all bolts are securely tightened. Move the bed to a level surface or use shims under legs if necessary. |
| Knirkende lyde. | Løse forbindelser eller friktion mellem metaldele. | Retighten all bolts. Apply a small amount of lubricant (e.g., silicone spray) to connection points if squeaking persists. |
| Madras glider på rammen. | Mattress not properly seated or lack of friction. | Ensure the mattress is centered on the slats. The built-in slats are designed to minimize sliding; if issues persist, consider a non-slip mat between the mattress and slats. |
8. Specifikationer
Detailed specifications for the Yaheetech Metal Bed Frame (Model: 613687):
| Feature | Detalje |
|---|---|
| Mærke | Yaheetech |
| Modelnummer | 613687 |
| Farve | Sort |
| Materiale | Metal |
| Finish Type | Pulverlakering |
| Overordnede mål (L x B x H) | 198.5 x 96.5 x 82.5 cm (78.1 x 38 x 32.5 tommer) |
| Kompatibel madrasstørrelse | 90 x 190 cm (Single) |
| Udsalg under sengen | 32 cm (12.6 tommer) |
| Varens vægt | 12 kg (26.5 lbs) |
| Maksimal vægtkapacitet | 136 kg (300 lbs) |
| Særlige funktioner | Squeak-resistant, Light-resistant |
| Komponenter inkluderet | Headboard, Footboard, Side Rails, Slats, Support Legs |

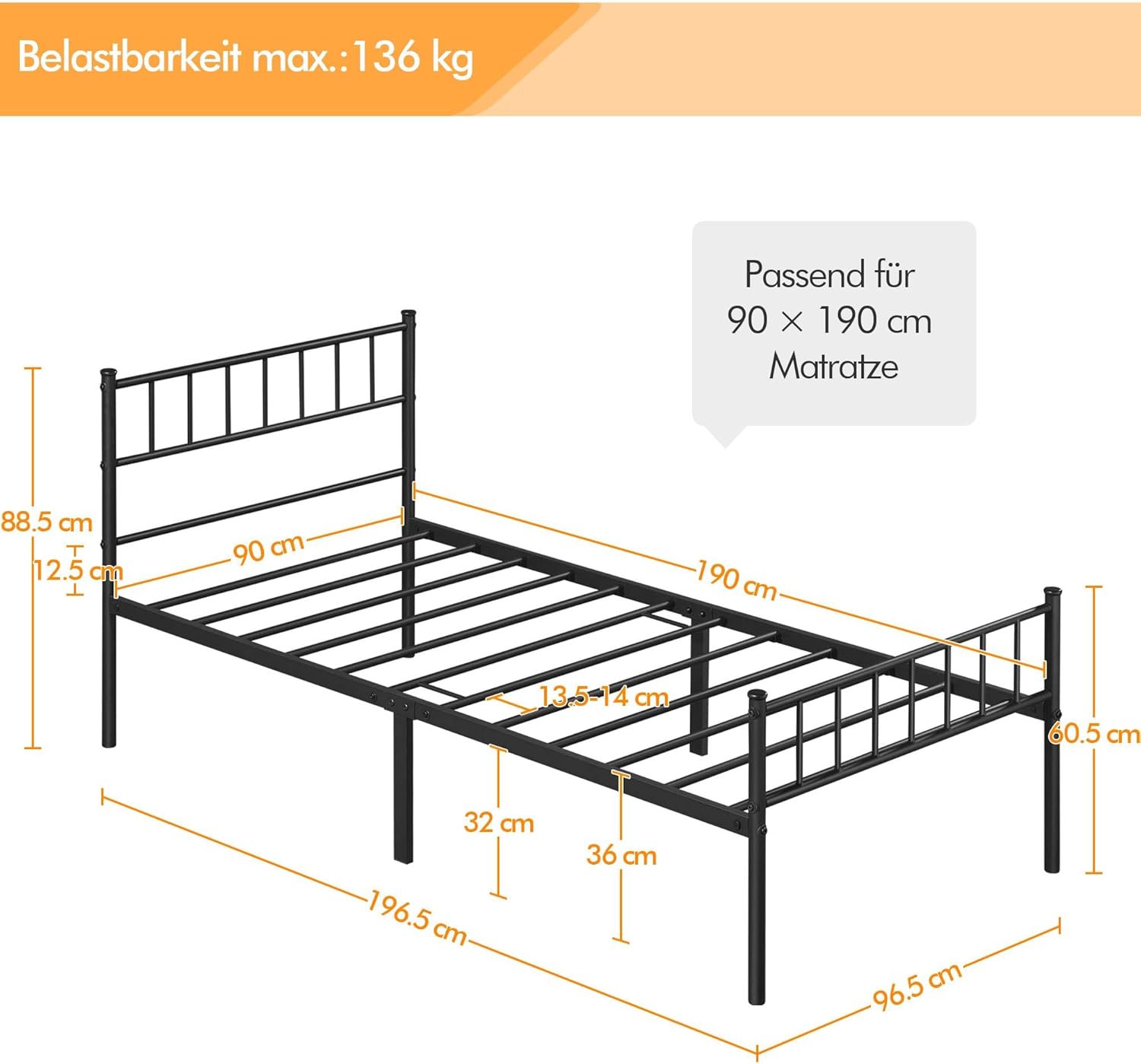

Image 8.1: Dimensional diagram of the bed frame.
9. Garanti og support
For warranty information or if you require assistance with your Yaheetech Metal Bed Frame, please contact Yaheetech customer service through your purchase platform or the official Yaheetech webwebsted. Hav venligst dit modelnummer (613687) og købsoplysninger klar, når du kontakter support.
