Brugermanual til EV Rider automatisk foldbar 4-hjulet mobilitetsscooter

Indledning

Thank you for choosing the EV Rider Automatic Folding 4-Wheel Mobility Scooter, Model S26. This manual provides essential information for the safe and efficient operation, maintenance, and care of your scooter. Please read this manual thoroughly before operating the scooter to ensure proper use and to maximize its lifespan.

The EV Rider TeQno mobility scooter is designed for enhanced maneuverability and stability, featuring revolutionary laser guidance light beams for improved safety in various environments. Its automatic folding mechanism offers unparalleled convenience for transport and storage.

Sikkerhedsoplysninger

WARNING: Failure to follow these safety instructions could result in injury or damage to the scooter.

• Always operate the scooter on stable, level surfaces. While designed for uneven terrain, exercise caution.
• Overskrid ikke den maksimale lastekapacitet på 113 kg.
• Sørg for, at batteriet er fuldt opladet før længere tids brug.
• Avoid operating the scooter in heavy rain or through standing water.
• Always use the laser guidance lights in low-light conditions or when navigating tight spaces to assess clearance.
• Keep hands and clothing clear of moving parts, especially during the automatic folding process.
• Consult a healthcare professional if you have any medical conditions that might affect your ability to operate a mobility scooter safely.
• Armrests are sold separately. If installed, ensure they are securely fastened before use.

Opsætning

Udpakning og første inspektion

Carefully remove all components from the packaging. Inspect the scooter for any signs of damage that may have occurred during shipping. If any damage is found, contact your dealer immediately.

Folder scooteren ud

The EV Rider TeQno features an automatic folding mechanism. To unfold:

1. Placer den sammenfoldede scooter på en flad, stabil overflade.
2. Sørg for, at strømmen er slukket.
3. Locate the key fob or the automatic folding button on the scooter's control panel.
4. Press and hold the unfold button until the scooter is fully extended and locked into place.

Figure 1: The EV Rider TeQno Mobility Scooter in its fully unfolded, ready-to-use state. This image shows the seat, tiller, and four wheels.

Opladning af batteriet

Before first use, fully charge the lithium battery. The charging time is approximately 8 hours.

1. Find ladeporten på scooteren.
2. Tilslut opladeren til scooterens opladningsport.
3. Sæt opladeren i en almindelig stikkontakt.
4. The charging indicator light on the charger will change color (e.g., red to green) when charging is complete.
5. Afbryd opladeren, når opladningen er fuldført.

Betjeningsvejledning

Start og stop

• To start the scooter, ensure the smart key fob is within range or use the designated power button.
• To stop, release the throttle control. The electromagnetic brake will engage automatically.

Kørekontrol

The scooter is operated via a tiller-mounted control panel. Familiarize yourself with the throttle lever, speed adjustment dial, and horn button.

Using Laser Guidance Lights

The TeQno scooter is equipped with unique laser guidance light beams to assist with navigation and obstacle avoidance.

1. Sørg for, at scooteren er tændt.
2. Locate the laser activation button on the control panel.
3. Press the button to activate the laser beams. These beams project forward, indicating the scooter's path and helping you gauge clearance in tight spaces or around obstacles.
4. Press the button again to deactivate the lasers when not needed.

Automatic Folding

Sådan foldes scooteren sammen til transport eller opbevaring:

1. Ensure the scooter is powered off and on a flat surface.
2. Locate the key fob or the automatic folding button on the scooter's control panel.
3. Press and hold the fold button until the scooter is fully collapsed.

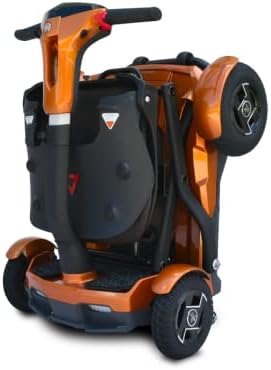

Figure 2: The EV Rider TeQno Mobility Scooter in its compact, folded configuration, viewed forfra.

Figur 3: Side view of the EV Rider TeQno Mobility Scooter in its folded state, highlighting its compact profile til opbevaring eller transport.

Opretholdelse

Rensning

Rengør løbehjulet regelmæssigt med reklameamp cloth and mild detergent. Avoid using abrasive cleaners or direct water spray, which can damage electrical components.

Batteripleje

• Charge the battery after each use, even if only for a short period.
• If storing the scooter for an extended period, charge the battery at least once a month to maintain its health.
• Opbevar batteriet på et køligt, tørt sted.

Dæktryk

Periodically check the pneumatic tires for proper inflation. Refer to the tire sidewall for recommended pressure. Proper tire pressure ensures optimal performance and range.

Generel inspektion

Regularly inspect all nuts, bolts, and fasteners to ensure they are tight. Check for any signs of wear or damage to cables, connections, and structural components. If you notice any issues, contact a qualified service technician.

Fejlfinding

If you encounter a problem not listed here, or if the suggested solutions do not resolve the issue, please contact EV Rider customer support or an authorized service center.

Specifikationer

Garanti og support

For warranty information, please refer to the warranty card included with your purchase or visit the official EV Rider webwebsted. Gem din købsbevis til garantikrav.

For technical support, parts, or service inquiries, please contact your authorized EV Rider dealer or EV Rider customer service directly. Provide your model number (S26) and serial number when contacting support.

Note: Armrests are sold separately and are not included with the standard scooter package.
