iRobot Roomba i1+ (i155220) Selvtømmende Robotstøvsuger Brugsanvisning

1. Introduktion

The iRobot Roomba i1+ (i155220) is a self-emptying robot vacuum designed to automate floor cleaning. It features intelligent navigation, powerful suction, and a Clean Base Automatic Dirt Disposal system, allowing the robot to empty its own dust bin for extended periods.

This manual provides essential information for setting up, operating, maintaining, and troubleshooting your Roomba i1+ robot vacuum.

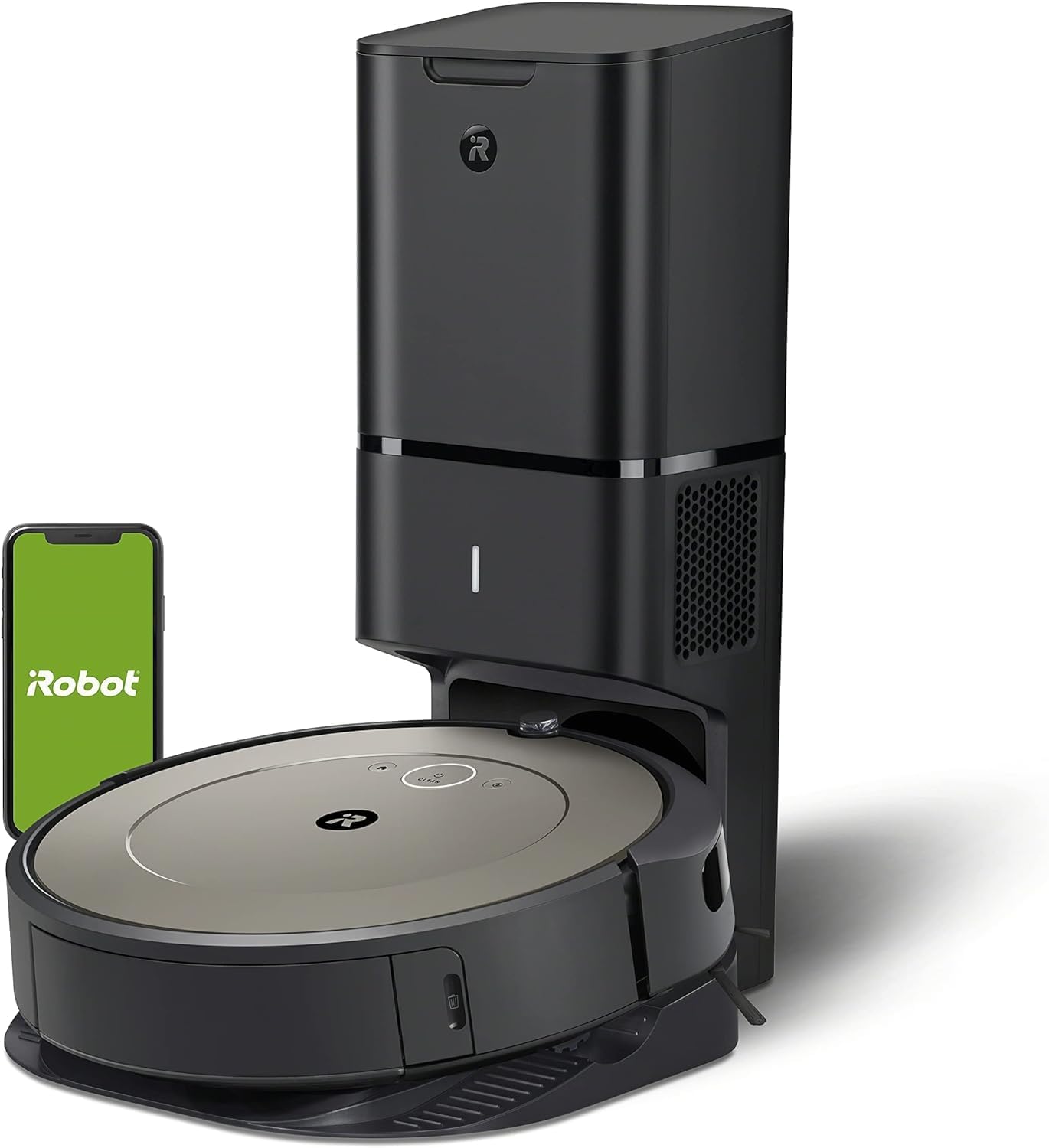

Image 1: The Roomba i1+ robot vacuum docked with its Clean Base Automatic Dirt Disposal unit.

2. Pakkens indhold

• iRobot Roomba i1+ Robotstøvsuger
• Clean Base automatisk snavs bortskaffelse
• 1 Dirt Disposal Bag (pre-installed in Clean Base)
• Linjeledning
• Brugervejledning (dette dokument)

3. Opsætning

1. Place the Clean Base: Select a location for the Clean Base that is near a wall outlet and on a level surface. Ensure there is clear space around the base (at least 1.5 feet on each side and 4 feet in front).
2. Tilslut: Connect the line cord to the Clean Base and then to a wall outlet. The indicator light on the Clean Base will illuminate.
3. Oplad robotten: Place the Roomba robot onto the Clean Base charging contacts. The robot will power on and begin charging. Allow at least 3 hours for a full charge before first use.
4. Download iRobot Home-appen: For full functionality, download the iRobot Home app on your smartphone or tablet. Follow the in-app instructions to connect your Roomba i1+ to your Wi-Fi network. The app enables scheduling, cleaning preferences, and provides access to additional features.

4. Betjeningsvejledning

Start på et rengøringsjob

• Manuel start: Press the CLEAN button on the robot once to wake it up, then press CLEAN again to start a cleaning cycle.
• Brug af iRobot Home-appen: Open the app and select 'CLEAN' to start a cleaning job. You can also set up cleaning schedules and customize cleaning preferences through the app.

Pause og genoptage

• To pause the robot during a cleaning cycle, press the CLEAN button.
• To resume, press the CLEAN button again.

Ending a Cleaning Job / Sending Home

• To send the robot back to its Clean Base during a cleaning cycle, press the CLEAN button and hold it for 2-3 seconds.
• Alternatively, use the 'Home' button in the iRobot Home app.

Nøglefunktioner

• Intelligent navigation: The Roomba i1+ uses floor tracking sensors to clean in neat, efficient rows.
• Snavsdetekteringsteknologi: The robot identifies and focuses on dirtier areas of your home for a more thorough clean.
• Automatisk bortskaffelse af snavs: The robot automatically empties its dust bin into the Clean Base, which holds up to 60 days of debris.

5. Vedligeholdelse

Regular maintenance ensures optimal performance of your Roomba i1+ robot vacuum.

Clean Base automatisk snavs bortskaffelse

• Replace Dirt Disposal Bag: The Clean Base bag should be replaced approximately every 60 days, or when the indicator light on the Clean Base turns solid red. To replace, lift the lid, pull up on the bag tab to remove, and insert a new bag.

Image 2: The Clean Base Automatic Dirt Disposal system actively transferring debris from the robot's bin into a sealed bag.

Robot vedligeholdelse

• Rene børster: Regularly remove hair and debris from the multi-surface rubber brushes. Pinch the brush frame release tabs, lift the frame, and remove the brushes.
• Rens filter: Remove the filter from the robot's dust bin and tap it against a trash can to clear debris. Replace the filter every 2-3 months.
• Clean Caster Wheel: Pull firmly on the front caster wheel to remove it. Clear any hair or debris from the wheel and its housing.
• Rengør sensorer: Wipe the charging contacts on the robot and Clean Base, as well as the cliff sensors and dirt detect sensors on the robot's underside, with a clean, dry cloth.

6. Fejlfinding

If your Roomba i1+ encounters an issue, the robot will play an audible alert and the indicator light will flash. Consult the iRobot Home app for specific error messages and troubleshooting steps.

Almindelige problemer og løsninger:

• Robotten oplader ikke: Ensure the Clean Base is plugged in and the robot is properly aligned on the charging contacts. Clean the charging contacts on both the robot and the Clean Base.
• Forbindelsesproblemer (Wi-Fi): Verify your Wi-Fi network is active. Restart your router, then attempt to reconnect the robot via the iRobot Home app. Ensure the robot is within Wi-Fi range.
• Robot Not Emptying: Check if the dirt disposal bag in the Clean Base is full or improperly installed. Ensure the Clean Base's suction port is clear of obstructions.
• Dårlig rengøringsevne: Clean the multi-surface brushes, filter, and caster wheel. Ensure the robot's dust bin is not full (though it should self-empty).
• Robot Stuck/Error Messages: Clear any obstacles from the robot's path. If an error persists, try rebooting the robot by holding the CLEAN button for 10 seconds until the light ring turns white, then release.

7. Specifikationer

8. Garanti og support

For information regarding your product's warranty, please refer to the warranty card included in your product packaging or visit the official iRobot webGarantibetingelserne kan variere afhængigt af region og forhandler.

If you require technical assistance, have questions about your product, or need to order replacement parts, please contact iRobot Customer Care. Support contact information can typically be found on the iRobot website or within the iRobot Home app.

When contacting support, please have your robot's serial number and proof of purchase available.
