Newgoal 2-Channel WiFi Wireless Smart Switch User Manual

1. Produktet er slutview

The Newgoal 2-Channel WiFi Wireless Smart Switch is a versatile relay module designed for smart home automation. It supports both momentary (inching) and self-locking work modes, allowing remote control of connected home appliances or power circuits via the Tuya/Smart Life mobile application. This module also features 433MHz RF remote control compatibility, providing flexible control options. It is compatible with popular voice assistants like Amazon Alexa and Google Home.

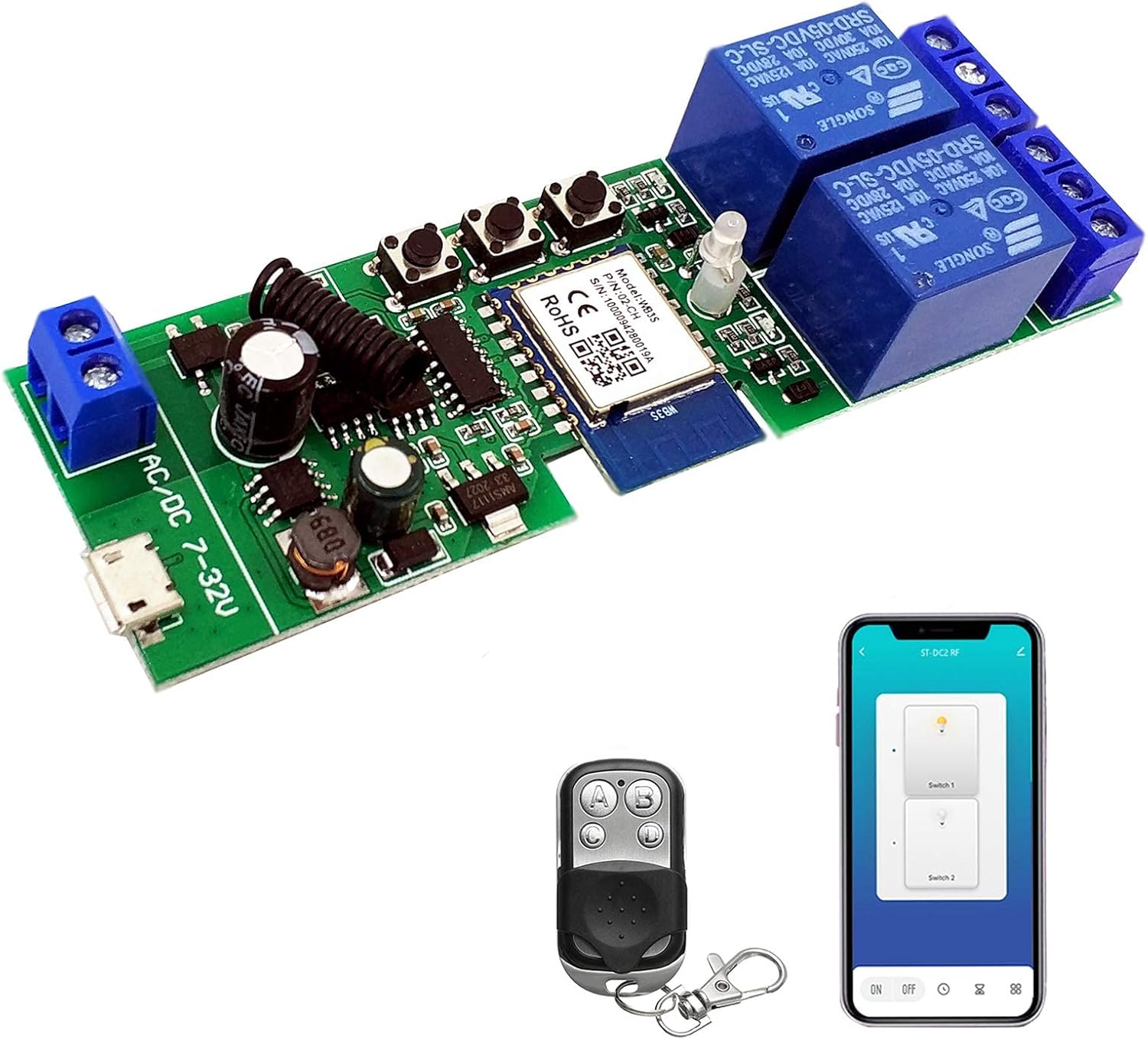

Figure 1: Newgoal 2-Channel WiFi Wireless Smart Switch module, accompanied by its 433MHz RF remote control and a smartphone displaying the Tuya/Smart Life app interface.

2. Produktfunktioner

• Dobbelt kontrol: Control devices remotely via Tuya/Smart Life APP (Android/iOS) and locally with a 433MHz RF remote control.
• Stemmestyring: Kompatibel med Amazon Alexa og Google Home for praktiske stemmekommandoer.
• Flere driftstilstande: Supports Momentary (Inching), Self-locking, and Interlock modes for diverse applications.
• Smart Home Integration: DIY smart lighting, fans, garage doors, humidifiers, thermostats, and more.
• App funktioner: Schedule timing, device sharing, and group management available through the Tuya/Smart Life app.
• Fleksibel strømindgang: Can be powered by USB 5V or AC/DC 7-32V.
• 2.4GHz Wi-Fi Support: Connects to your existing 2.4G Wi-Fi network (5G Wi-Fi and Mesh Wi-Fi systems are not supported).

Figur 2: Overview of key features including momentary button, three working modes, smart timer, share control, Google Home/Amazon Alexa compatibility, 433RF control, and WiFi control.

3. Pakkens indhold

Når du åbner pakken, skal du kontrollere, at alle følgende varer er inkluderet:

• 1 x WiFi Relay Module (2-channel)
• 1 x 433 MHz RF Remote Control
• 1 x brugermanual

Figure 3: The Newgoal Smart Switch module, its 433MHz RF remote control, and the included user guide, as typically found in the product packaging.

4. Specifikationer

5. Opsætningsvejledning

5.1 Komponentidentifikation

Figur 4: Detaljeret view of the Newgoal Smart Switch module, highlighting key components such as relays, LEDs, Wi-Fi antenna, 433RF receiver, input terminals, and control buttons.

• Power Input (Input1 Micro USB 5V/500mA or Input2 AC/DC 7-32V/500mA): Connect your power supply here.
• Relay Outputs (NC, COM, NO): Connect your devices to be controlled. NC (Normally Closed), COM (Common), NO (Normally Open).
• CH1 ON-OFF LED / CH2 ON-OFF LED: Indicate the status of each relay.
• WiFi-LED: Indikerer Wi-Fi-forbindelsesstatus.
• RF Pairing Button 1 / Manual Switch 1 / Setting Button: Used for RF pairing and manual control of Channel 1.
• RF Pairing Button 2 / Manual Switch 2 / Setting Button: Used for RF pairing and manual control of Channel 2.
• Momentary/Self-lock/Interlock Modes Toggle Button: Press to cycle through the operating modes.

5.2 Ledningsinstruktioner

Vigtig: Ensure power is disconnected before performing any wiring. Incorrect wiring can damage the device or connected appliances.

• The relay outputs (NC, COM, NO) act as switches and do not provide power output. The power supply input (AC/DC) is solely for powering the module's PCBA.
• Connect the power supply (5V USB or 7-32V AC/DC) to the appropriate input terminals.
• Connect the device you wish to control to the relay terminals. For example, to control a light, connect one wire from the light to the COM terminal and the other wire to either NO (Normally Open) or NC (Normally Closed) depending on your desired default state.

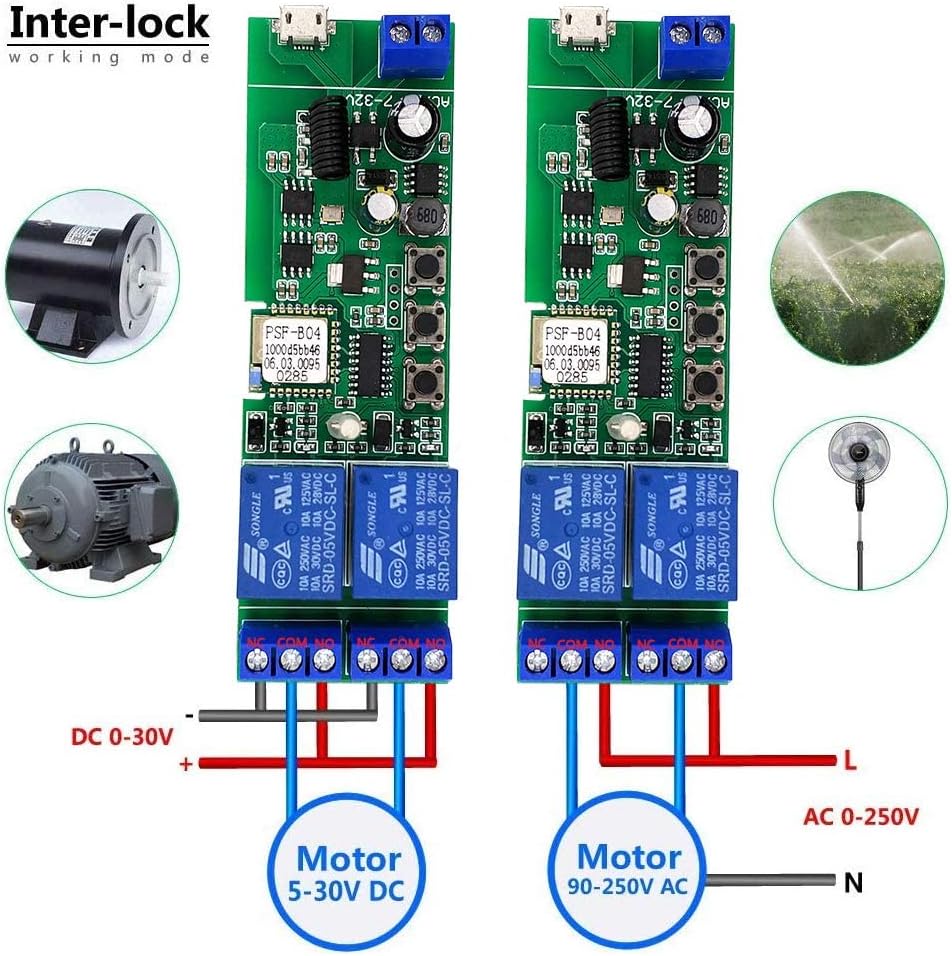

Figur 5: Eksample wiring diagrams for the interlock working mode, demonstrating connections for both DC motors (5-30V DC) and AC motors (90-250V AC).

5.3 App Download and Wi-Fi Pairing

1. Download app: Søg efter "Tuya Smart" or "Smart Life" in your mobile app store (Google Play for Android, App Store for iOS) and install it.
2. Registrer/Log ind: Åbn appen, og opret en ny konto, eller log ind, hvis du allerede har en.
3. Tænd enhed: Connect the Newgoal Smart Switch to a power source. The Wi-Fi LED should start blinking. If not, press and hold the "Momentary/Self-lock/Interlock Modes Toggle Button" for approximately 5 seconds until the Wi-Fi LED blinks rapidly.
4. Tilføj enhed: In the Tuya/Smart Life app, tap the "+" icon in the top right corner to add a device. Select "Auto Scan" or manually add the device under "Electrical" -> "Switch (Wi-Fi)".
5. Opret forbindelse til 2.4GHz Wi-Fi: Ensure your smartphone is connected to a 2.4GHz Wi-Fi network. The device does not support 5GHz Wi-Fi or Mesh Wi-Fi systems. Enter your Wi-Fi password in the app.
6. Parring: Follow the on-screen instructions in the app. Keep the device close to your Wi-Fi router during the pairing process. Once successfully paired, the Wi-Fi LED will stop blinking and remain solid.
7. Omdøb enhed: After successful pairing, you can rename the device and individual channels within the app for easier identification.

6. Driftstilstande

The module supports three distinct operating modes. You can switch between these modes by pressing the "Momentary/Self-lock/Interlock Modes Toggle Button" on the board.

6.1 Momentary (Inching) Mode

• In this mode, the relay will turn on for a brief period (default 1 second) and then automatically turn off.
• Ideal for applications like garage door openers or electric gate controls where a short pulse is required.
• You can configure the inching time within the Tuya/Smart Life app.

6.2 Self-locking Mode

• In self-locking mode, pressing the button (either on the app or the manual button on the board) will toggle the relay's state.
• If the relay is off, pressing the button turns it on, and it stays on until the button is pressed again.
• Suitable for controlling lights or other devices that need to remain on or off until manually changed.

6.3 Interlock Mode

• This mode is typically supported by 2-gang and 4-gang modules (this is a 2-gang module).
• When one relay is turned on, all other relays in the group are automatically turned off.
• Primarily used for controlling AC/DC motors, ensuring only one direction of movement is active at a time.

7. RF Remote Control Pairing

The module can learn up to 14 different 433MHz fixed/learning codes per channel. It does not support encrypted or rolling codes.

1. Til parring: Press and hold the desired "RF Pairing Button / Manual Switch" (Button 1 for Channel 1, Button 2 for Channel 2) on the module for approximately 3 seconds. The corresponding LED will blink, indicating it's in pairing mode. Then, press a button on your 433MHz RF remote control. The LED on the module will stop blinking, confirming successful pairing.
2. To Clear RF Codes: Press and hold the desired "RF Pairing Button / Manual Switch" on the module for approximately 15 seconds. The corresponding LED will blink rapidly and then turn off, indicating all learned RF codes for that channel have been cleared.

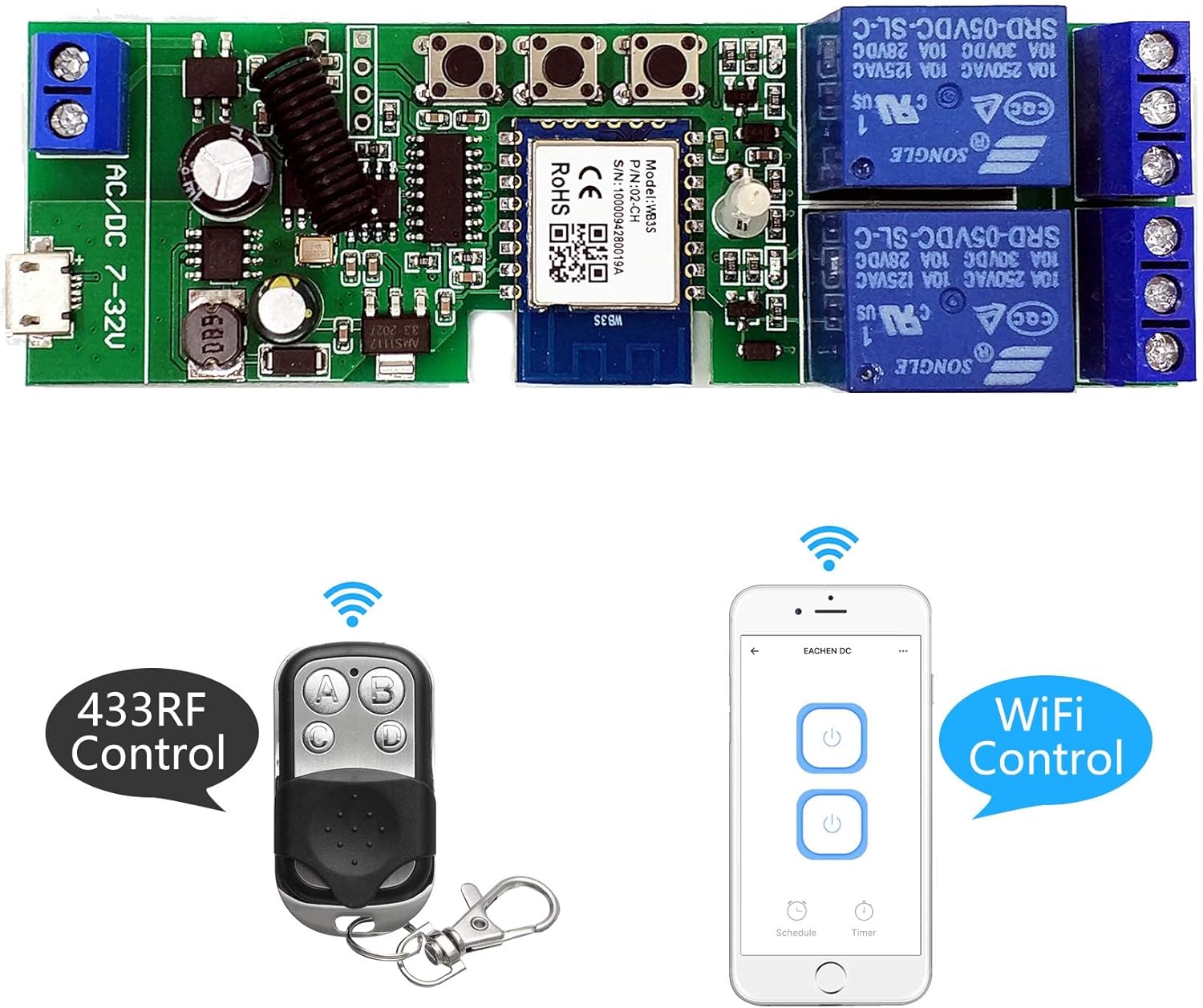

Figure 6: The Newgoal Smart Switch module demonstrating both 433MHz RF remote control and Wi-Fi app control capabilities.

8. Vedligeholdelse

• Opbevar enheden et tørt sted, væk fra fugt og ekstreme temperaturer.
• Avoid exposing the module to direct sunlight or corrosive substances.
• Kontrollér regelmæssigt ledningsforbindelserne for at sikre, at de er sikre.
• Rengør enheden med en blød, tør klud. Brug ikke flydende rengøringsmidler.
• Ensure firmware is updated via the Tuya/Smart Life app for optimal performance and security.

9. Fejlfinding

10. Garanti og support

This product comes with a standard return policy allowing for refund or replacement within 30 days of purchase, as per Amazon's policy. For technical support, troubleshooting assistance beyond this manual, or warranty claims, please contact the seller directly through your Amazon order history. Provide your order number and a detailed description of the issue for prompt assistance.

Sælger: Newgoal-US

For further information or updates, please refer to the product page on Amazon or the official Newgoal webwebsted.
