RovyVon Angel Eyes E1 genopladelig EDC-lommelygte brugermanual

1. Introduktion

The RovyVon Angel Eyes E1 is a compact and versatile Everyday Carry (EDC) flashlight designed for reliability and convenience. It features a unique dual-power system, allowing operation with both an internal LiPo battery and an external AAA battery. With USB-C recharging and a dual-button interface, the E1 offers multiple lighting modes and ease of use for various daily tasks and outdoor activities.

2. Pakkens indhold

• 1 x RovyVon Angel Eyes E1 Keychain Flashlight
• 1 x Key Ring (Small)
• 1 x Key Ring (Large)
• 1 x lommeclips
• 1 x brugermanual
• 1 x USB-C opladningskabel

3. Produktfunktioner

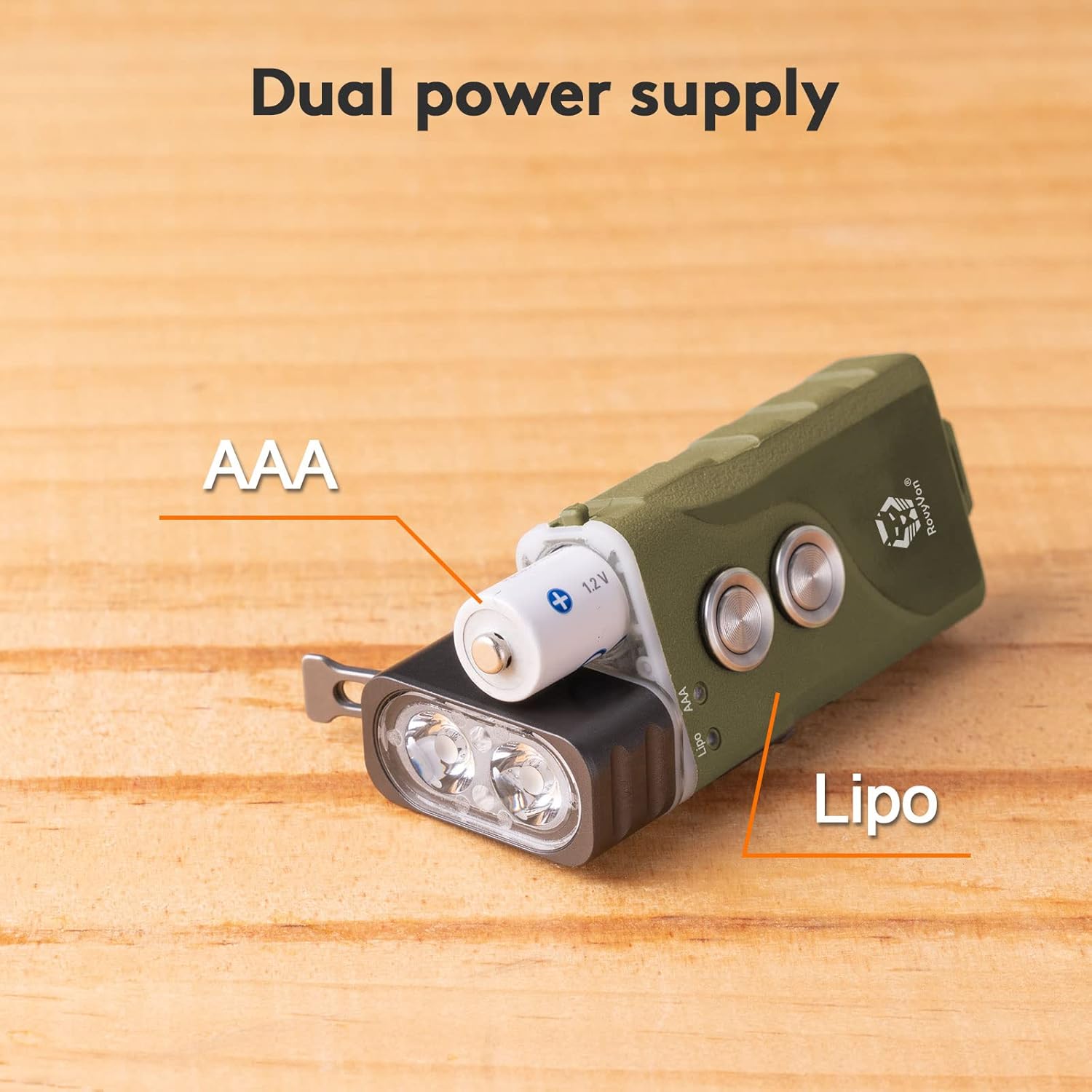

• Dual-Power Supply: Operates with a built-in 300mAh LiPo battery and is compatible with an external AAA battery for extended runtime.
• USB-C genopladelig: Conveniently charges the internal LiPo battery via a USB-C port.
• Two Buttons & 5 Modes: Features a dual-button interface for intuitive control over Moonlight, Low, Medium, High, Momentary On, and Strobe modes.
• Bright Keychain Size: Compact design (2.6”L x 1.08”W x 0.53”H) with dual 4000K warm white emitters, producing up to 500 lumens. Includes a two-way pocket clip for easy carry.
• Holdbar konstruktion: Body made of lightweight and durable polyamide.
• Vandtæt: IPX7 rated for protection against water immersion.

4. Specifikationer

5. Opsætning

5.1 Charging the Internal LiPo Battery

The RovyVon Angel Eyes E1 features a built-in LiPo battery that can be recharged via the USB-C port. Ensure the flashlight is turned off before charging.

1. Find USB-C-opladningsporten på siden af ​​lommelygten.
2. Open the protective rubber cover of the USB-C port.
3. Connect the provided USB-C cable to the flashlight and a compatible USB power source (e.g., computer, wall adapter, power bank).
4. The charging indicator light will show the charging status:
• Ånde blå: Indicates the flashlight is currently charging.
• Solid grøn: Angiver, at opladningen er fuldført.
5. En fuld opladning tager typisk cirka 90 minutter.
6. Når opladningen er færdig, skal du frakoble kablet og lukke gummidækslet forsvarligt for at opretholde vandtætheden.

5.2 Installing/Replacing the AAA Battery

The E1 flashlight supports an external AAA battery for additional power or as a backup when the internal LiPo battery is depleted.

1. Gently pull the head of the flashlight away from the main body to reveal the battery compartment.
2. Insert a standard AAA battery into the compartment, ensuring the positive (+) end faces towards the flashlight head.
3. Carefully push the flashlight head back onto the body until it clicks securely into place.
4. The flashlight will automatically detect the presence of the AAA battery.

6. Betjeningsvejledning

The RovyVon Angel Eyes E1 features two distinct buttons for operation. Button 1 controls the constant-on modes and lock/unlock function, while Button 2 provides quick access to momentary high and strobe modes.

6.1 Button 1 Operations (Main Button)

• Låse: From the OFF state, rapidly triple-click (or more) Button 1. The blue indicator will flash for 3 seconds to confirm locking. This prevents accidental activation.
• Lås op: From the locked state, rapidly triple-click (or more) Button 1. The green indicator will flash for 2 seconds to confirm unlocking.
• Måneskinstilstand: From the OFF state, single-click Button 1 to activate Moonlight mode (0.5 lumens). Click again to turn off.
• Constant On Mode (Low-Medium-High): From the OFF state, rapidly double-click Button 1 to activate the memorized brightness level. Once on, single-click Button 1 to cycle through Low (10 lumens) → Medium (70 lumens) → High (500 lumens).
• Sluk: When the light is on in any constant mode, press and hold Button 1 for 0.5 seconds to turn off.

6.2 Button 2 Operations (Auxiliary Button)

• Momentary On (Turbo): Press and hold Button 2 for instant access to the highest brightness mode (500 lumens). Release Button 2 to turn off.
• Strobetilstand: Rapidly double-click Button 2 to activate Strobe mode. Single-click Button 2 to turn off Strobe mode.
• Sluk: When the light is on (from Button 2 activation), press and hold Button 2 for 0.5 seconds to turn off.

6.3 Operationel demonstrationsvideo

Watch this video for a visual guide on operating the RovyVon Angel Eyes E1 flashlight, including button functions and mode cycling.

7. Vedligeholdelse

• Rensning: Tør lommelygtens hus af med en blød kludamp klæde. Brug ikke skrappe kemikalier eller slibende materialer.
• USB-C-port: Keep the USB-C port clean and free of debris. Ensure the rubber cover is securely closed when not charging to maintain water resistance.
• Batteripleje: Hvis du bruger et eksternt AAA-batteri, skal du fjerne det, hvis lommelygten ikke skal bruges i længere tid, for at forhindre lækage.
• Opbevaring: Opbevar lommelygten på et køligt, tørt sted væk fra direkte sollys og ekstreme temperaturer.

8. Fejlfinding

• Lyset tænder ikke:
  • Check if the flashlight is in locked mode (triple-click Button 1 to unlock).
  • Ensure the internal LiPo battery is charged.
  • If using an external AAA battery, verify it is inserted correctly and has sufficient power.
• Dæmpet lysudgang:
  • The battery level may be low. Recharge the internal LiPo battery or replace the AAA battery.
  • Ensure the flashlight head is fully seated and making proper contact if using the AAA battery.
• Charging Indicator Not Working:
  • Kontroller, at USB-C-kablet er korrekt tilsluttet både lommelygten og strømkilden.
  • Prøv et andet USB-C-kabel eller en anden strømkilde.

9. Garanti og support

The RovyVon Angel Eyes E1 flashlight comes with a 2 års garanti fra købsdatoen. Denne garanti dækker fabrikationsfejl og problemer, der opstår ved normal brug.

For warranty claims, technical support, or any questions regarding your product, please contact RovyVon customer service through their official webwebstedet eller forhandleren, hvor produktet blev købt. Gem venligst din købsbevis for at validere garantien.
